| Category | Specification Detail | Category | Specification Detail | |
|---|---|---|---|---|
| Basic Data | Waterproof | 99.99% | Fireproof | Grade A1 |
| Wind Resistance | 0.6KN/㎡ | Seismic Resistance | Grade 8 | |
| Sound Resistance | >=30dB | Lifetime | More than 20 years | |
| Roof Live Load | 0.5KN/㎡ | Floor Live Load | 2KN/㎡ | |

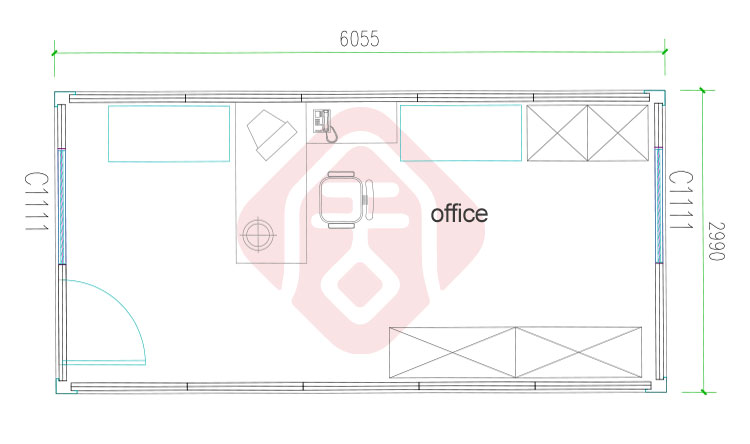

| Details | Size | 5950*3000*2810mm | ||

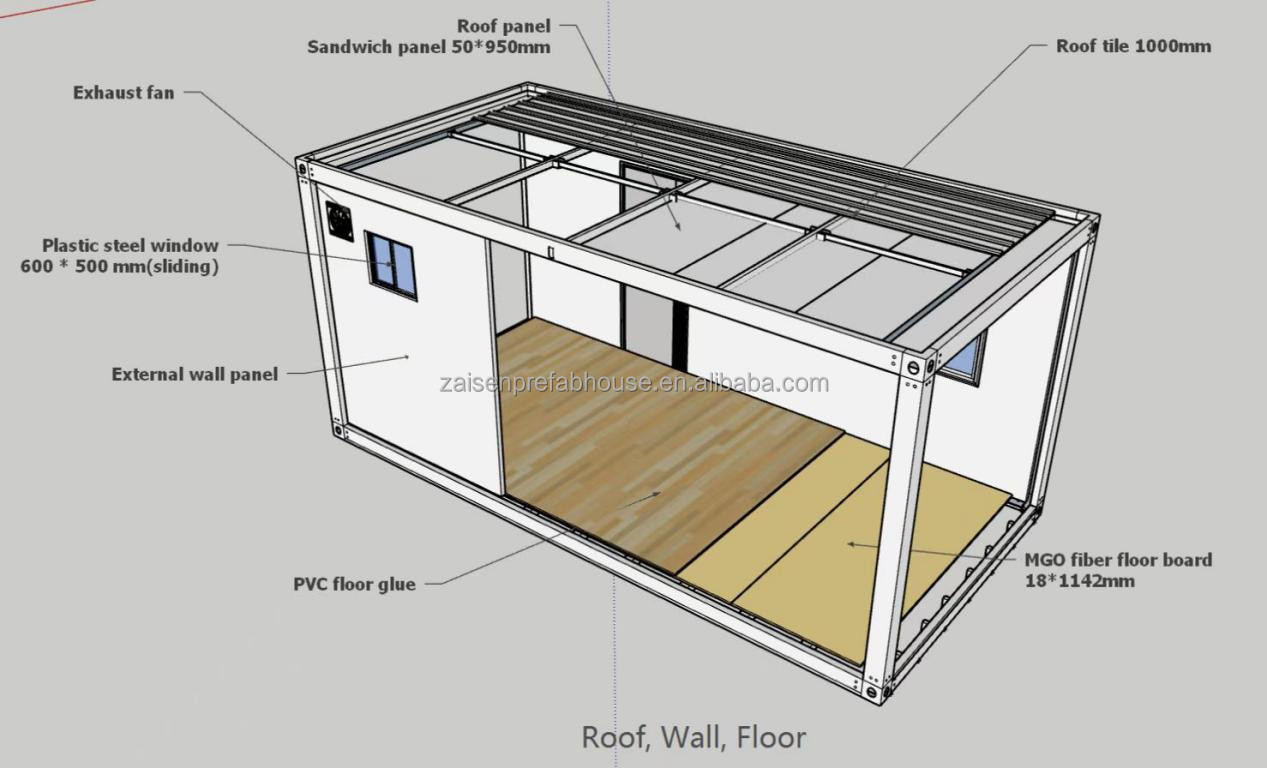

| Roof | 0.4mm steel plate; 100mm glass wool insulation 16kg/m³; Ceiling galvanized steel sheet 0.3mm. | |||
| Floor | Steel frame SGC440 2.3mm; 18mm cement board; 1.6mm PVC protection layer. | |||
| Panels | 0.3mm galvanized and painted steel sheet; 50mm rock wool sandwich panel. | |||
| Doors | Steel door 925mm*2035mm | |||
| Windows | Plastic steel with double layer; Glass window 925*1100mm. | |||
| Electrics | Electrics lighting led*2; Distribution box; 4 socket 10A; 1 socket AC 16A; 1 switch 10A. | |||

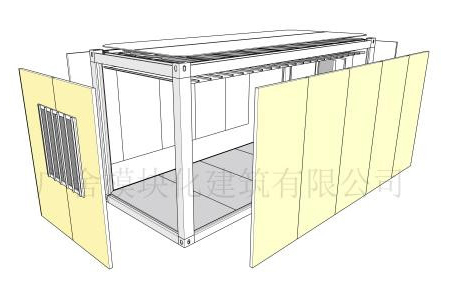

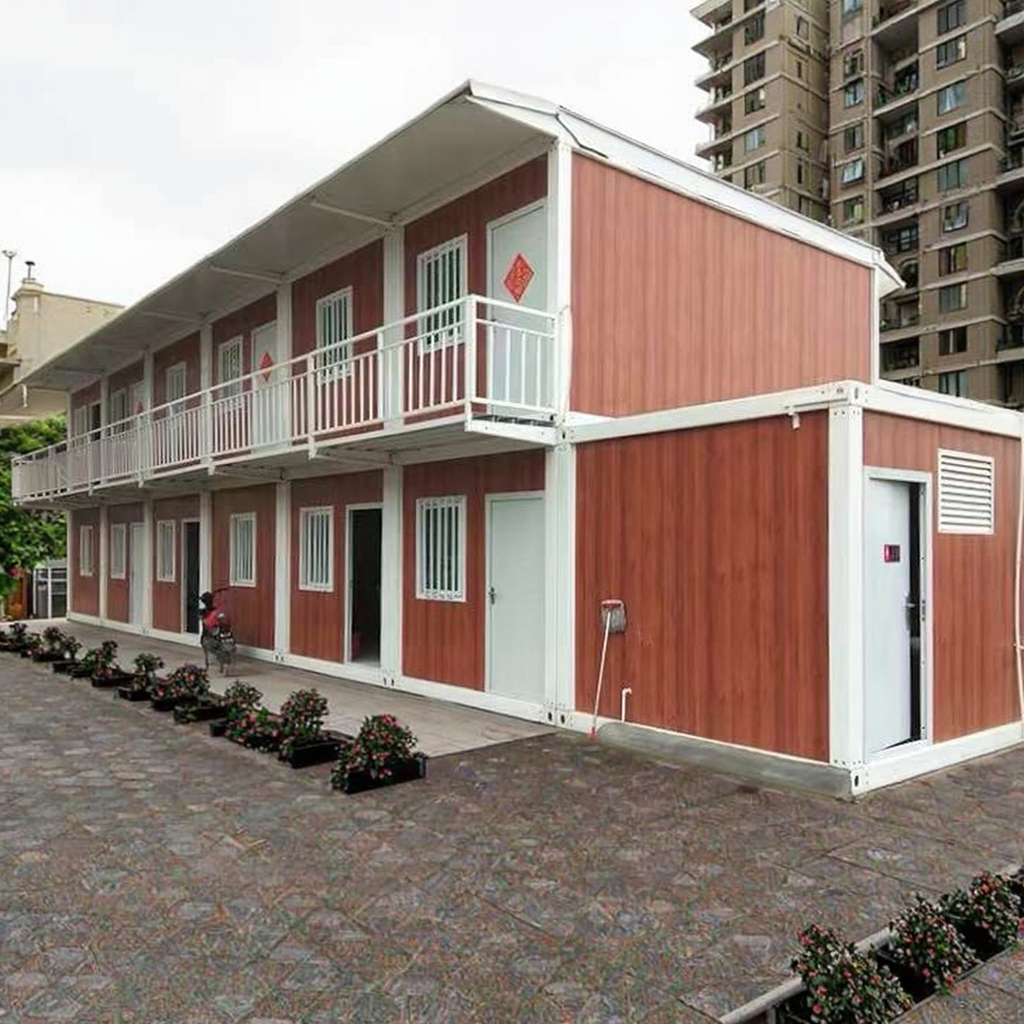

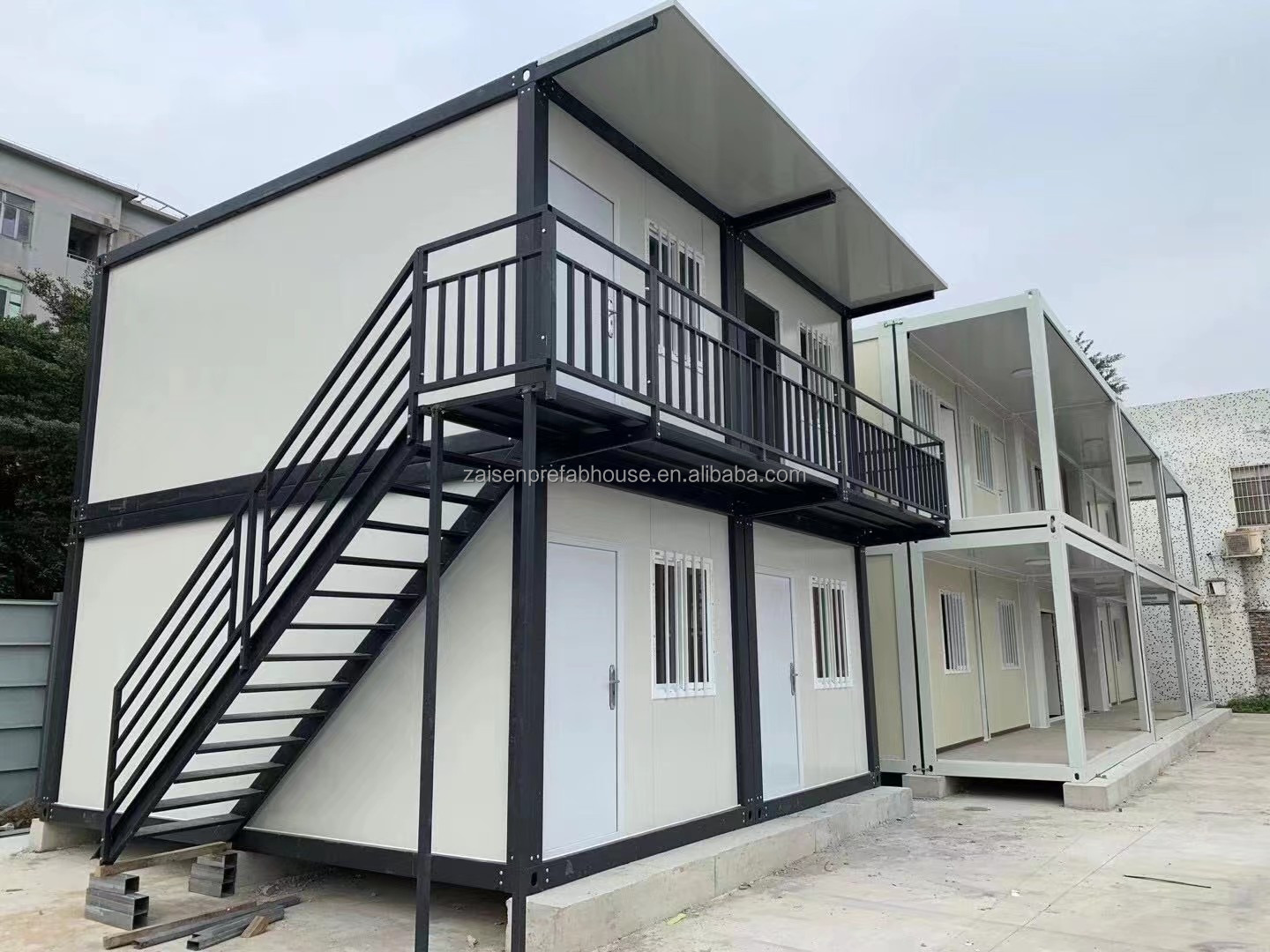

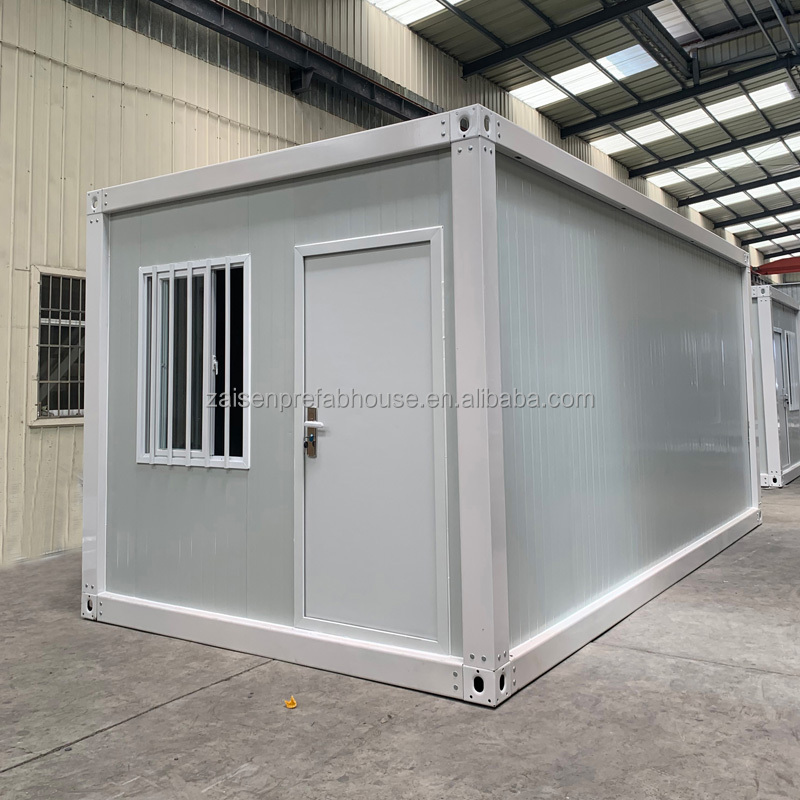

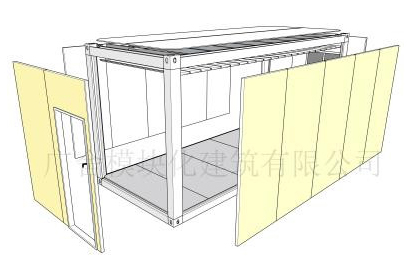

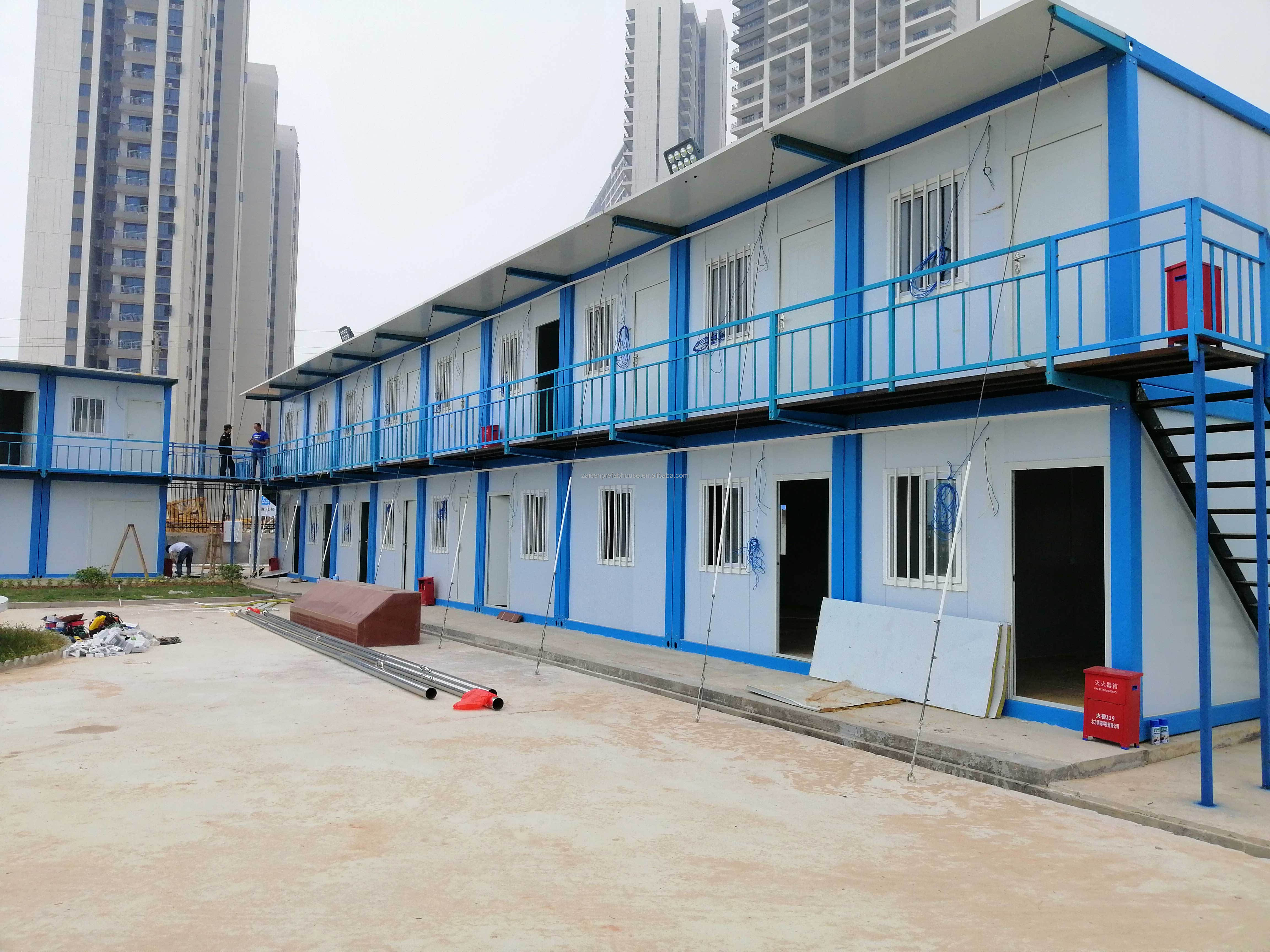

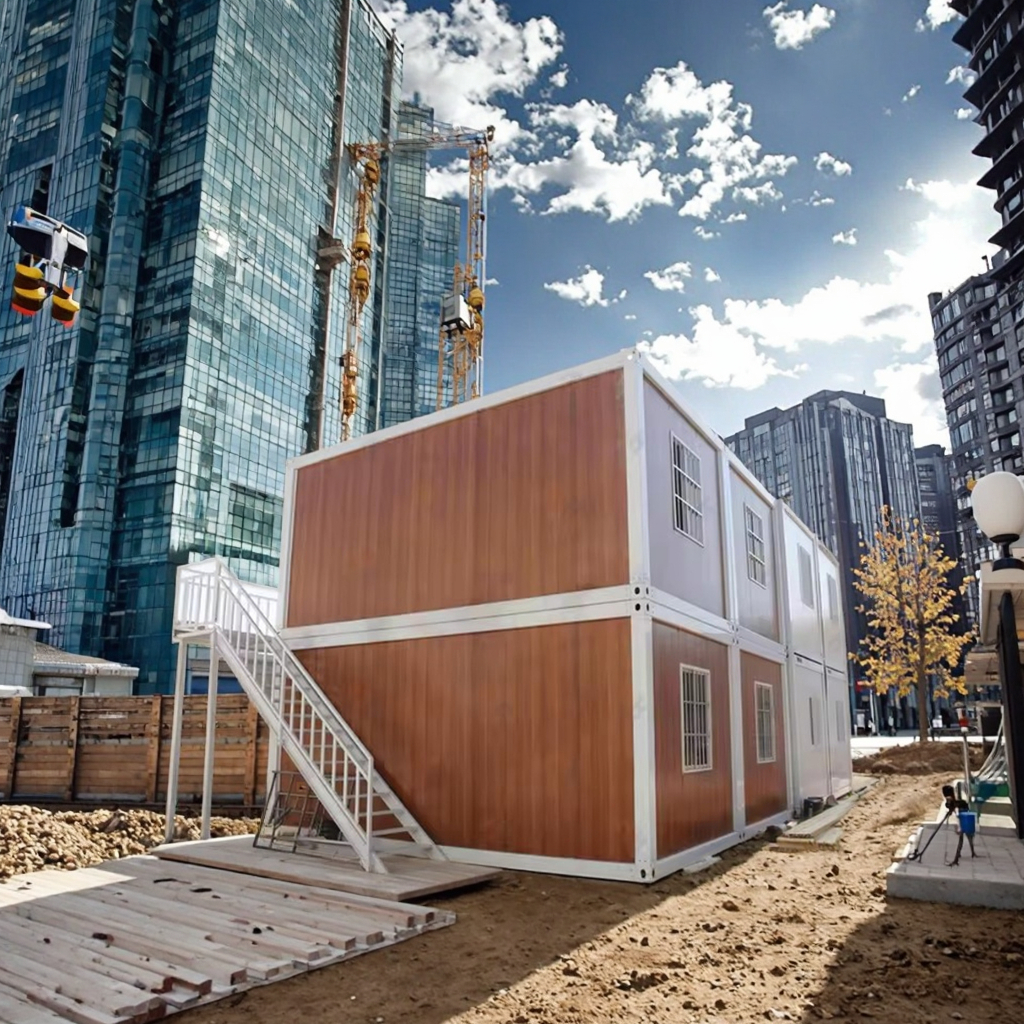

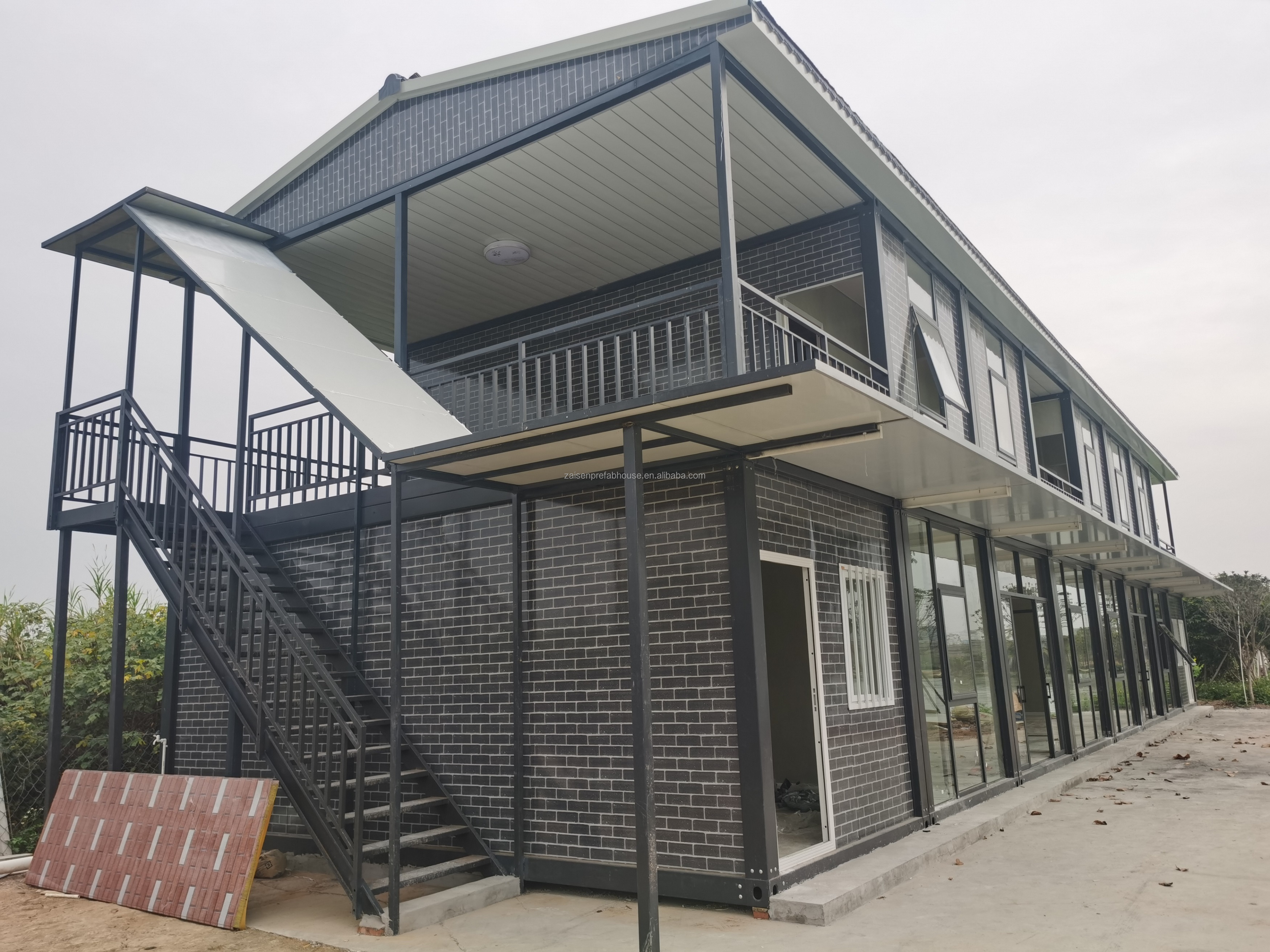

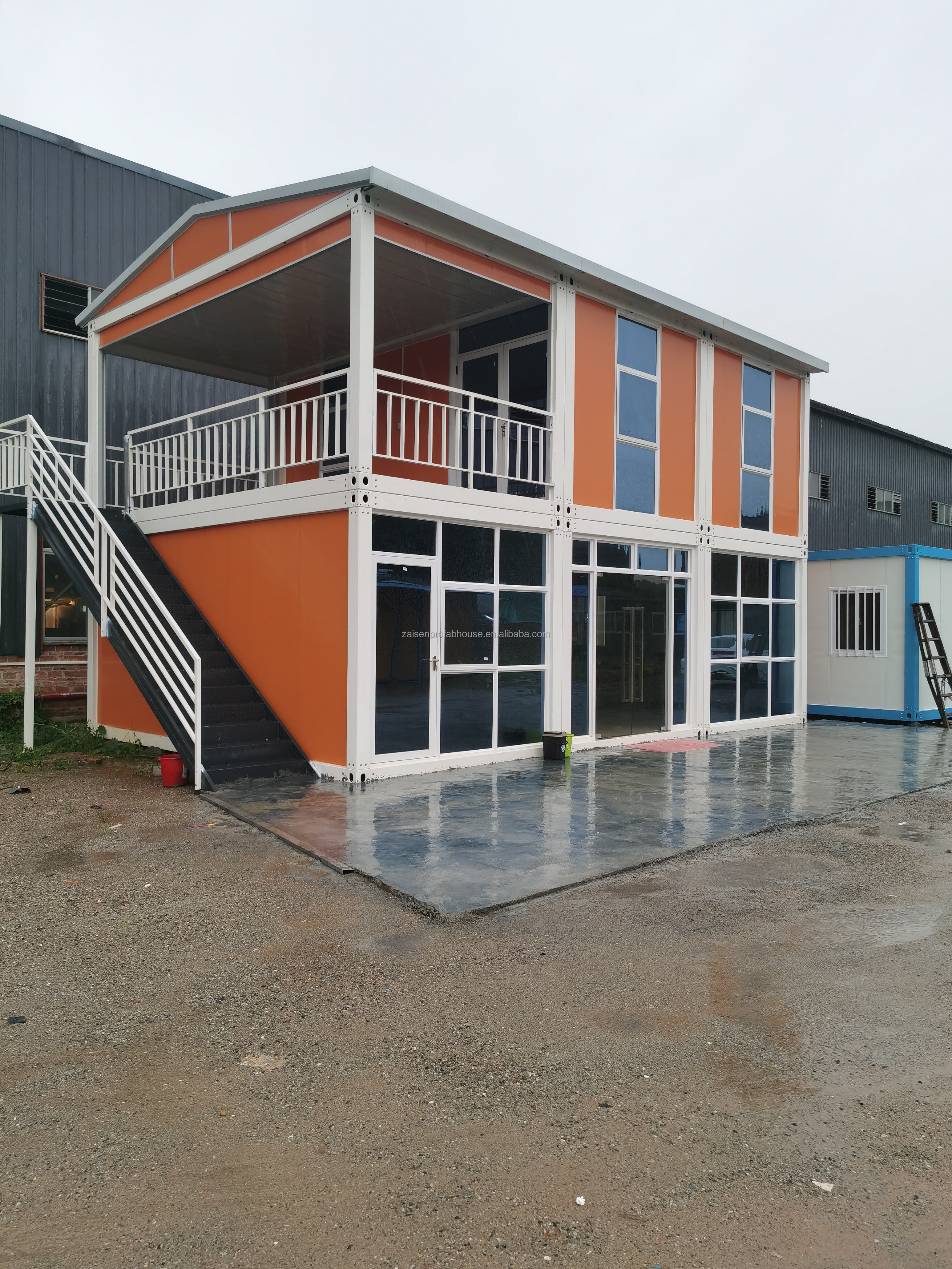

Detachable container house is flexible, it can be assembled into the shape you want, so the fittings are produced in the factory, you just need to assemble it like building blocks, it is widely used in staff dormitories, temporary office space, stores, security rooms, etc.
Note: We will provide sockets and switches that comply with the standards of your country.

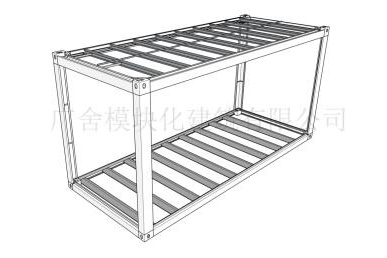

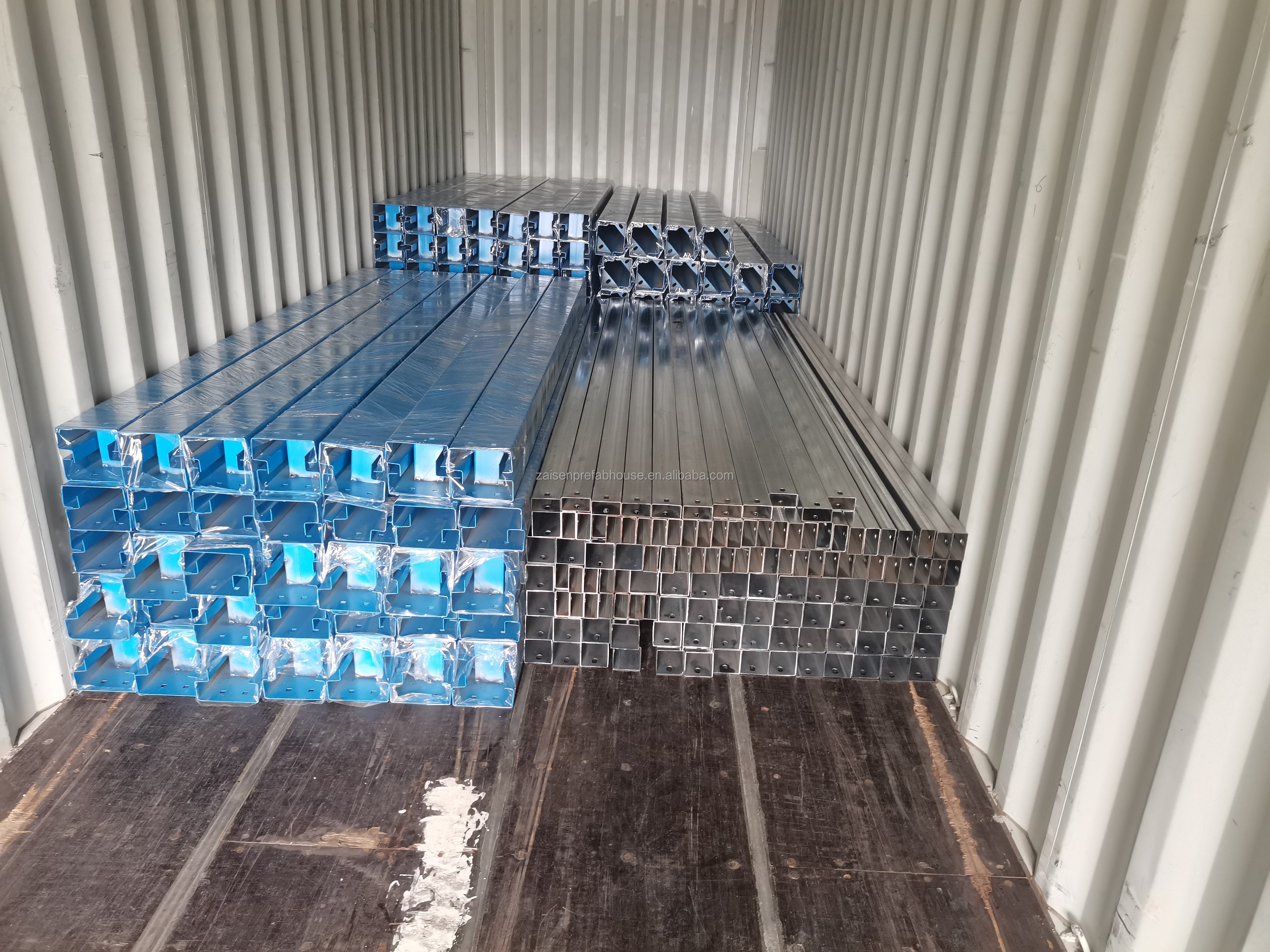

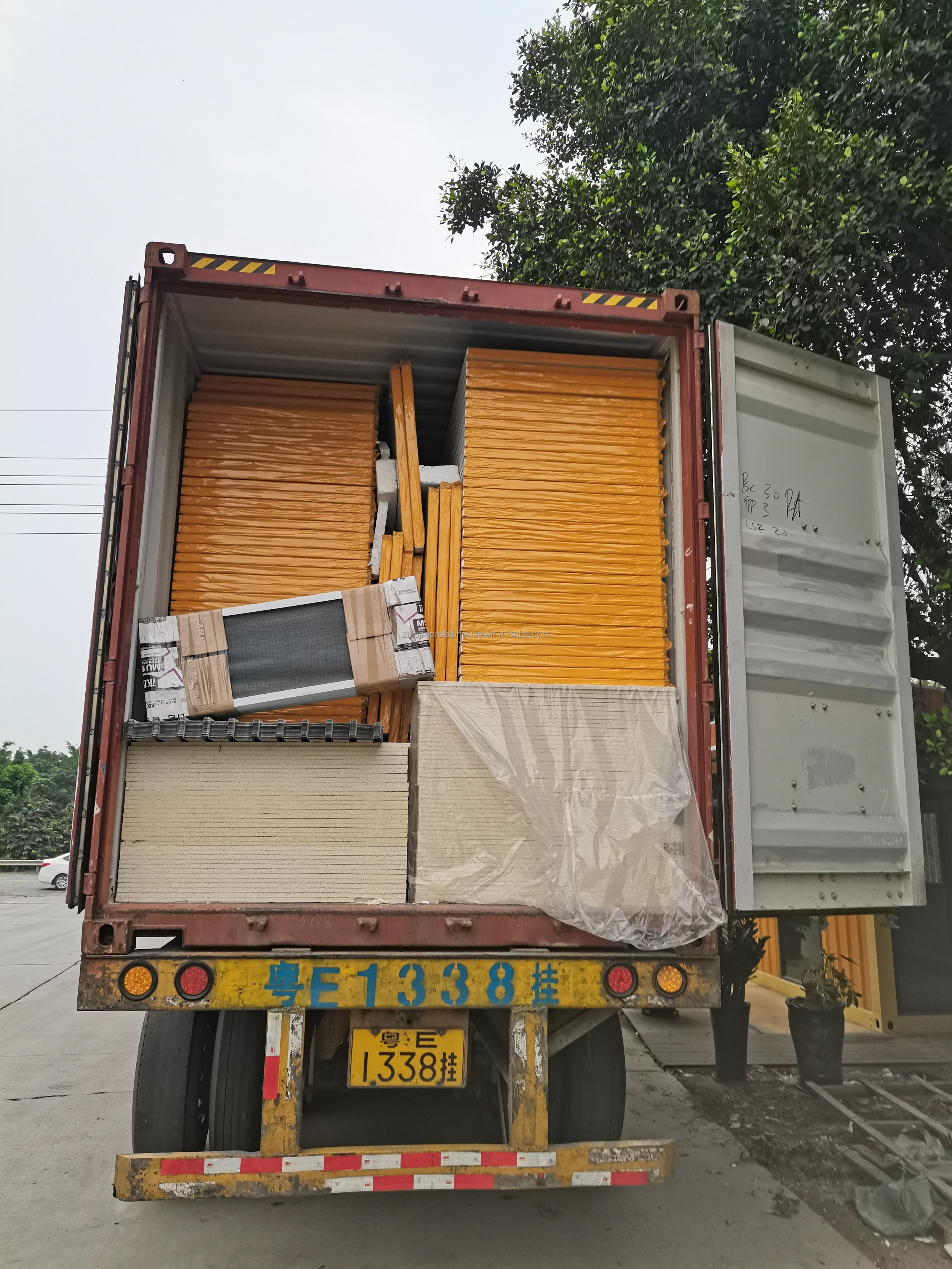

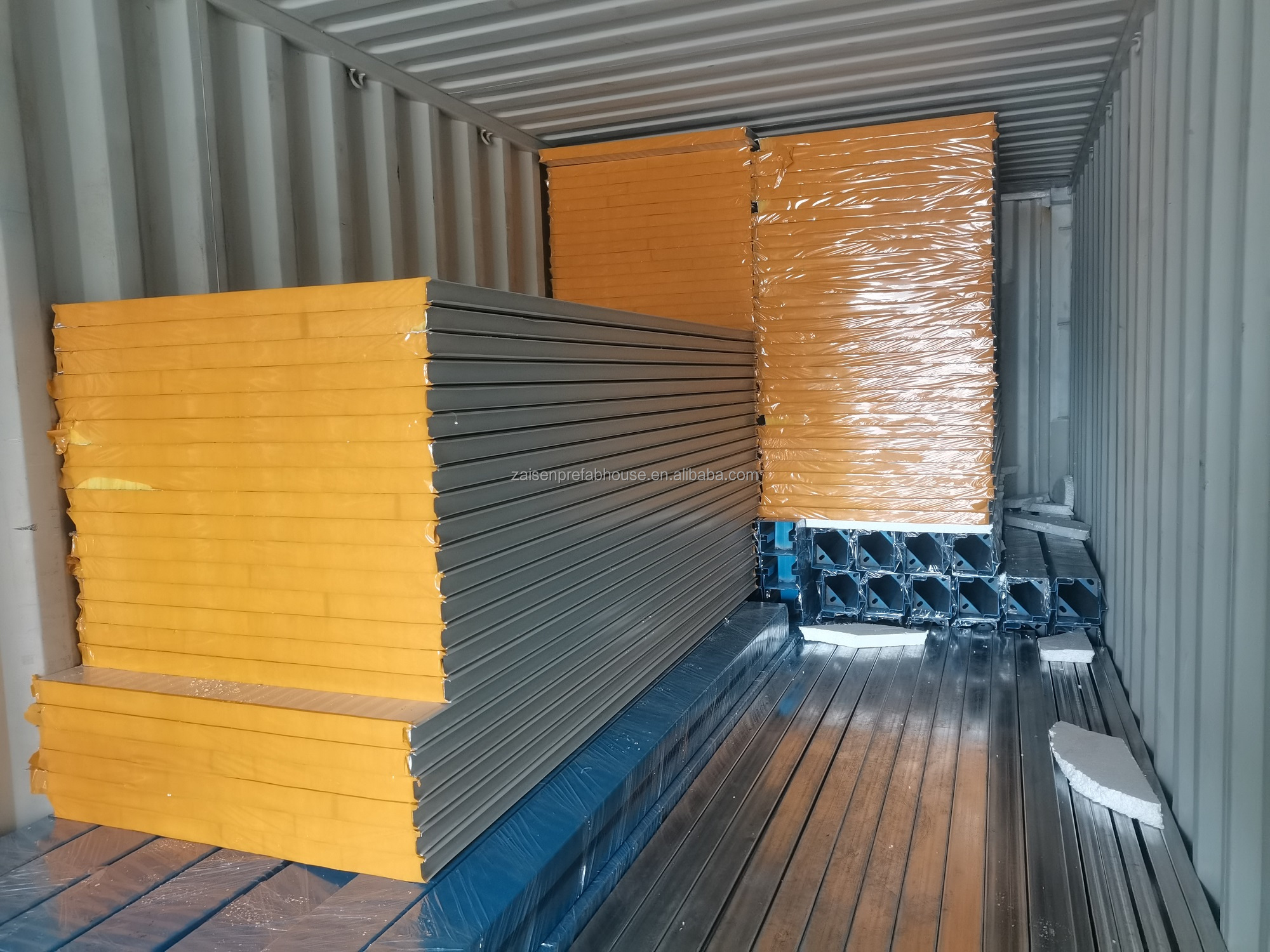

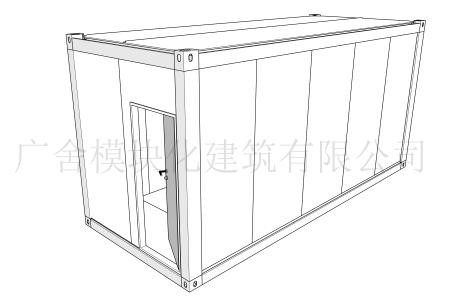

One standard detachable container weigh is about 1.7 tons. The detachable containers are characterized by easy transportation, each part is disassembled, so it saves a lot of shipping space, and a 40HC cabinet can hold up to 15 sets of standard boxes. It is consisted of steel frame and steel plate, has a wind pressure resistance of 0.6KN/㎡, the earthquake resistance is >8 grade, and has a good thermal insulation performance, the combustion performance of the thermal insulation material is A1 level non-combustible.
The visible parts of the house can be customized, including doors, windows, interior and exterior walls, roof, etc. Color, material, version, thickness, etc. can be customized according to customer needs.
