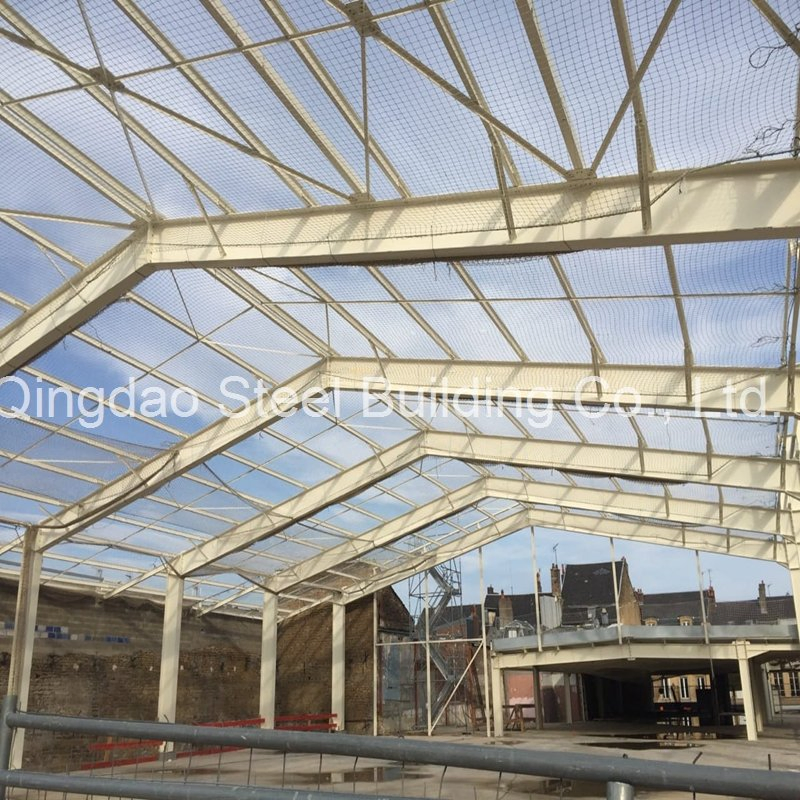

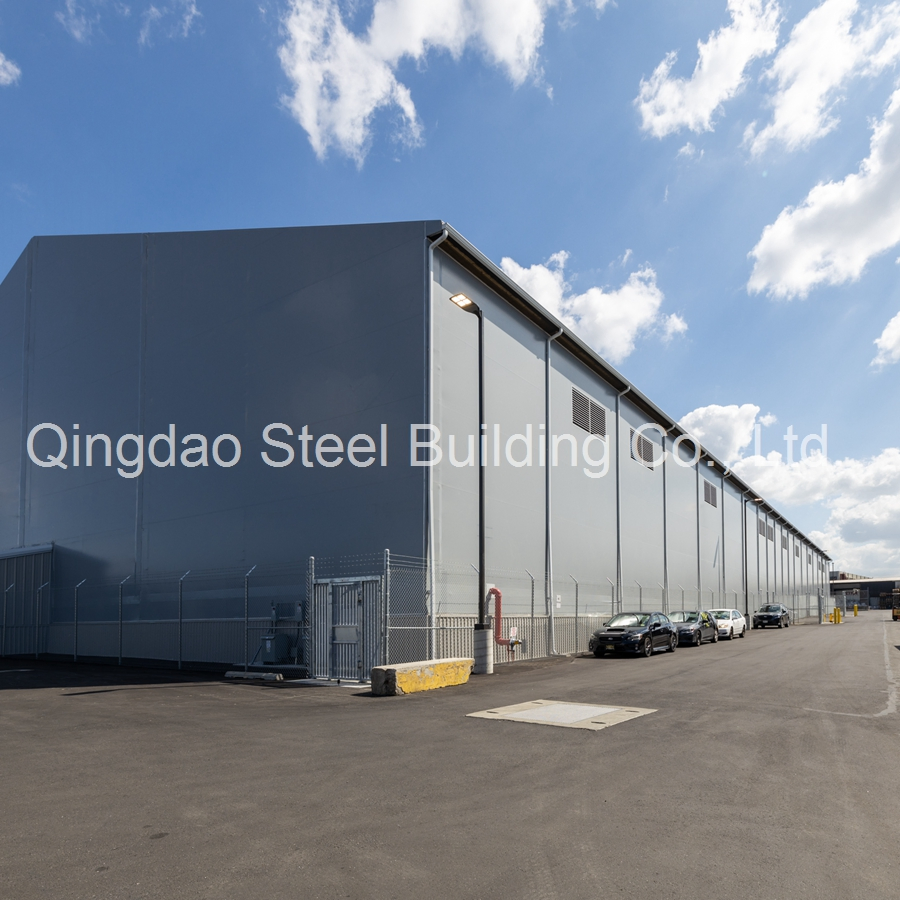

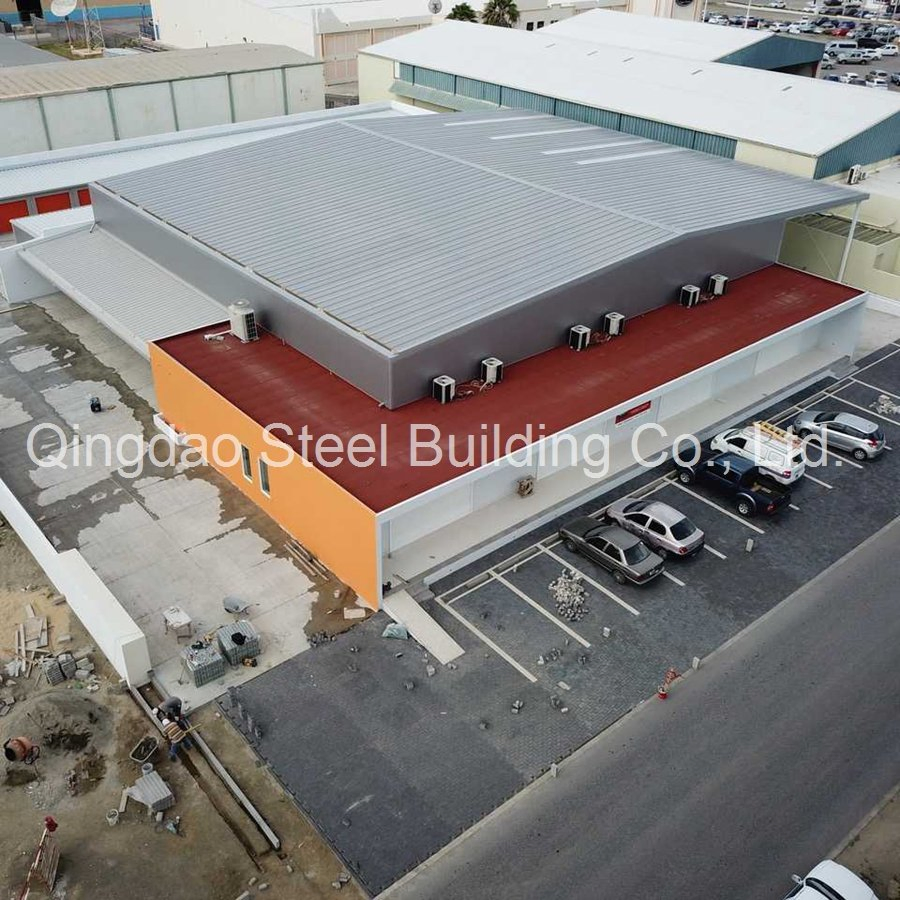

Low Cost Modular Prefabricated Steel Structure Warehouse Construction / Office / Garage / Factory Building
Prefab Industrial Metal Prefabricated Structural Steel Frame Structure Storage Construction Warehouse. Steel Structure / Prefabricated Building / Steel Building / Steel Workshop / Steel Warehouse / Steel Structure Building Factory Warehouse.
| Items | Specification Details | |
|---|---|---|

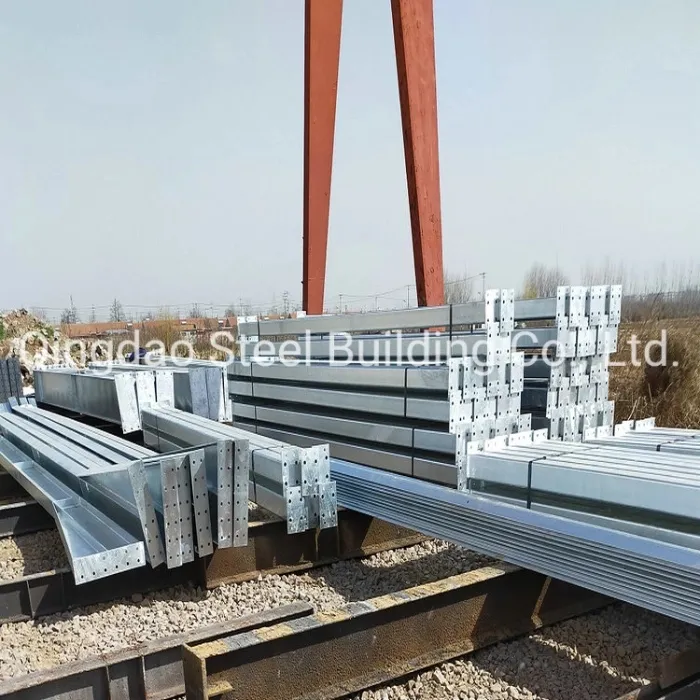

| Main Steel Frame | Column | Q235, Q355, Q345 Welded or Hot Rolled H Section Steel |
| Beam | Q235, Q355, Q345 Welded or Hot Rolled H Section Steel | |
| Secondary Frame | Purlin | Q235, Q345, Q355 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance System | Roof Panel | EPS / Glass Fiber / Rock Wool / PU Sandwich Panel / Single Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminum Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Aluminum Alloy Swing Door | |
| Rainspout | PVC | |
| Live Load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake Resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Finishing Options | Vast array of colors available | |

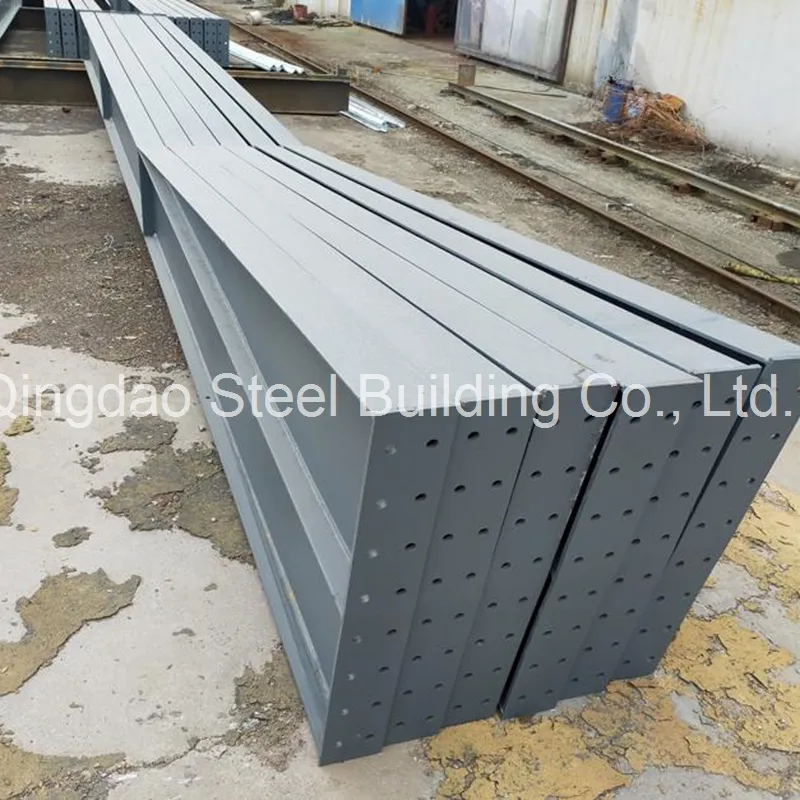

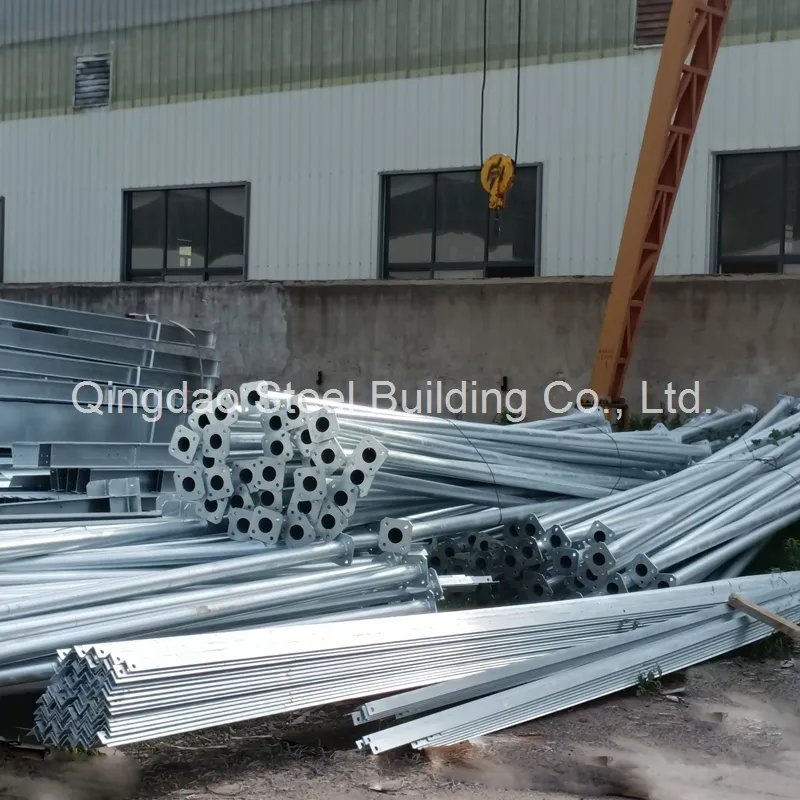

| Surface Treatment | Two Layer Epoxy Paint Or Hot Dip Galvanized | |
Over 15 years of export experience. Structural steel designs comply with the following standards:

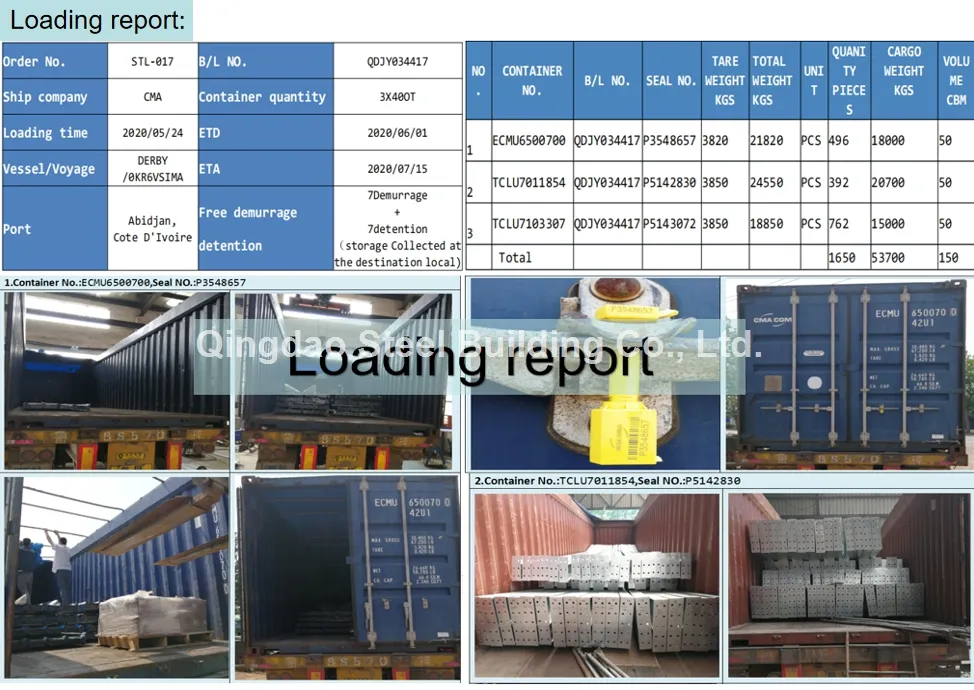

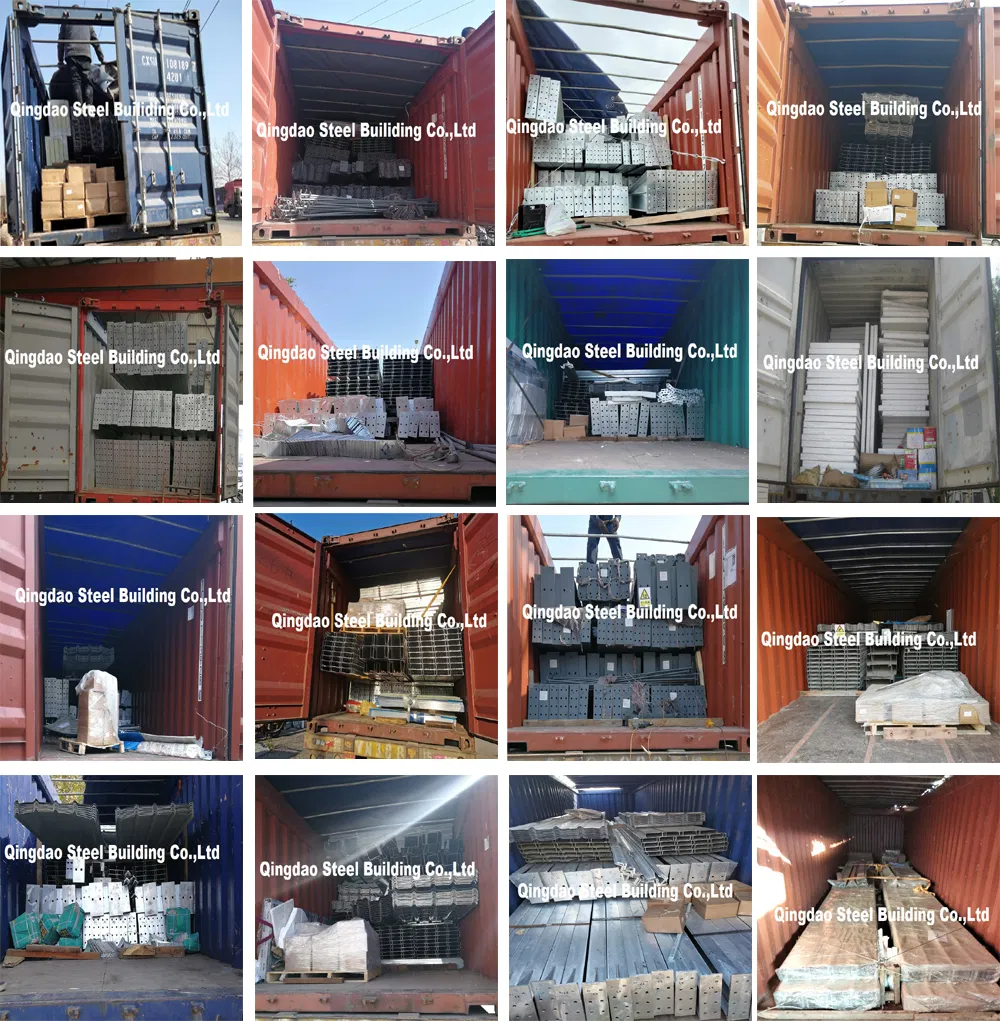

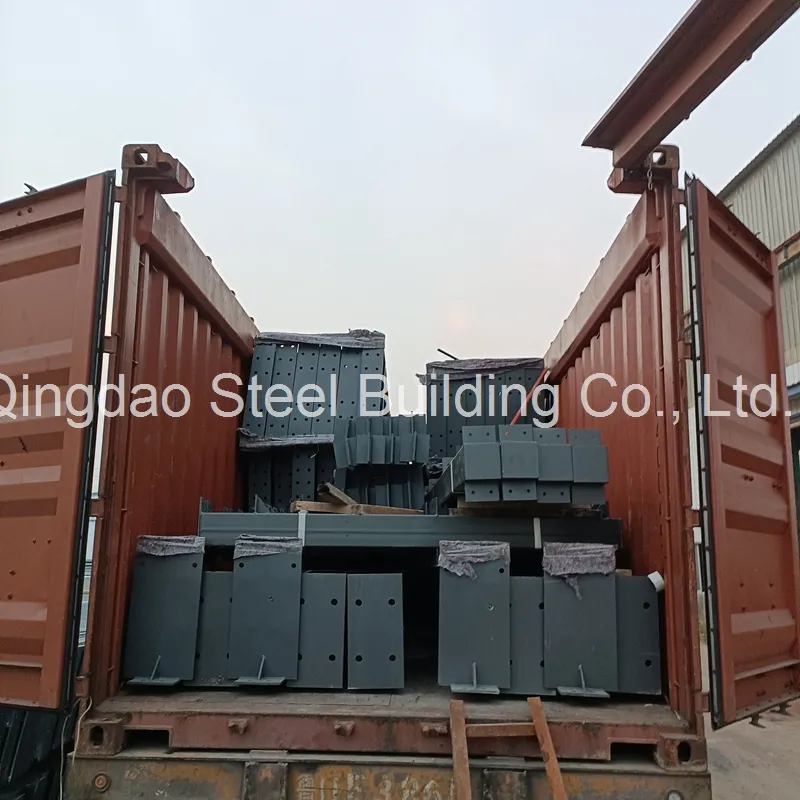

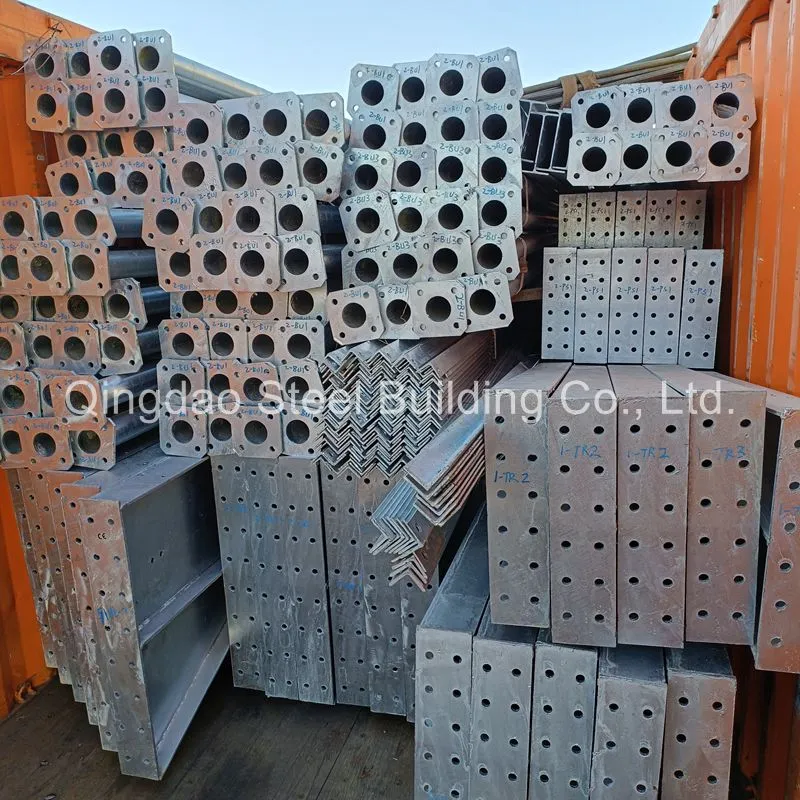

Main steel frame and structured components are loaded securely in 40'OT, and roof/wall panels are packed in 40'HQ containers.
| Application | Steel structure building, steel buildings, prefabricated steel structures, steel warehouse, steel workshop, hangar, sports hall, shopping mall, cow shed, poultry house, etc. |
| Clear Span (Width) | 6~50m without middle columns |
| Height | 2~20m |
| Length | Customized as per requirements |

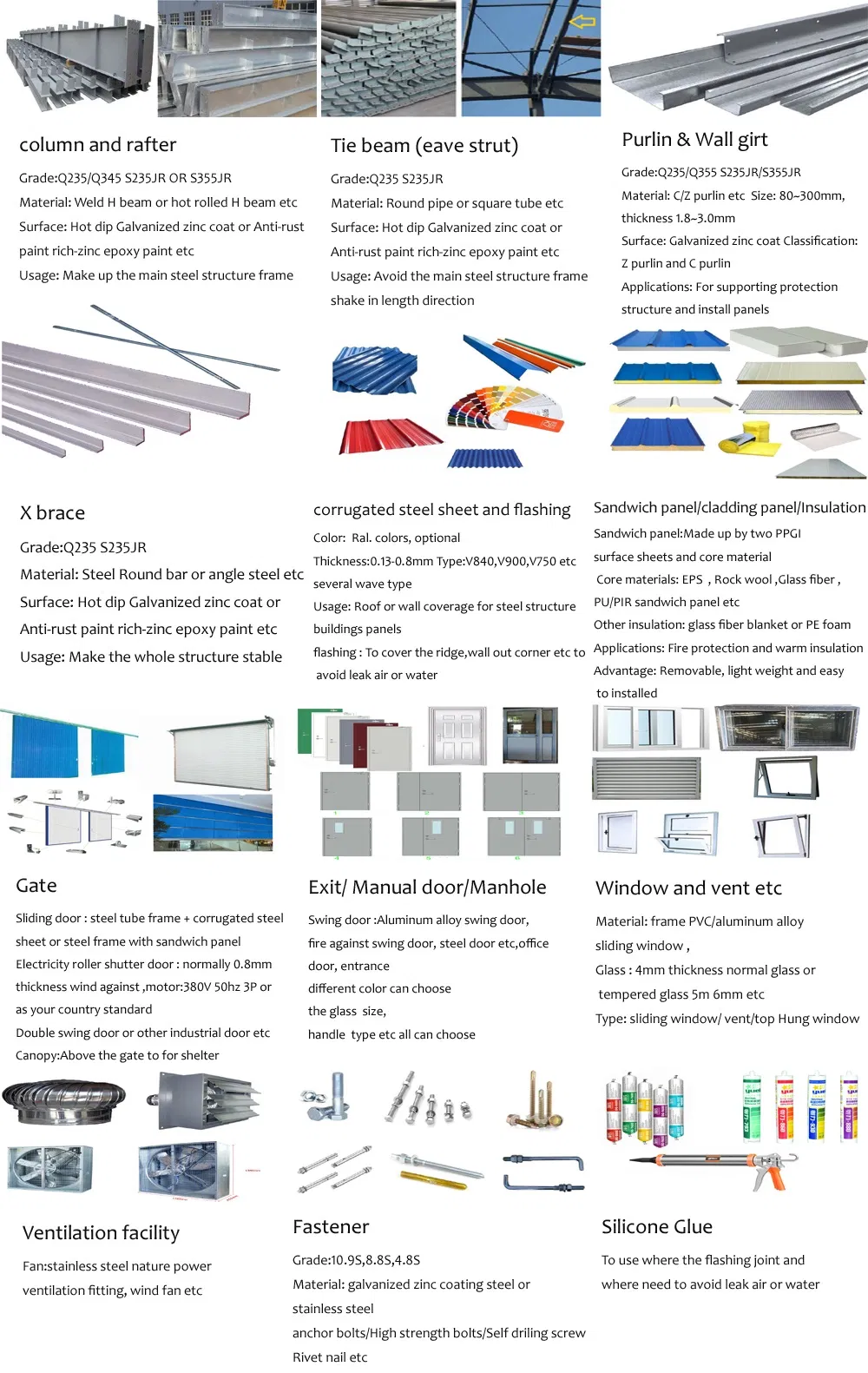

| Material Grade | Q345 (S355JR) or Q235 (S235JR) steel, or as requested |
| Column & Rafter | Welded or Hot rolled H-beam |

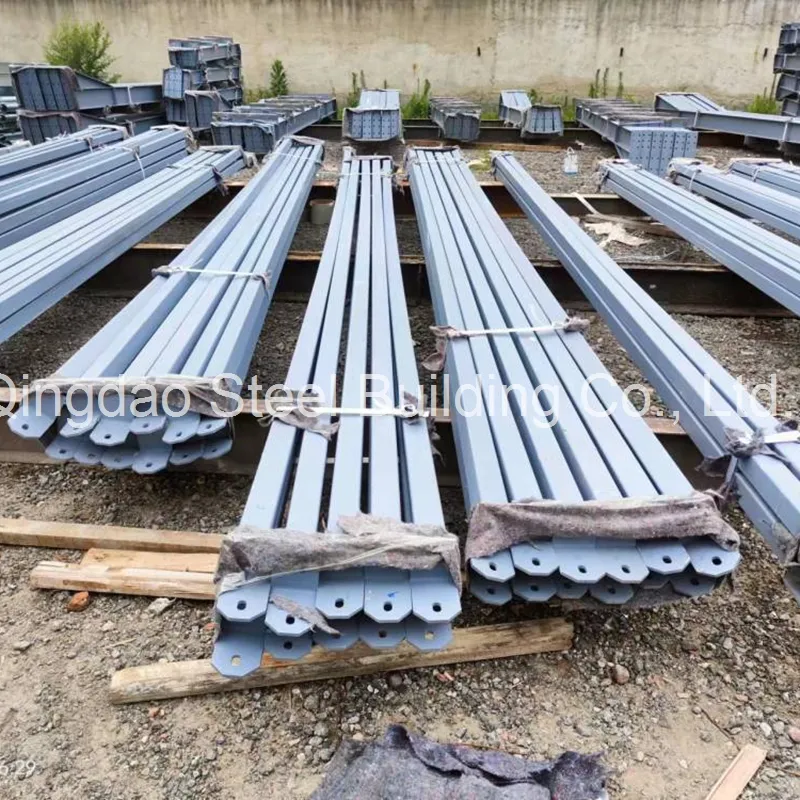

| Tie Beam | Round pipe or square tube |
| X Brace | Round steel bar, angle steel, or as requested |
| Purlin | C purlin, Z purlin (Thickness: 2.0mm, 2.2mm, 2.5mm, 3.0mm) |
| Sag Rod | Steel round bar, angle, C purlin, etc. |
| Wall & Roof Coverage | Single corrugated steel sheet (0.12~1.2mm) or EPS / Rock wool / Glass fiber / PU sandwich panel (Thickness: 50mm, 75mm, 100mm, 150mm, 200mm) |

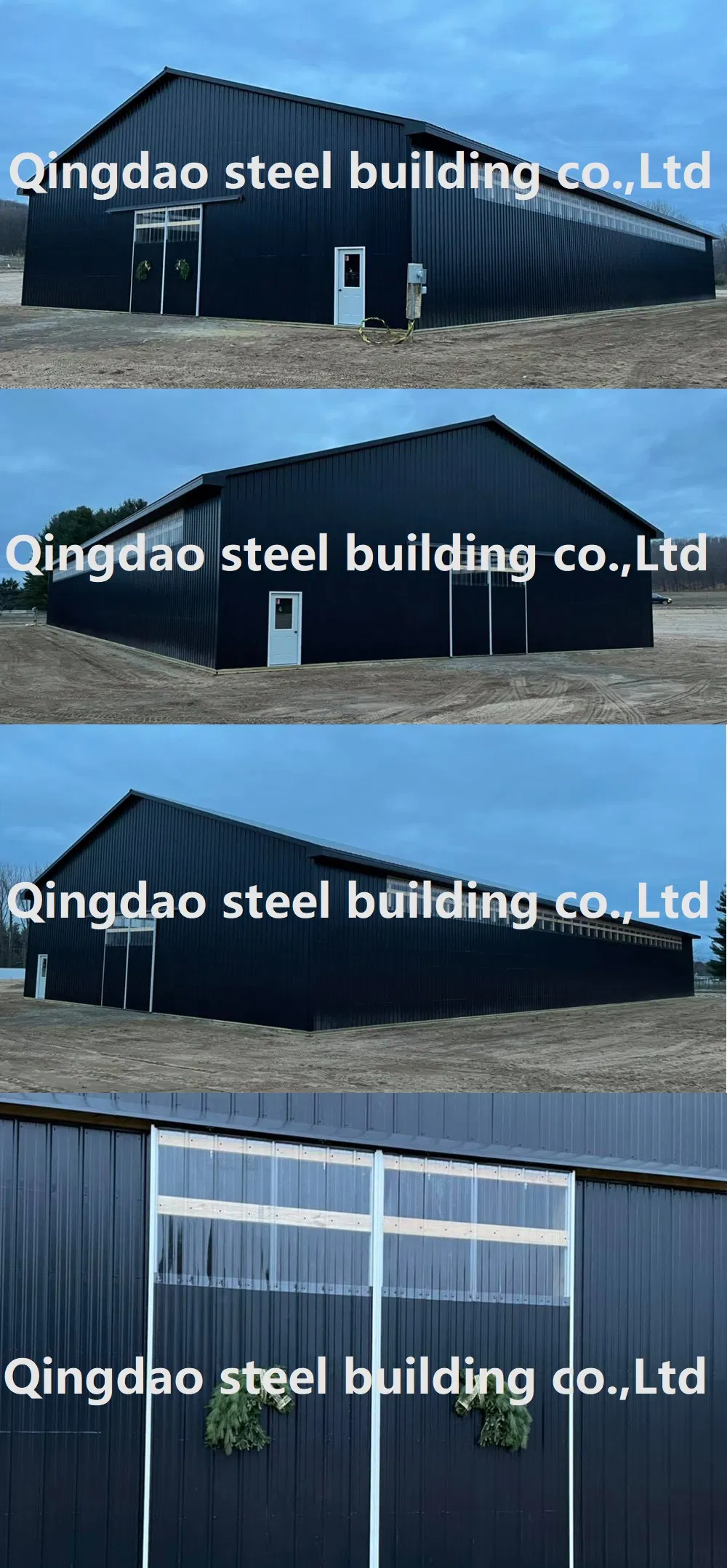

| Gate | Electric roller shutter door / Sliding door |
| Exit Door | Plastic steel / Aluminum alloy swing door / Steel swing door |
| Window | Plastic steel or Aluminum alloy frame sliding/vent/top-hung windows |
| Surface | Shot blasting with anti-rust paint, rich-zinc epoxy paint, or hot dip galvanization |
| Certificate | ISO9001, CE EN1090 EXC2, IWE, etc. |
| Quality Control | Third-party inspection (SGS, QIMA, BV) accepted |
| Crane | 5MT, 10MT, 15MT, etc. |
| Other Accessories | Gutter, flashing trimming cover, downspout, ventilation fitting, skylight belt, bolts, anchor bolts, self-tapping screws, etc. |
| Item | Popular Size | Popular Height | Coverage Type | Gate Size |
|---|---|---|---|---|

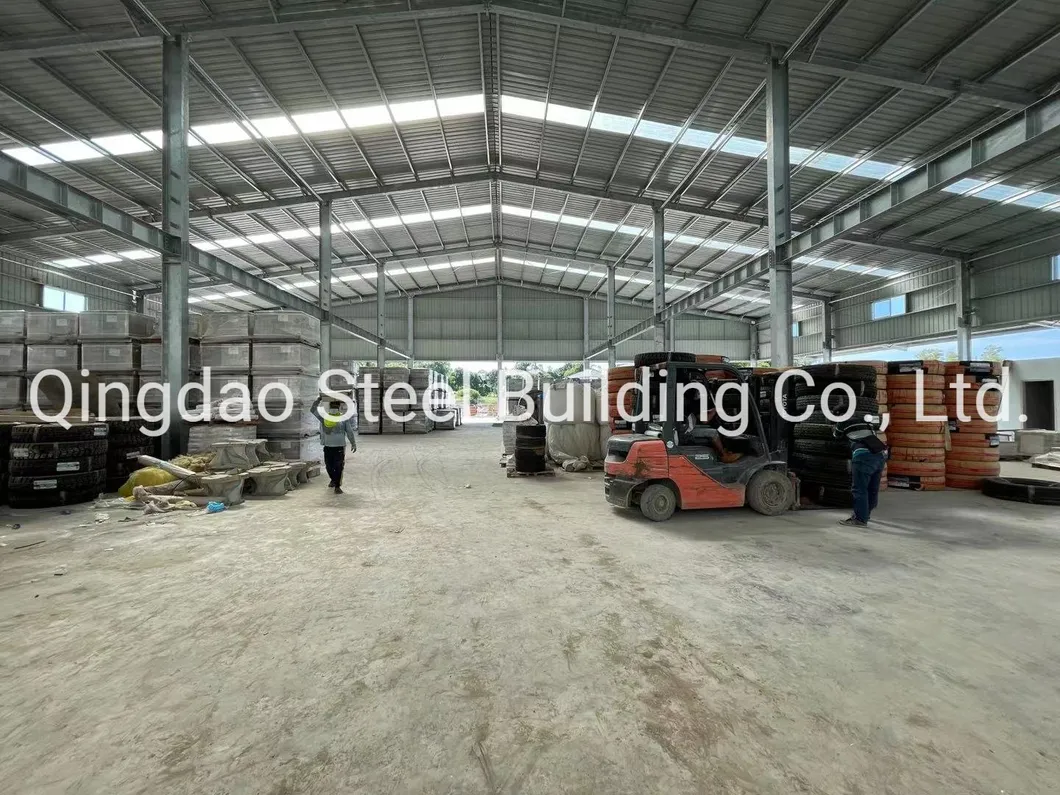

| Steel Warehouse | 20x30m | 5m | Single corrugated steel sheet | 4x4.5m |
| Steel Workshop | 20x50m | 6m | Insulated roof with single steel sheet wall | 4.5x5m |
| Farm Storage | 16x36m | 4m | Single steel sheet or roof only | 4x3.5m |
Please provide the following design criteria when submitting an inquiry:
|

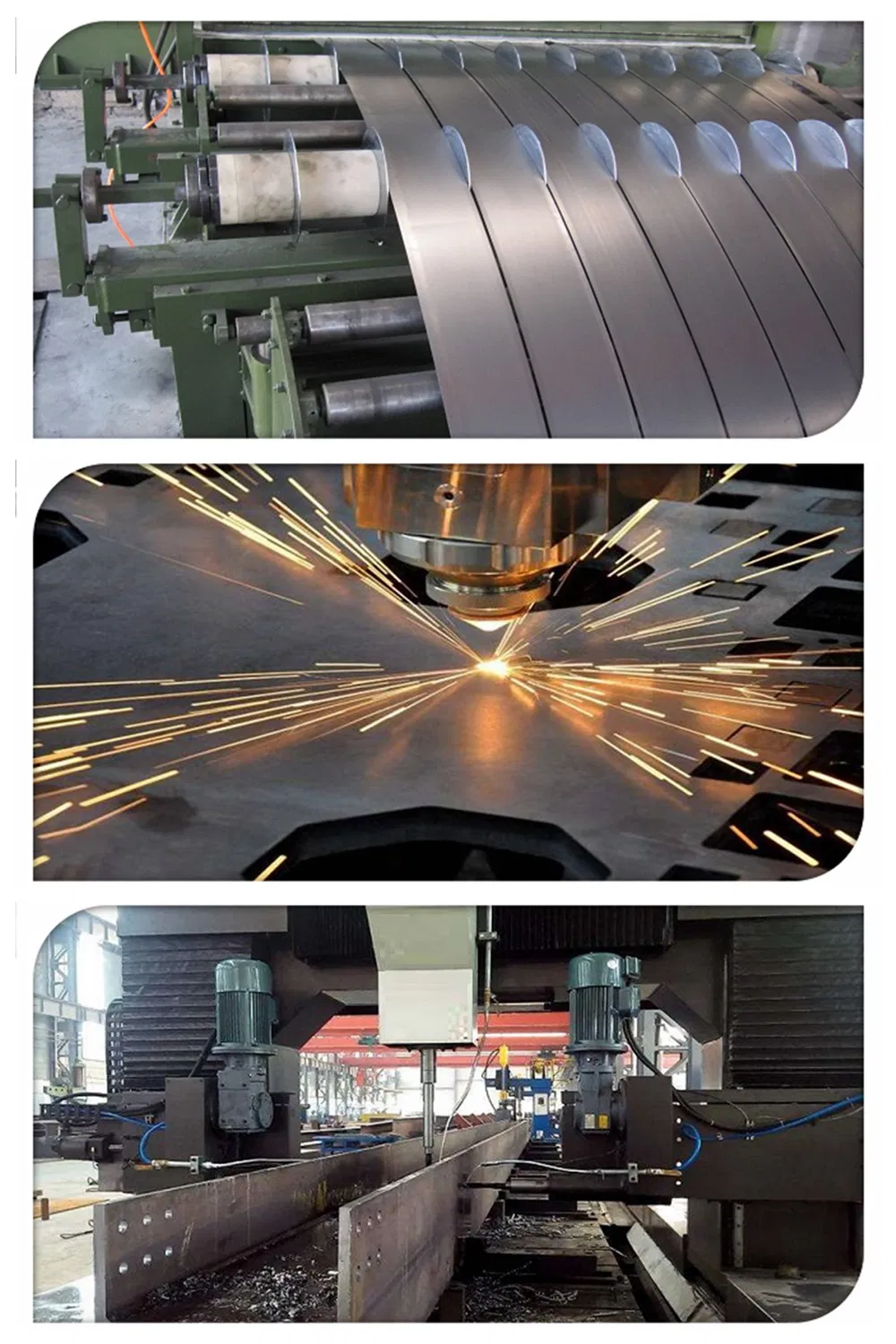

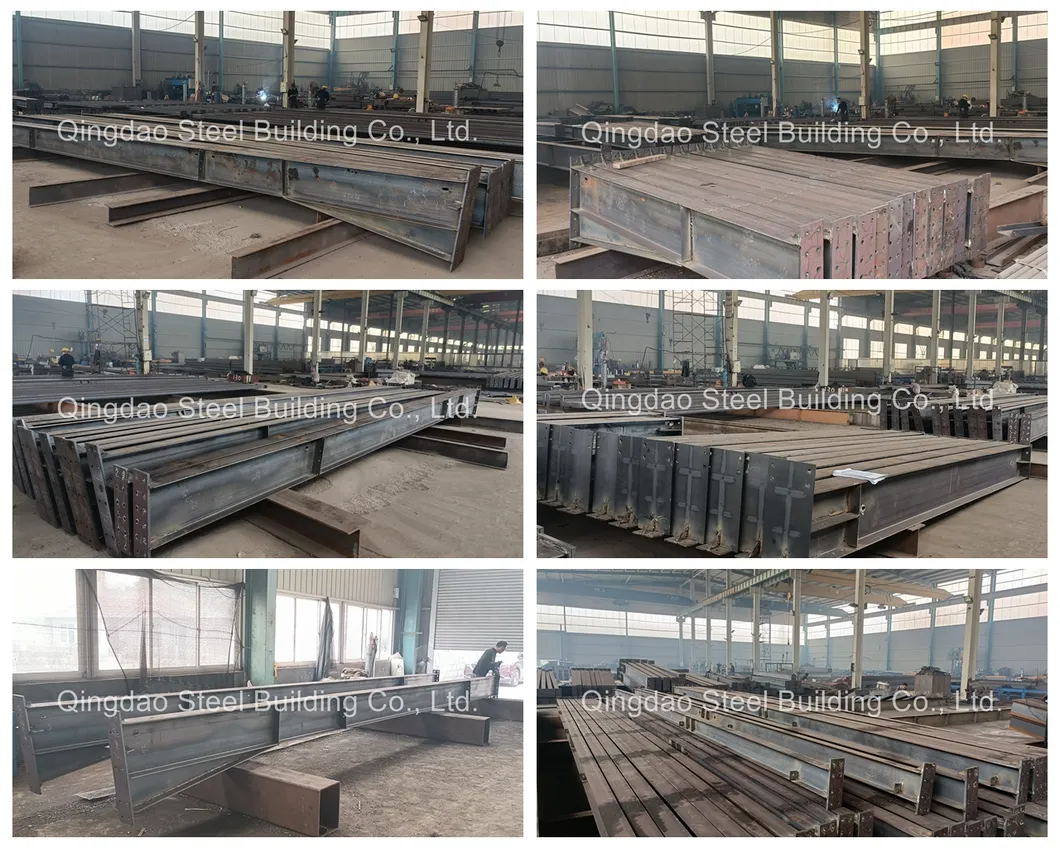

Precision Manufacturing EquipmentSlitting Cutting: We utilize advanced slitting cutting technology to prevent defects commonly associated with traditional flame cutting (such as edge unevenness, cracks, unsmoothness, or slag issues). Laser Cutting: Greatly improves cutting accuracy, aesthetics, and product alignment, eliminating component deformation and welding porosity. 3D H-Beam Drilling Machine: Realizes three-directional H-beam drilling (web and flange) simultaneously, improving hole-making accuracy. |
|
|

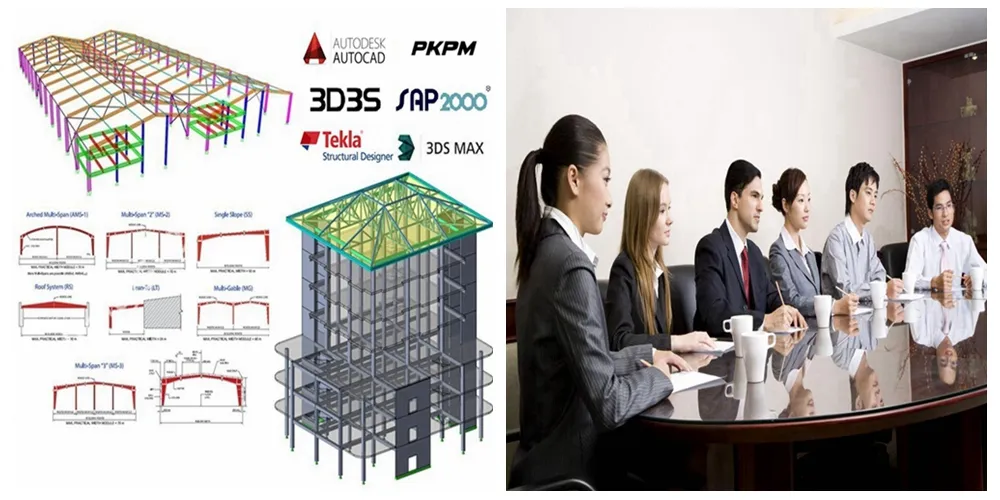

| Design Experience | Team Work |

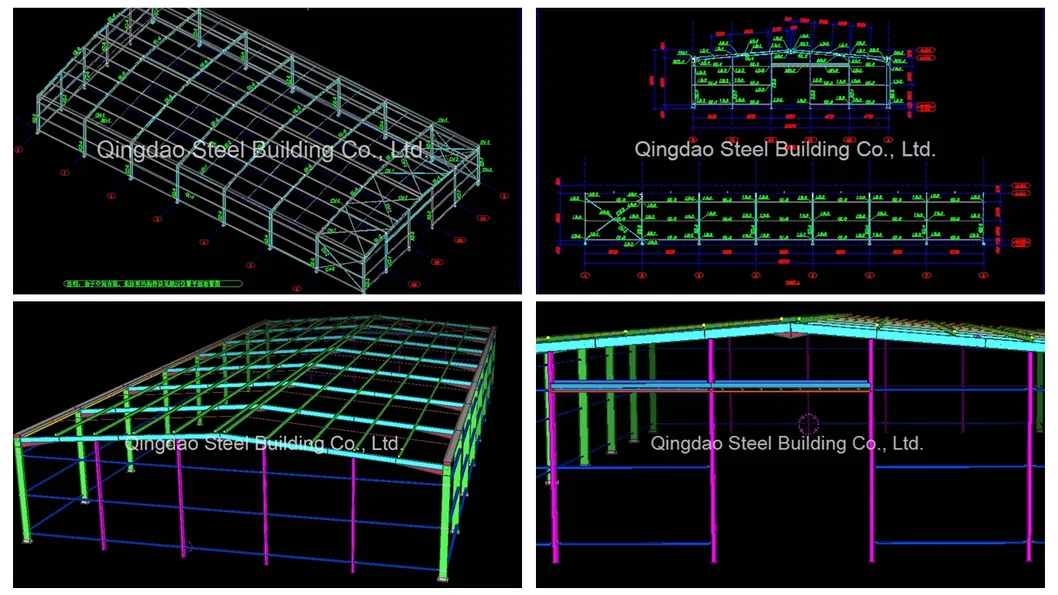

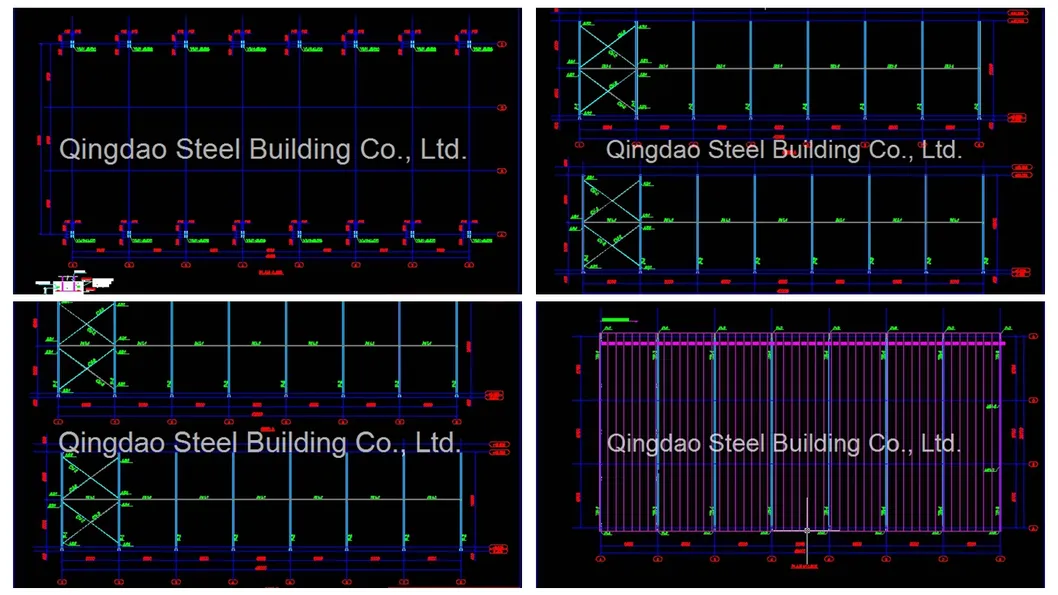

| We have exported structures globally since 2007. We are well-acquainted with building codes, wind loads, and structural requirements across many different countries, reducing communication time so you get ideal designs quickly. Our production, technical, and shipping divisions are seamlessly integrated to expedite responses and guarantee order precision. | |
We are a professional manufacturer of high-quality prefabricated steel structure buildings based in China. Our catalog includes steel hangars, workshops, warehouses, commercial complexes, sports halls, mezzanine structures, office buildings, hotels, agricultural storage facilities, and livestock structures (poultry houses, cow sheds, pig houses, etc.). We serve clients globally in countries such as Paraguay, Chile, Colombia, Mexico, Australia, New Zealand, Myanmar, Sri Lanka, Maldives, Mauritius, South Africa, Angola, Senegal, Côte d'Ivoire, Hungary, France, and beyond.

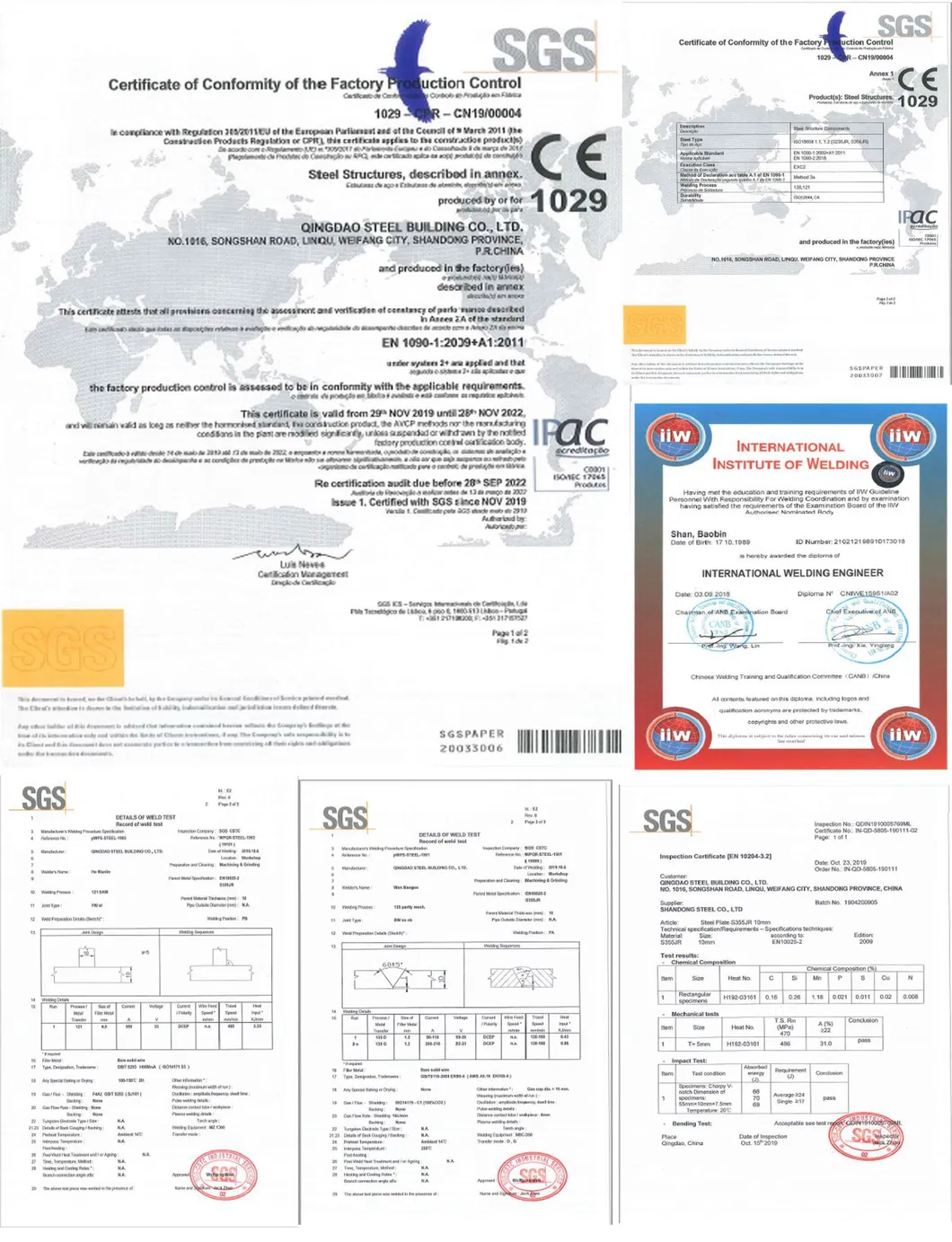

Our production facilities host 2 automated structural steel production lines. With an annual capacity of 30,000 tons of welded H-beams, 8,000 tons of C/Z purlins, 100,000 square meters of sandwich panels, and 8,000 tons of corrugated sheets, we cater to projects of all scales. We hold numerous international credentials, including CE EN1090 EXC2, SGS, Bureau Veritas, IWE, and ISO9001, to deliver reliable engineering as expected.

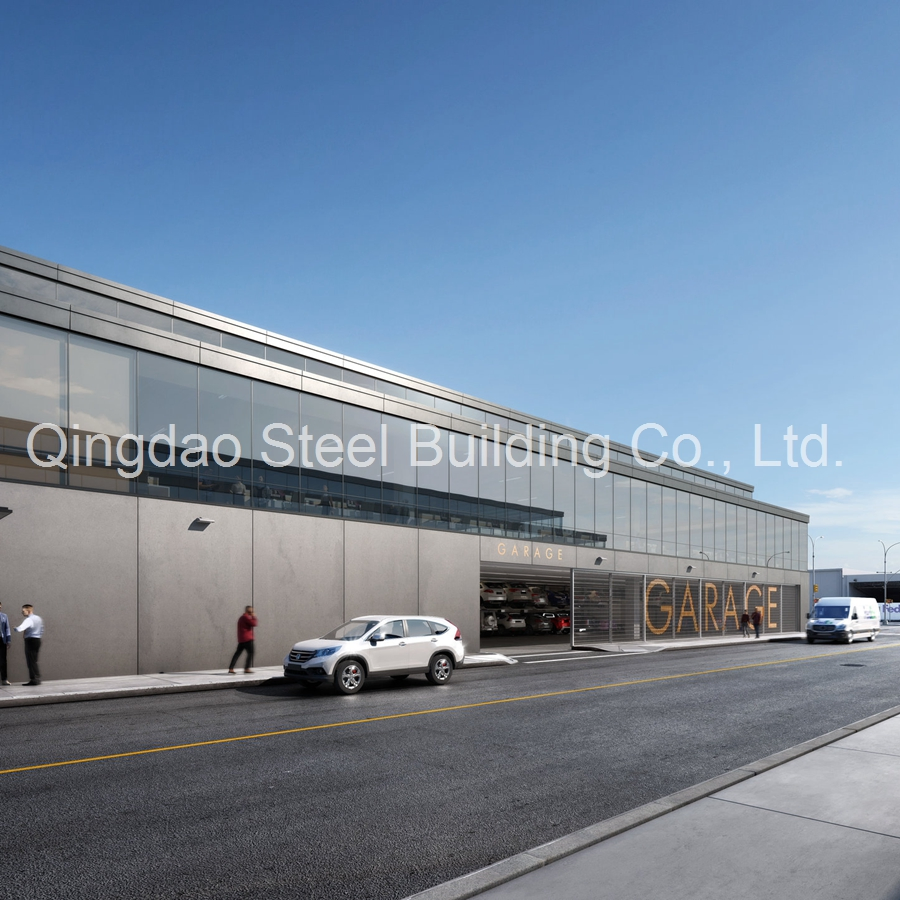

Prefab steel represents a strong, cost-effective solution for commercial and industrial designs, saving time on maintenance. Office spaces can be integrated seamlessly inside warehouses or configured as multi-floor attachments to meet administrative requirements.
