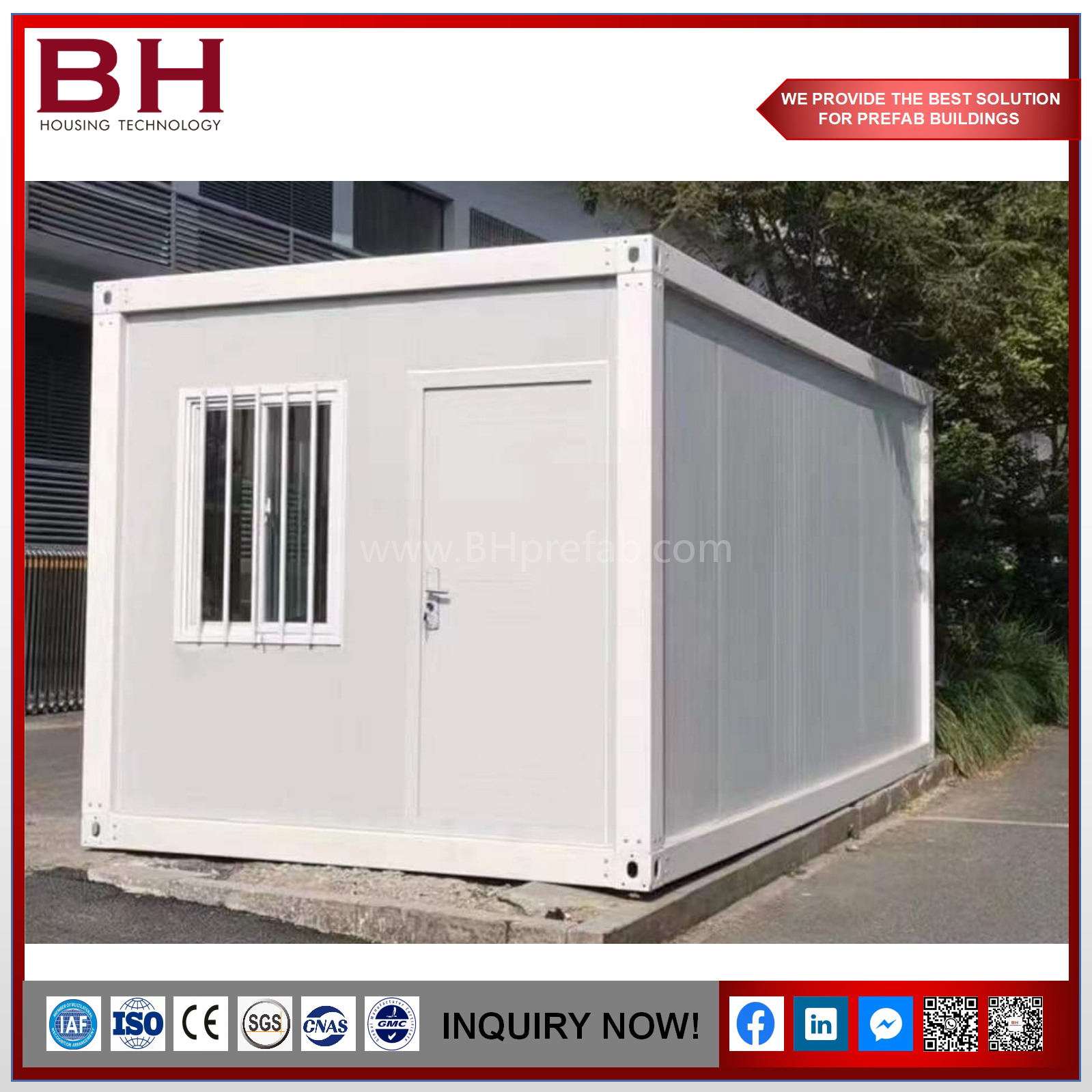

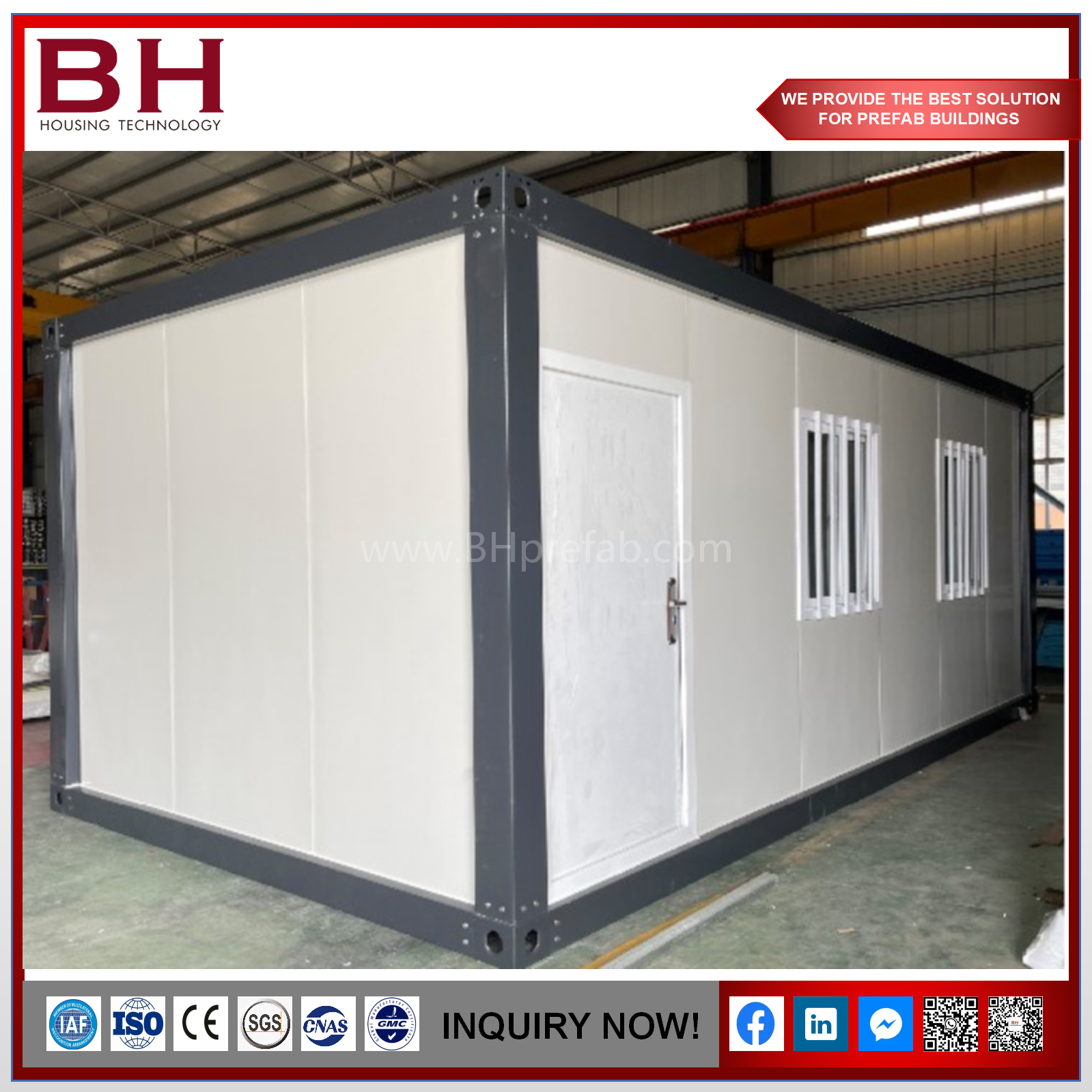

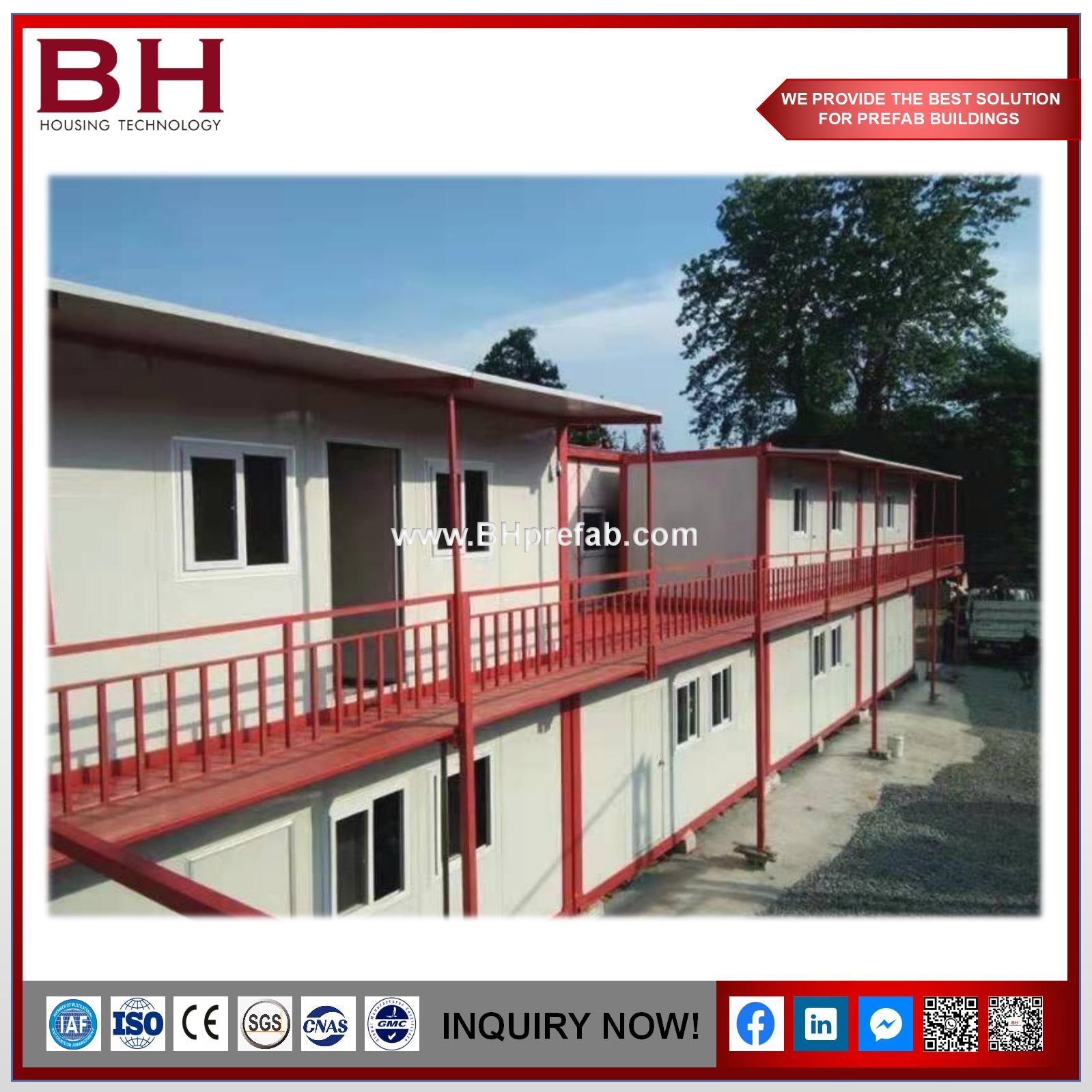

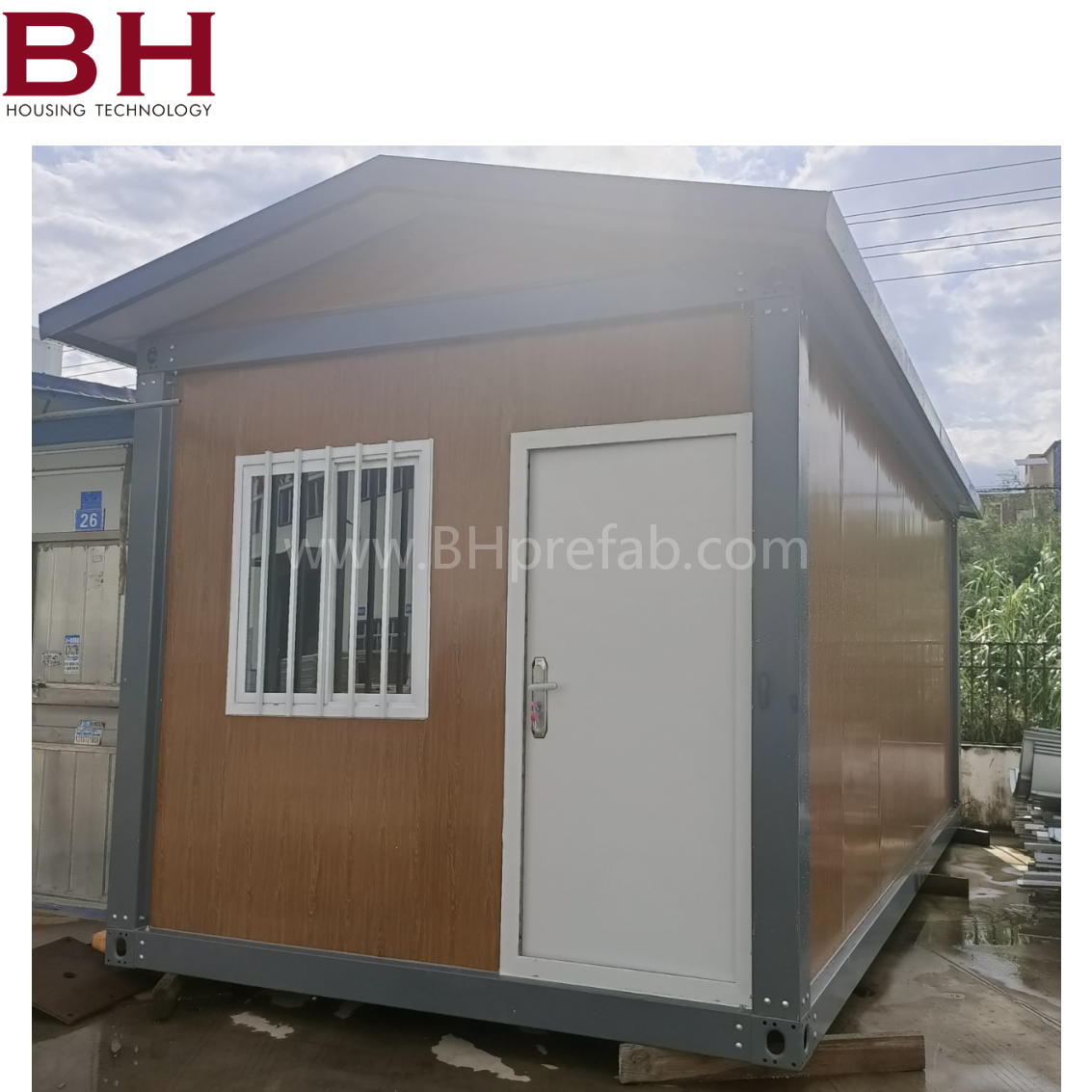

Mobile Prefabricated Modular House Expandable Container Office Building for Construction Site Villa Camp

Chinese manufacturers low price Prefab Modular Portable Temporary Container Houses

Product Description

Specification

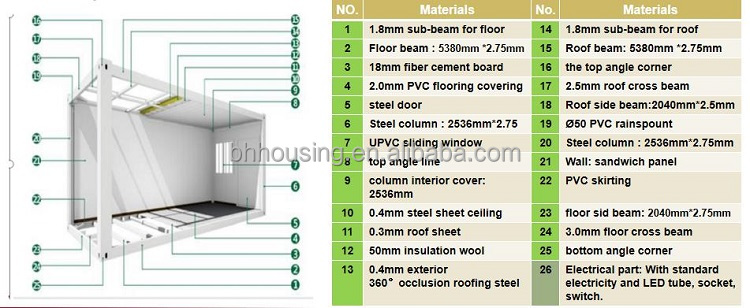

Flat Packed Container-Standard Material & Technical Parameter
Standard Materials
Wall	50mm EPS sandwich panel (rock wool/glass wool/MGO sandwich panel are optional)	Roof	steel frame + insulation wool+ steel sheet
Structure	Powder coated Steel structure	Flooring	18mm MGO floor board (fibercement board/plywood are optional), addition PVC carpet is available
Window	Aluminum sliding /UPVC sliding window, addition Anti thief window net is available	Door	Standard Steel door
Electrical & sanitary system	Standard wire,2 LED light, 2 socket, 1 AC socket, 1 switch	Partition	sandwich panel partition is available
Technical Parameter
Size	2.4m(W)5.9(L)2.896(H)	Loading Qty	8 Units/40HQ: 50mm panel 6units/40HQ: 75mm panel
Wind Load	80Km-100 Km/H	Earthquake resistance	7 degrees
Floor Live load	200 kg/m²	Roof Live Load	30kg/m²
Life span	10 years	Lift up & transportation	available
Stackable design	1~3 floors are available	Install speed	2 person in 2 hours with crane

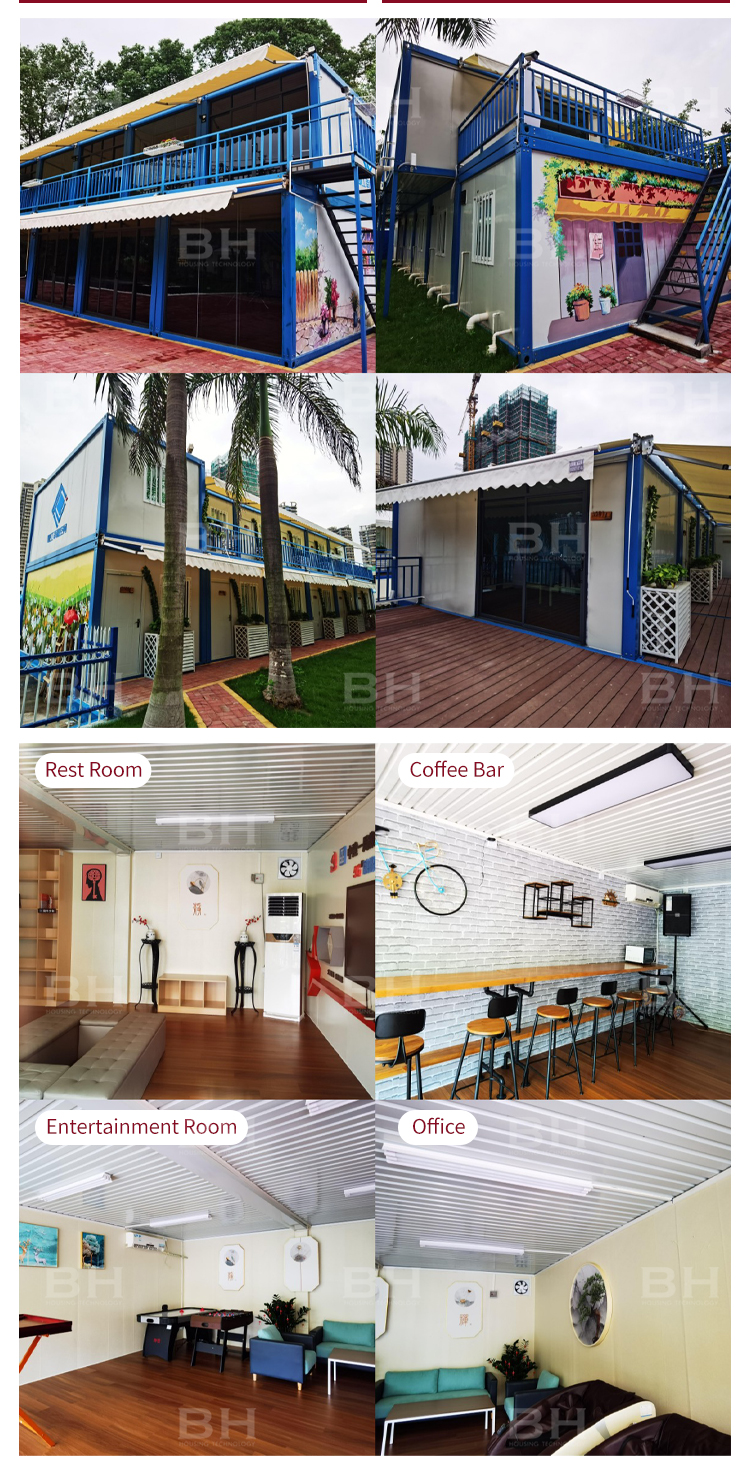

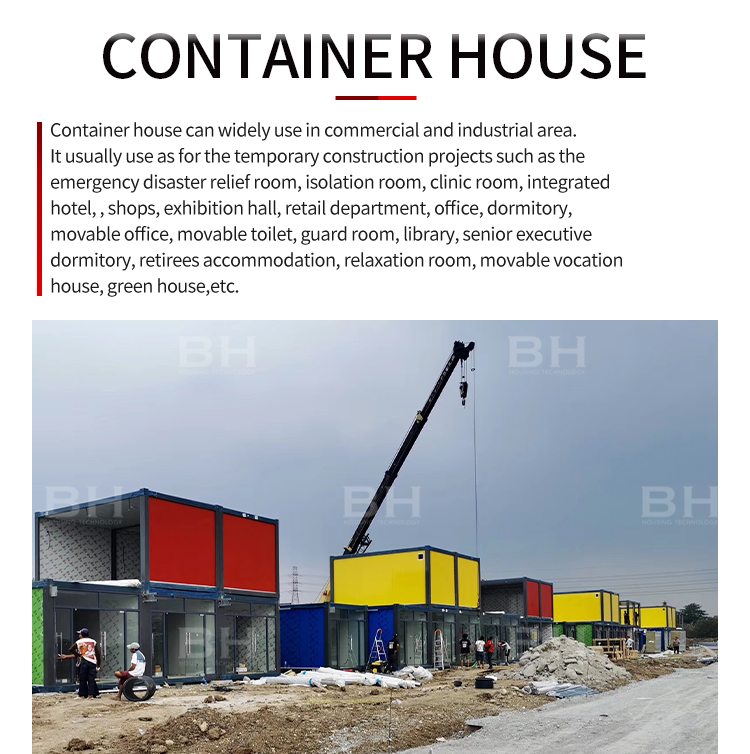

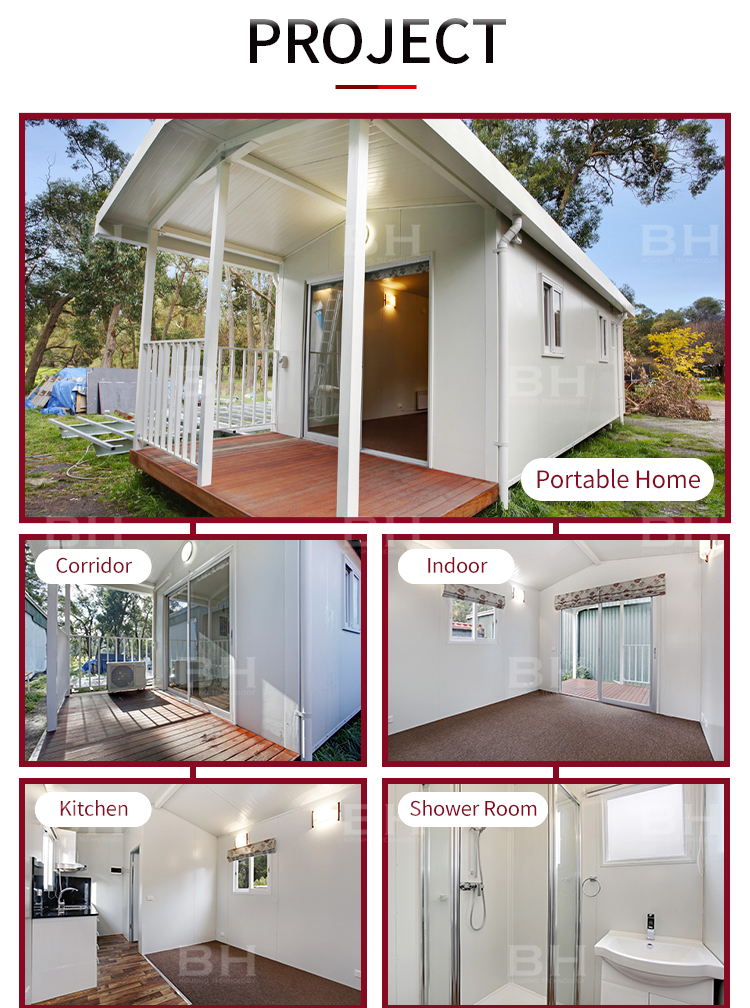

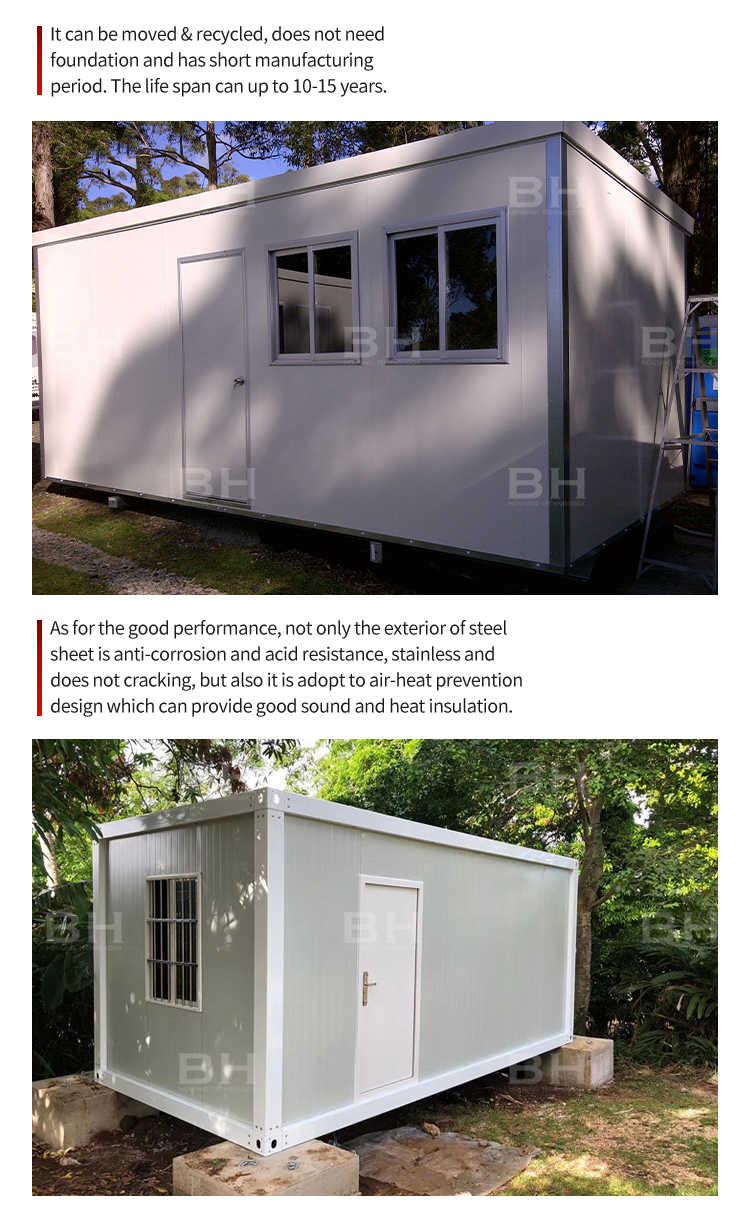

Design & Layout Options

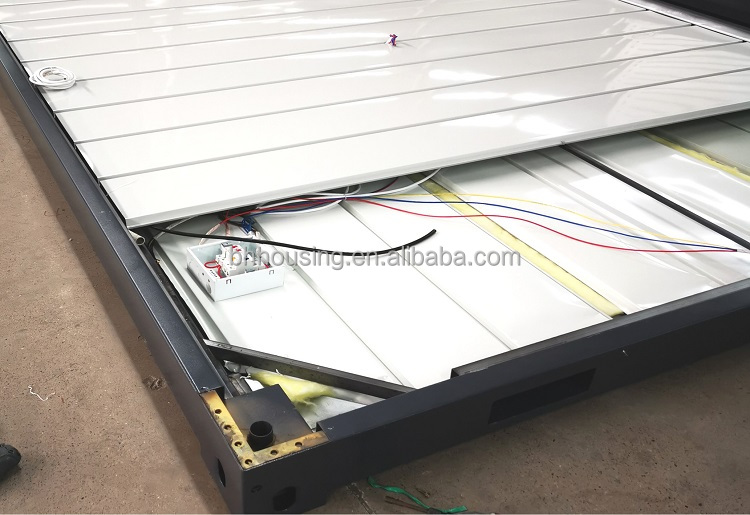

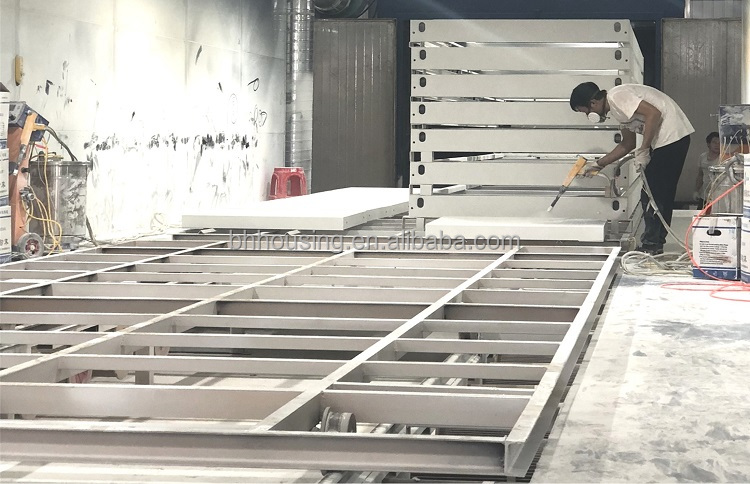

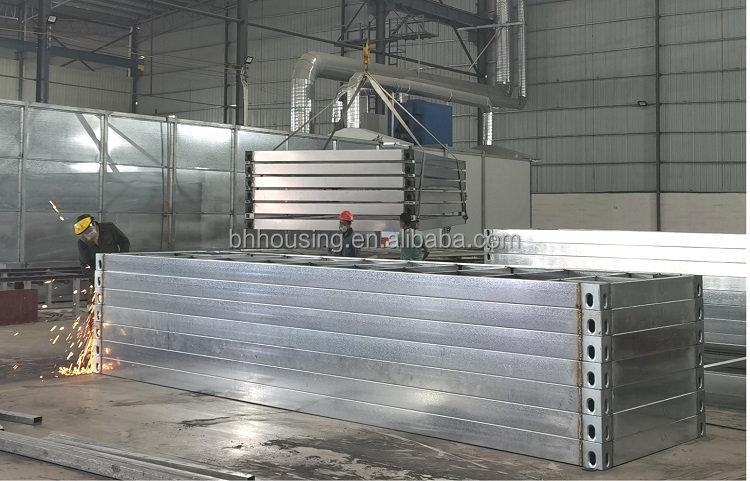

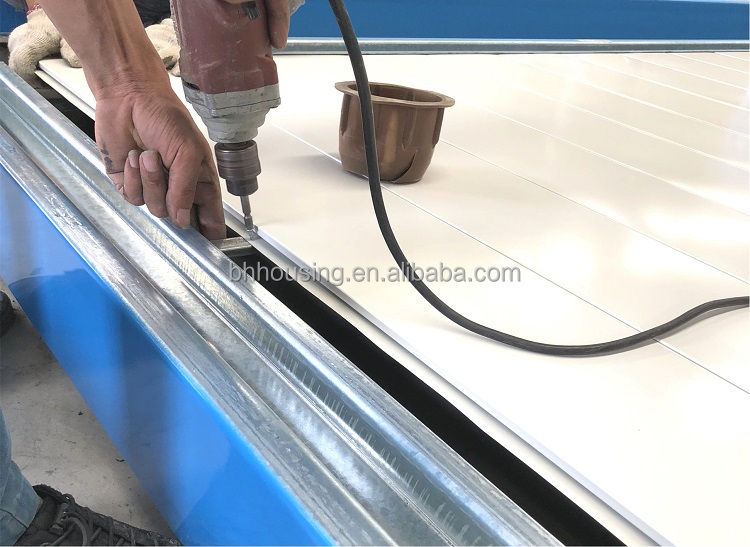

Product Processes

Packing & Loading

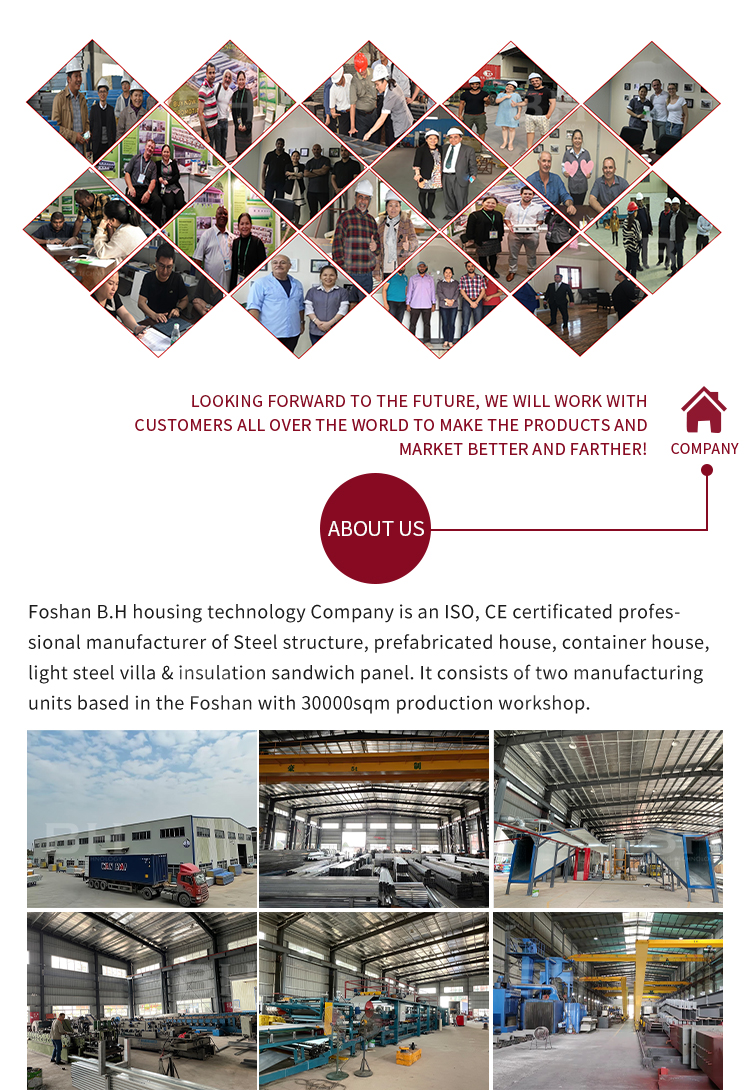

Company Profile & Quality

Our Advantages

Certifications

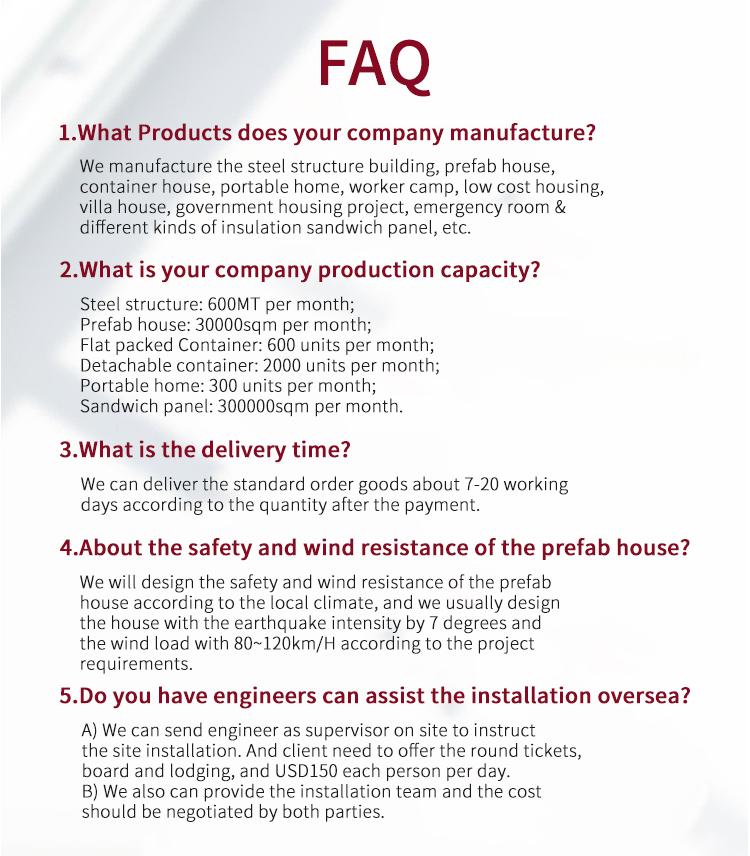

Frequently Asked Questions

What is the standard size of the portable container house?

The standard size of our container house is 2.4 meters (Width) * 5.9 meters (Length) * 2.896 meters (Height).

How fast can the container house be installed?

With the help of a crane, it typically takes 2 people about 2 hours to complete the installation of one standard unit.

How many units of container houses can be loaded into a 40HQ container?

A 40HQ container can accommodate 8 units of container houses with 50mm wall panels, or 6 units with 75mm wall panels.

What is the expected lifespan and durability of these units?

The units have a design lifespan of 10 years. They are built to resist wind speeds of 80-100 Km/H and withstand earthquakes up to 7 degrees.

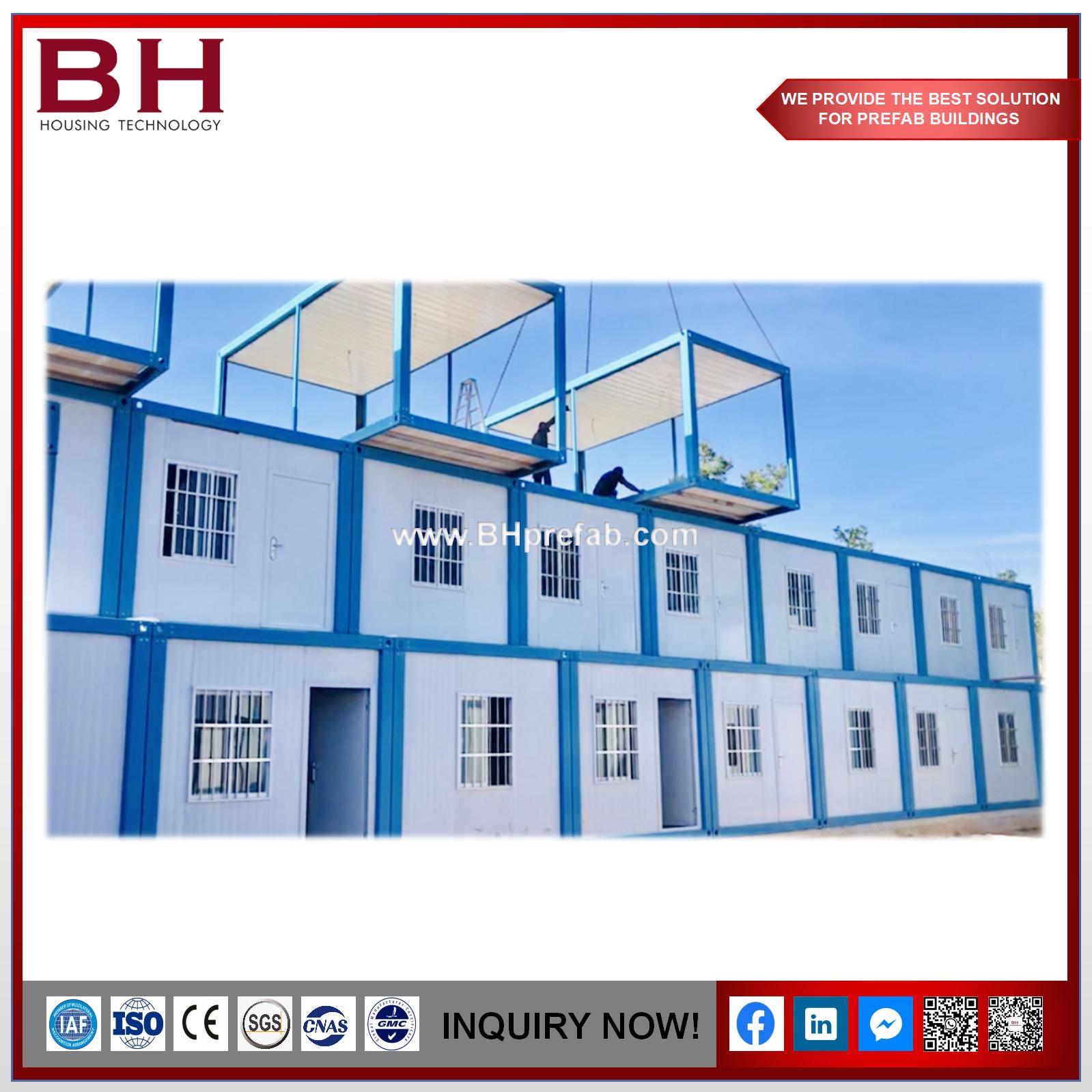

Can these container houses be stacked on top of each other?

Yes, they feature a stackable design, and structures of 1 to 3 floors are fully supported and available.

What material options are available for the walls and insulation?

The standard wall configuration is a 50mm EPS sandwich panel, but rock wool, glass wool, and MGO sandwich panels are also available as options.
