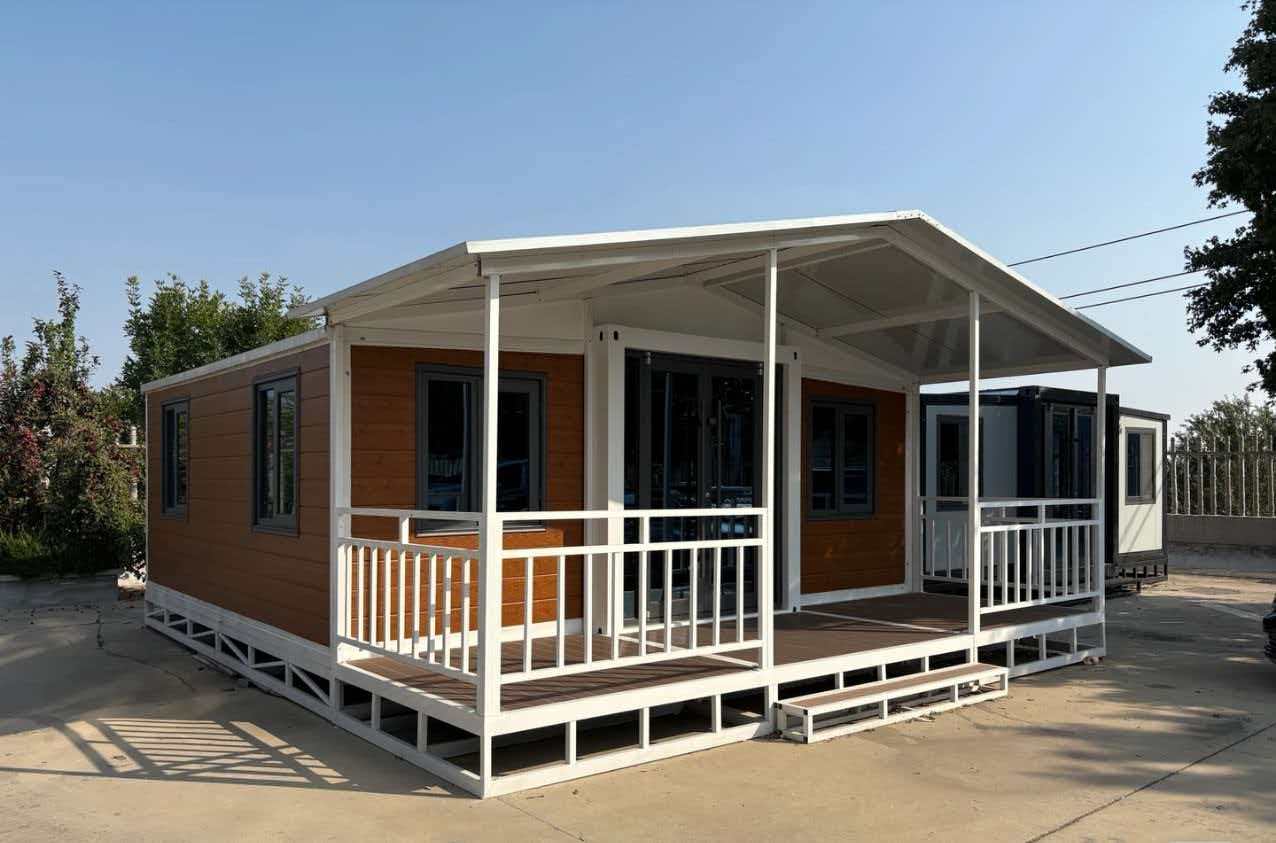

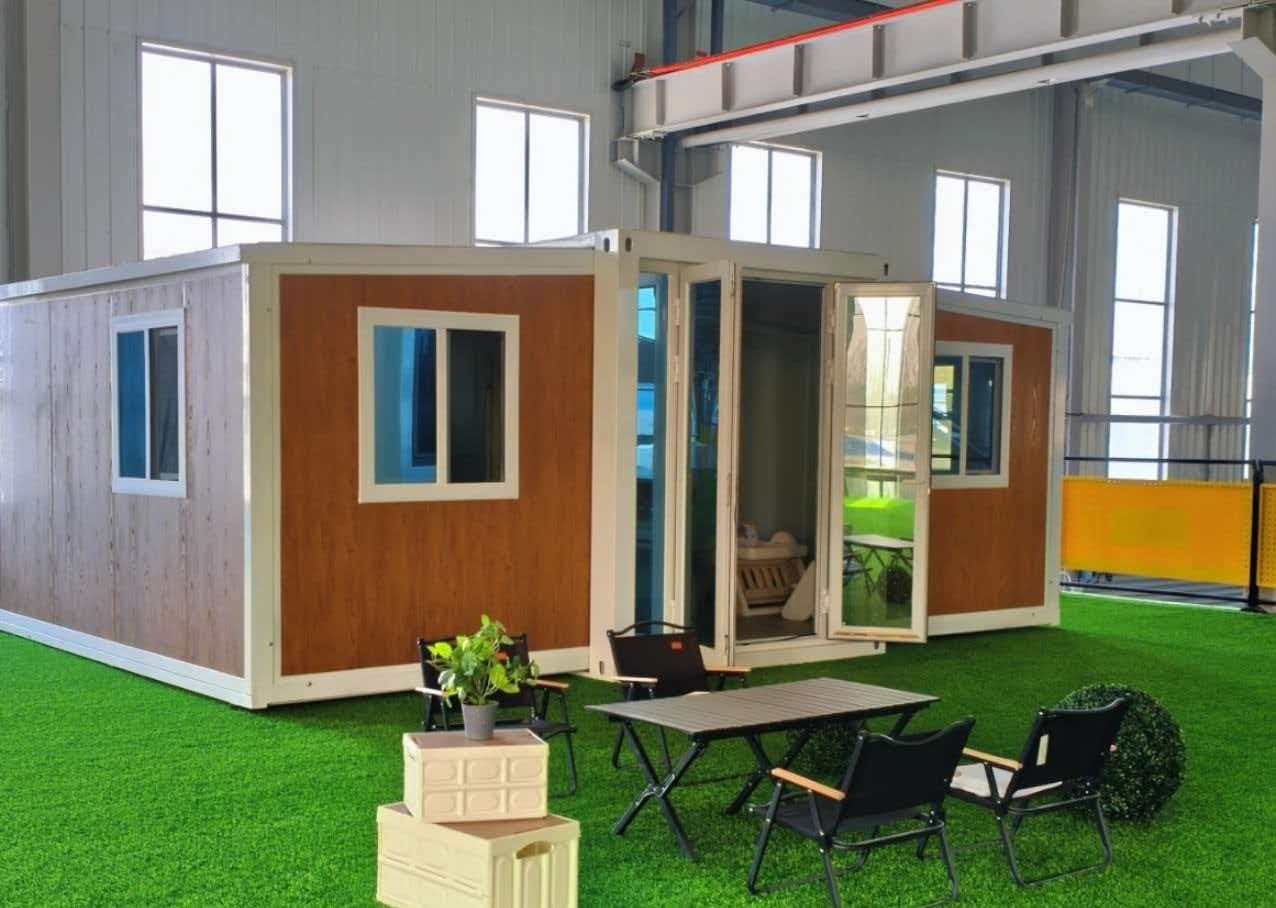

Multifunctional, Quick-installation Modular Container House with Mezzanine Steel Structure and Breathable Design; Modern Office
Series of integral lifting container house with light steel structure system, wall cladding in EPS thermal insulation composite wall panel. All wall panels and parts folding package, and simple installation,suitable for a large number of transport in long distance and exports by sea. Roof, flooring and electricity system are all prefabricated before leaving factory,can short the time from building house to use . The steel structure makes the house resisting heavy wind of 120km/h and 7 grade earthquakes. The components of the house can be used repeat and it can last 50 years, in use process does not produce any construction garbage. The waterproof system on the roof makes the house a good sealing effect. Just 5 Steps to Complete a installtion.
Products Description

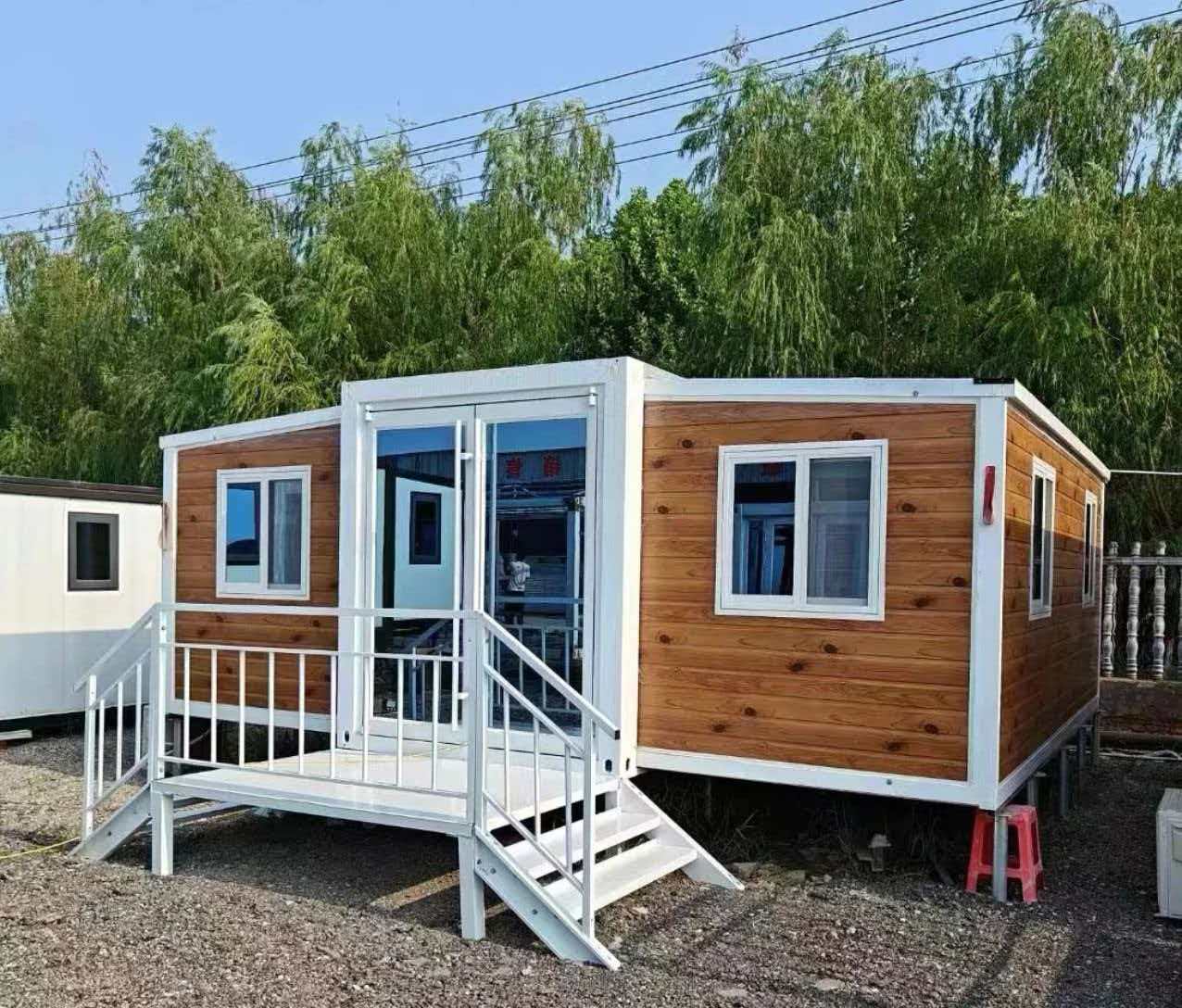

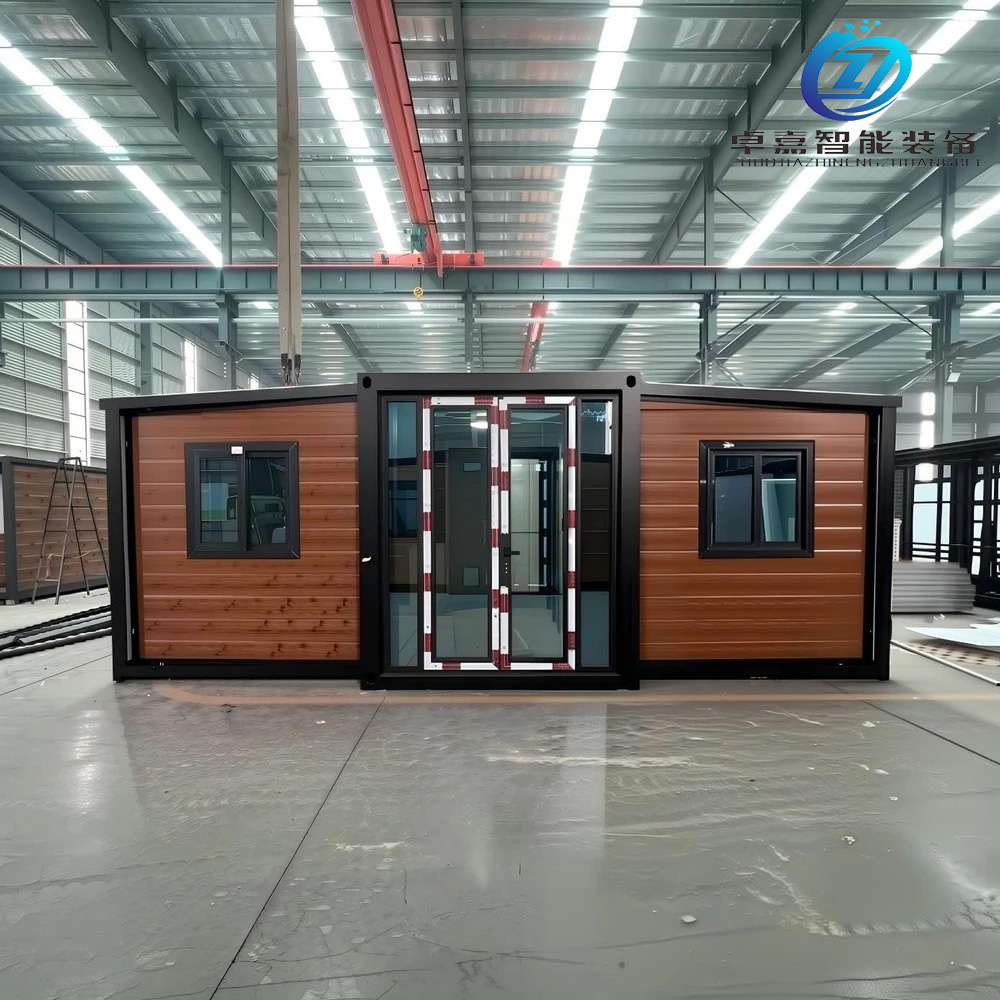

Front View of Expandable Cabin

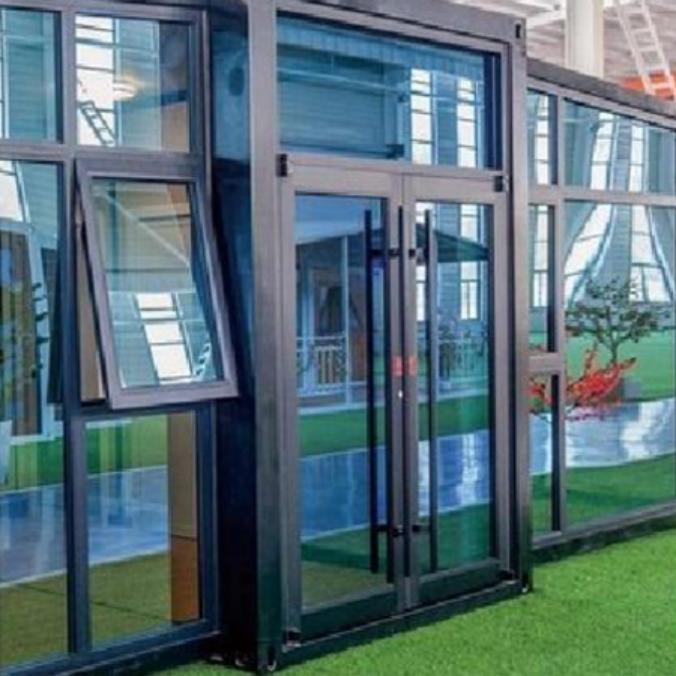

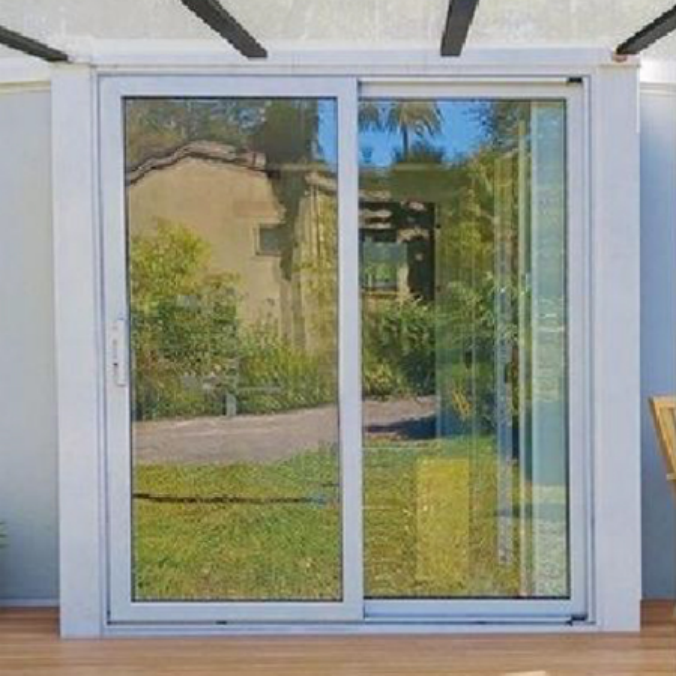

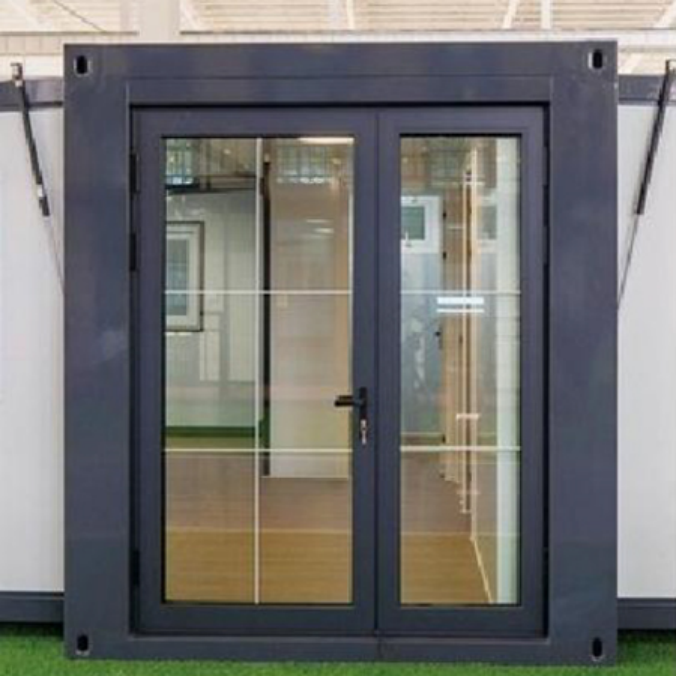

Entrance door options: 1. Big aluminum frame glass sliding door 2. White color steel single door 3. Security door 4. Side sliding door. Window Option: 1. White Color PVC sliding window 2. Black or brown color aluminum thermal window.

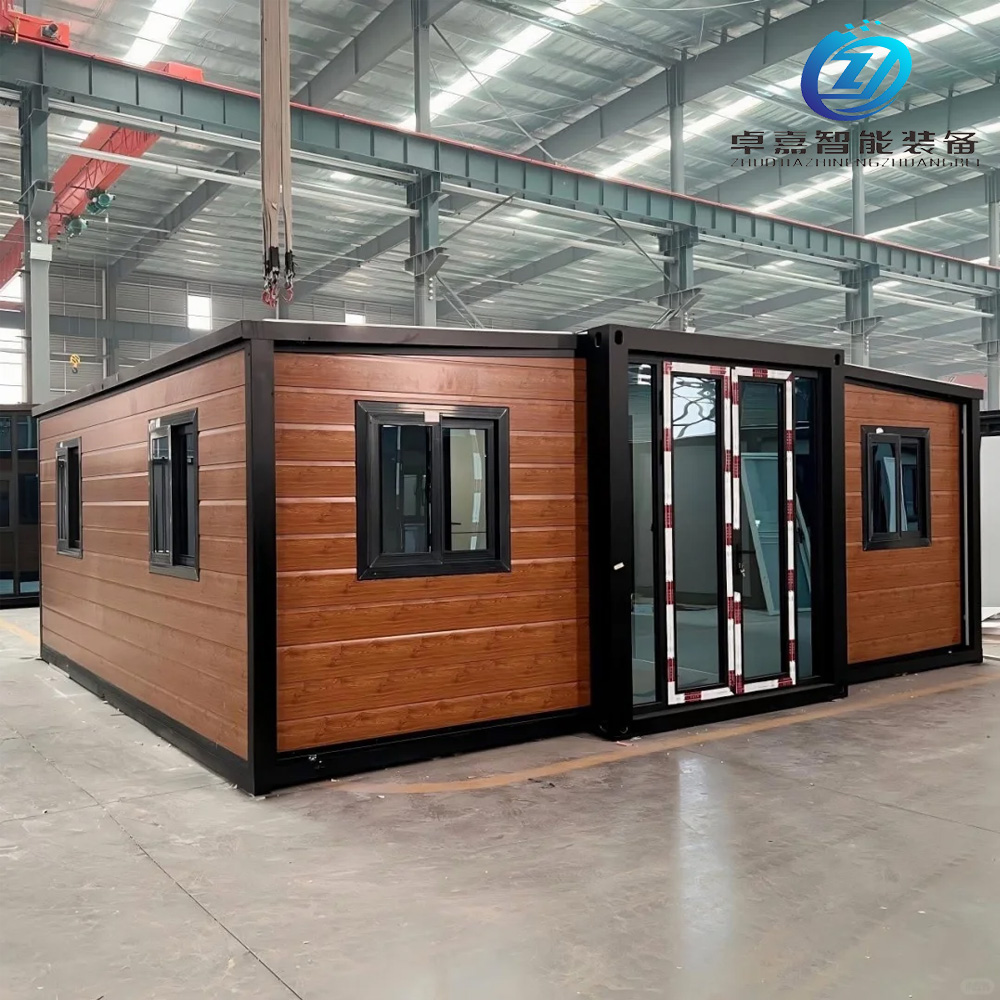

Side View of Foldable Container
All the walls are made of 50mm thick, or 75mm thick EPS sandwich panels, which is good heat insulation performance. The side of expandable container house has two windows for standard model. But you like to open a door here, or to add extra exterior wall cladding panels are available.Some client will prefer to paint the surface by themself in different colors.

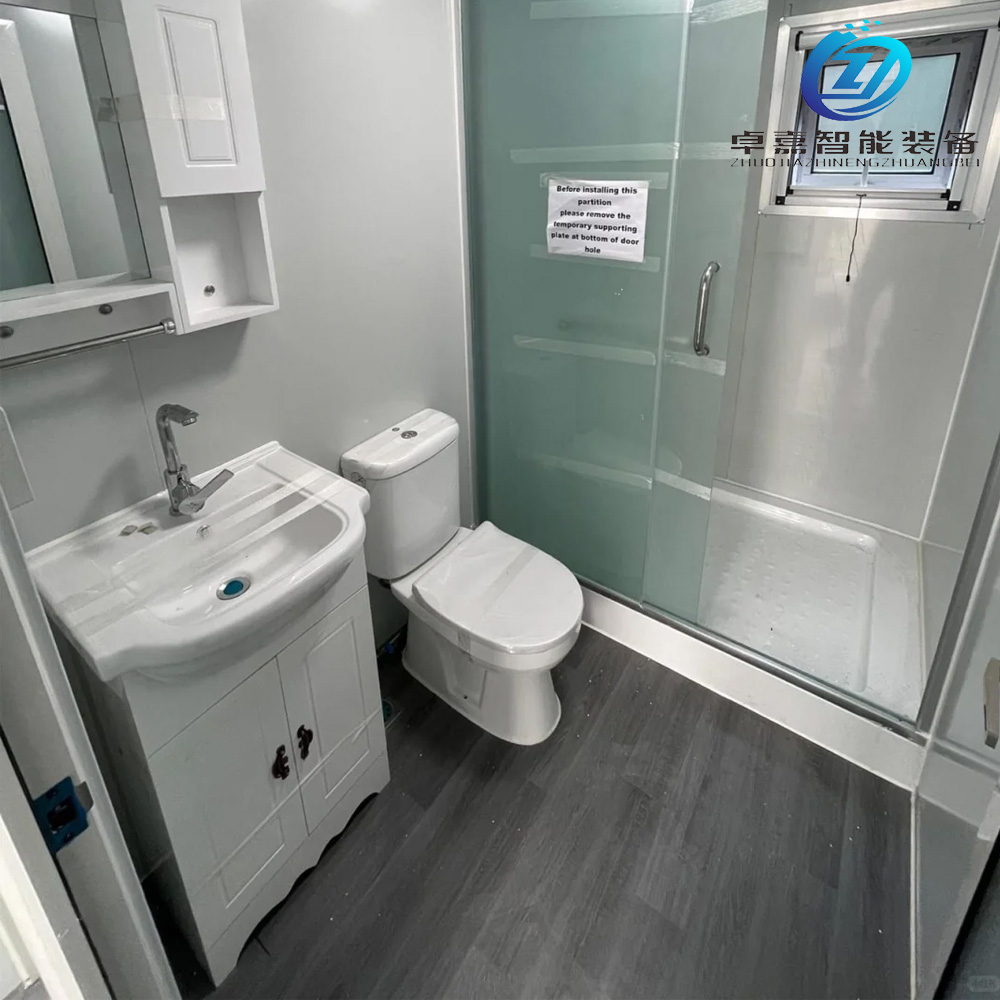

Bathroom View
Equipment included and pre-assembled: 1. One luxury shower room 2. One Wash basin with cabinet 3. One toilet 4. Water supply and drainage pipes are all installed in the factory 5. Electrical parts such as cable wire, socket, switch, distributor box are all installed in the factory.
Specifications Table
Expandable container house Specs
Size
20FT/40FT Customized
Life span
More than 35 years
Steel Frame (Main Beam)
Galvanized formed beam (Thickness: 3.0mm, 2.5mm, 2.3mm)
Steel Frame (Top Frame)
C shape steel: C80*1.3mm, galvanized; Square tube: 20*20*1.0mm, galvanized; Insulation: 75mm fiber glass wool with silver paper, density: 14kg/m³
100V-250V, 2P63A, Using IP44 standard power distribution box. Main power cable is 6m², AC cable is 4m², socket cable is 2.5m², lighting & switch cable is 1.5m². Four sockets (1pc AC socket of three holes 16A, 3pcs socket of five holes 10A). 1pc single connection switch, 2pcs LED light (2*15W). Adapts power supply according to different countries and regions.
Accessories
Screw, Bolt, Silicon sealant, etc.

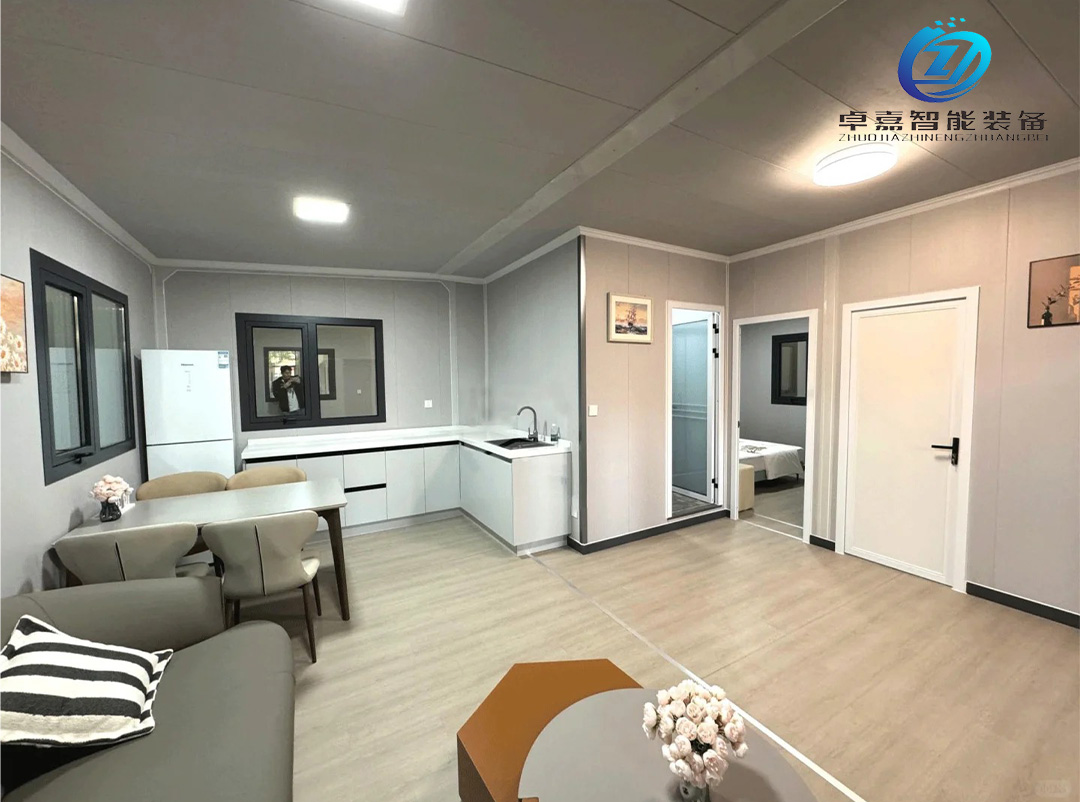

20-Foot Expandable Container House Interior
Can be viewed as a floor plan.
Style Options (Customizable On Request)

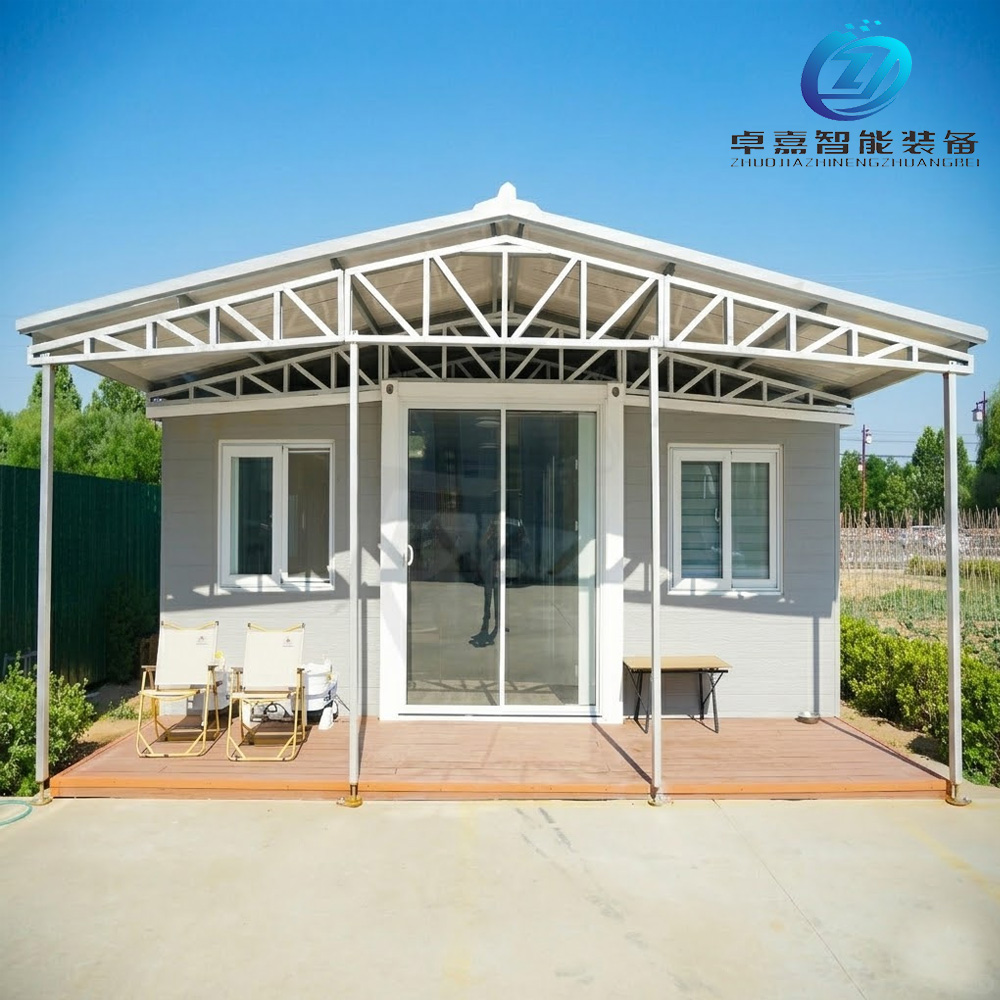

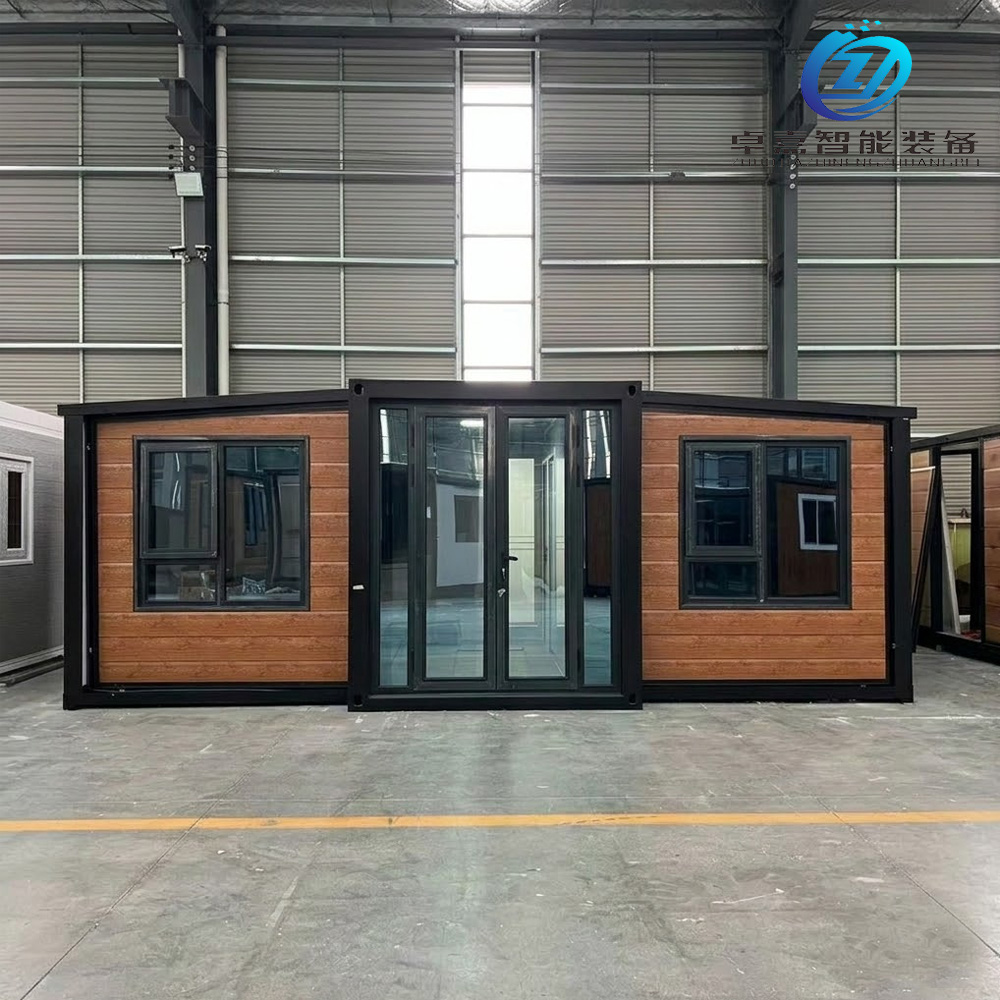

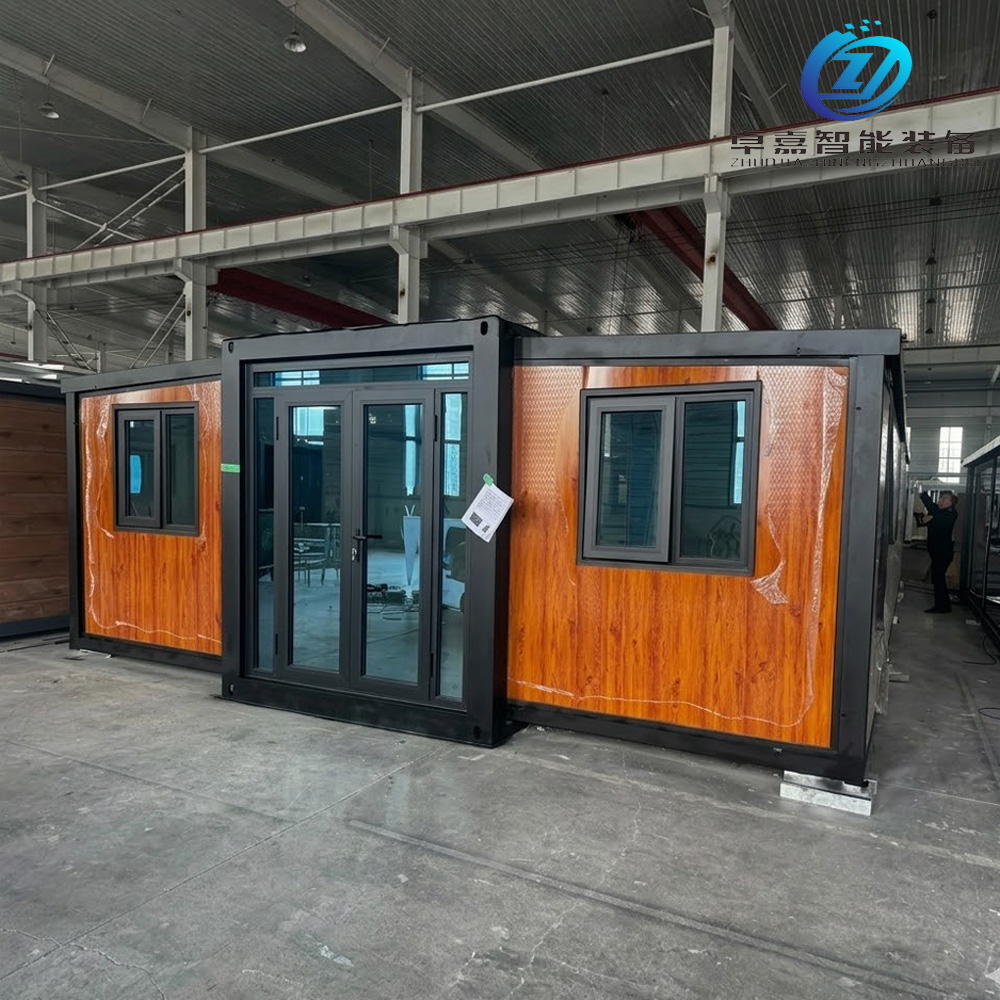

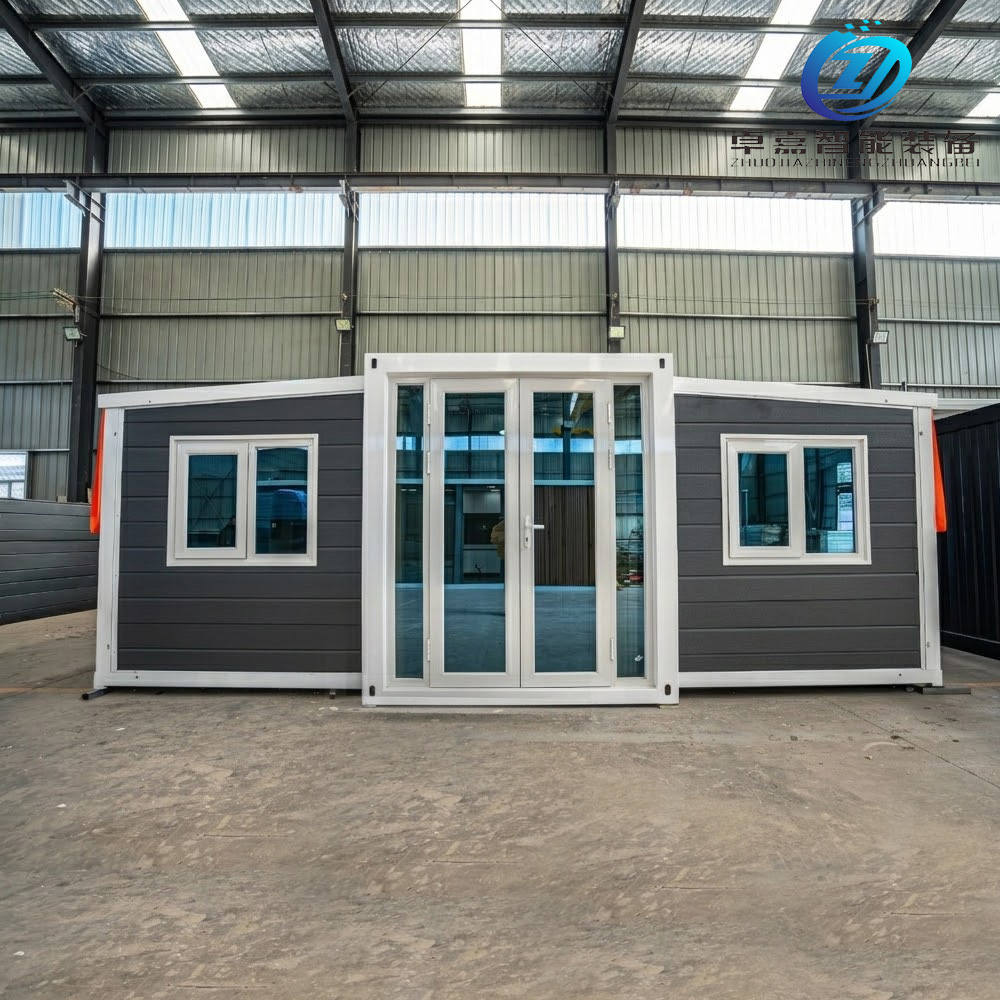

Exterior Design
Wall panels available in a variety of customizable colors.

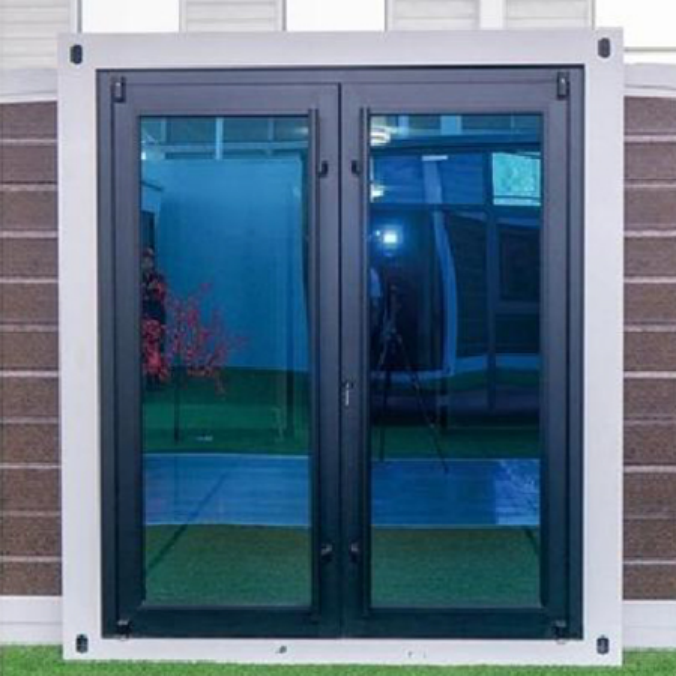

Doors
Entrance door: Glazed sliding door. Bedroom: wooden/EPS/Purification door. Bathroom: Titanium magnesium alloy door. Color: white or customized.

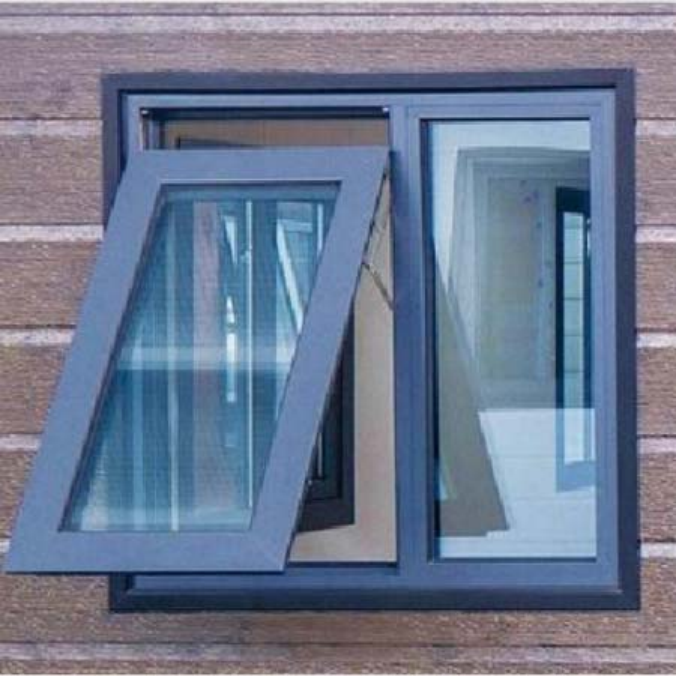

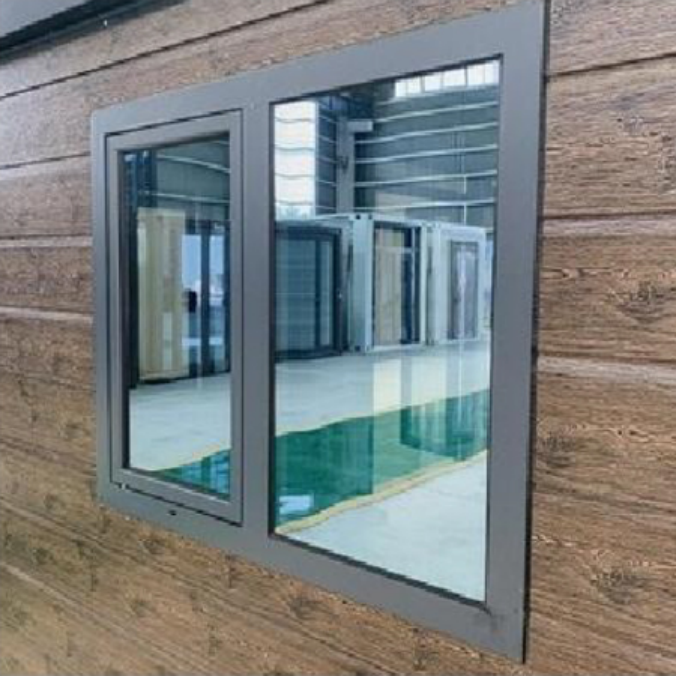

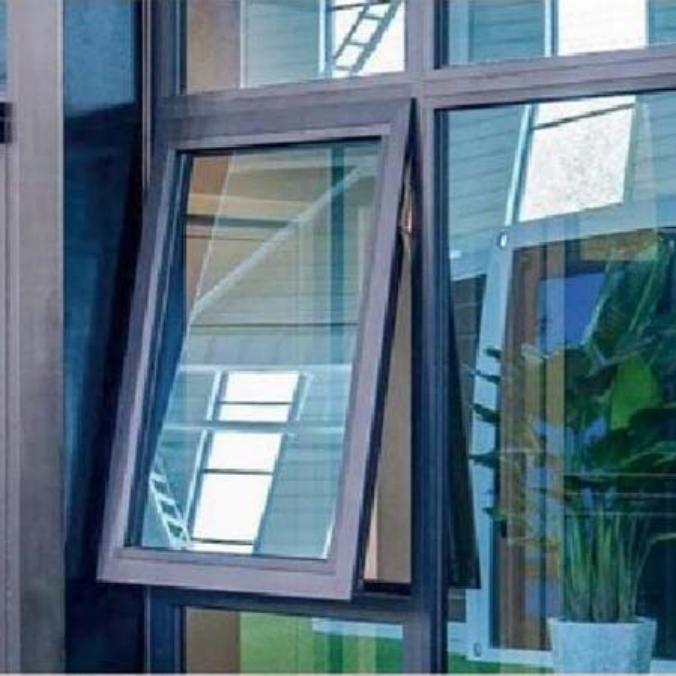

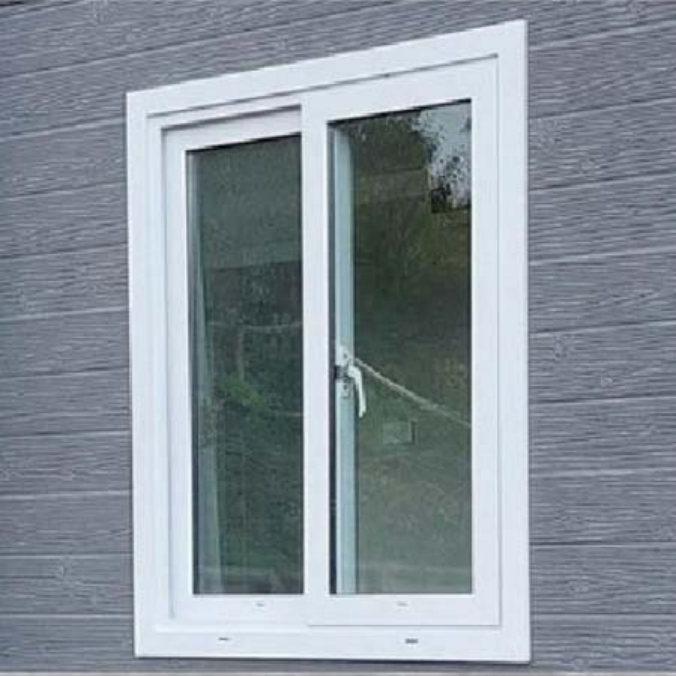

Windows
Plastic-steel material (optional: Aluminum Alloy material). Double glazed. White color (Optional: black). Quantity: 4 pcs + 1 pcs (Can be equipped with bars.)

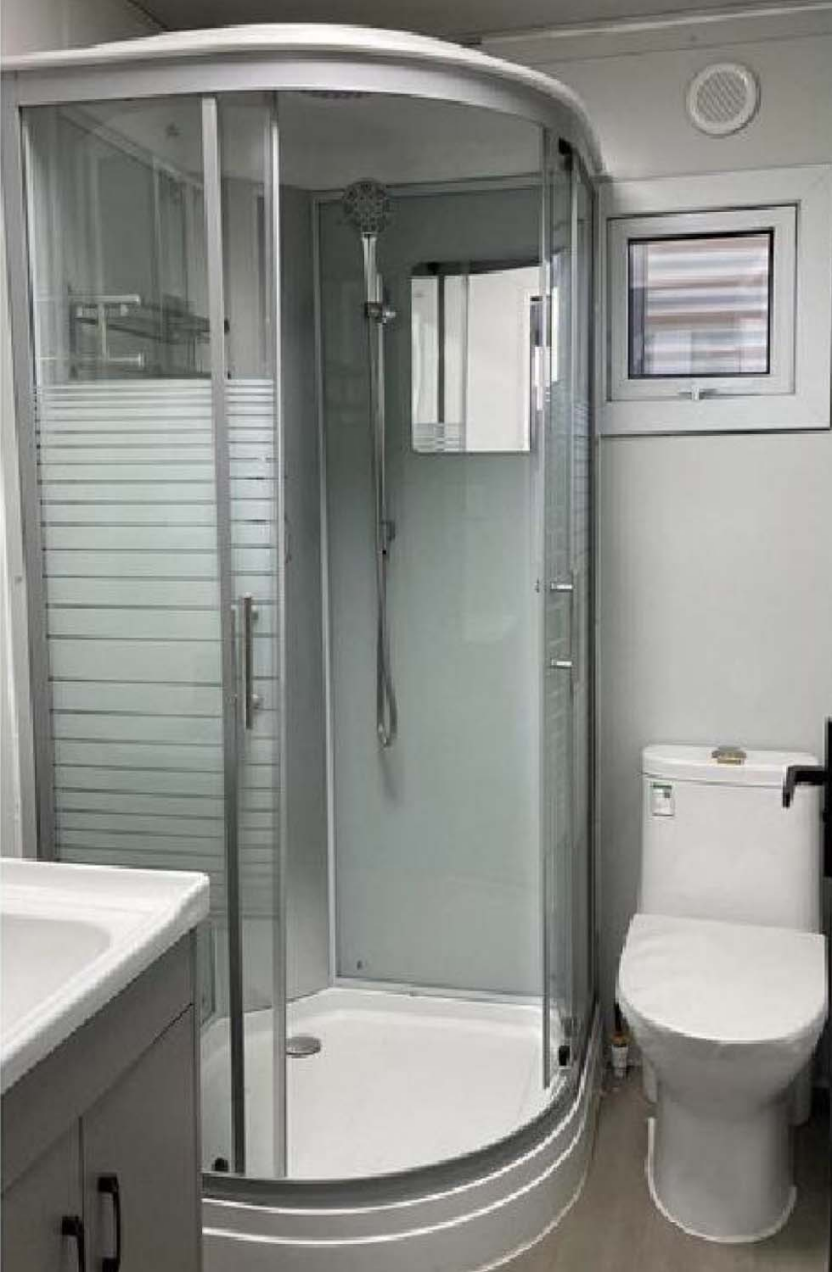

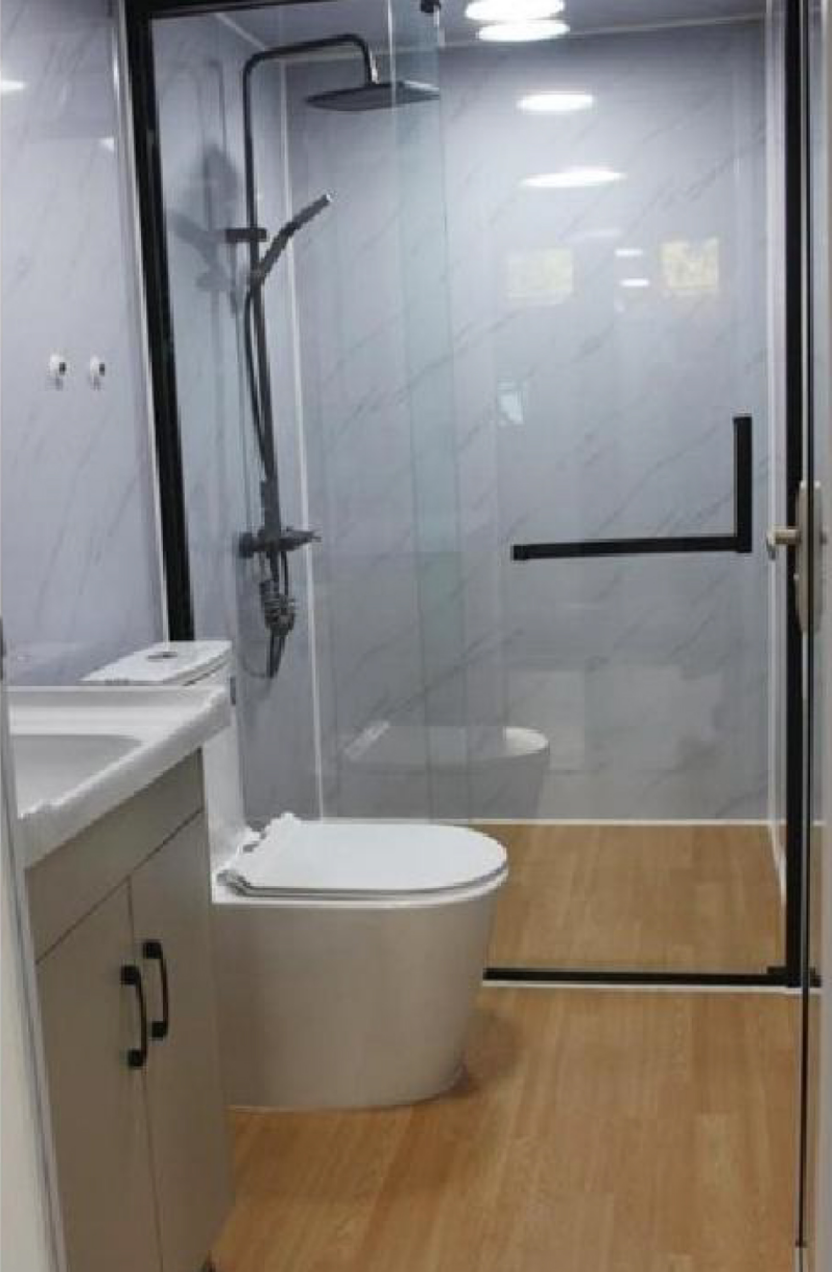

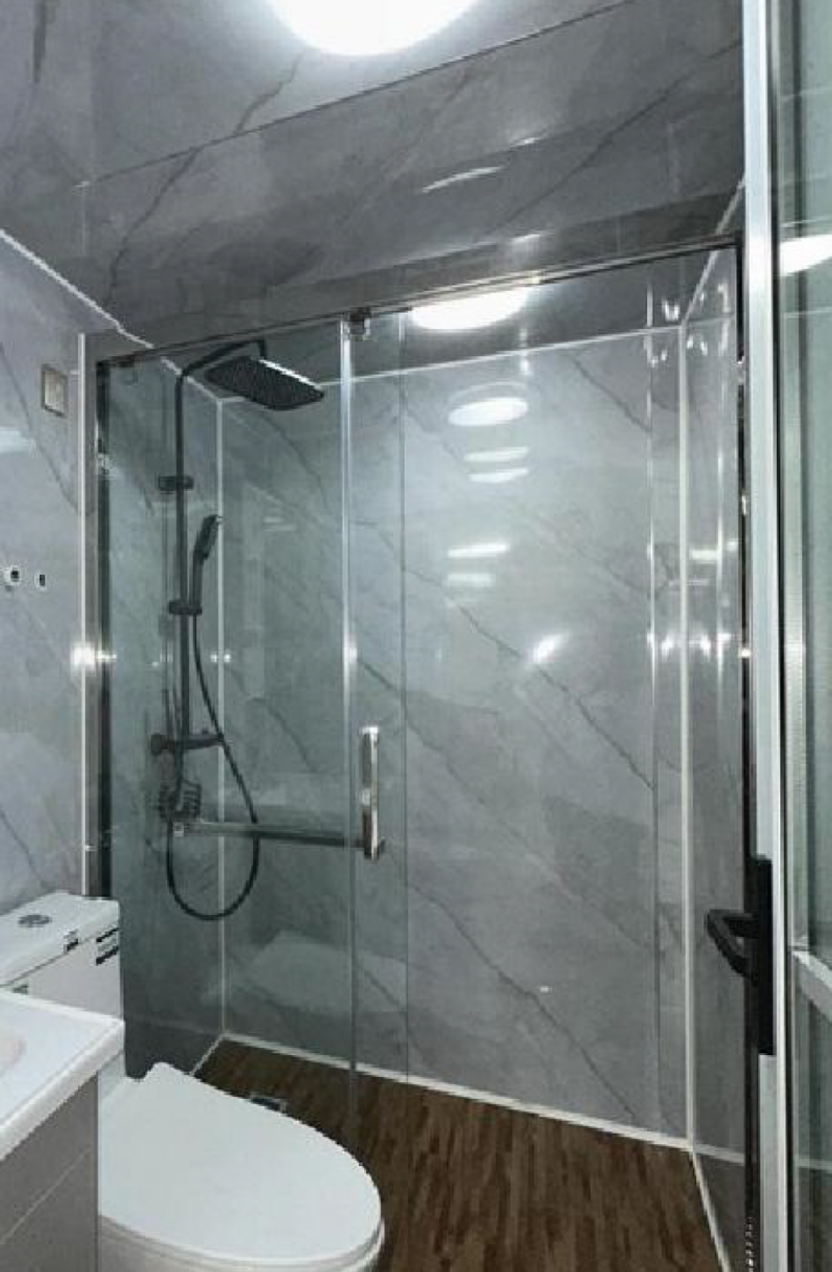

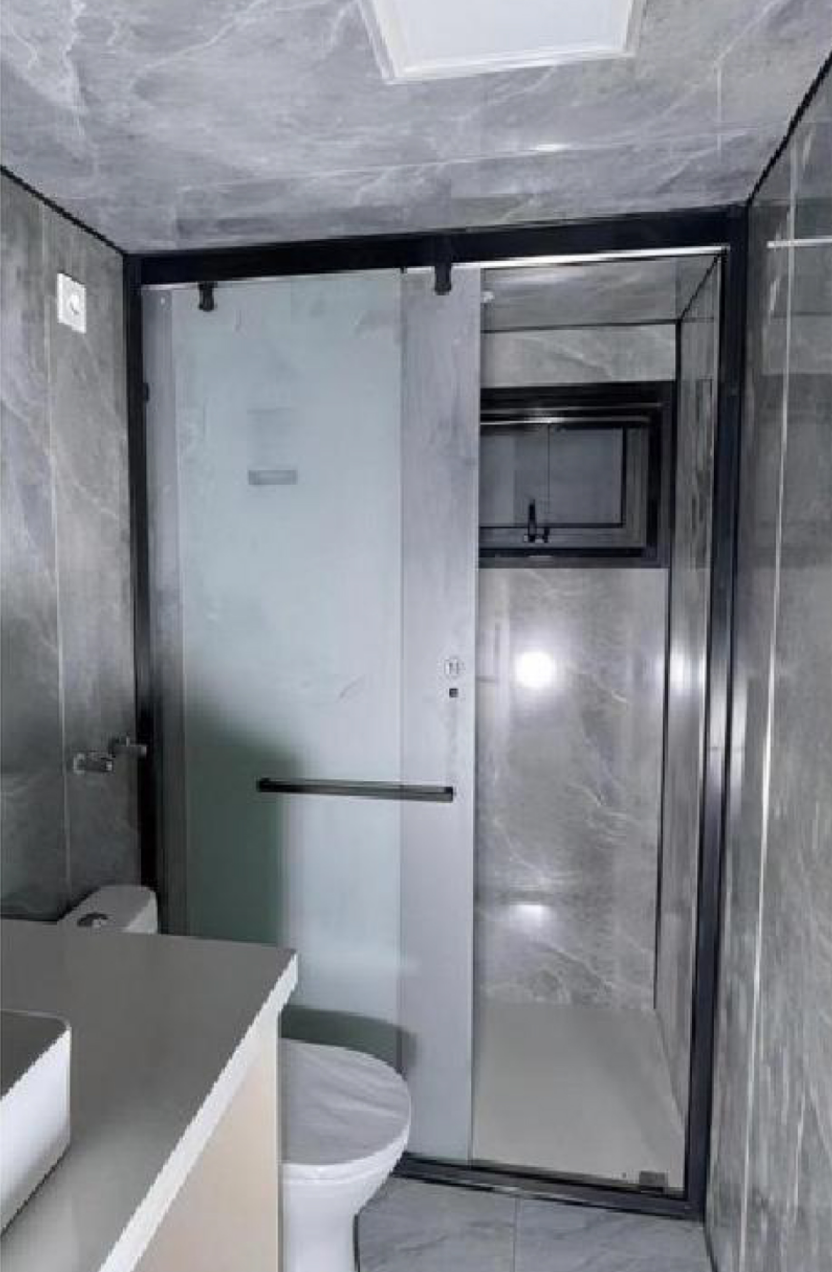

Bathroom Options
Full furnished with sanitary. Shower room (900mm*900mm), Seated toilet, Basin, Mirror, Towel rack and paper roller.

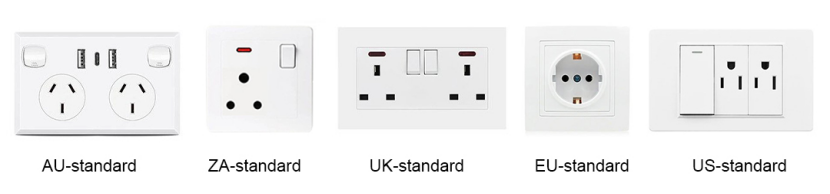

Electrical System
Configurations for multiple countries can be customized. Incoming line: 6 mm²; Water heater line: 4 mm²; Kitchen outlets: 4 mm²; Air conditioner outlets: 4 mm²; General outlets: 2.5 mm²; Lighting: 1.5 mm².
Floor Decoration Materials
Exterior Metal Carved Board

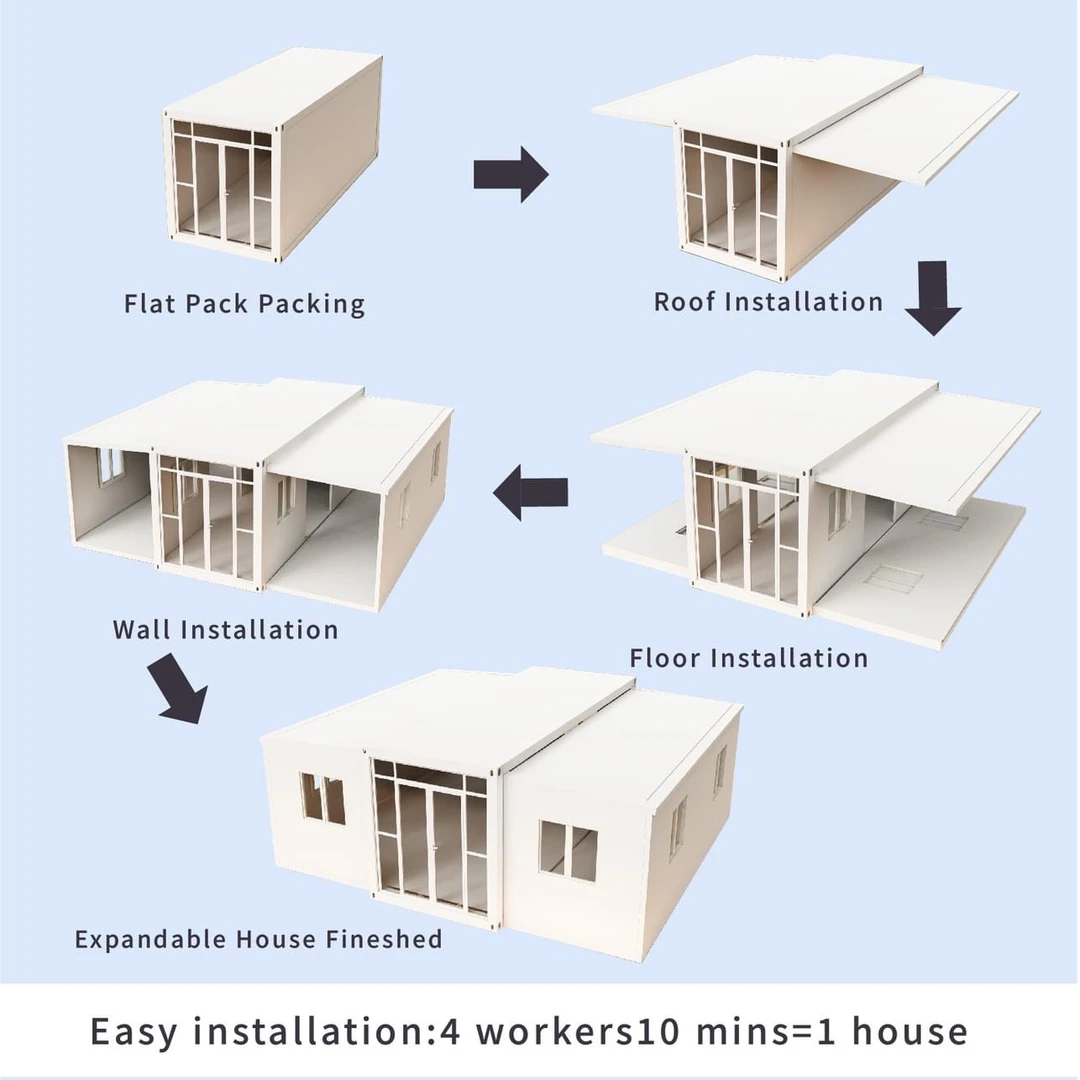

Quick Installation and Erection
Multiple reuse. Collapsible houses are designed to be used thousands of times. After completing the project at this location, you can fold the house in minutes and then transport it to a new project site for reuse.
Factory Introduction
Established in 2024, the factory is a specialized manufacturer of double-wing expandable container homes and modular integrated housing. Leveraging our dedicated production lines and mature technology, we provide reliable prefabricated building solutions to clients worldwide. Our double-wing expandable container homes and modular integrated housing are backed by our own independent production lines and mature technological expertise.

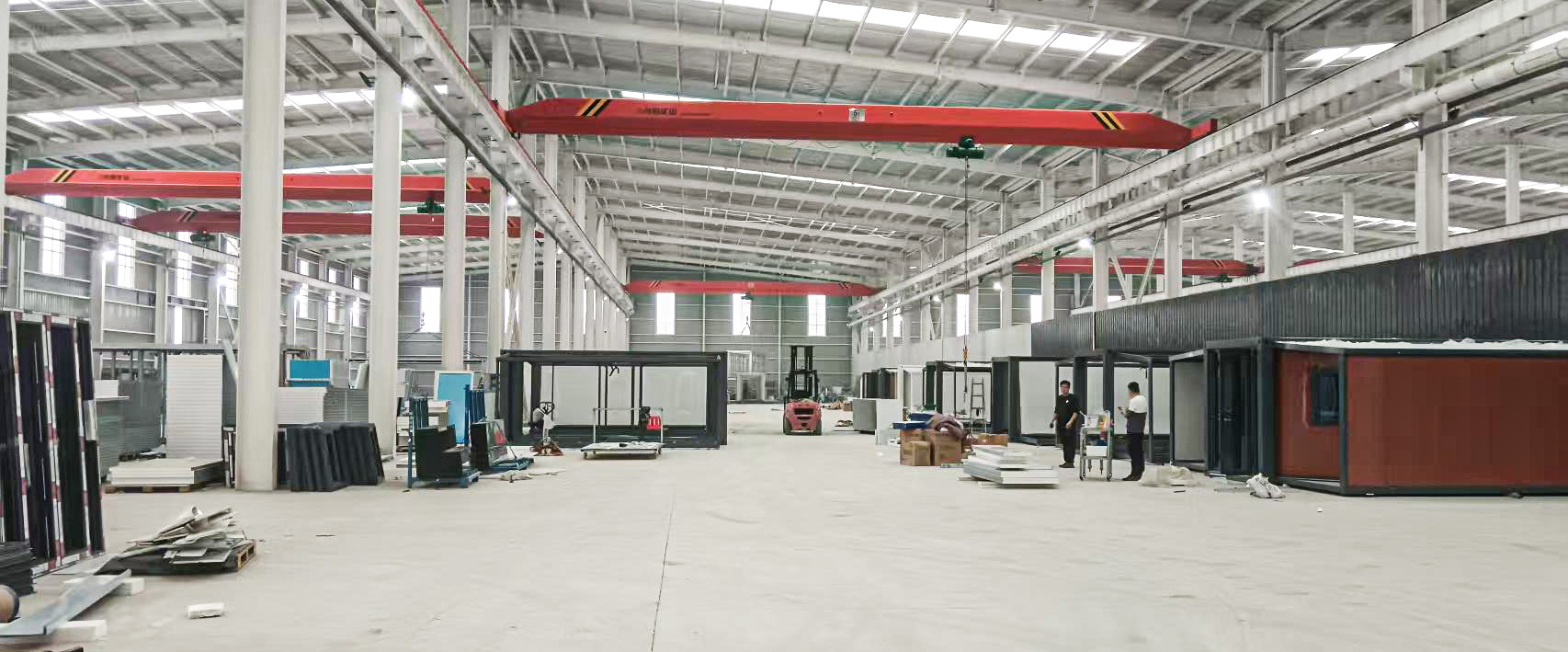

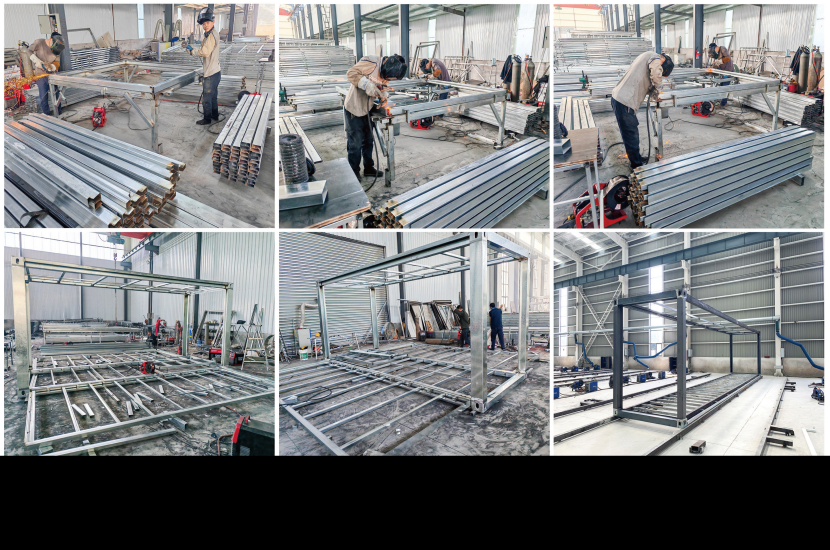

Production and Processing
20FT Model Details
Expansion size (mm): L5900 * W6300 * H2480 mm Interior space (mm): L5480 * W6150 * H2240 mm Folding size (mm): L5900 * W2200 * H2480 mm Weight: 3150 kg
40FT Model Details
Expansion size (mm): L11800 * W6300 * H2480 mm Interior space (mm): L11380 * W6150 * H2190 mm Folding size (mm): L11800 * W2200 * H2480 mm Weight: 7000 kg

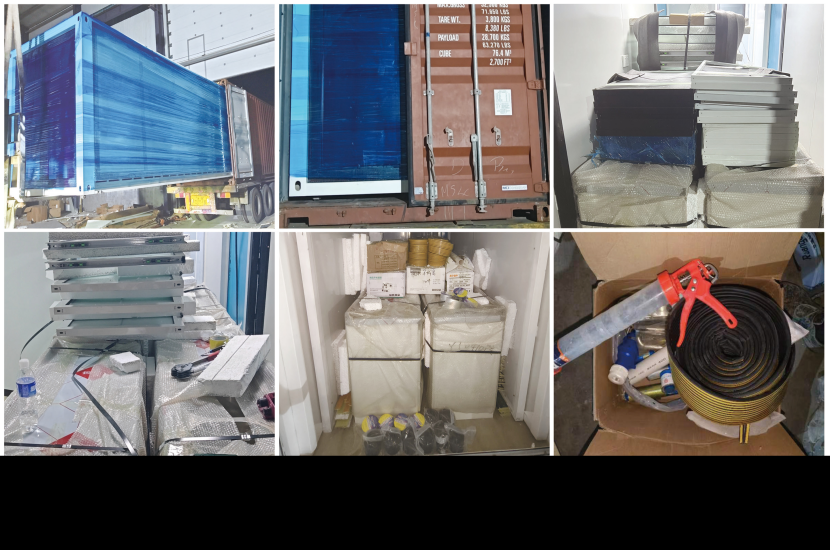

Packaging and Delivery
Of the utmost quality to meet customer needs, featuring carefully selected packaging and quality that is widely recognized.
Frequently Asked Questions
Q: Are you a factory or a trading company?
A: We are a factory operating over five production lines. We primarily manufacture prefabricated houses, mobile toilets, container homes, and steel-structure buildings.
Q: How about your delivery time?
A: Typically, the lead times are as follows: Prefabricated houses: 7–15 days; Container houses: 10–15 days; Mobile toilets: 5–10 days.
A: T/T, Cash, or L/C. For standard products: 50% deposit before production, 50% balance before delivery. Customized products depend on the design.
Q: What is the lifespan and warranty period?
A: The service life of prefabricated houses is 10 to 15 years, container houses 15 to 20 years, and villas 50 to 90 years. The warranty period for all houses is 12 months from the date of delivery.
