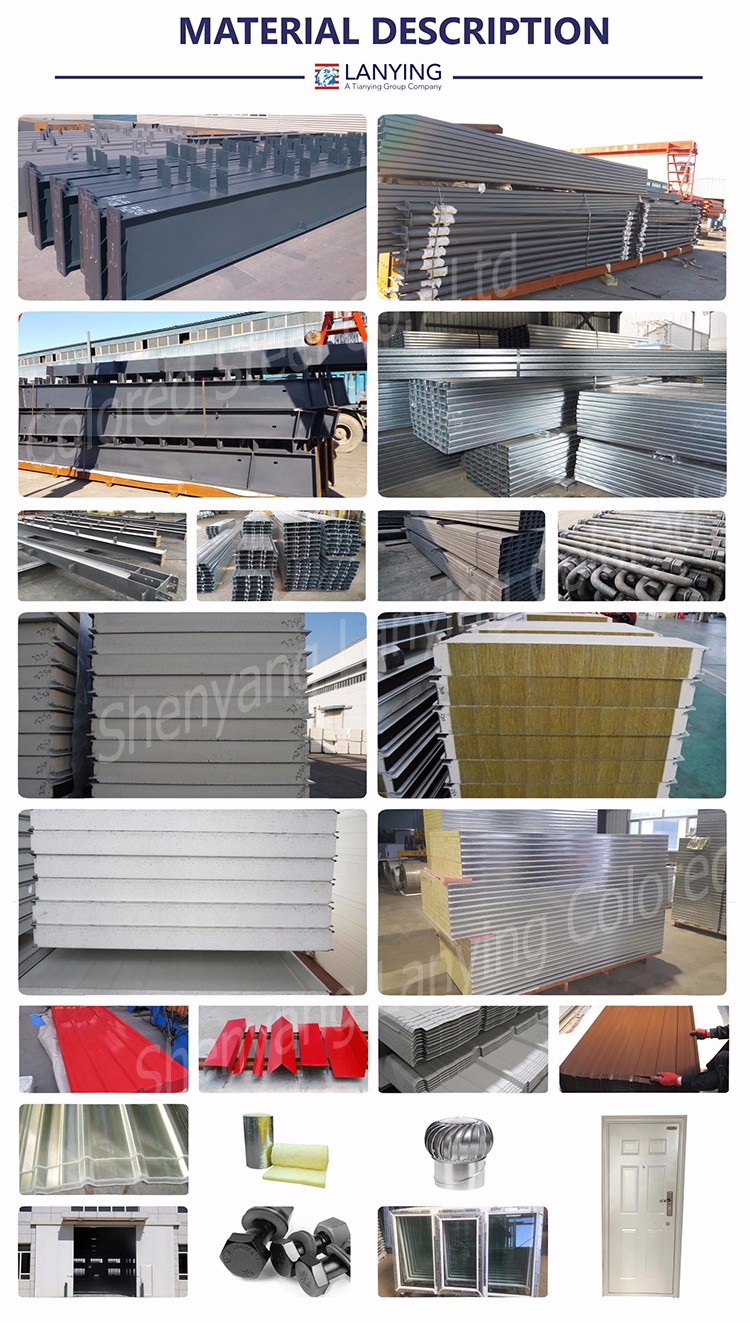

| Items | Specifications |
|---|---|
| Main structure | PEB Welded H-shaped steel or hot rolled steel, Q355 or Q235 |
| Anti-rust protection | Hot dip galvanized or anti-rust painting |
| Purlins and girts | Cold rolled C or Z steel, Q355 or Q235 |
| Roof and wall | Single layer steel sheet or sandwich panel |
| Gutter | Heavy duty galvanized steel |
| Down pipe | PVC |
| Door | Sliding door or roller shutter |
| Windows | PVC or aluminum alloy |
| Other components available upon request. Please provide the details for custom design. | |
No matter what primary framing system is used, the building width is defined as the distance from outside of eave strut of one sidewall. Building width does not include the width of Lean-To buildings or roof extensions.
The longitudinal length of the building measured from out to out of end wall steel lines.
Building height is the eave height which usually is the distance from the bottom of the main frame column base plate to the top outer point of the eave strut. When columns are recessed or elevated from finished floor, eave height is the distance from finished floor level to top of eave strut.
This is the angle of the roof with respect to the horizontal. The most common roof slopes are 0.5/10 and 1/10. Any practical roof slope is possible.
The distance from outside of the outer flange of end wall columns to center line of the first interior frame column.
The distance between the center lines of two adjacent interior main frame columns. The most common bay lengths are 6m, 7.5m and 9m.
Design for snow loads, earthquake loads, collateral loads, crane loads or any other loading condition, if required, must be specified at the time of request for quotation.
Basic design requirements and design Load:
We will recommend the best design for the purpose of the building:

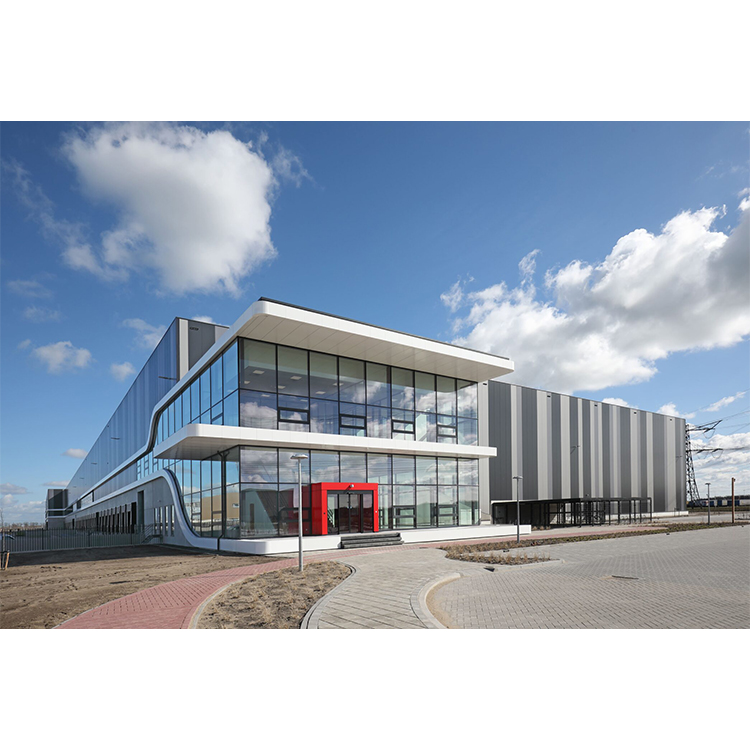

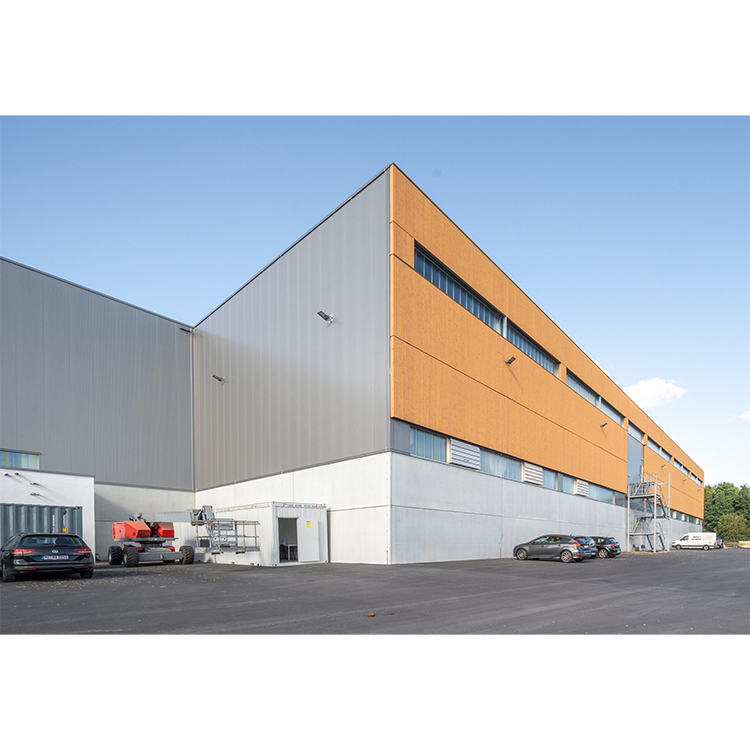

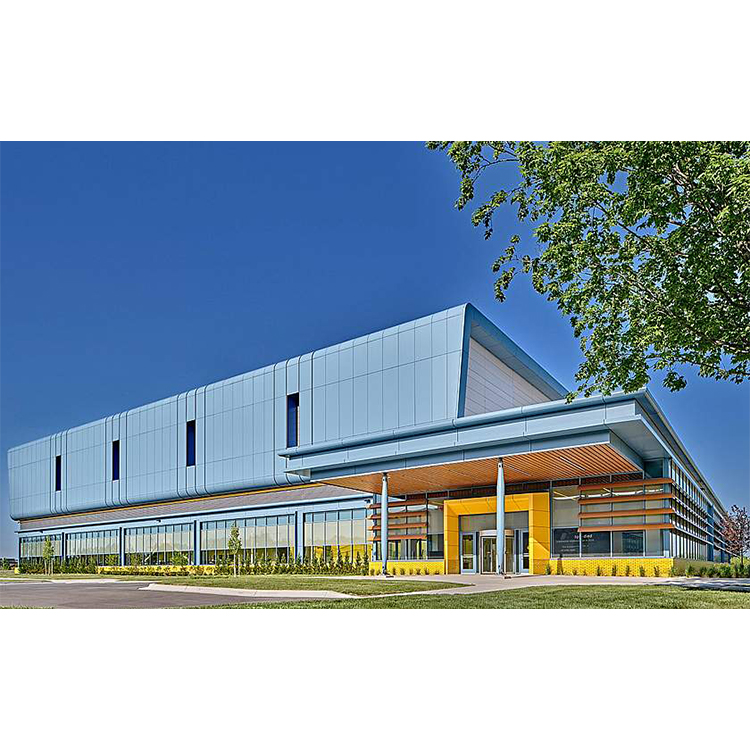

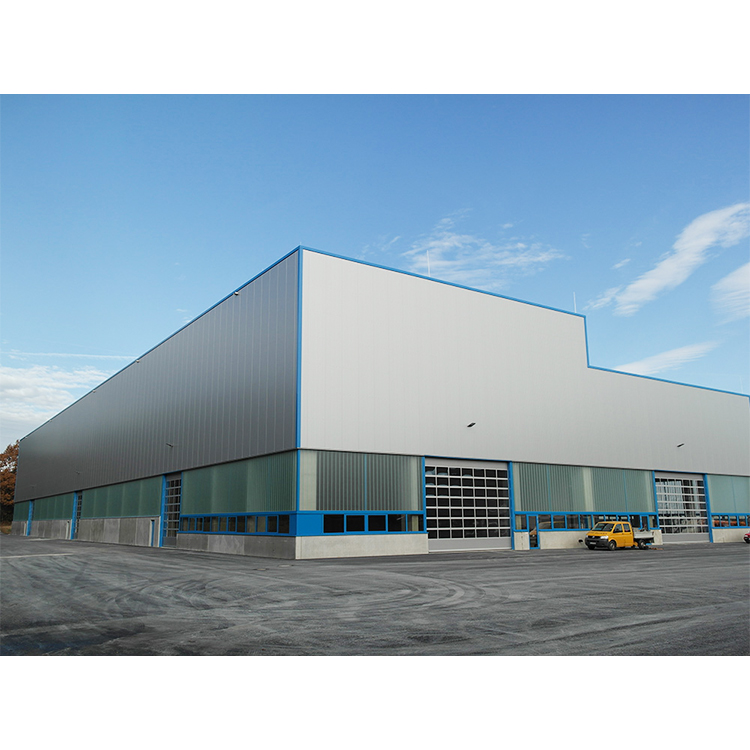

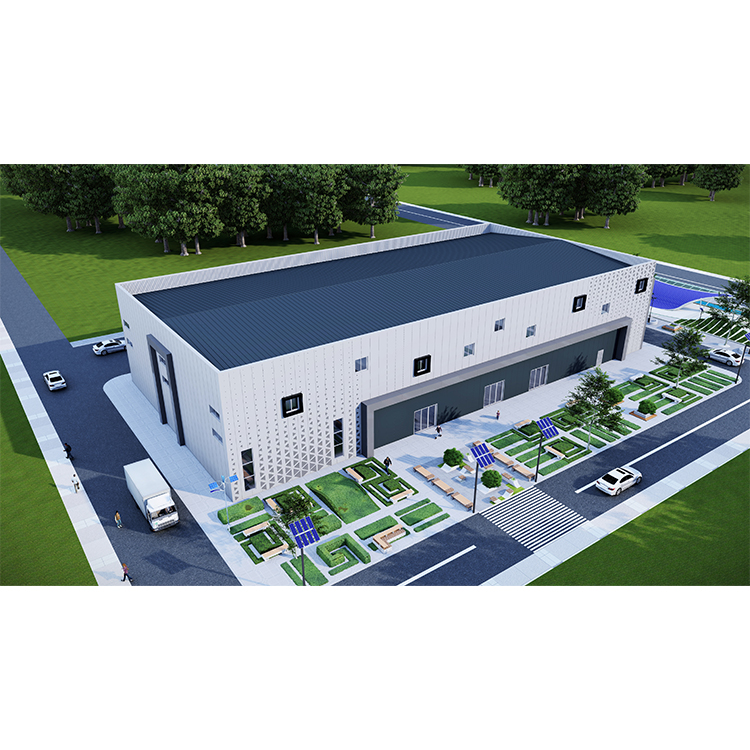

Our prefabricated steel structure buildings are pre-cut, pre-drilled, and ready for quick and efficient assembly. Steel buildings work for virtually any building application: Agricultural/ Barns/ Aircraft Hangars/ Welding Shops/ Commercial center/ Garages/ Storage/ Suburban Buildings/ Warehouses/ Workshops/ school/ wedding hall/ dormitory etc.

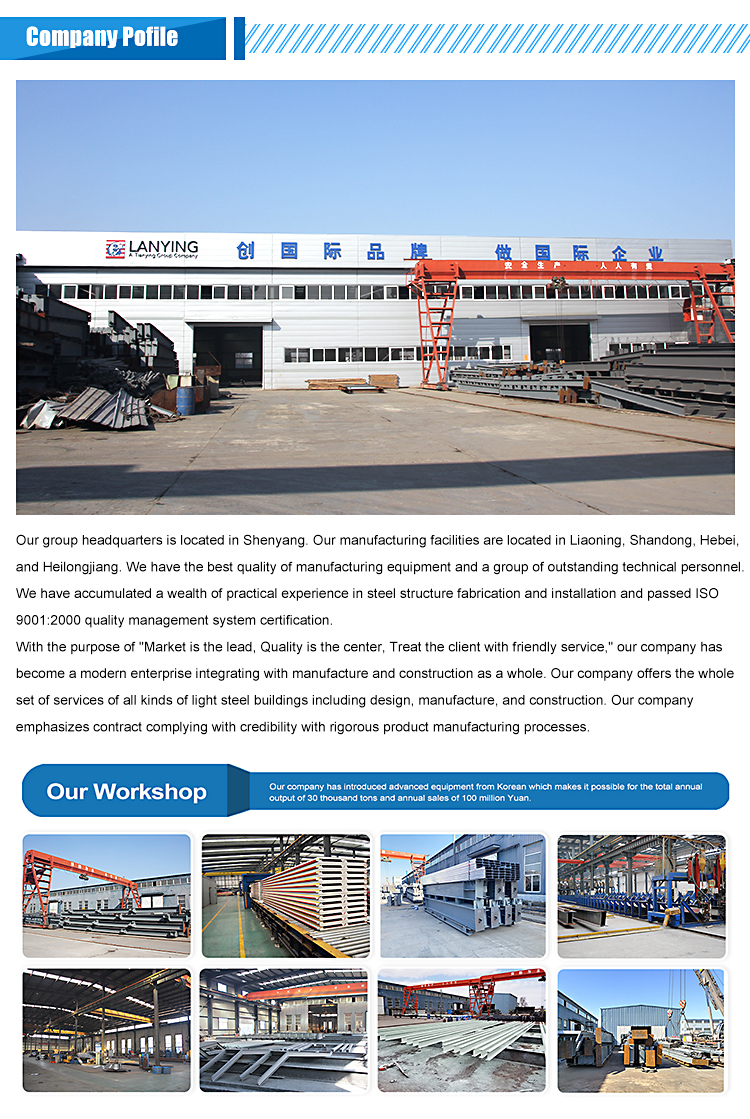

A: We are a manufacture factory. And you are welcomed to visit us at any time for inspection. The quality control flow and sales team will show you our professionalism. Also, you will get the best and most competitive price after visiting us.
A: Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. SGS, BV and other testing are available for us.
A: Our business objectives are to give the best price with the same quality and the best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
A: Yes, we will send you the detailed installation drawing and video for free. We can provide the service of installation, supervision, and training by extra. We can send our professional technical team to supervise installation on site overseas.

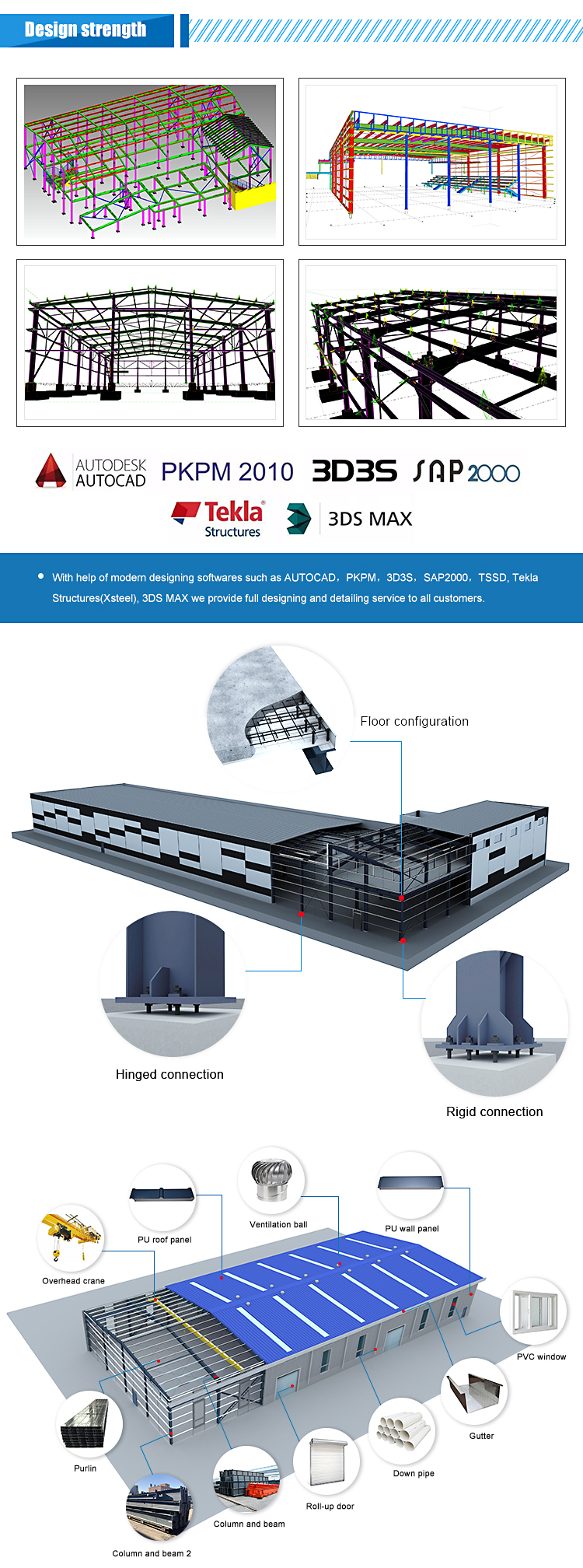

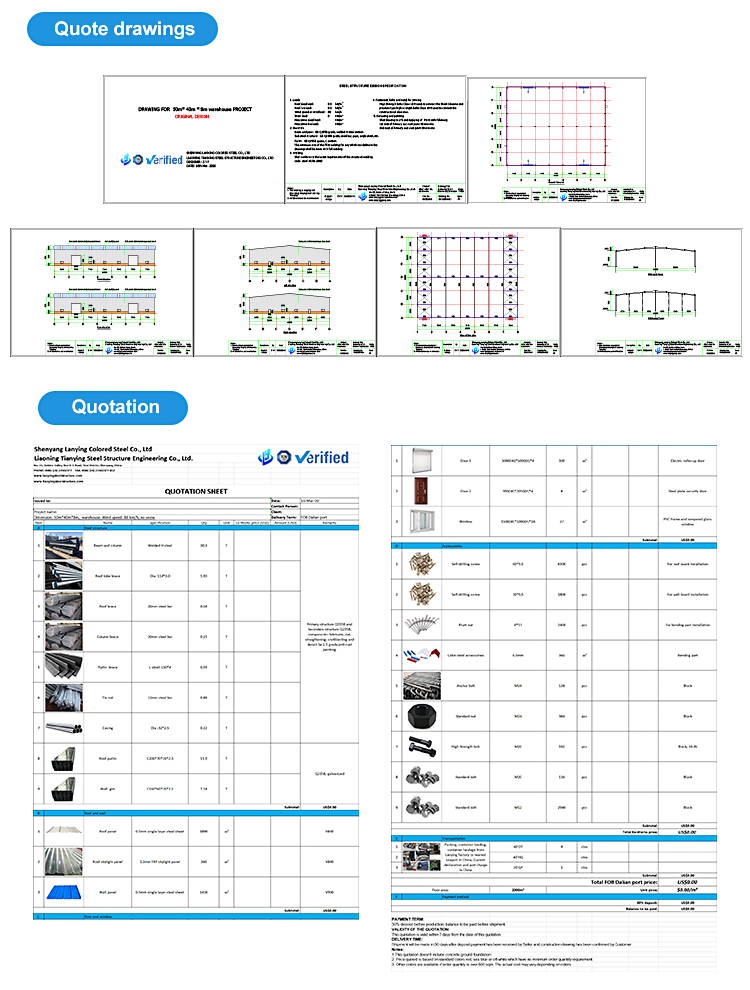

A: Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) etc., we can design complex industrial buildings like office mansions, super markets, auto dealer shops, and shopping malls.
A: Delivery time depends on order quantities. In general, the delivery time to the nearest seaport in China will be 30 days after receiving the deposit.
