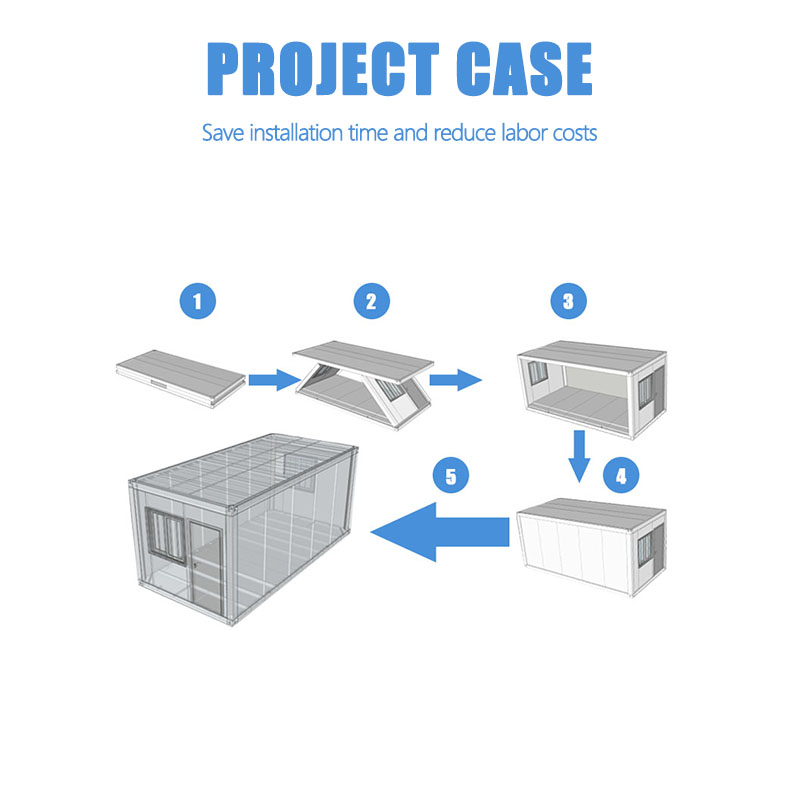

| Product specifications | Folded Height | H=440mm |
| Loading capacity | 1*40HQ=10 units | |
| Length*Width*Height (mm) | 5830mm*2500mm*2470mm | |
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
| Structure | Column | Specifications=50mm*160mm, Roller beam, Material Thickness=2.3mm, Material=Q235B |
| Roof Main Beam | Specifications=50*160mm, Roller beam, Material Thickness=2.3mm, Material=Q235B | |
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type, Material Thickness=1.0mm, 6 Pieces, Material=Q235B | |
| Ground Main Beam | Height=50*140mm, Roller beam, Material Thickness=2.3mm, Material=Q235B | |
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C Type, Material Thickness=1.5mm, 9 Pieces, Material=Q235B | |
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Roof | Roof Panel | EPS Color Steel Sandwich Panel, Thickness=50mm, Color=White-Gray, Falls freely into the water |
| Floor | Substrate | 18mm Fireproof Glass Magnesium Board |

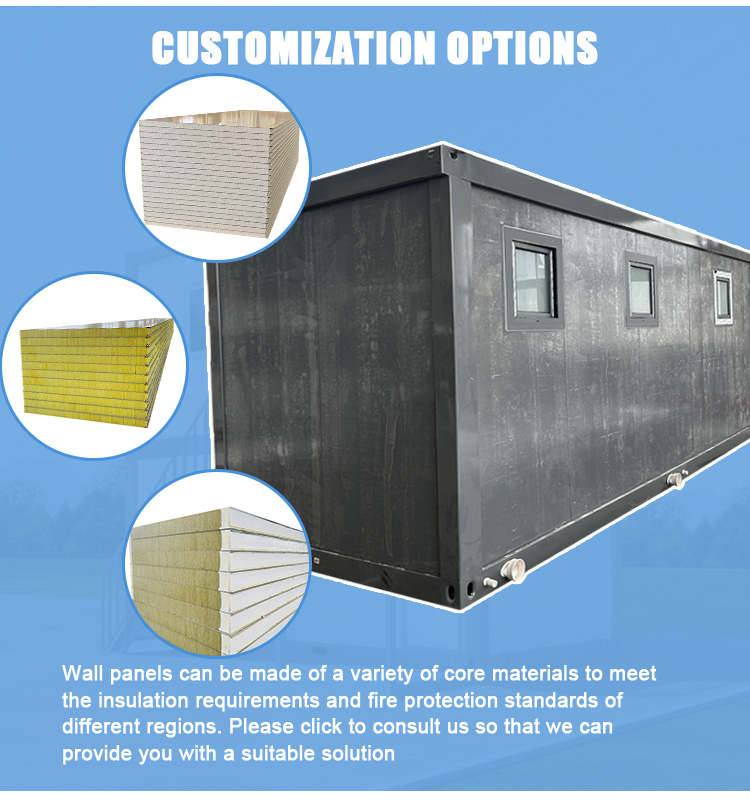

| Panel | Insulation Cotton | 50mm Thickness Color Steel EPS Sandwich Panel, Class B Fire Protection |
| Color steel Plate | Panel Color Steel Plate Thickness=0.4mm | |
| Door | Specification | Width*Height=840mm*1900mm |
| Material | Steel Door, Concealed Buckle Lock | |
| Window | Specification | 950mm*1100mm |
| Frame Material | Plastic Steel | |
| Glass | Single Glass | |
| Electricity | Voltage | 220V, 50Hz |
| Wire | Concealed Line, Total Home Power Line 3*4 Square, Air-conditioning line 3*4 square, Socket Line 3*2.5 Square, Lighting Switch Line 2*1.5 Square | |
| Breaker | High Breaking Miniature Circuit Breaker | |
| Illumination | 1 set of 1200*300 ultra-thin LED lights, power 36W | |
| Socket | 4 Five-hole sockets 10A (or USB socket), 1 Three-hole air conditioner socket 16A, 1 Single switch 10A | |

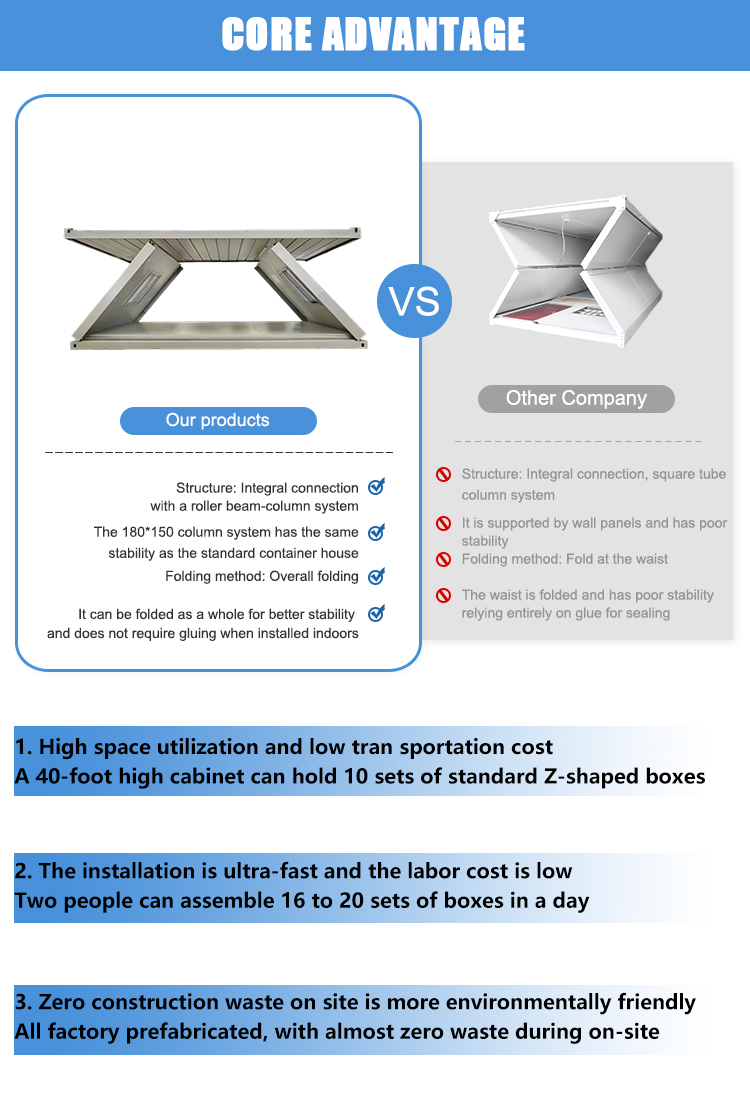

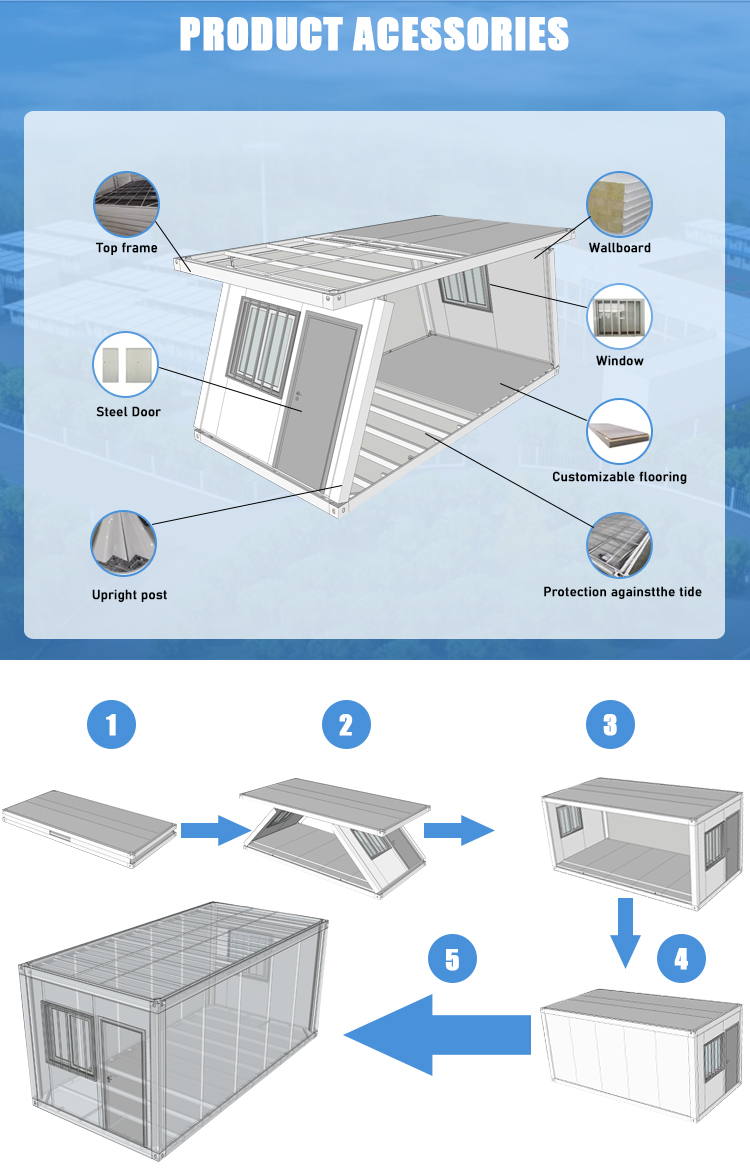

| Other | Folding hardware | Special Parts, No Hinges |
