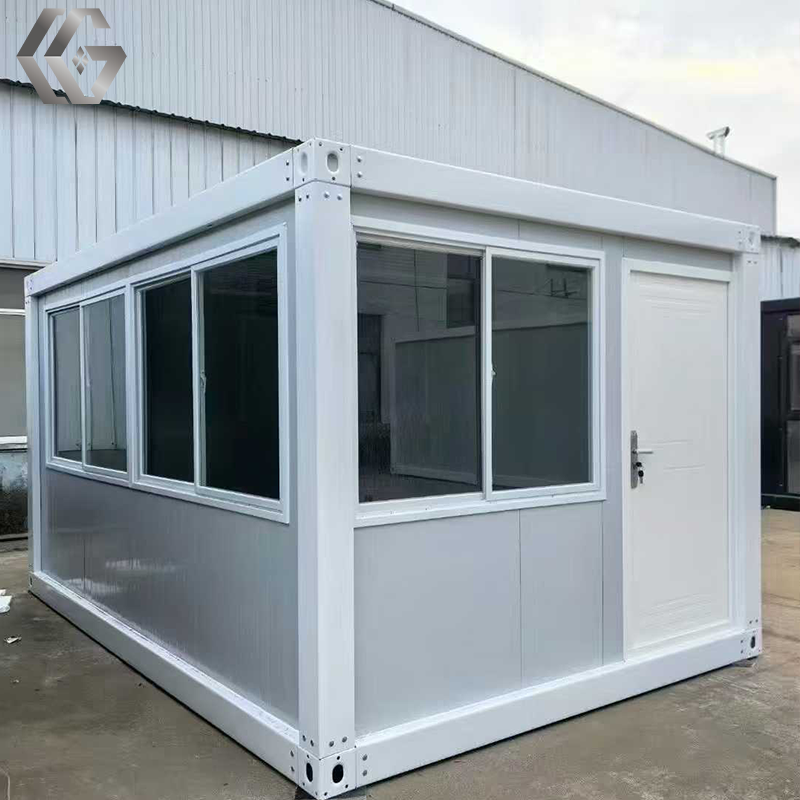

Custom design interior, exterior walls, doors and windows, bathrooms, floors, circuits Modular design, flexible combination, fast installation Rugged, spacious and comfortable Perfect packaging, rest assured delivery Global Delivery
| External dimensions (length * width * height) | L5950mm × W3000mm × H2800mm |
| Internal dimensions (length * width * height) | L5730mm × W2800mm × H2500mm |
| Roof type | Flat roof, free drainage |

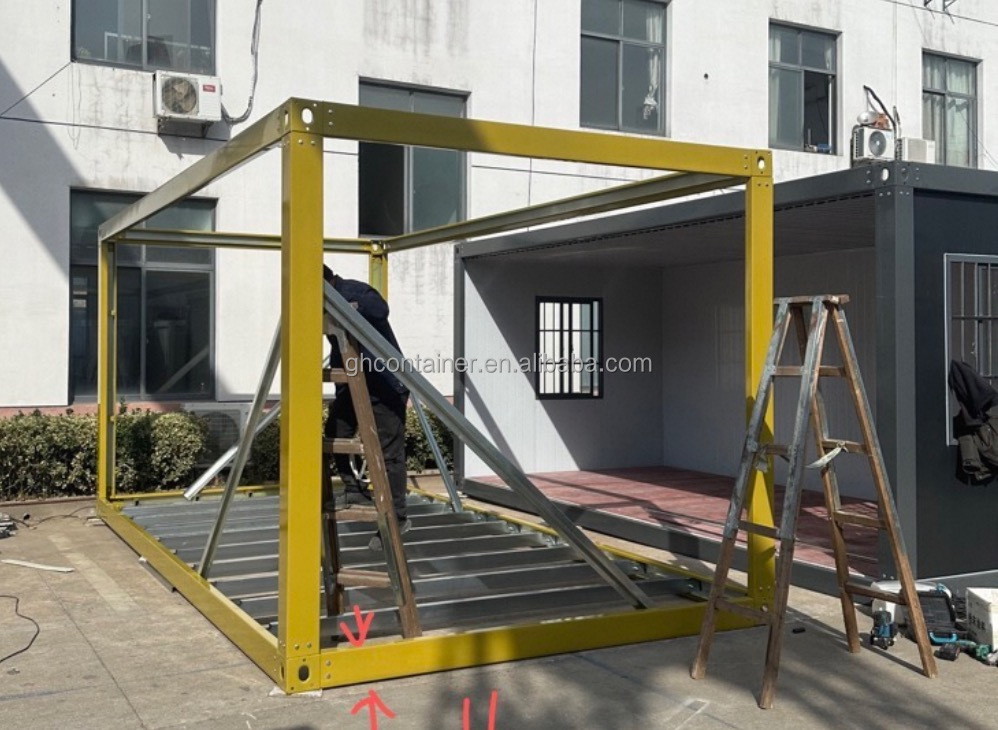

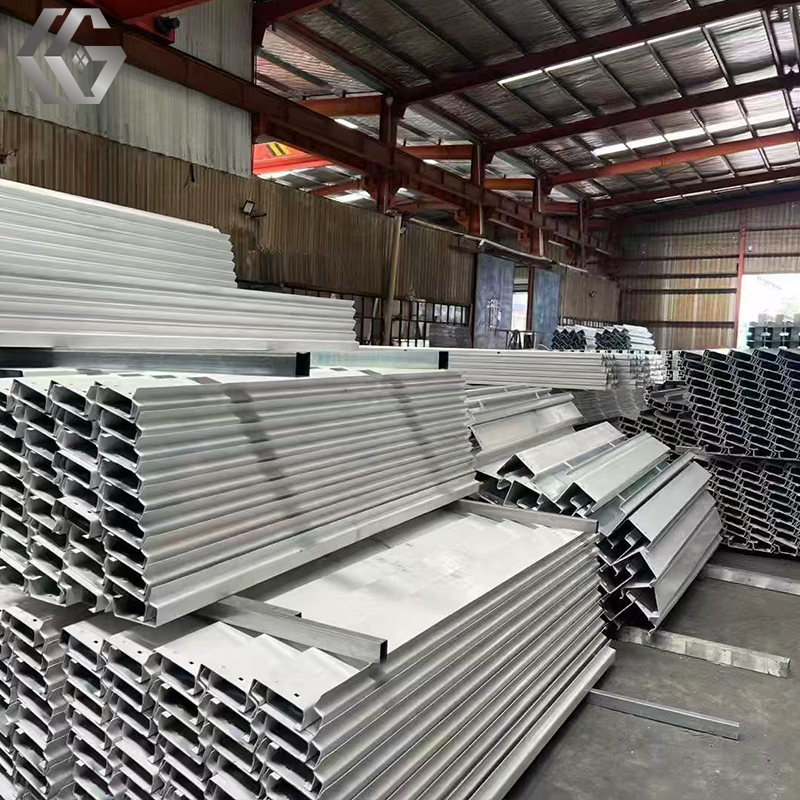

| Corner column, roof main beam | Galvanized cold-rolled steel, t=2.0mm, material Q235B |
| Secondary roof beam | Galvanized square steel 5×5, t=1.5mm, galvanized square steel 4.6t–1.2mm, material Q235B |
| Ground main beam | Galvanized cold-rolled steel, t=2.0mm, material Q235B |
| Ground secondary beam | Galvanized square steel 5×10 (9 grades), material Q235B |
| Paint | Graphene powder spraying (electrostatic spraying) |

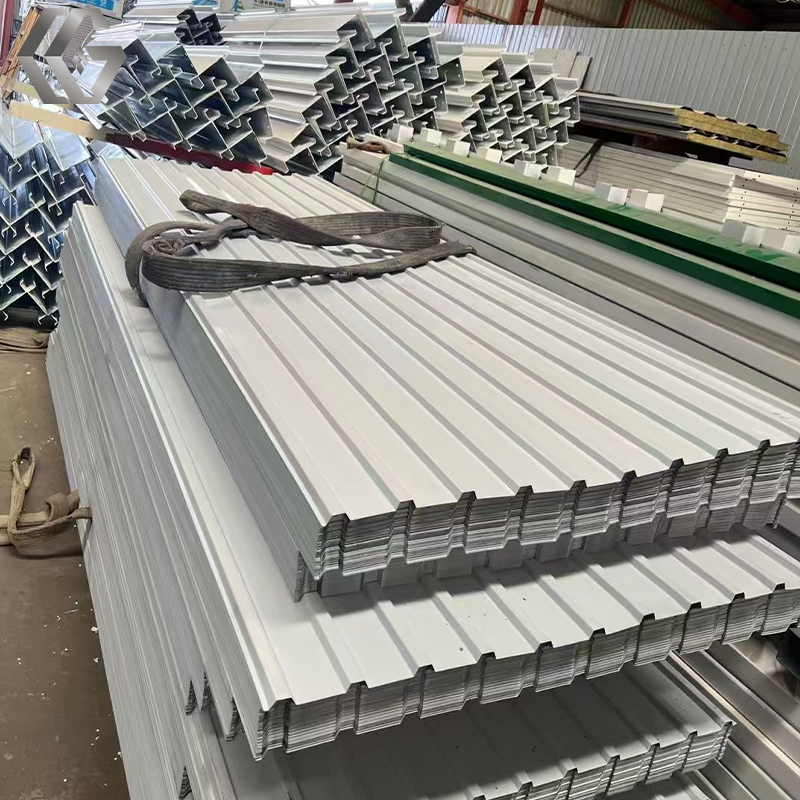

| Roof panel | 0.40mm thick color steel plate profiled plate, color white gray |
| Ceiling panel | 0.25mm thick 811 ceiling, color white gray |
| Ground substrate | 18mm sanded board |

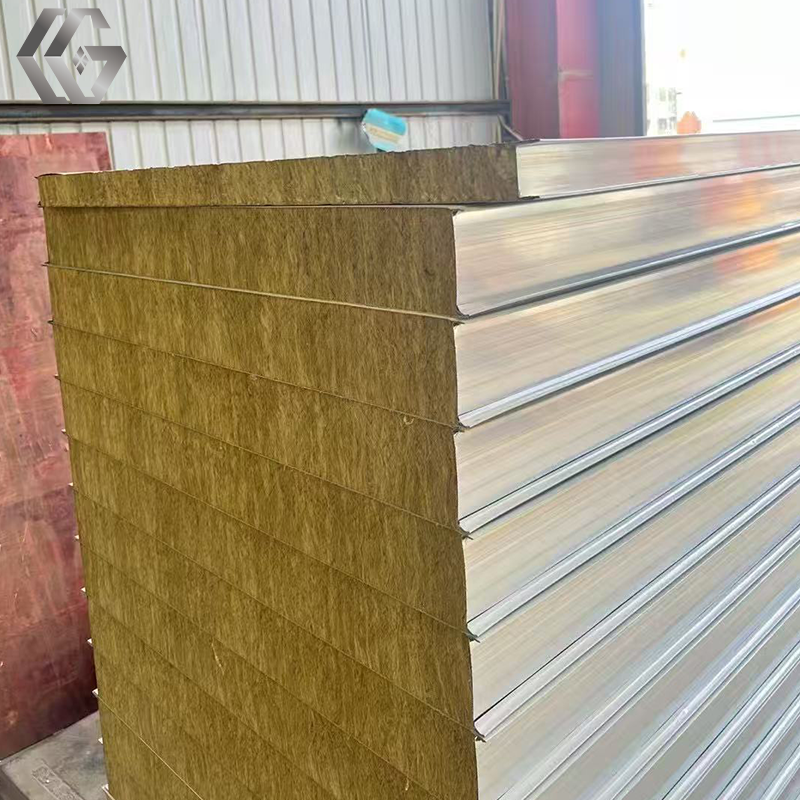

| Wall thickness | 50mm thick color steel rock wool sandwich panel; outer and inner panels use 0.3mm galvanized color steel plate |
| Door material | Steel door |
| Door specification | 920×2030mm ordinary door |
| Window specification | Front window: width × height = 920×1200mm; rear window (standard): width × height = 920×1200mm |

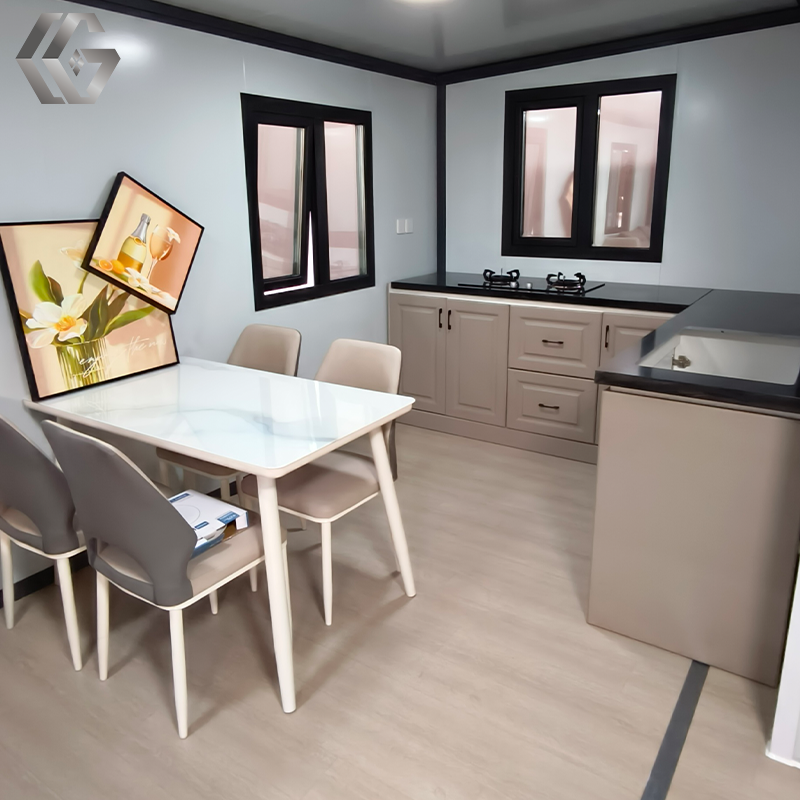

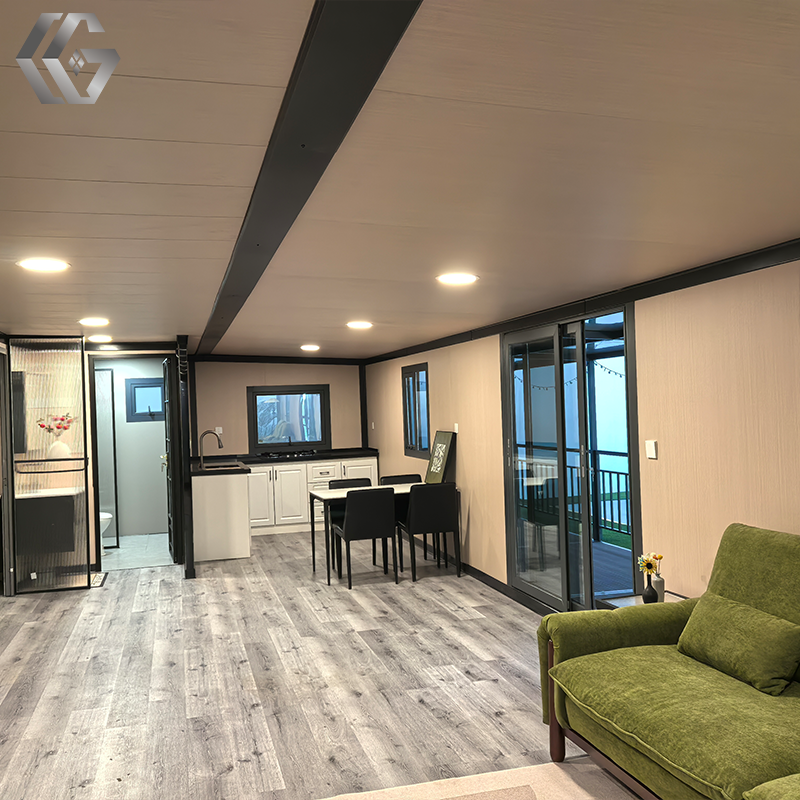

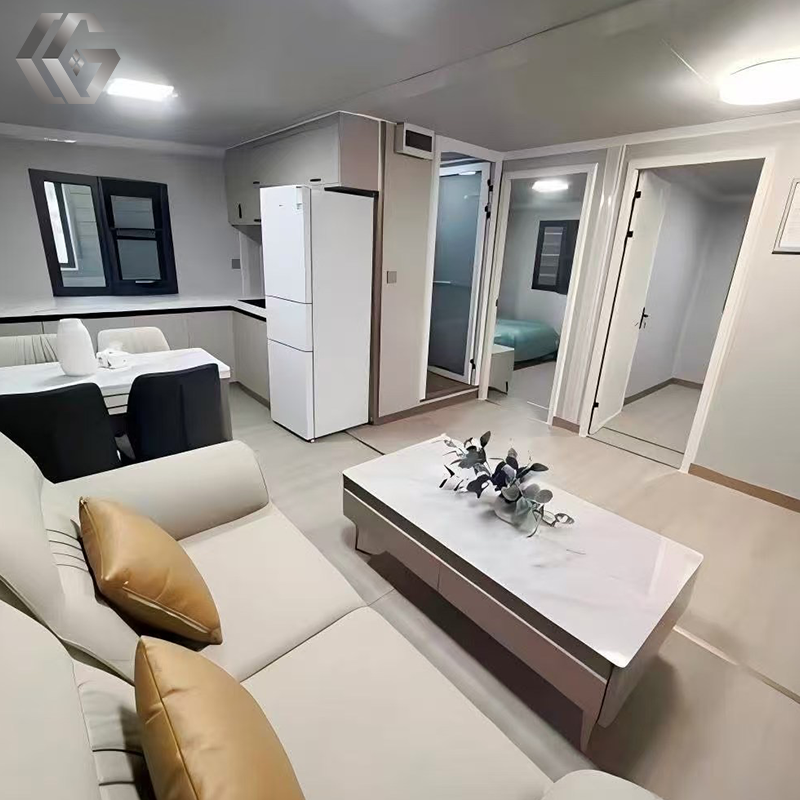

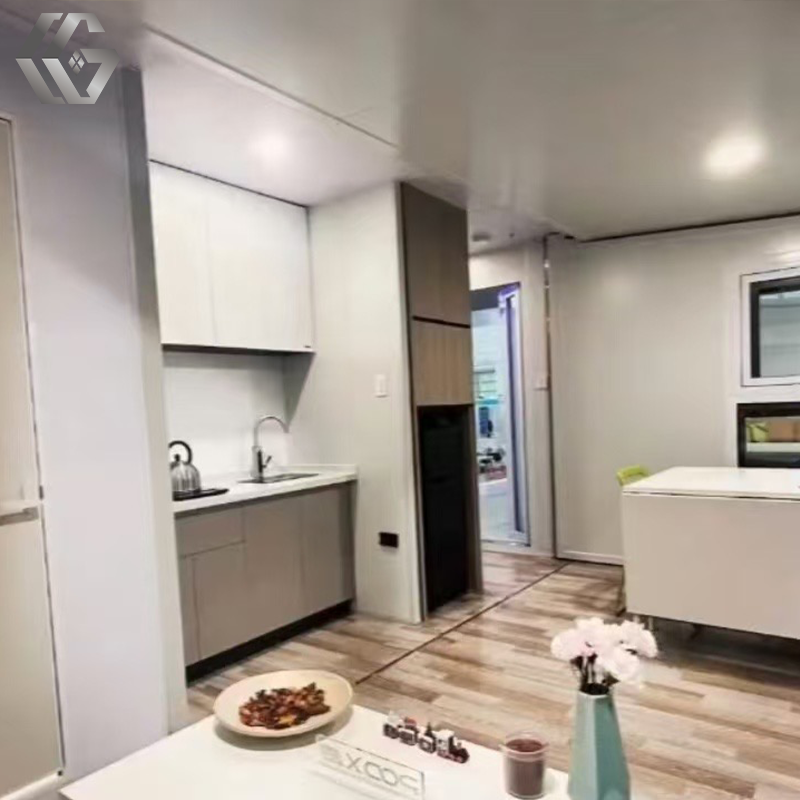

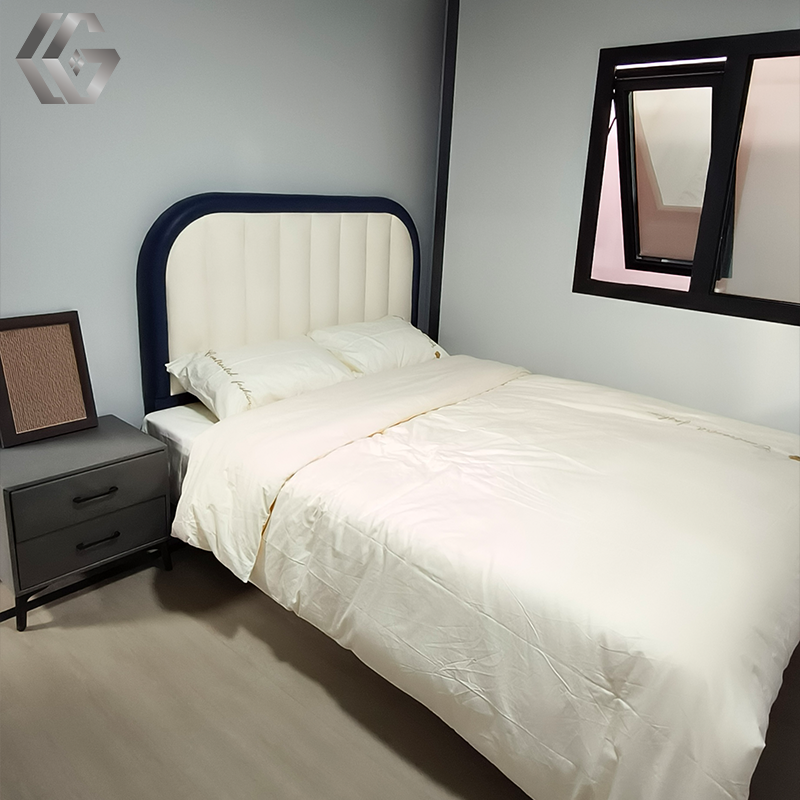

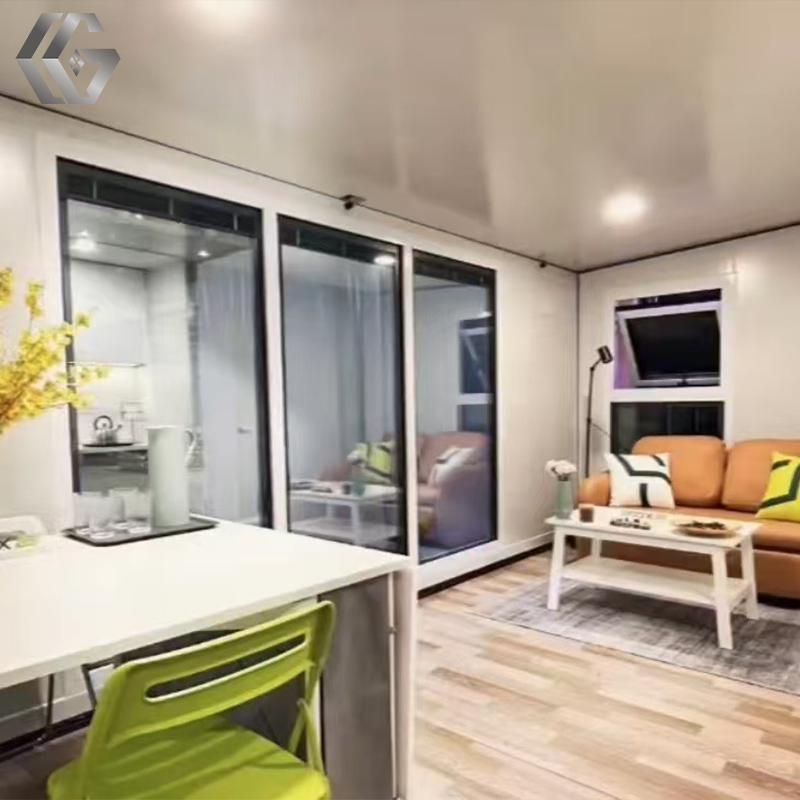

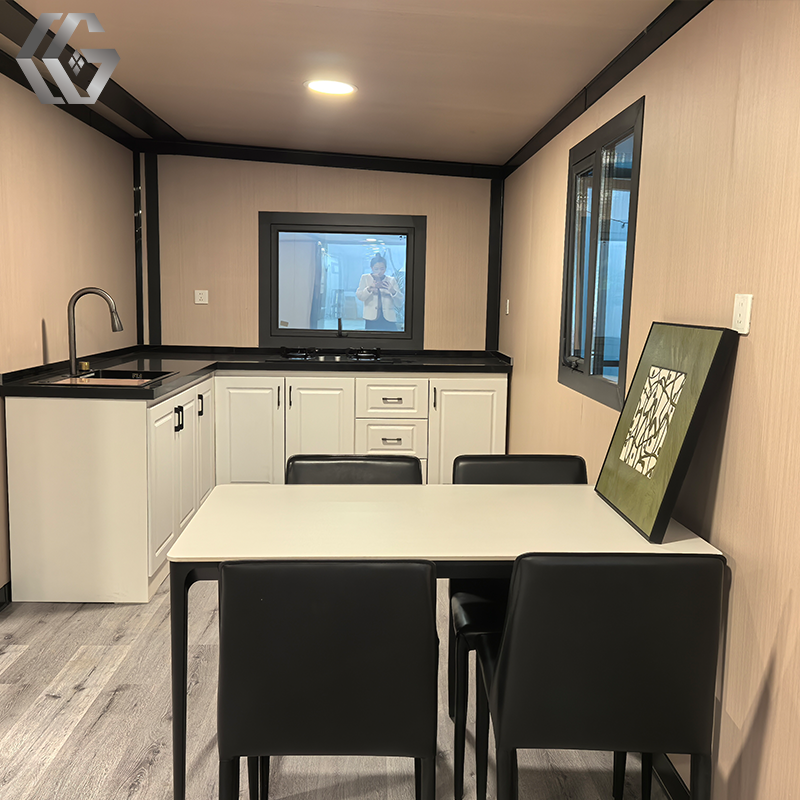

The whole house is customized according to your needs, giving you a perfect home

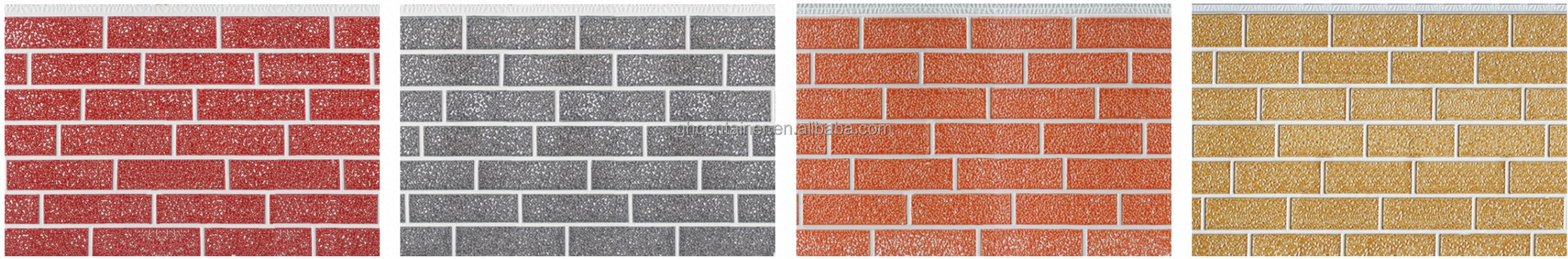

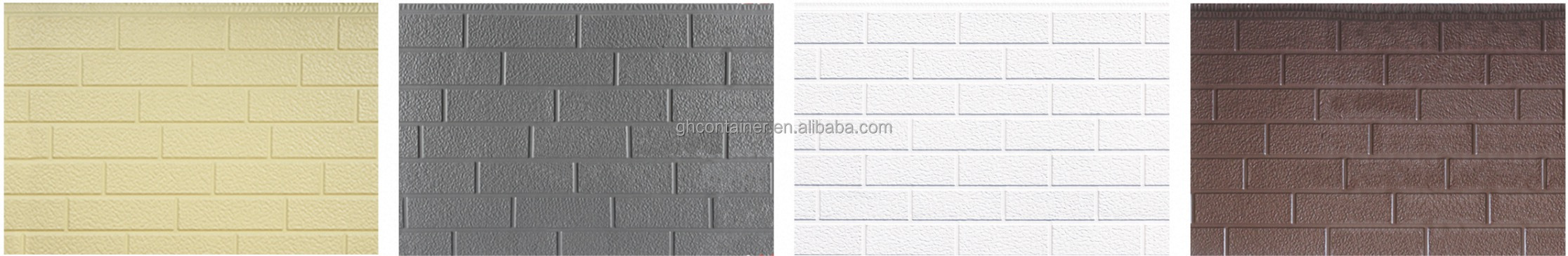

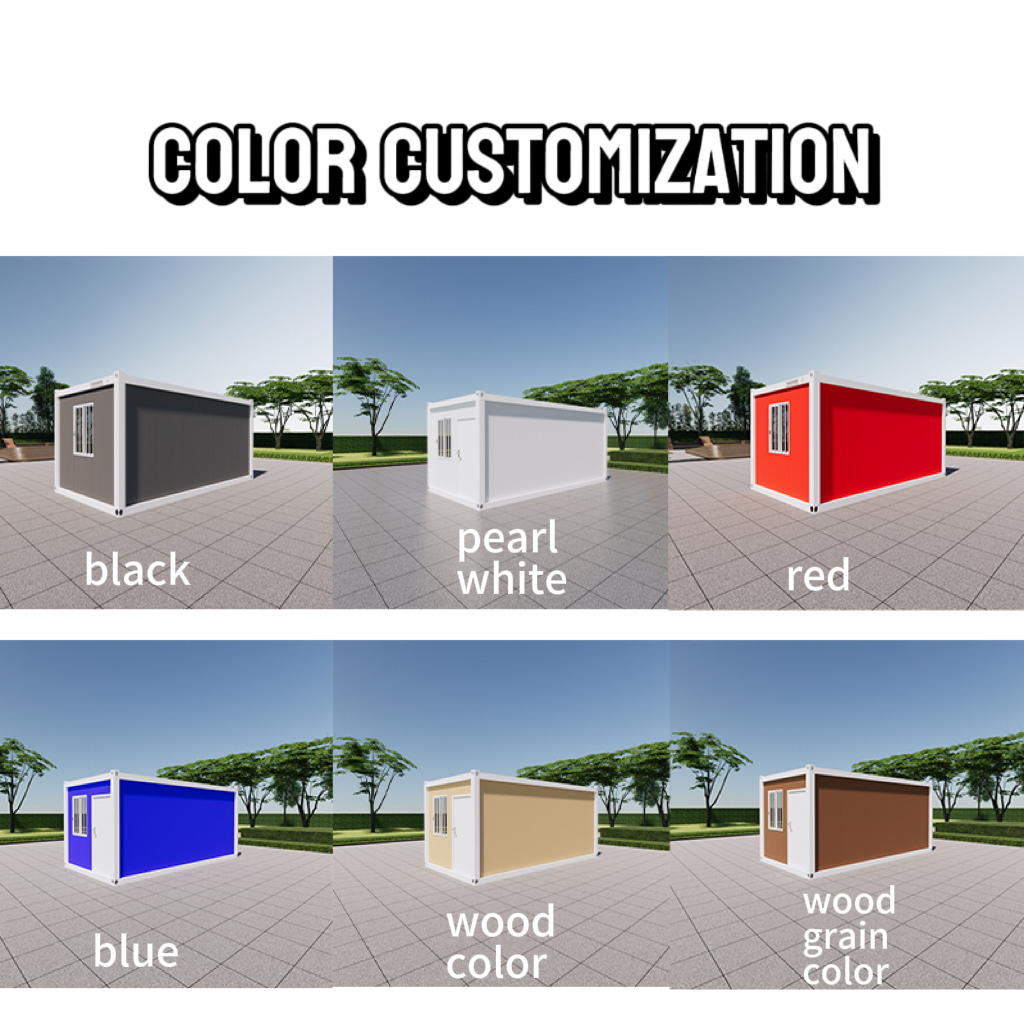

Custom exterior decoration color card, welcome to consult

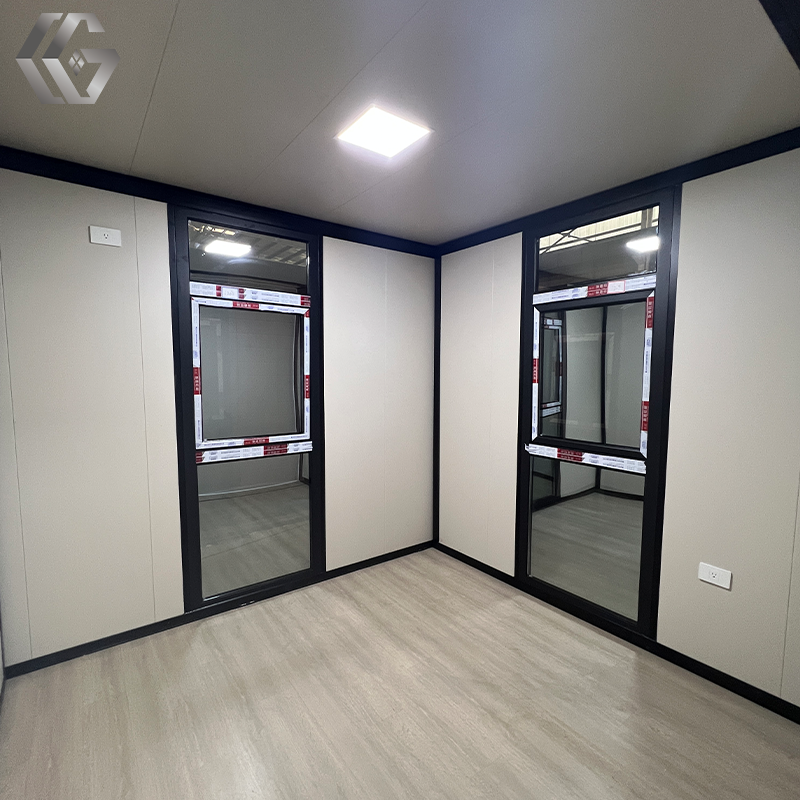

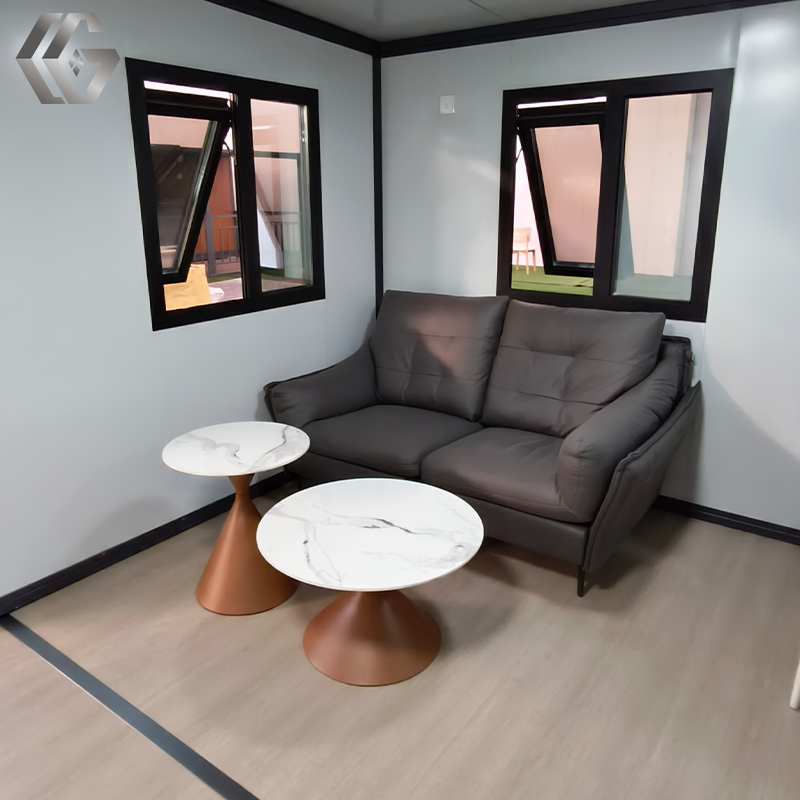

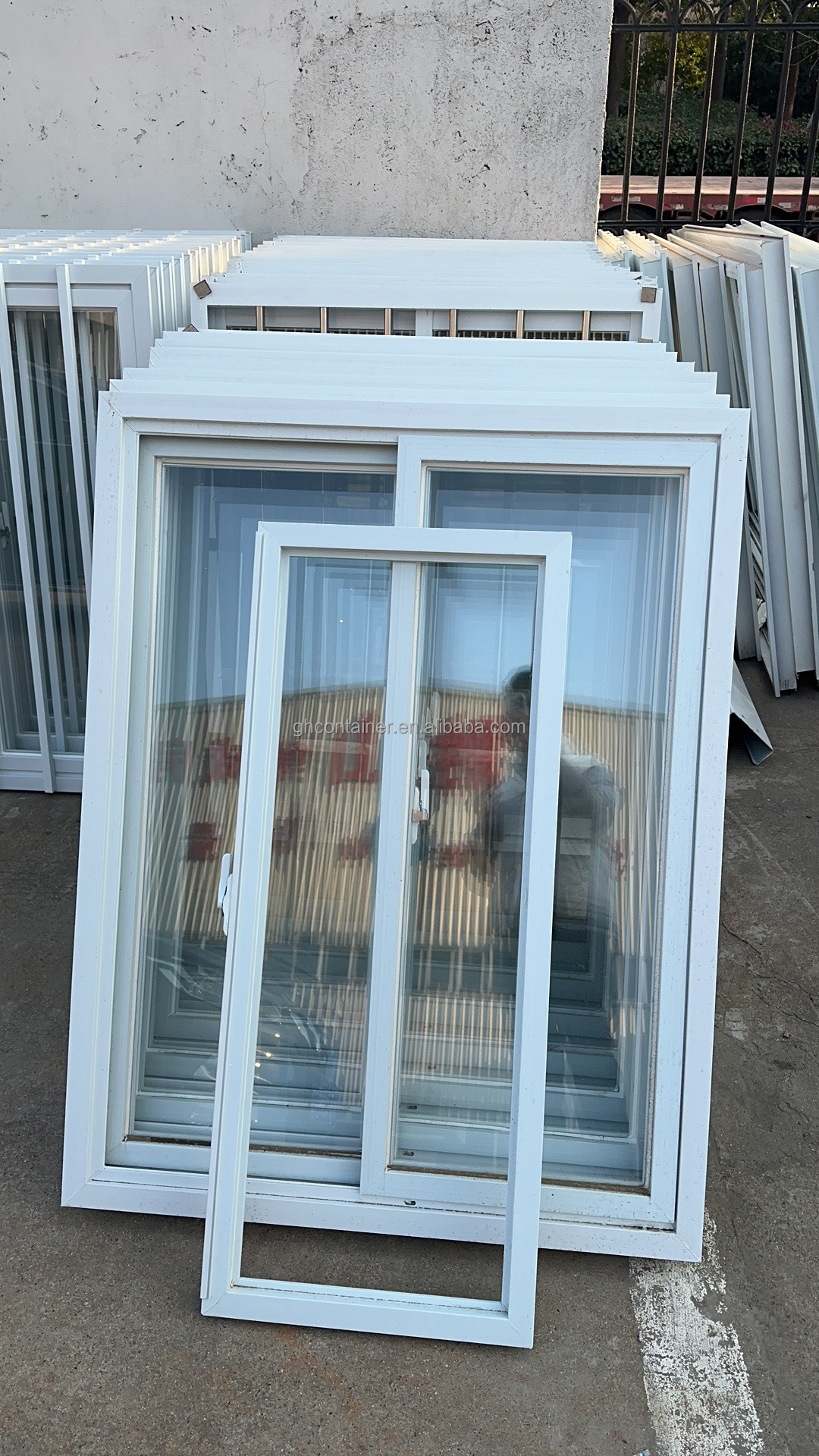

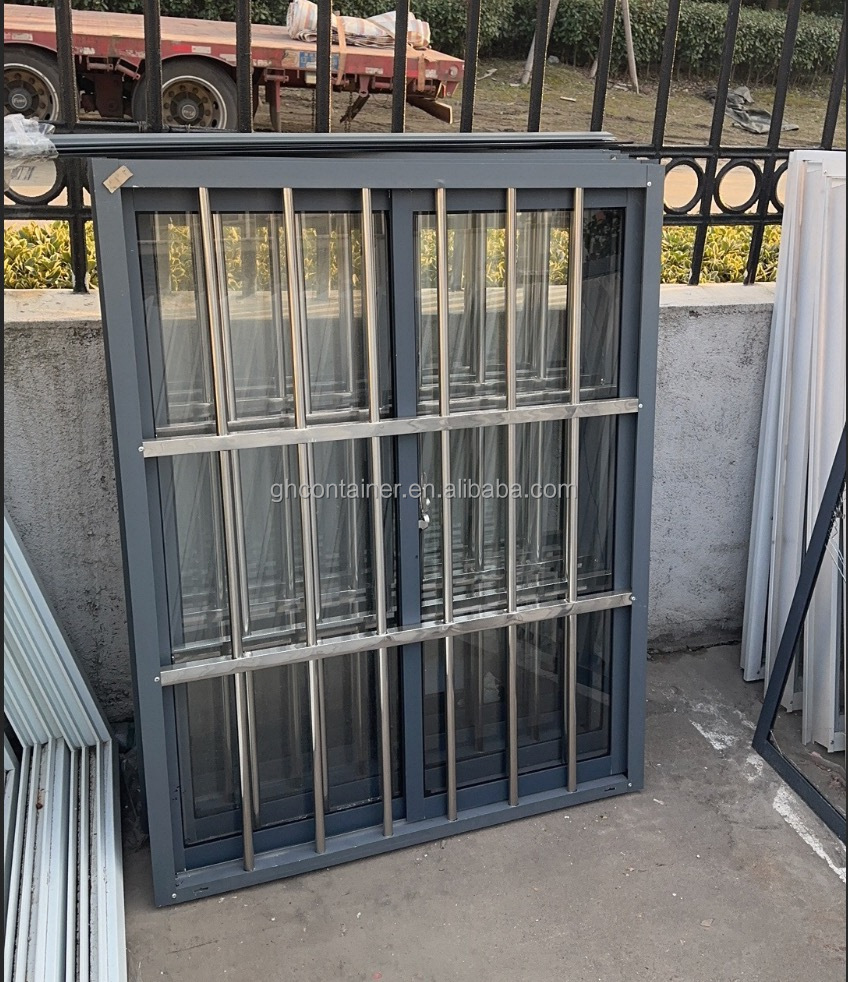

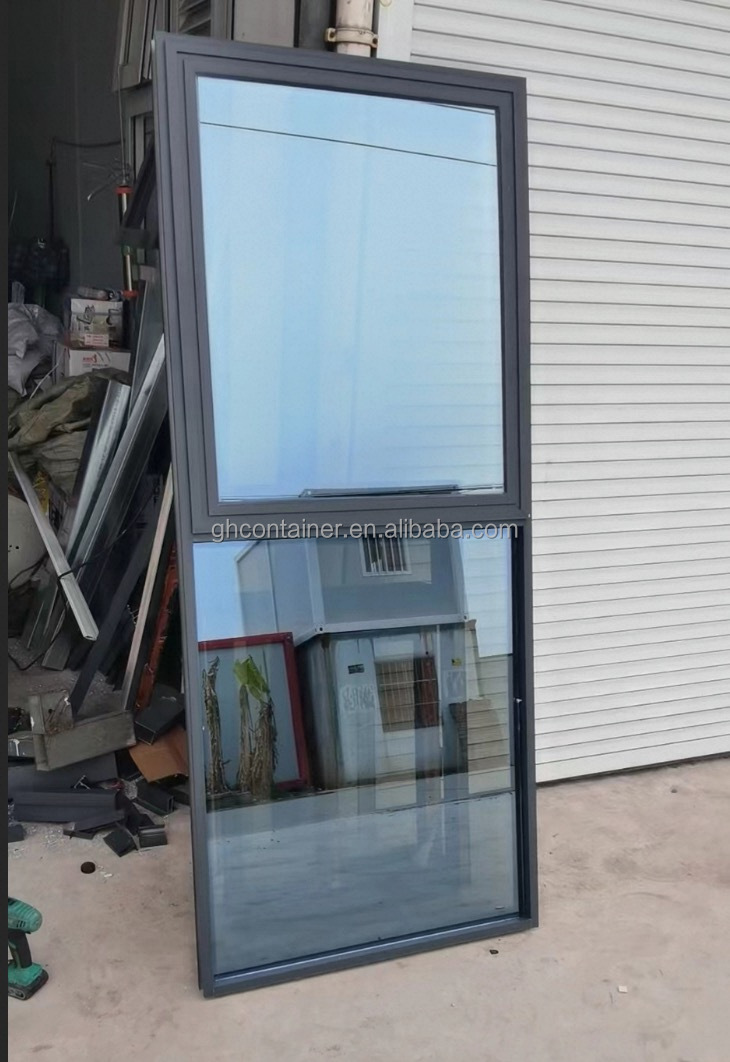

Custom doors and windows, more styles welcome to consult

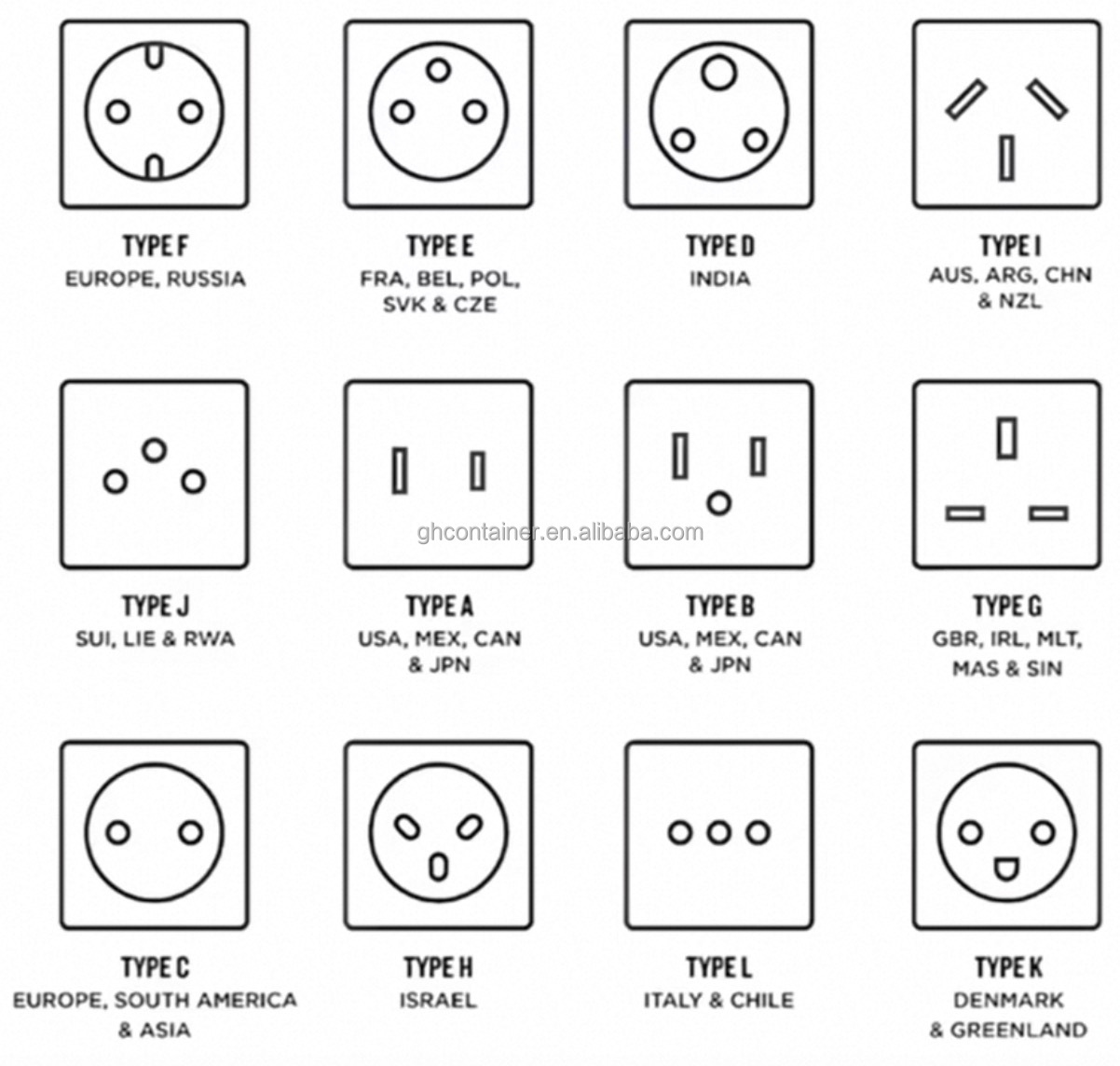

Global power socket styles can be customized

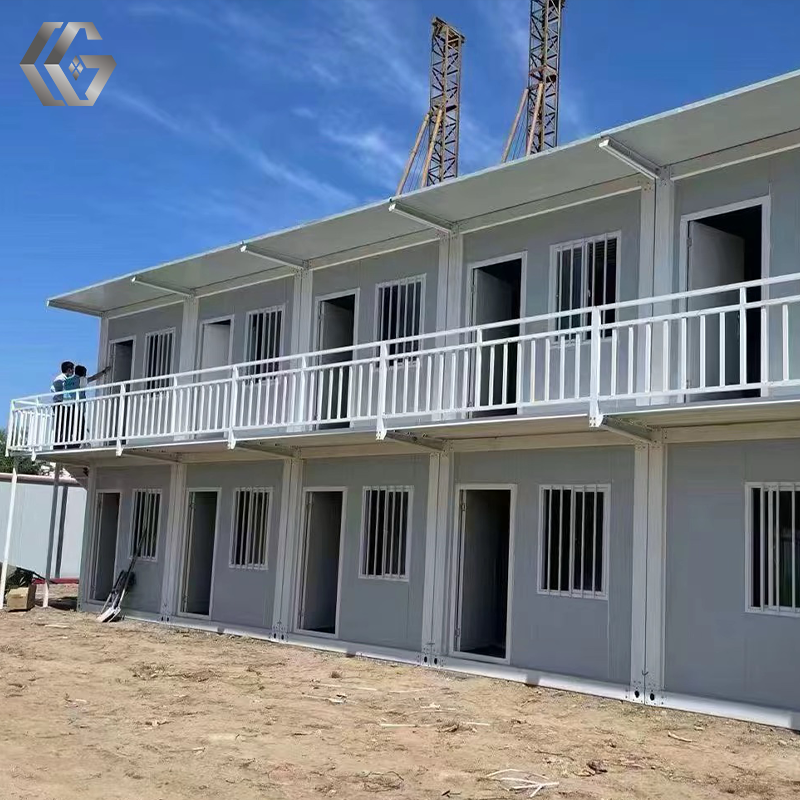

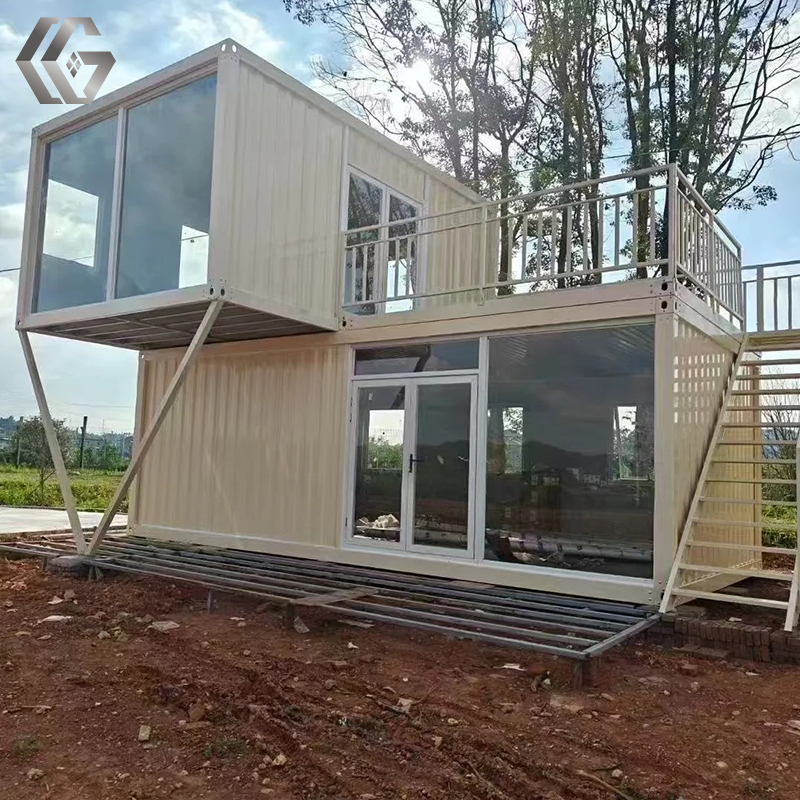

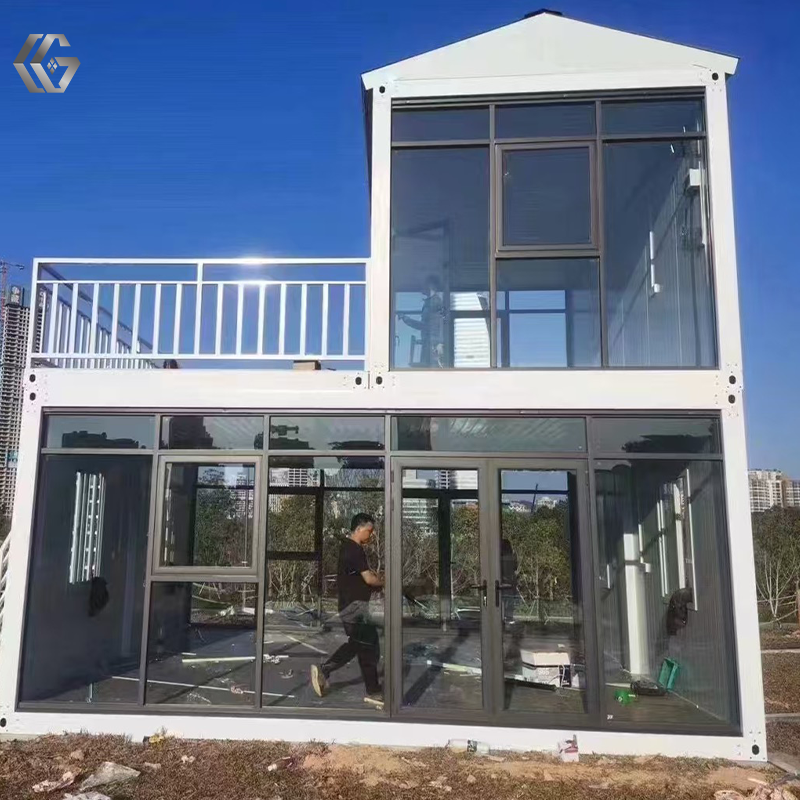

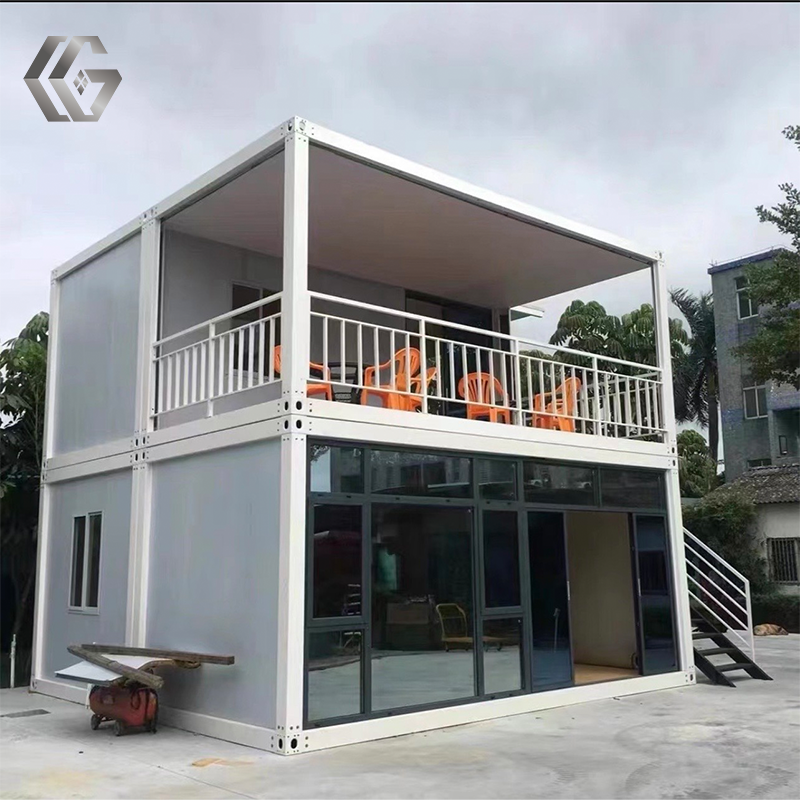

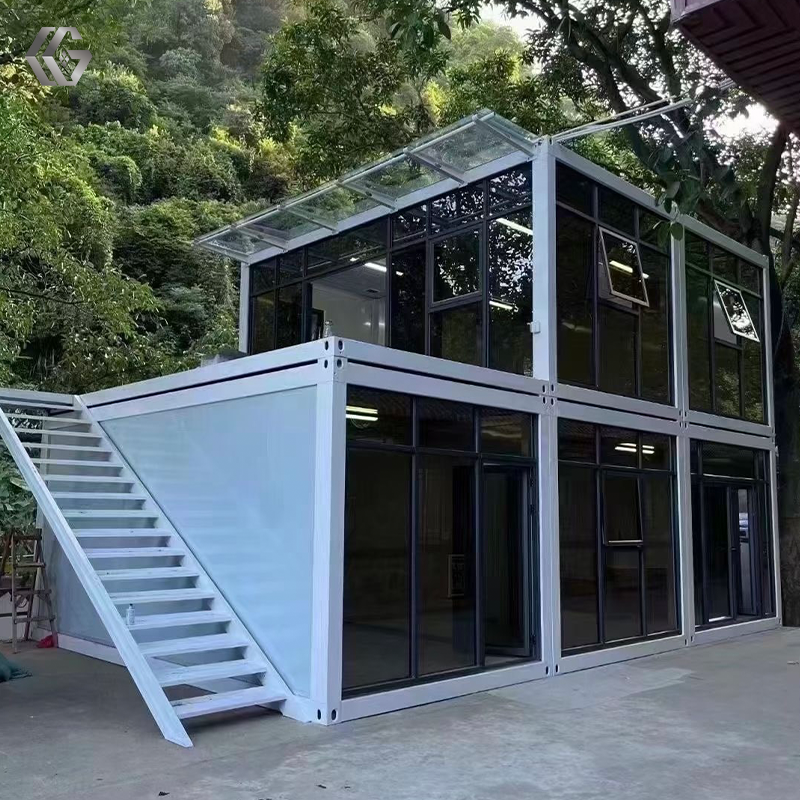

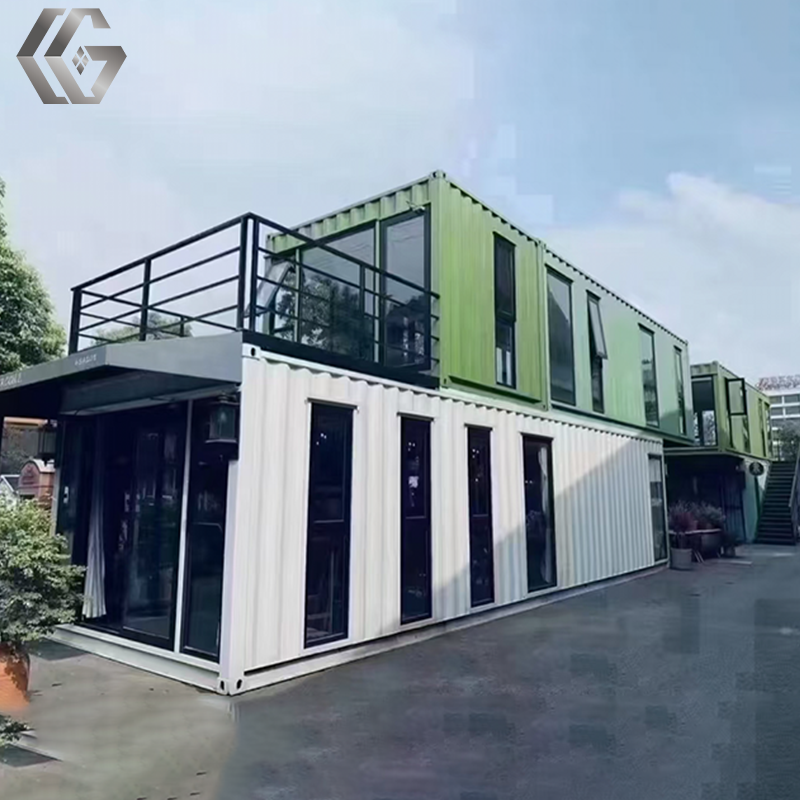

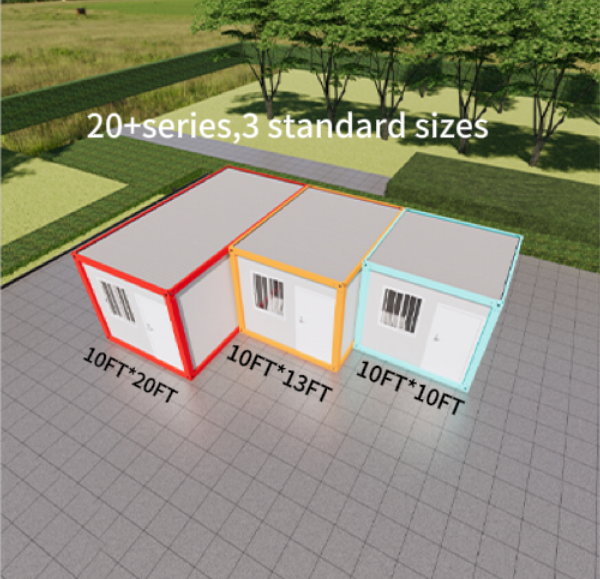

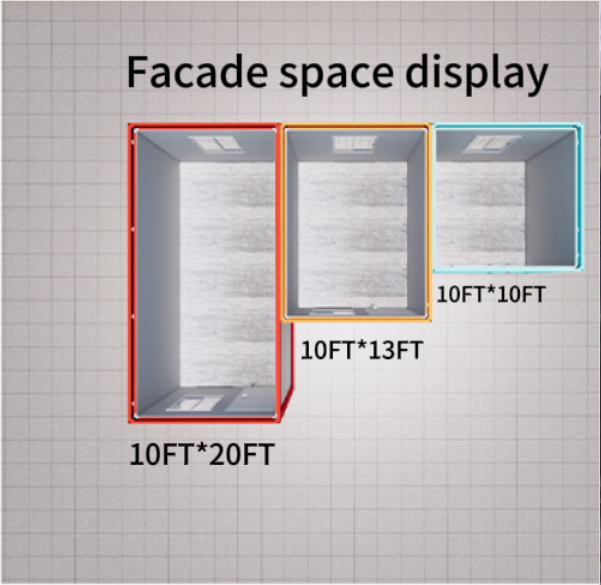

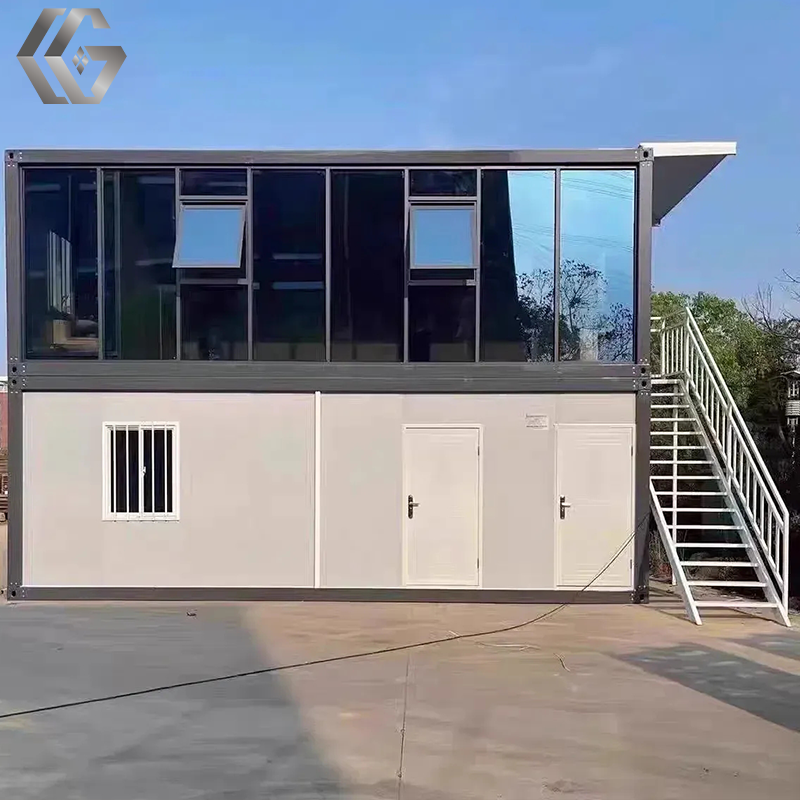

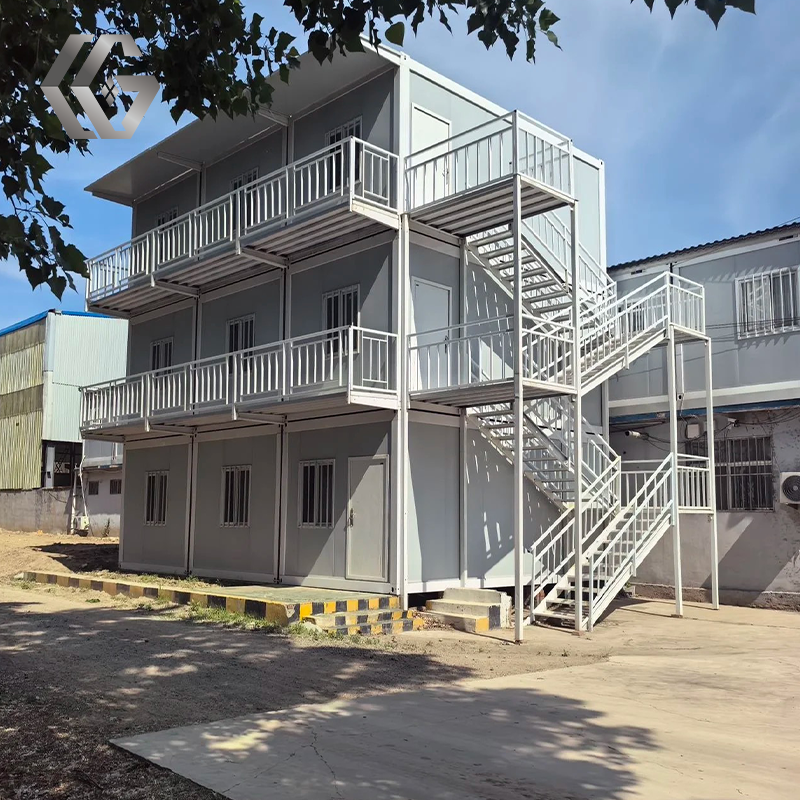

Modular design, allowing various stacking methods

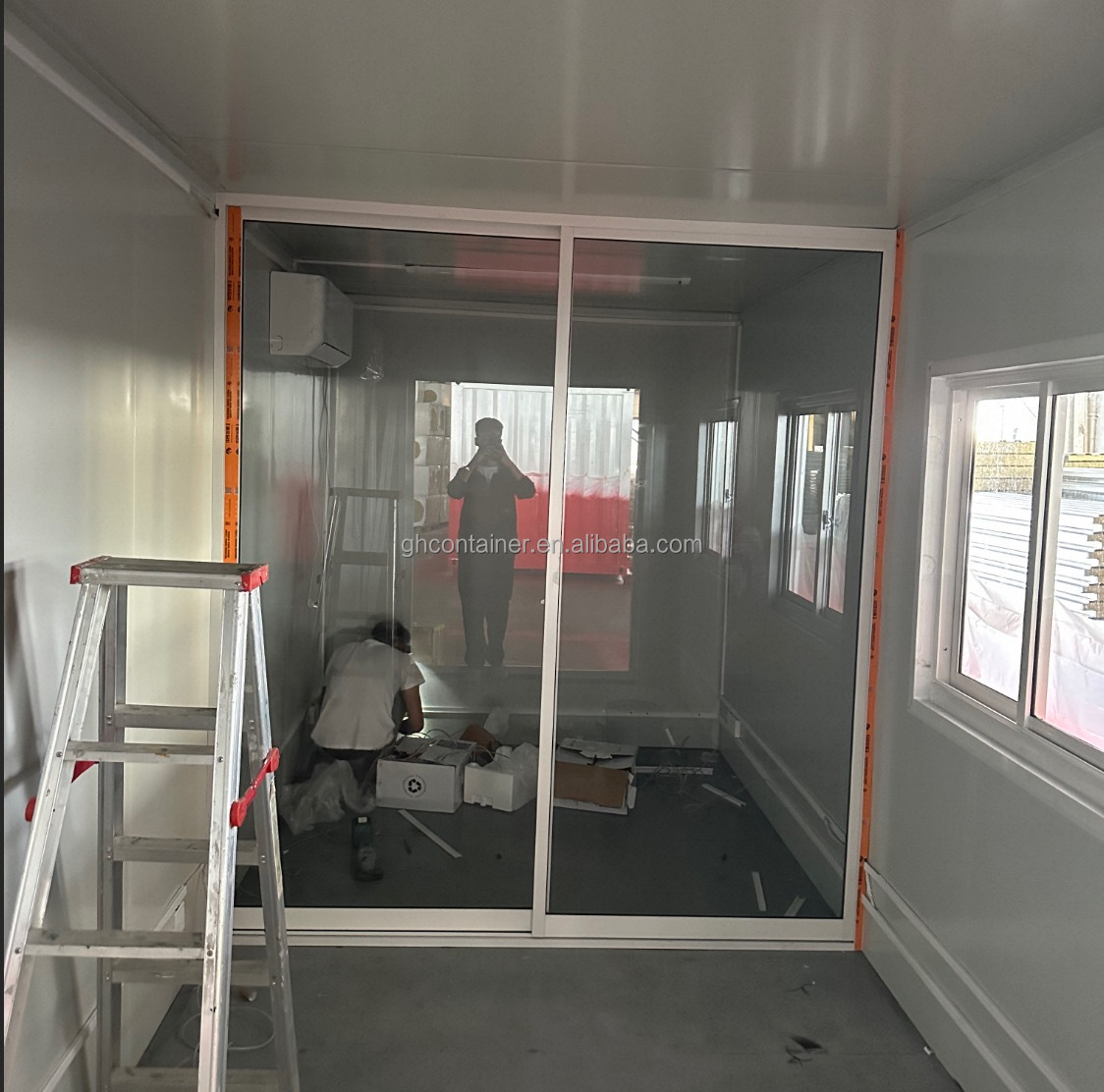

Factory prefabricated, easy on-site installation and remote guidance

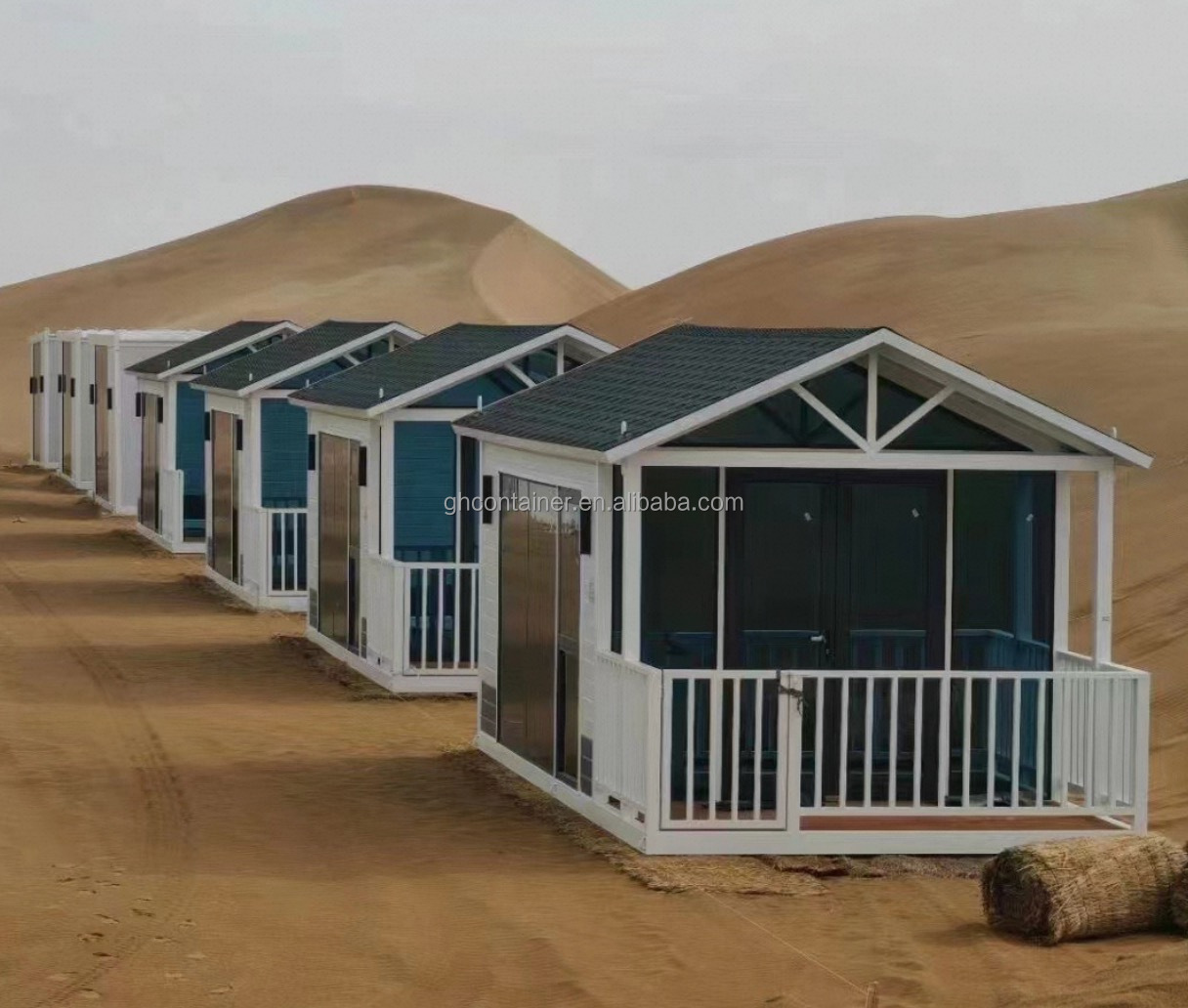

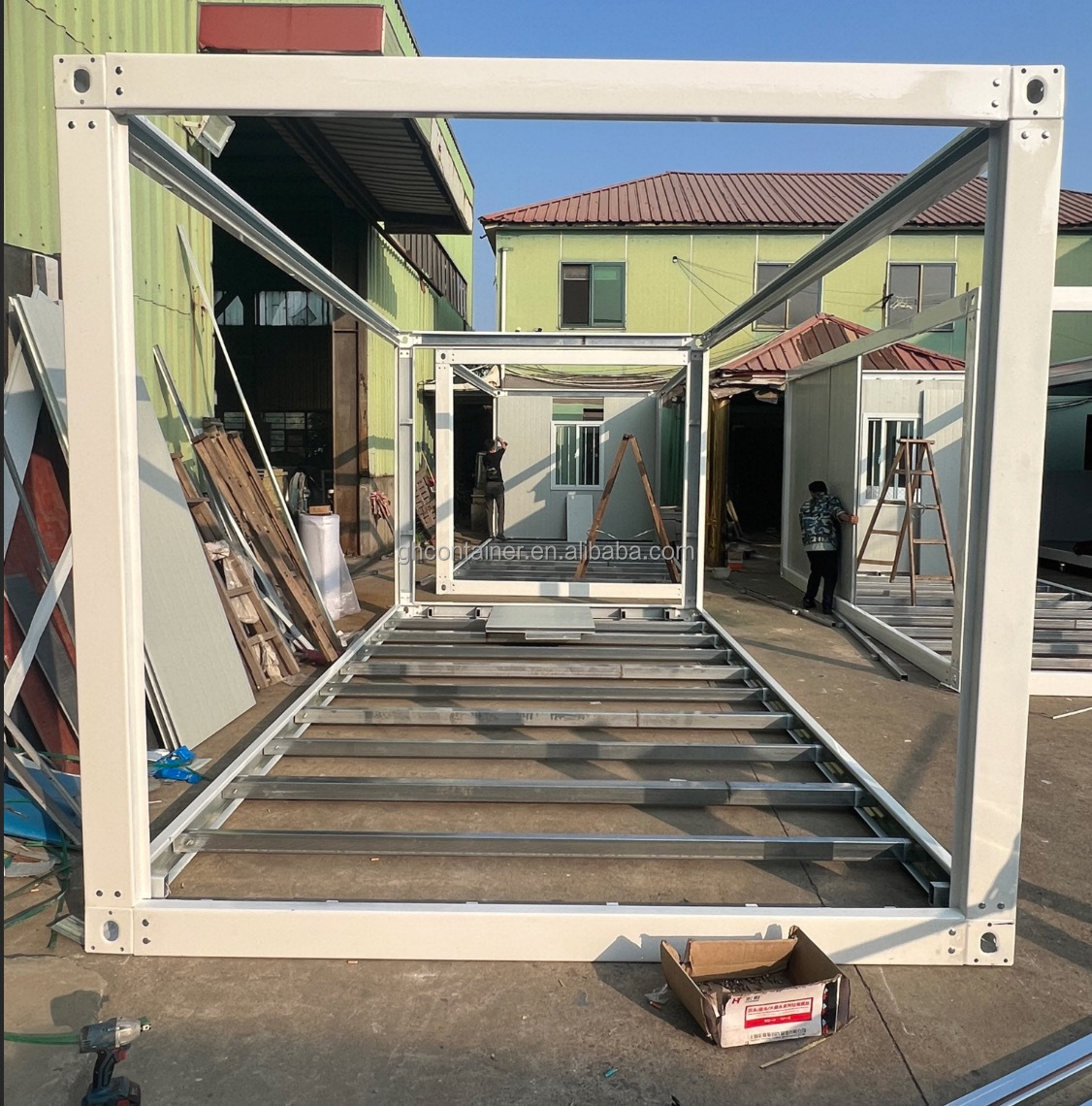

The galvanized steel structure is wind-resistant, shock-resistant and corrosion-resistant (suitable for seaside locations), and the walls are made of sandwich rock wool, which has good heat insulation performance.
Anti-typhoon and anti-earthquake
Thermal insulation and flame retardant
Rain-proof insulation

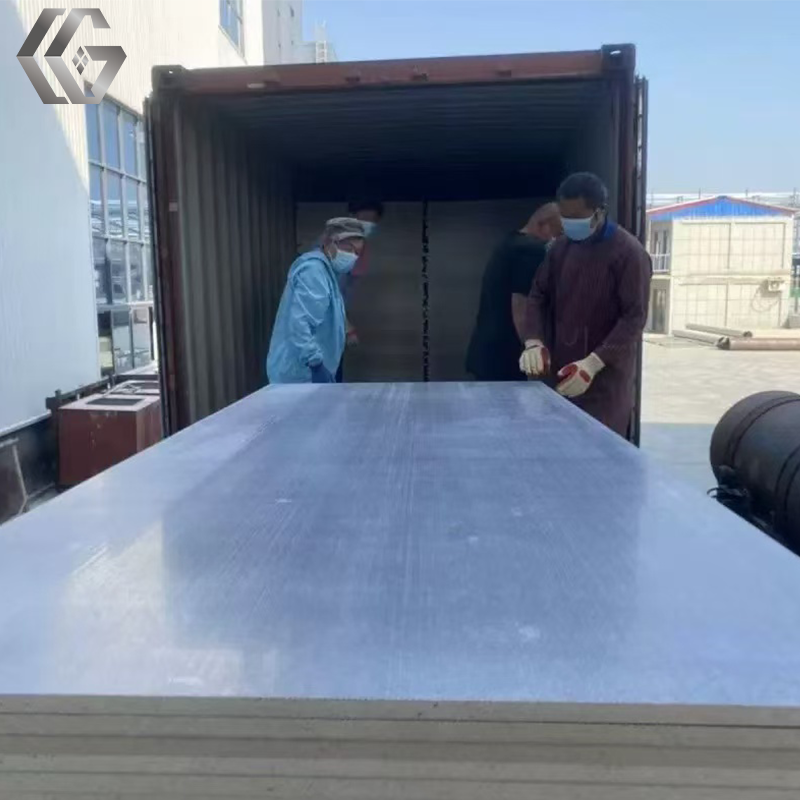

The goods will be professionally packaged to ensure the safety of the goods.
