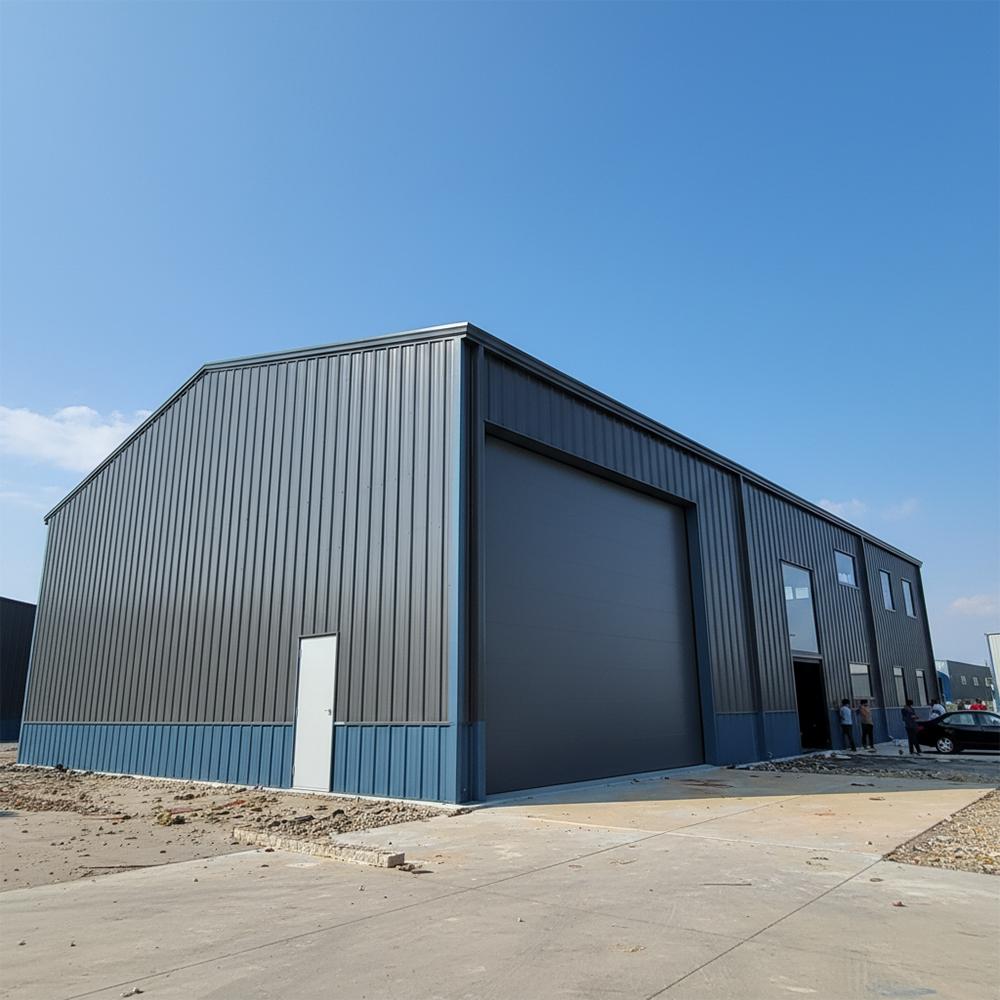

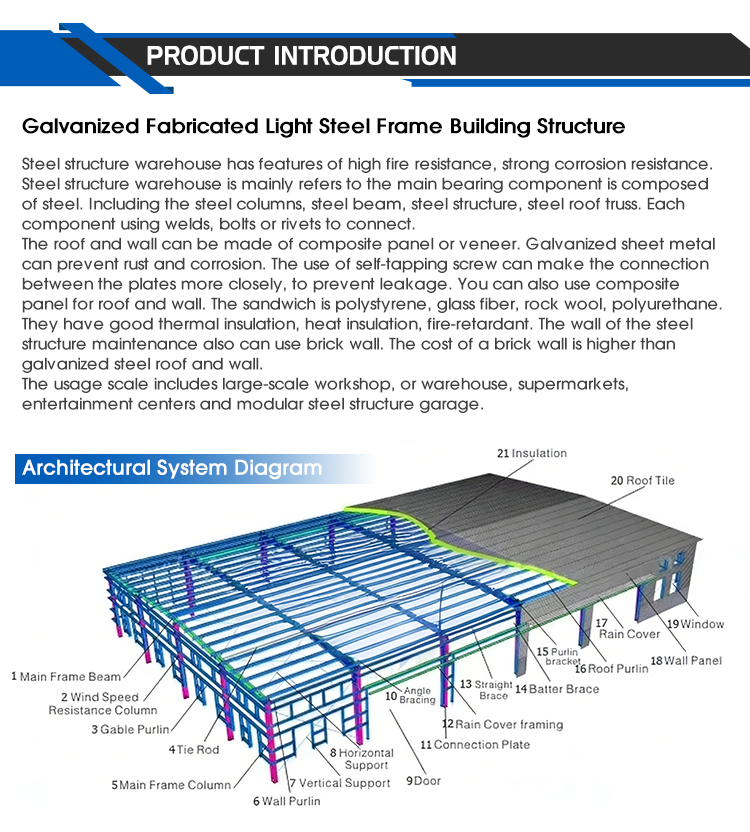

Galvanized Fabricated Light Steel Frame Building Structure Steel structure warehouse has features of high fire resistance, strong corrosion resistance. Steel structure warehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss. Each component using welds, bolts or rivets to connect. The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich is polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant. The wall of the steel structure maintenance also can use brick wall. The cost of a brick wall is higher than galvanized steel roof and wall. The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.
| Items | Specification | |
|---|---|---|
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminium Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options | Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. | |

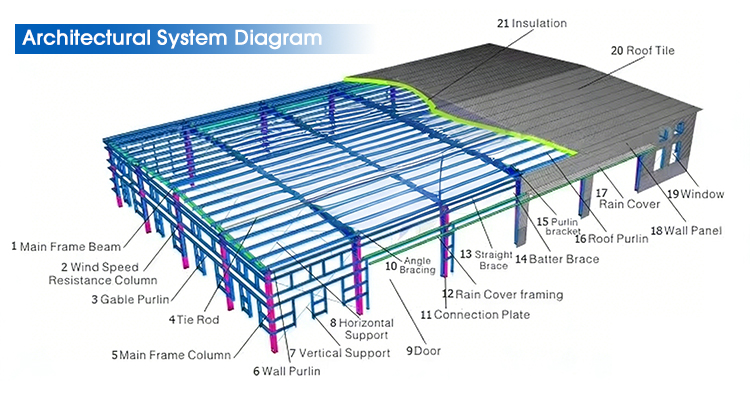

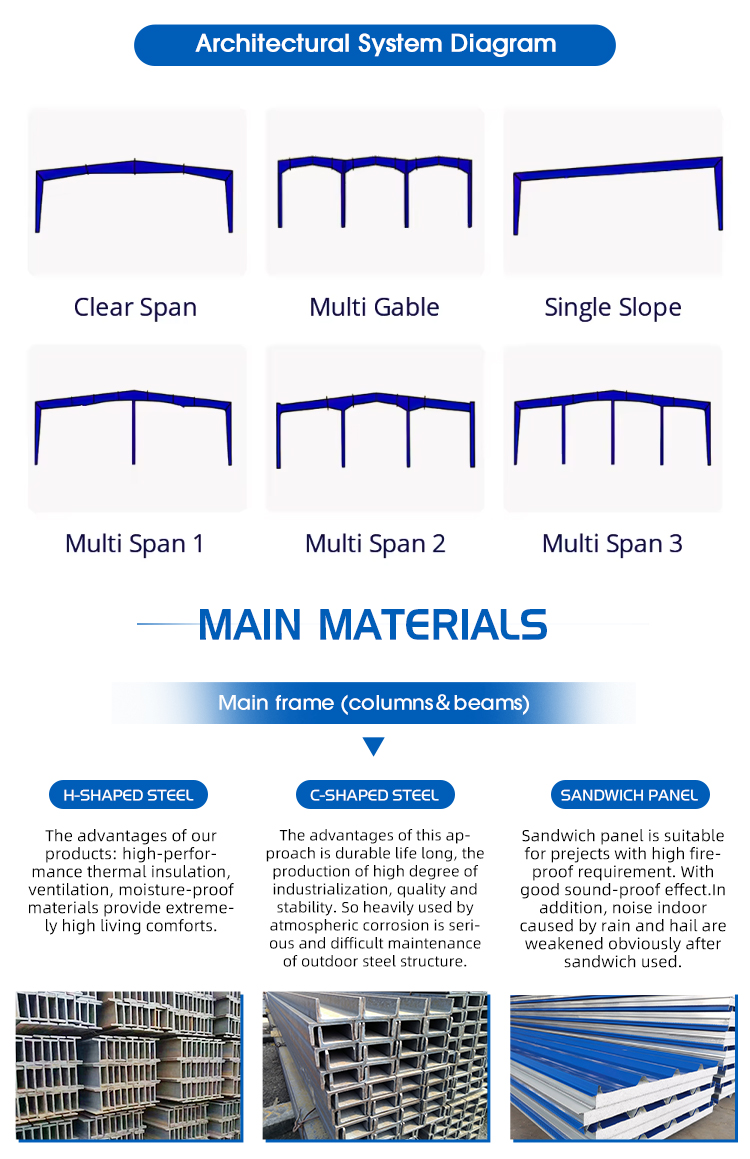

Steel frame structure consists of beams and columns from welded H-shaped steel, hot rolled H-shaped steel. In this frames, the beam and column system takes the gravity load such as dead and live loads.

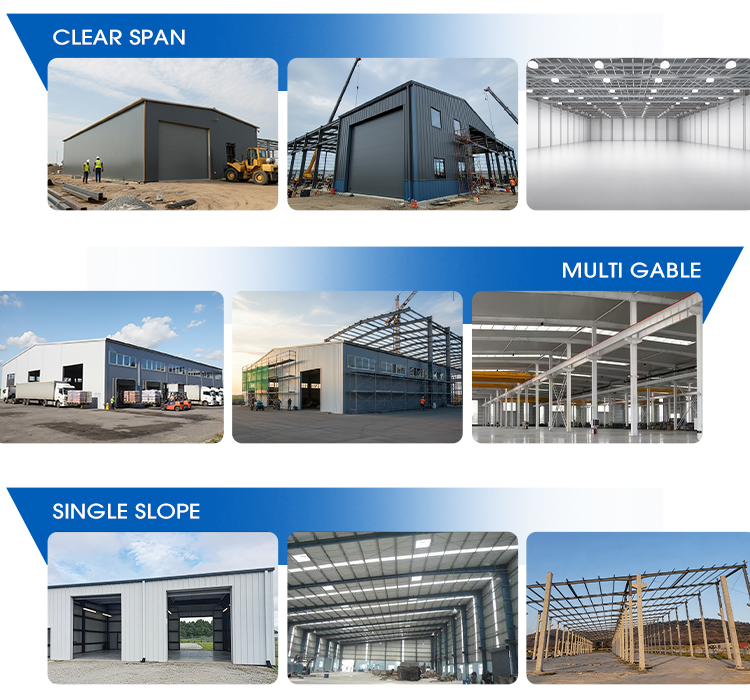

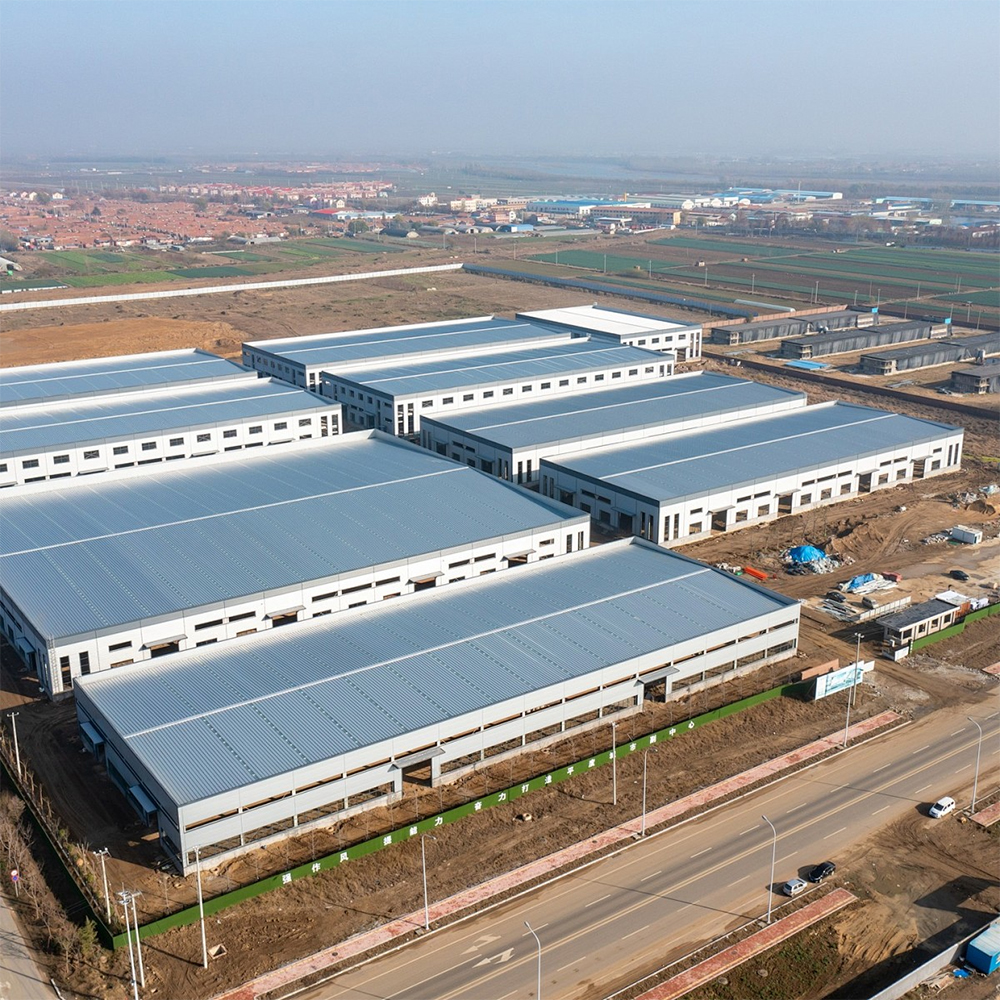

We have delivered a wide range of steel structure projects worldwide, including workshops, warehouses, space frame canopies, poultry houses and gas station canopies. Each project is customized for strength, durability and cost efficiency, with reliable quality and on-time delivery recognized by global clients.

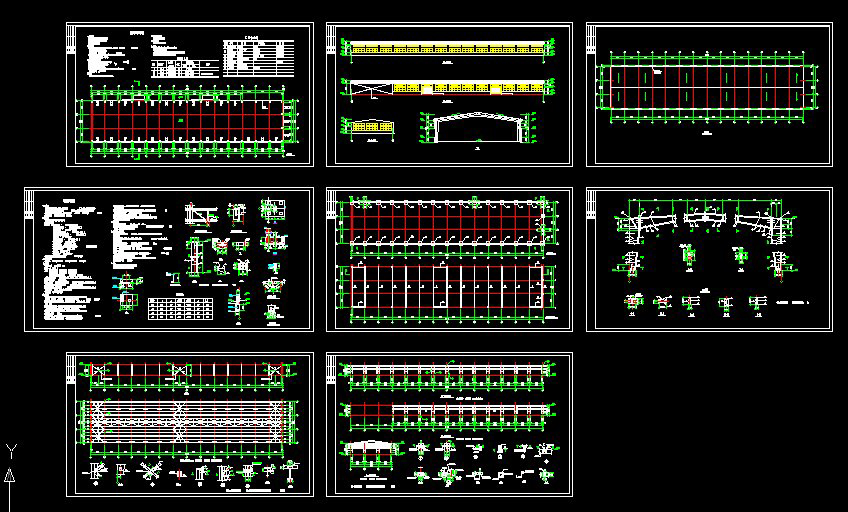

Our professional design team has rich industry experience and strong overall design capabilities. With years of practice in steel structure engineering, our designers excel in structural optimization, layout planning, load calculation and construction feasibility analysis, ensuring each solution is safe, stable and cost-effective. We are proficient in all mainstream design software and can provide complete, standardized construction drawings in various formats to meet different project and construction team requirements.

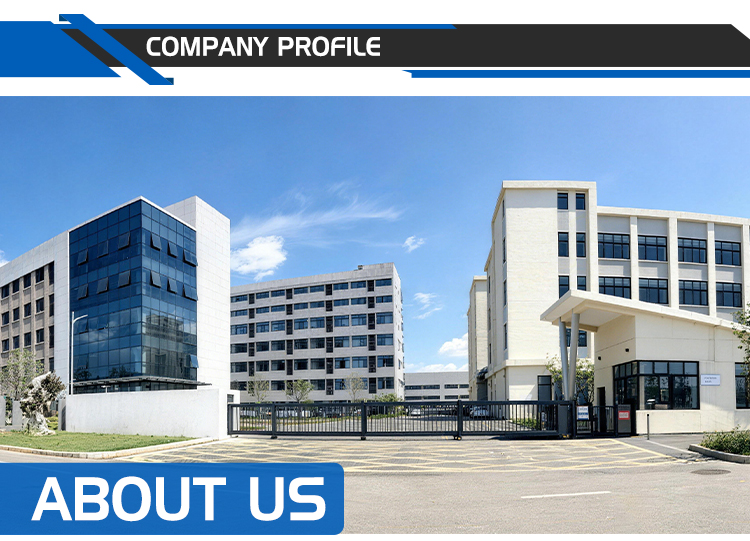

Founded in January 2012, we are a comprehensive steel structure enterprise integrating R&D, design, production, construction and sales. We have over 10 years of deep industry experience and a strong market reputation for reliable technology and standardized management. We specialize in a full range of steel structure products and engineering services, including heavy & light steel structures, space frames, tubular trusses, gas station canopies, warehouses, workshops and prefabricated buildings. We hold formal construction qualifications, administrative permits and import-export rights, supported by automated production lines and over 80% factory automation, ensuring high precision and efficient delivery. Adhering to the business philosophy of "Integrity and Quality", we own 2 national patents and a professional design & construction team. We undertake large-span, high-safety projects such as stadiums, aircraft hangars, exhibition halls and oil station projects with an excellent project qualification rate. Committed to innovation and service, we strive to be a benchmark enterprise in the steel structure industry.

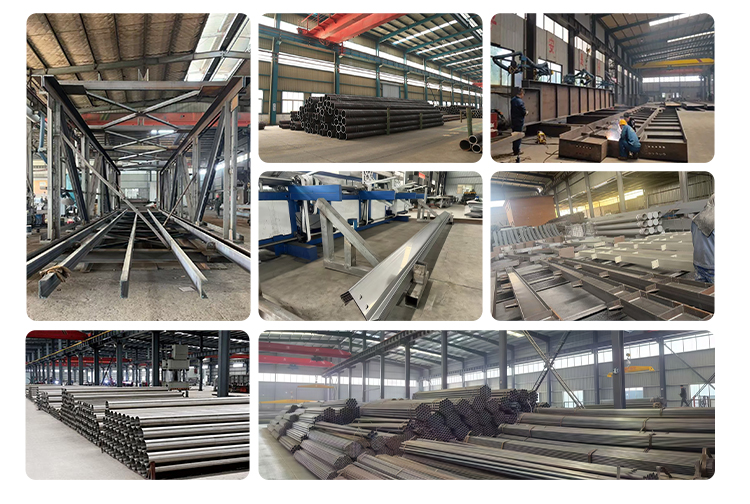

Equipped with professional steel structure processing equipment and highly automated production lines, we strictly control every procedure from raw material pretreatment to finished component manufacturing, ensuring high product precision and stable production efficiency.
Endorsed by authoritative industry institutions and certified to meet global quality standards, our products stand as a testament to compliance, reliability, and uncompromised excellence.
Equipped with robust packaging solutions and streamlined logistics networks, we ensure safe, damage-free delivery of products to every destination, backed by reliable tracking and timely transportation services.
We are a manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show you our professional. Also you will enjoy the best quality and competitive price.
We implement a full-process quality control procedure covering: Raw materials, Work-in-progress, Validated materials, and Finished goods at all manufacturing stages. Additionally, we accept customer inspections at the factory and provide structural steel inspection reports for each project.

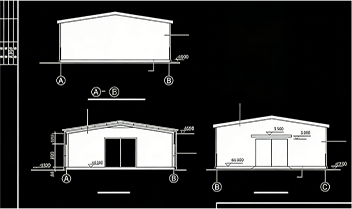

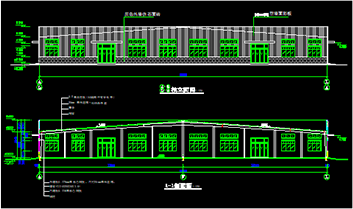

Yes, we have more than 10 design engineers. We could design full solution drawings as per your requirements. They use software: Tekla Structures, STAAD.Pro, SAP2000, MIDAS Gen, RFEM, RSTAB, AutoCAD, Revit, etc.
Yes, usually we will send you the detailed installation drawing. If you need, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas.
Construction drawings are provided for confirmation within 7 days after advance payment, and production is completed within 30 days after drawing approval.
