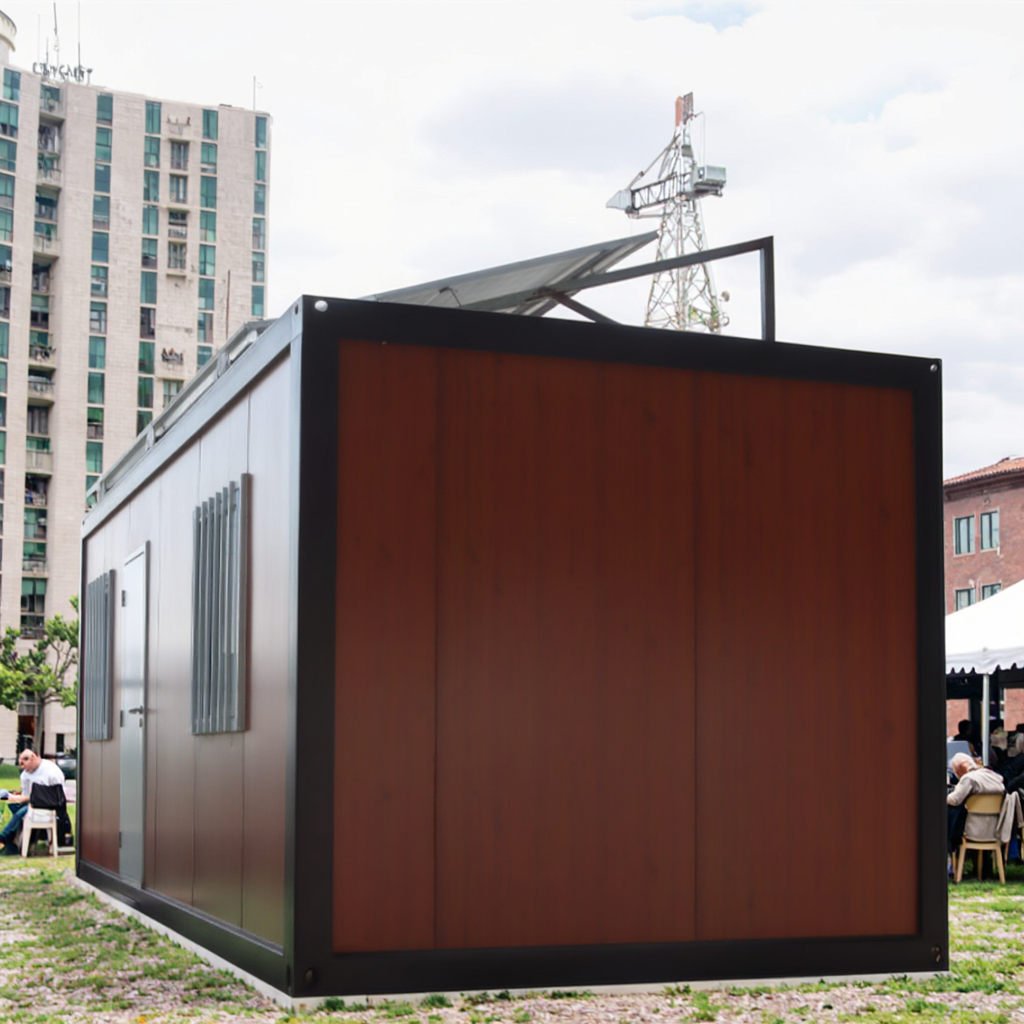

New Folding Container 15 Mins Quick Installation Cheap Prefab Construction Site Sea Containerized Houses

Product Description

Container House Concept

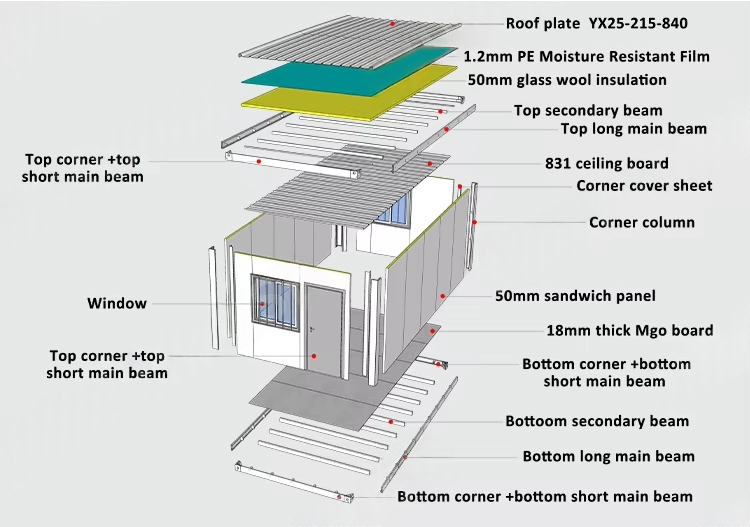

Flat Pack Container Design
Item Specification
Name Flat pack container house
Size 2990x1800x2896mm / 5990x1800x2896mm
Loading 6sets/40HQ
Steel structure Q235B galvanized steel frame
Wall panel 50mm EPS/Glass wool/Rock wool sandwich panel
Roof panel Glass wool 75mm A Grade
Door Optional doors
Window Aluminium alloy sliding window (white)
Floor Fireproof panel + PVC board
Bathroom Custom requirement
Electricity Optional standard
Wall permitted loading 0.6kn/m2
Snow load capacity of roofing 0.6kn/m2
Live load capacity of roofing 0.6kn/m2
Delivery time 7days
Specifications Diagram

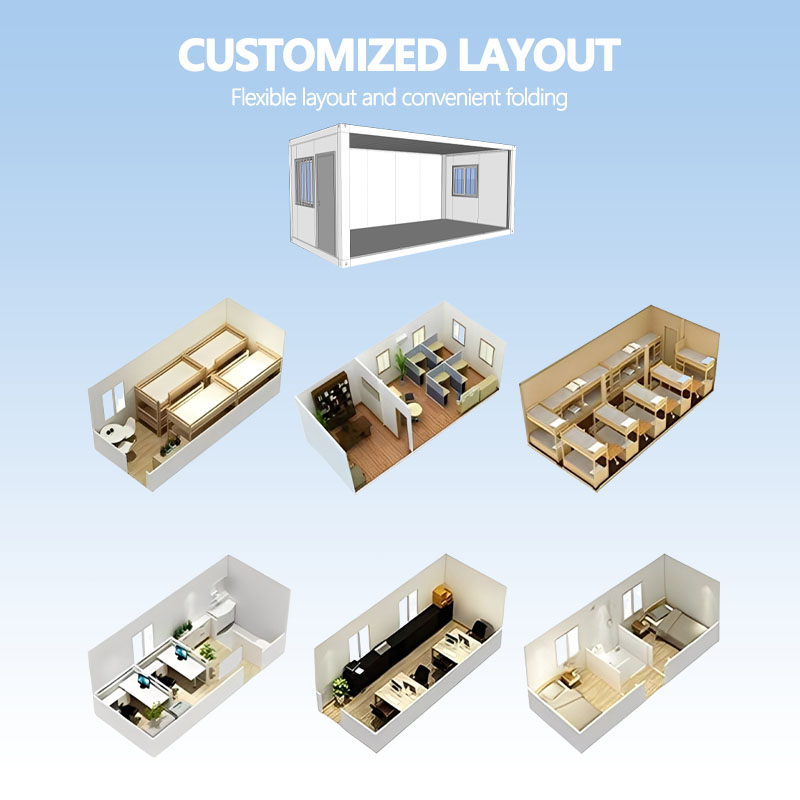

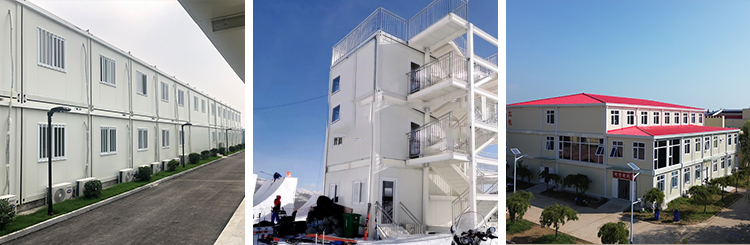

Modular design
1. Modular design, flexible combination
The modular house can be vertically divided into 3 floors and horizontally connected infinitely. The overall surface layer of the house can be adjusted during the project's usage period.

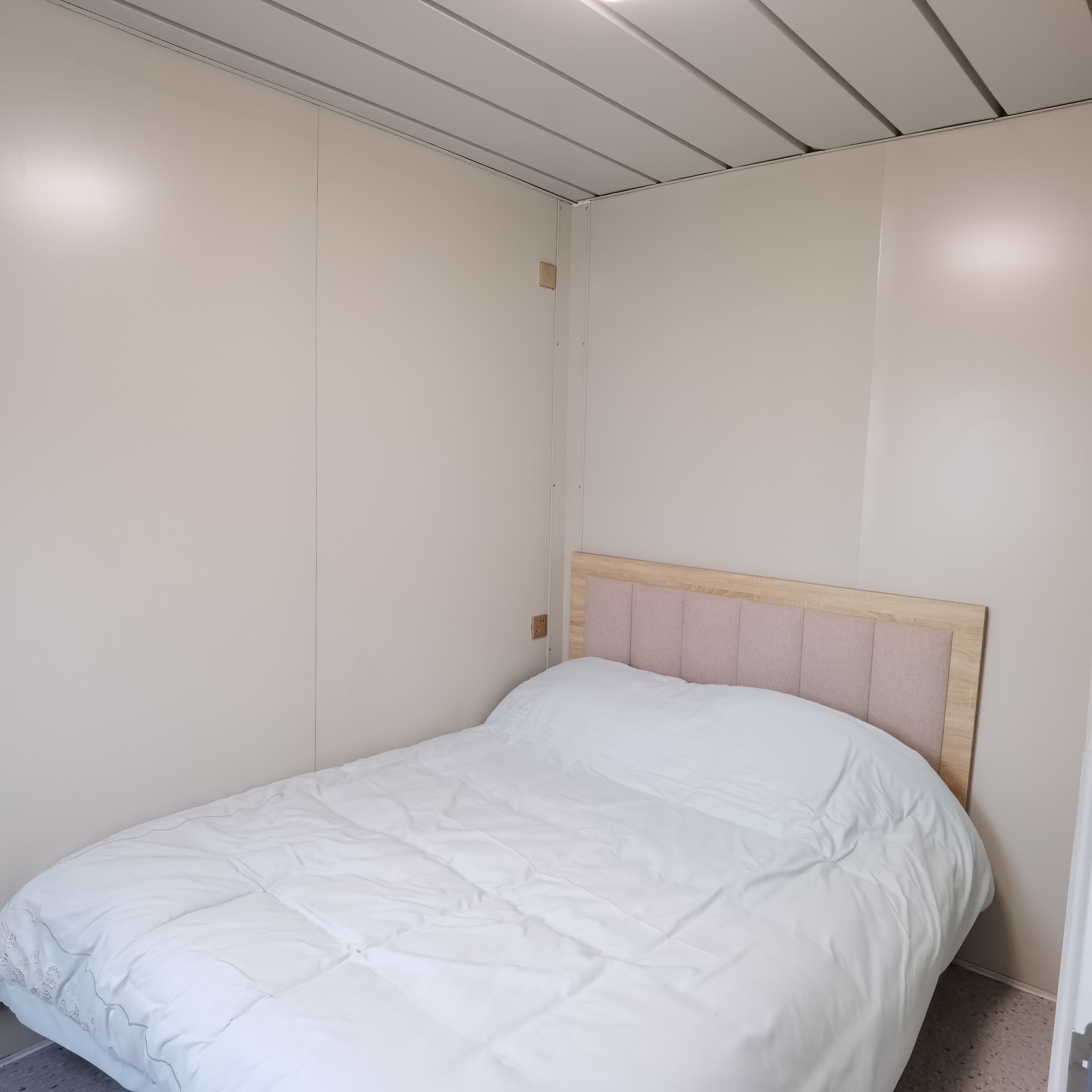

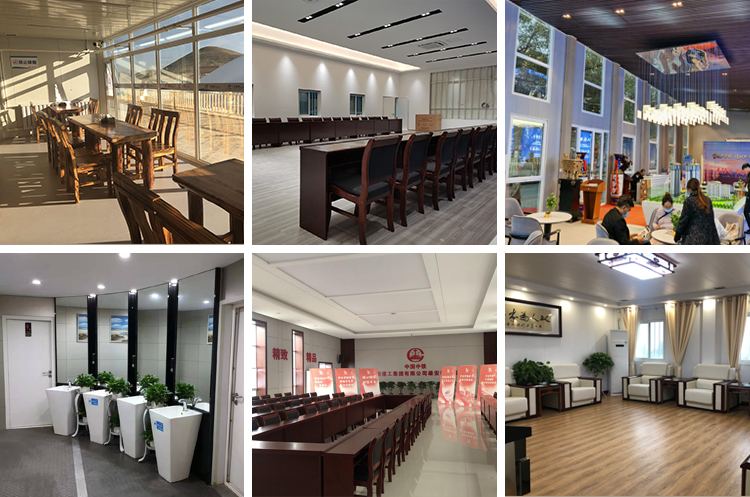

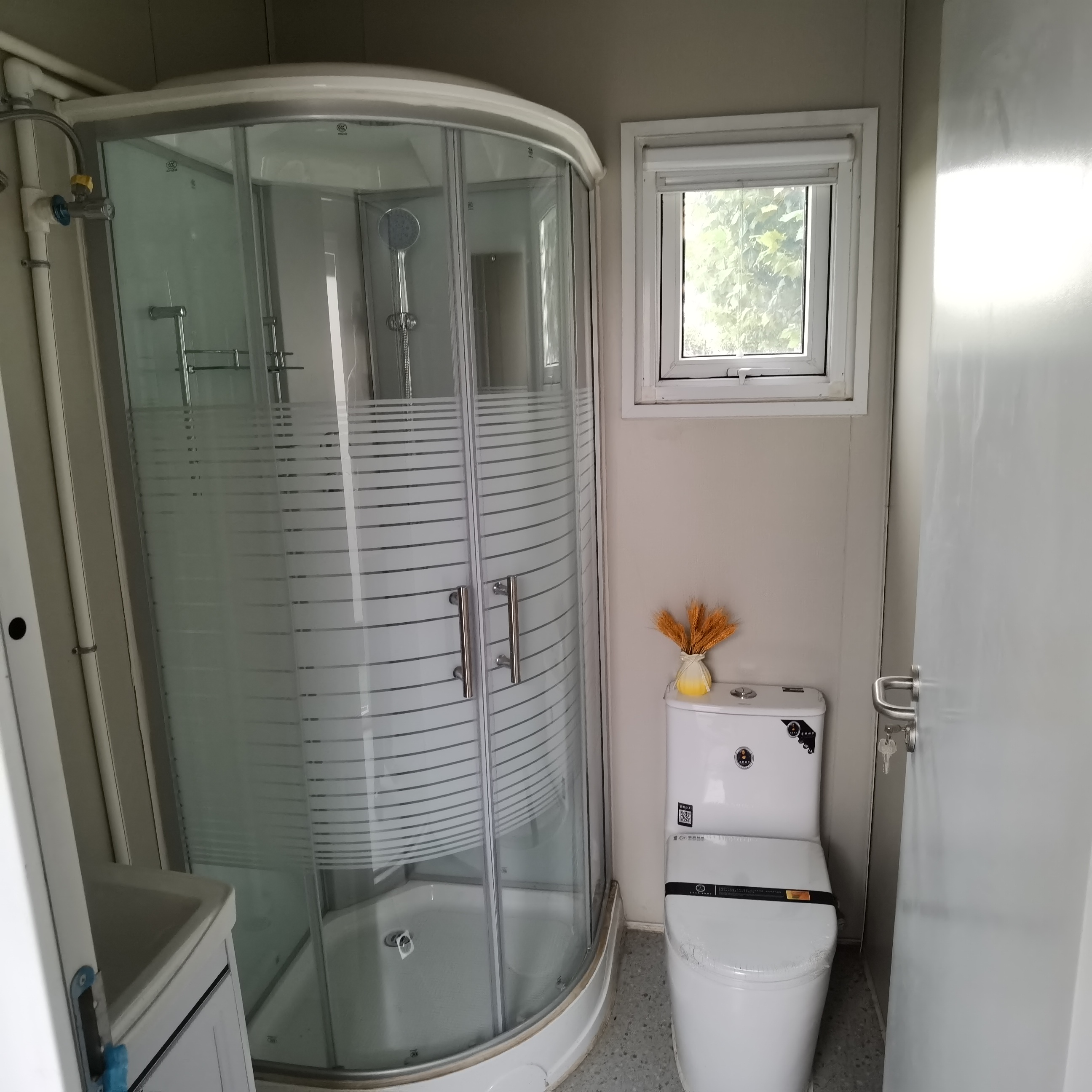

Internal functions
2. Wide range of uses, complete internal functions
Container houses can be used in many occasions. They are fully equipped with kitchens, bathrooms, electrical and piping systems, and are ready for a comfortable life or work.

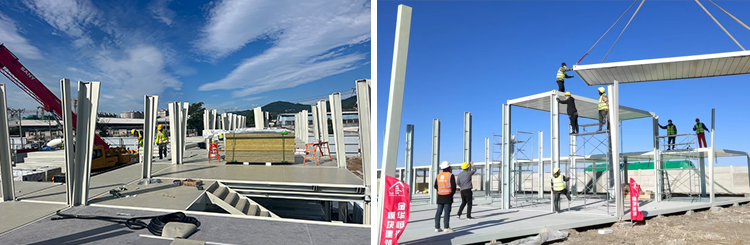

Quick installation
3. Quick installation saves time and labor costs
All modules are prefabricated in the factory and only require simple lifting and connection on site, which can be completed by a two-person team within three hours.
Sturdy structure
4. Precise workmanship, sturdy structure, safe and durable
Galvanized steel structures are wind-resistant, earthquake-resistant and corrosion-resistant (suitable for coastal locations), and meet the building standards of many countries. The walls are made of sandwich rock wool and have excellent heat insulation performance. The service life of this product is up to 25 years.
Global delivery
5. Global delivery, rich experience
With reliable export experience in over 48 countries - we support FOB, CIF and DDP delivery.
01
Designed based on standard-sized containers, it meets the basic needs of office and living. It can also be customized according to customer requirements, with various specifications. It is more economical and environmentally friendly than traditional buildings, can be reused, installed repeatedly, has good disassembly and assembly performance, and is close to zero loss.
02
The wall panels are made of polyurethane composite panels, which can provide excellent thermal insulation, heat insulation and moisture-proof effects.
03
It can be transported as a whole or separately. The integration of water and electricity lines and the matching of decoration are all prefabricated in the factory, eliminating the need for secondary decoration.
04
The structure of the prefabricated container house is made of galvanized steel, and the maintenance panels are not eroded by termites and other pests, making it suitable for construction in various regions.
05
The steel frame structure design features special cold-formed galvanized steel components, and all enclosure materials are made of non-combustible materials.
06
It has good integrity and can withstand a basic snow load of over 1.55KN/m², as well as hurricanes with a speed of over 70 meters per second. It has excellent seismic performance, twice that of brick-concrete (capable of withstanding an earthquake of magnitude 8).

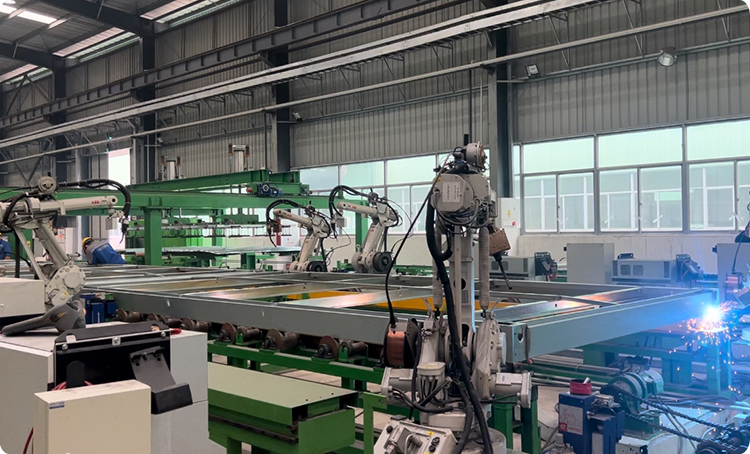

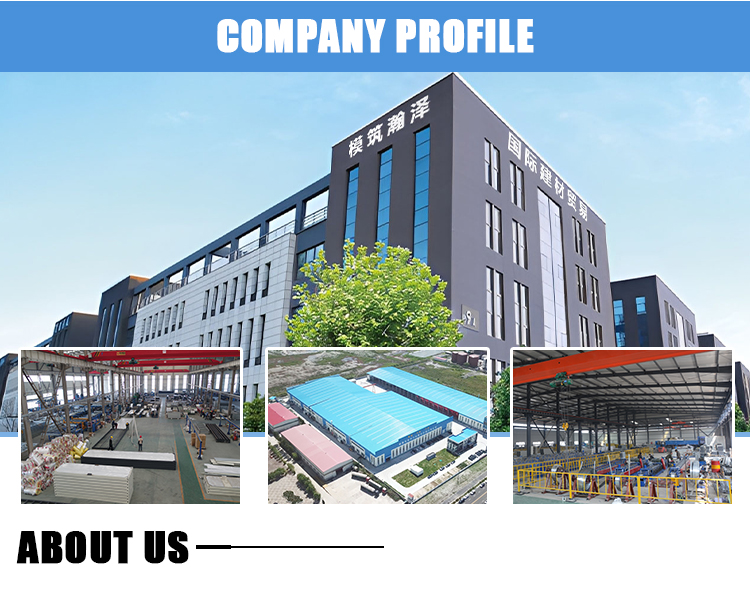

Factory Manufacturing Base
Container Design Draft
Product Layout Diagram

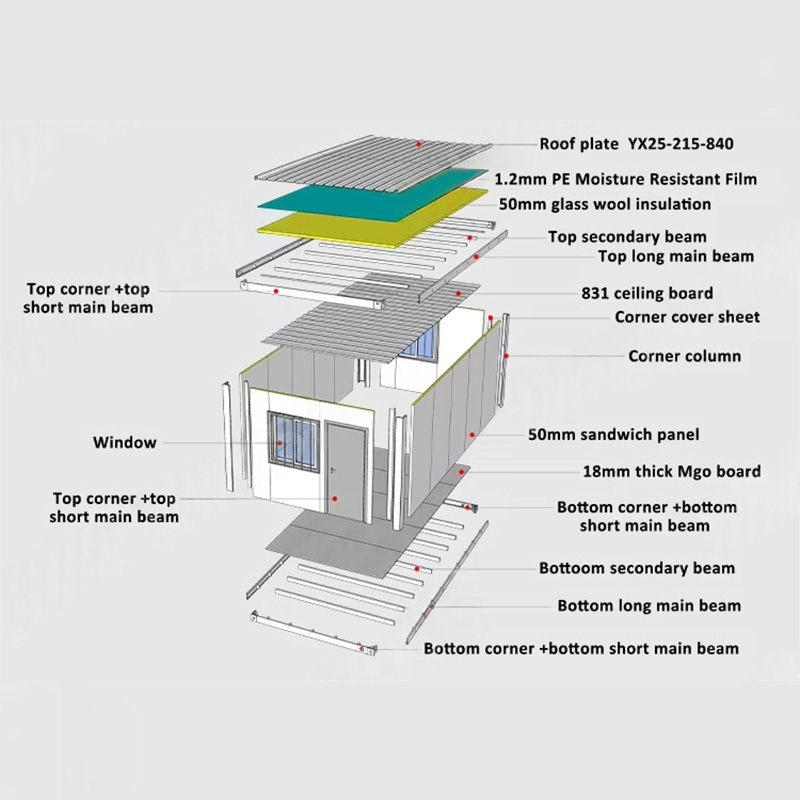

Structural Details
Dimension and Specs Chart
Packaging and Shipping
Founded in 2001, it is a comprehensive production service provider focusing on the prefabricated construction industry and focusing on providing one-stop solutions for modular container house design and customization, sales leasing, R&D and production, transportation and installation, and after-sales service. It is one of the founding enterprises in the domestic fully prefabricated construction industry and a large-scale high-tech enterprise. Four modern manufacturing bases of over 100,000 square meters. It is one of the largest Trade manufacturers of container houses in China, with a cumulative output value exceeding 1 billion. Over the years, and got 31 national technical patents. Participated in the design and construction of venues for the 2022 Beijing Winter Olympics, which was evaluated by China Central Television as "the most beautiful temporary construction on the top of Genting". We offer customized solutions to meet the unique requirements of our clients and have extensive experience delivering outstanding and innovative projects worldwide since we have a professional design team to create unique and functional structures that meet the needs of customers while adhering to strict national and international quality standards. We take it as our responsibility to be innovative, operate with integrity and achieve win-win cooperation. We are willing to serve friends from all over the world with first-class technology, first-class products, first-class business and first-class reputation.
Production Process
Certified Materials
Global Shipping Layout
Quality Inspection Chart

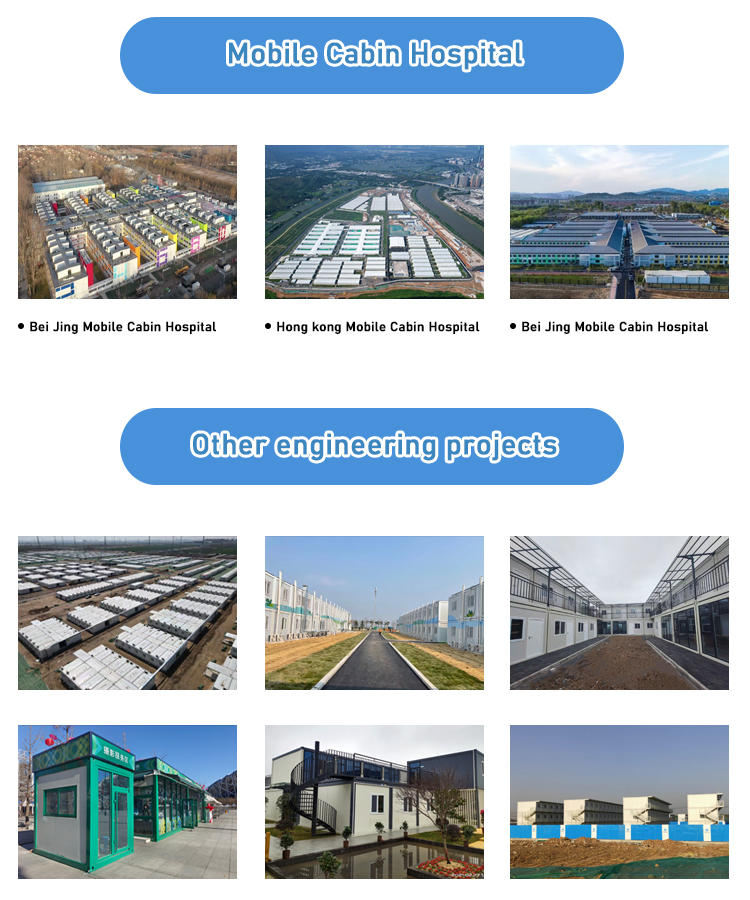

Completed Project Showcase
Frequently Asked Questions
Do you provide on-site installation service?
We provide very detailed installation instruction drawings and videos for every project. For large projects, we will have both installation workers and supervisors on site. The fee for the on-site service should be negotiated with clients.
What's your delivery time?
Normally, delivery time is 7-10 days after deposit received. For large orders, the delivery time should be negotiated.
How to control the quality of your product?
1. Quality of the design: think about possible problems in advance and provide a high-quality design solution.
2. Quality of the raw material: choose the qualified raw material.
3. Quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
How to deal with quality problems?
Warranty is 2 years. Within the warranty period, we will be responsible for all quality problems caused by our production.
Is there a clear service life of your products? If so, how long?
Under conventional climate and environment, the service life of the container house steel frame is 20 years.
What designs do you have for different climates?
- Strong wind region: improve the wind-resisting ability of the internal structure.
- Cold region: increase the thickness of the wall, or use good insulation material, and improve the anti-pressure ability of the structure.
- High corrosion region: use corrosion-resistant material, or paint an anti-corrosive coating.
