| Name | Steel structure | ||
| Dimensions | Length | H beam: 4000-15000mm | |
| Thickness | web plate: 6-32mm wing plate: 6-40mm |
||
| Height | 200-1200mm | ||
| Color | According to customers | ||
| Size | MOQ is 300 m2, width * length * eave height | ||
| Advantages |
1. Lower cost but beautiful outlook. 2. High safety performance. 3. Easy to assemble and dismantle. 4. Manufacture under complete quality control system---ISO9001. 5. Installation with instruction of experienced engineers. 6. Non-pollution. |
||
| Main components | Base | Cement and steel foundation bolts | |
| Main frame | H beam | ||
| Material | Q235B, Q345B or others as buyers' requests. | ||
| Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 | ||
| Bracing | X-type or other type bracing made from angle, round pipe | ||

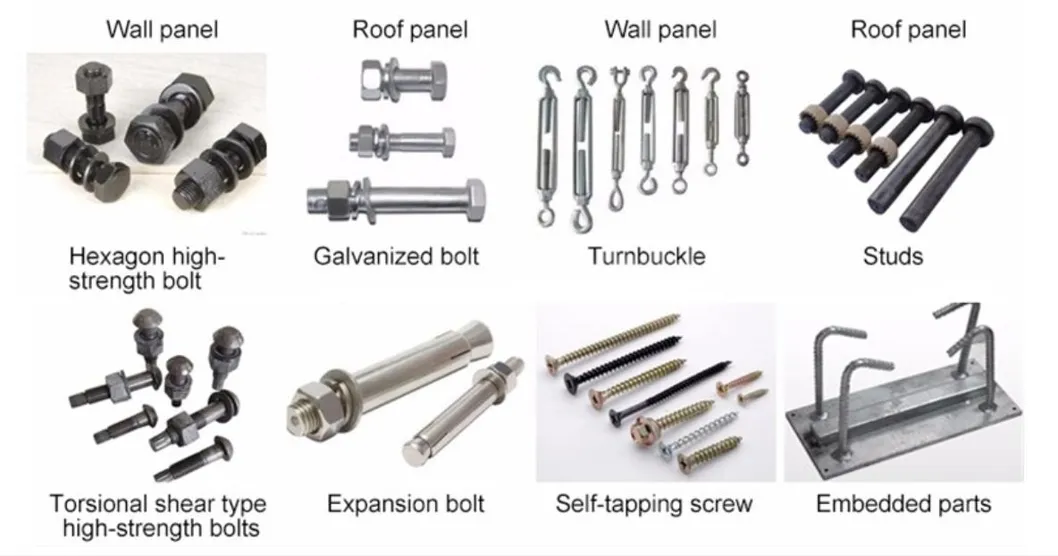

| Bolt | Plain bolt and High-strength bolt | ||
| Roof & Wall | Sandwich panel or color plate | ||
| Door | Sliding or rolling door | ||
| Window | Aluminium alloy window | ||
| Surface | Two layers of Anti-rust Painting or Hot Dip Galvanized | ||
| Sheet | 0.5mm or 0.6mm galvanized sheet | ||
| Accessories | Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc | ||
| Usages |
1. Workshop, warehouse, plant 2. Steel web frame structure 3. Steel H-column and steel H-beam 4. Portal frame products 5. High rise building project 6. Others steel structure buildings |
||

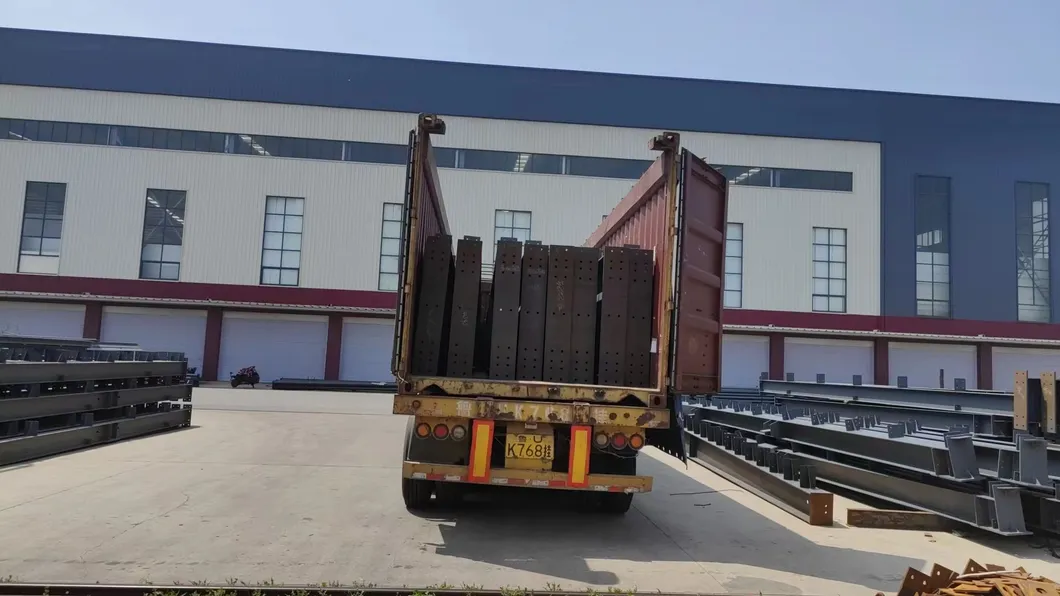

| Packing | Main steel frame without packing load in 40' OT, roof and wall panel load in 40' HQ! | ||
| Drawing | According to drawings or according to customer's requirement. | ||
| Design Parameters |
If you need us to design for you, please supply us the following parameters together with detail size: 1) Length, width, height, eave height, roof pitch, etc 2) Wind load, snow load, raining condition, aseismatic requirements, etc 3) Demands for doors and windows 4) Other information if necessary |
||
| No. | Design Requirements Description |
|---|---|
| 1 | Location (where will be built? ) _____country, area |
| 2 | Size: Length*width*height _____mm*_____mm*_____mm |
| 3 | Live load on roof(KN/M2), live load on second floor(KN/M2) if have |
| 4 | Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s |
| 5 | Snow load (max. Snow height) _____kn/m2, _____mm |
| 6 | Anti-earthquake _____level |
| 7 | Brickwall needed or not If yes, 1.2m high or 1.5m high |

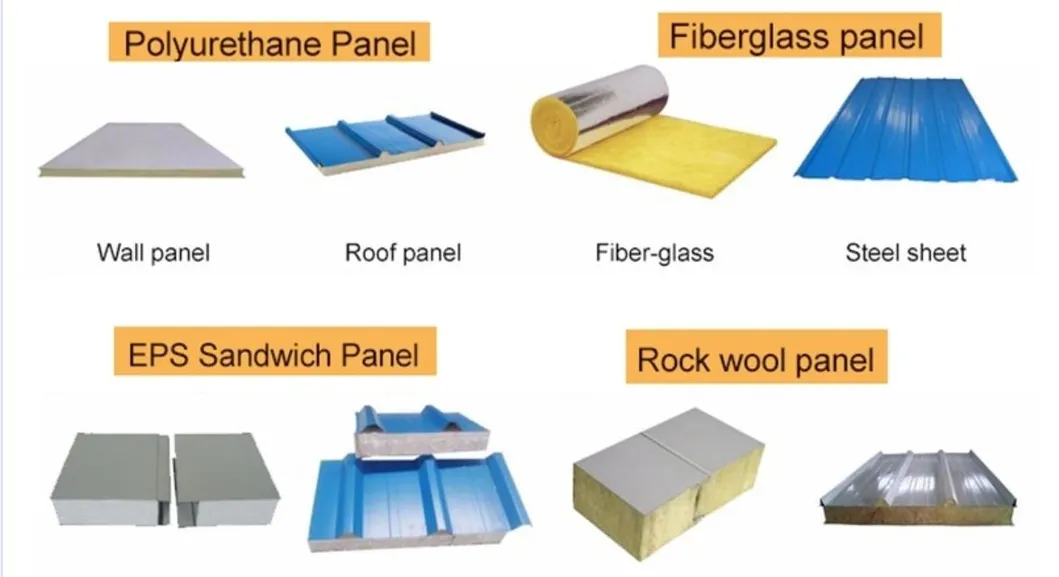

| 8 | Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the former. |
| 9 | Door quantity & size _____units, _____(width)mm*_____(height)mm |
| 10 | Window quantity & size _____units, _____(width)mm*_____(height)mm |
| 11 | Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m |
| 12 | Skylight belt, ventilator and any other accessories if needed. |
