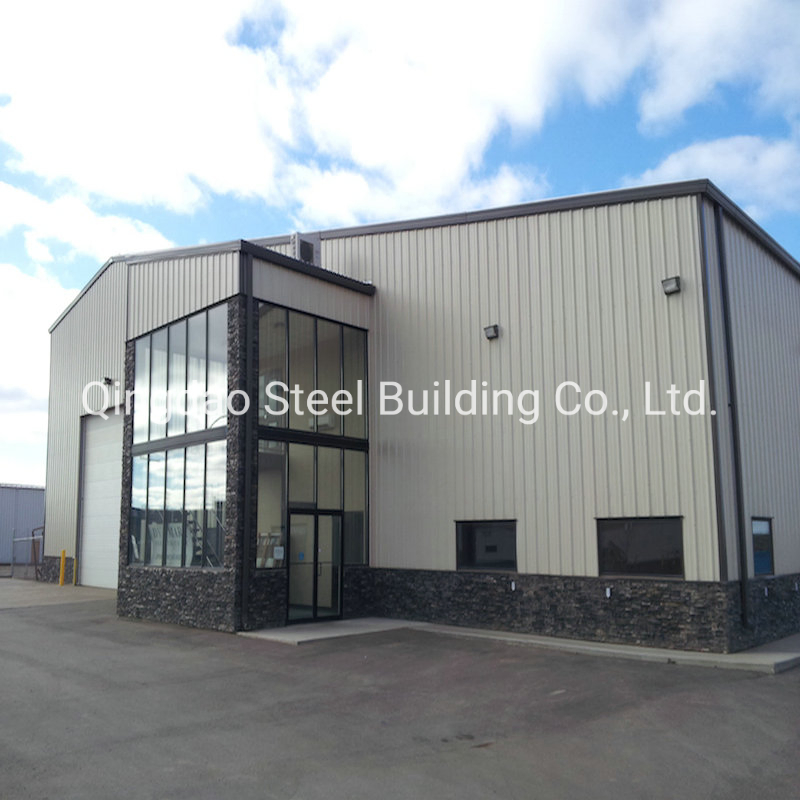

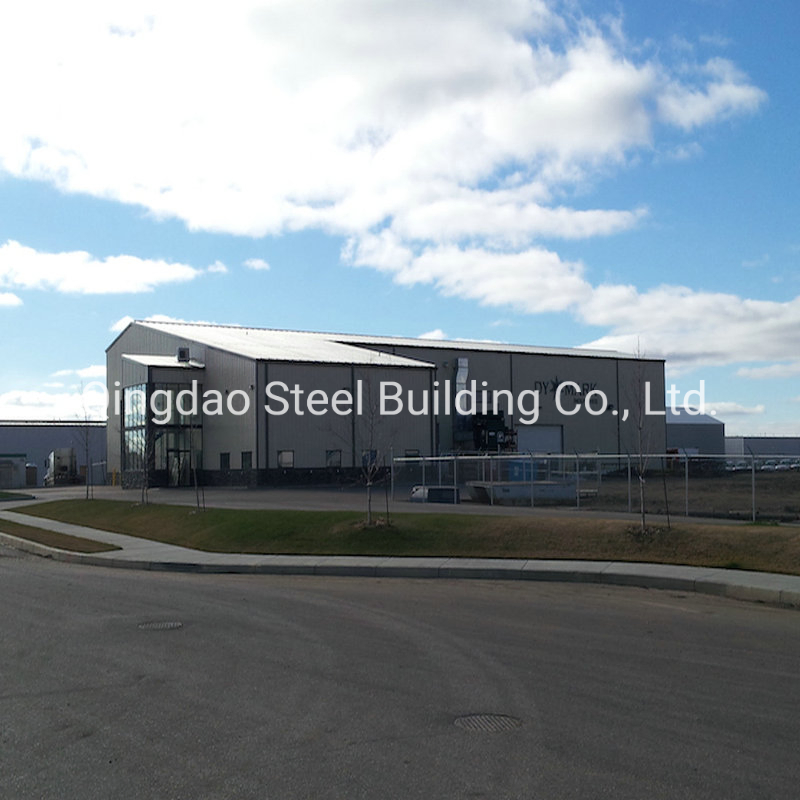

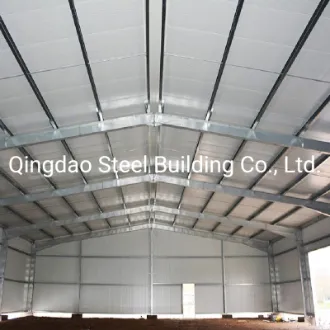

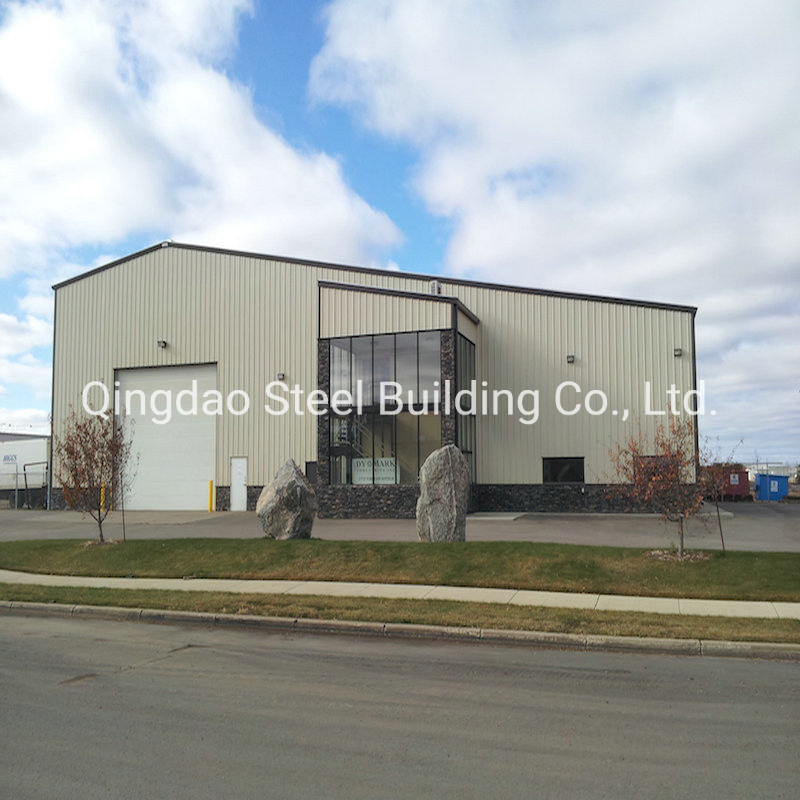

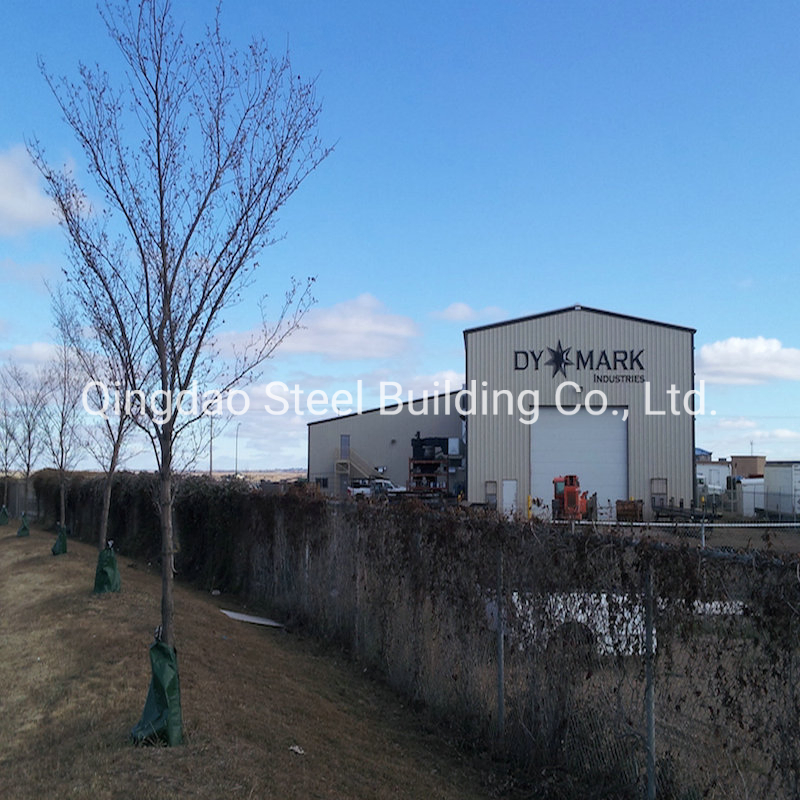

Prefabricated Steel Structure building, steel Industrial Construction Modular Warehouse Workshop building & Prefabricated steel structure Building.
Exported globally for over 15 years, the steel structures can be designed to match the following regional standards:
Please supply the following parameters when initiating a design plan:
| Item | Popular Size | Popular Height | Coverage Option | Gate Size |
|---|---|---|---|---|

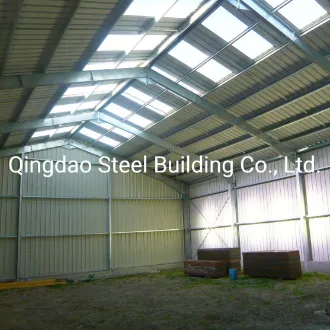

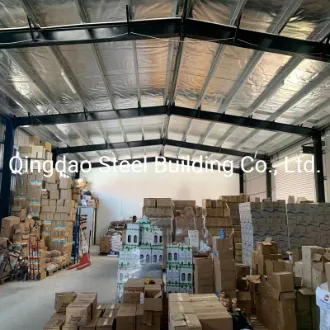

| Steel Warehouse | 20 x 30m | 5m | Single corrugated steel sheet | 4 x 4.5m |
| Steel Workshop | 20 x 50m | 6m | Insulated roof with single steel sheet wall | 4.5 x 5m |

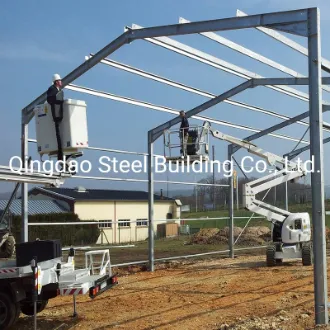

| Farm Storage | 16 x 36m | 4m | Single steel sheet or roof only | 4 x 3.5m |

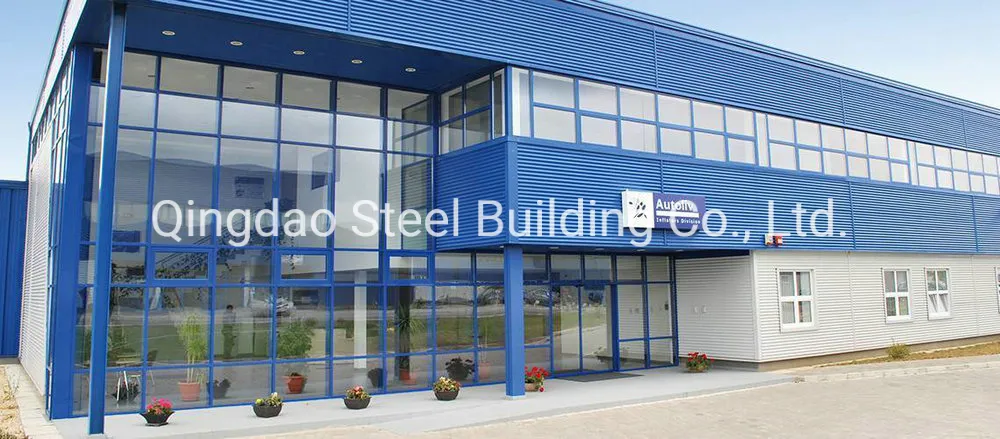

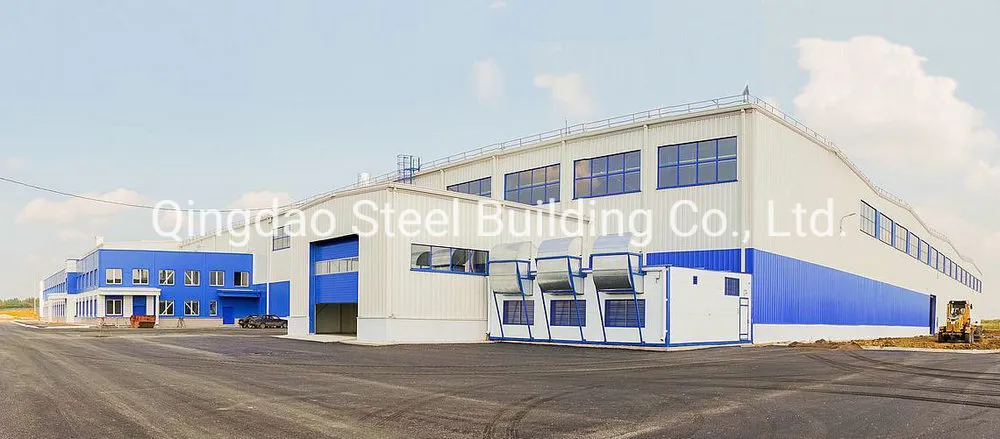

When it comes to commercial style buildings, steel is the reliable way to go. Studies demonstrate that prefab steel is the optimal solution. Efficient, strong, and sturdy for commercial buildings, they save maintenance time and guarantee long-term durability. We offer practical designs, logical solutions, and aesthetically appealing metal commercial structures at competitive rates.

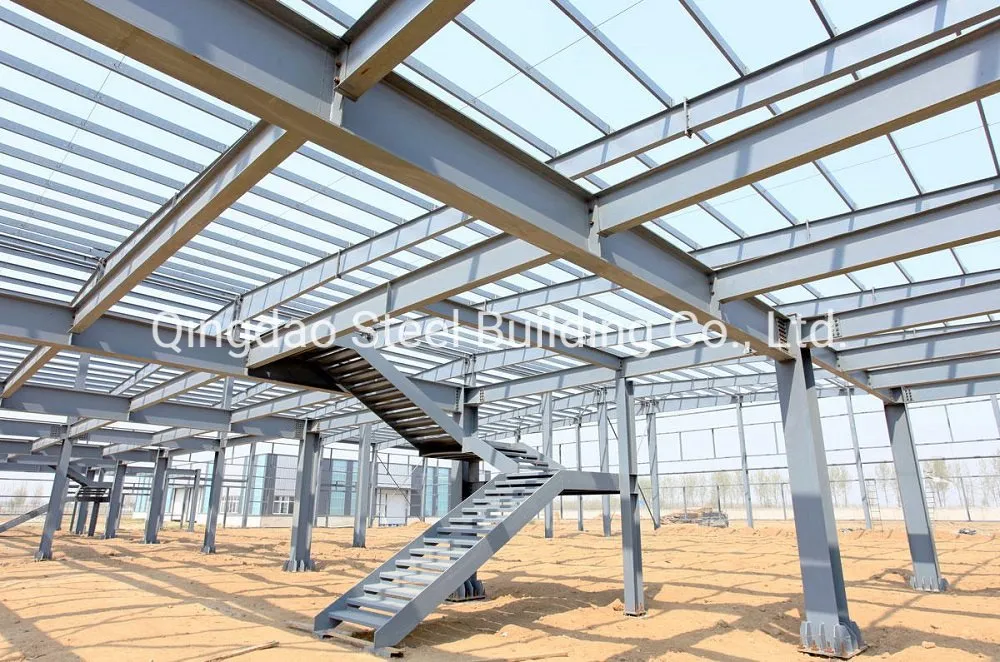

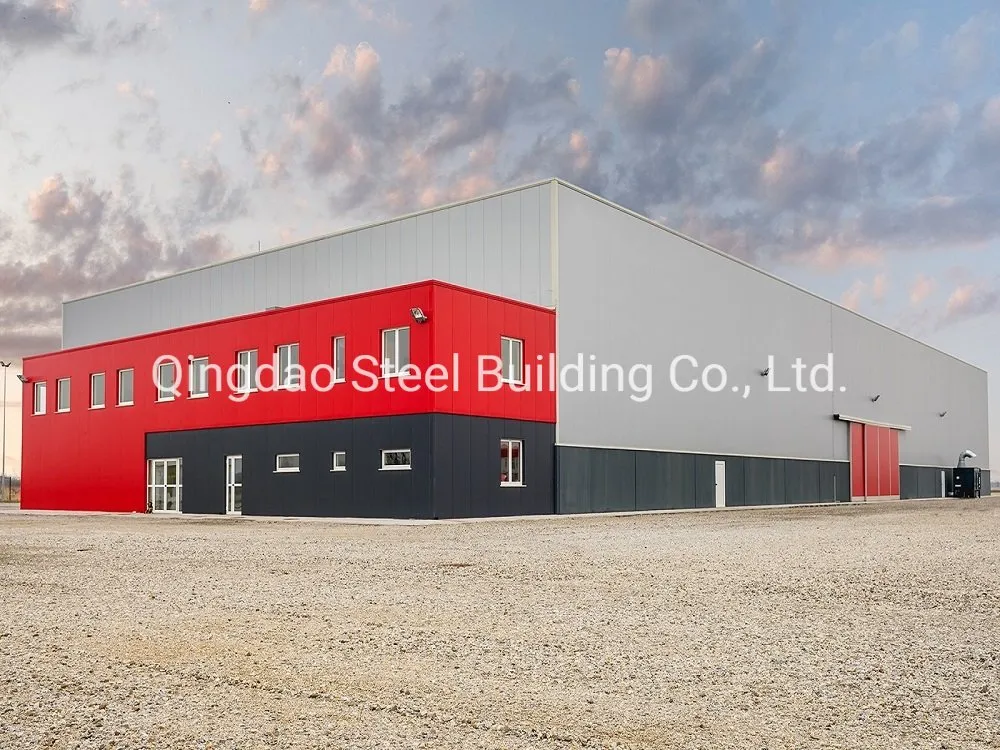

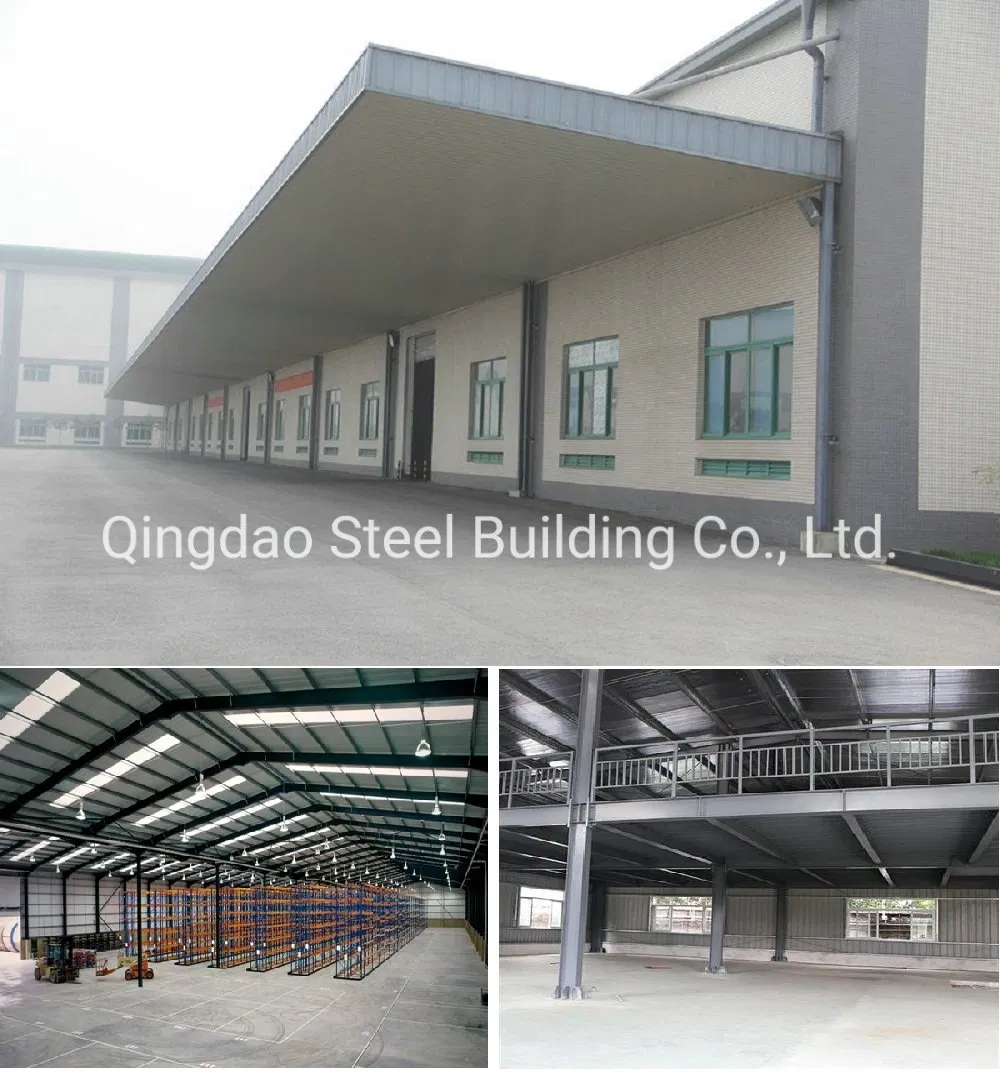

An office layout is vital when erecting industrial buildings like steel warehouses or workshops. The office partition can be constructed along the main building, integrated internally, or designed as multi-story spaces (2-3 floors).

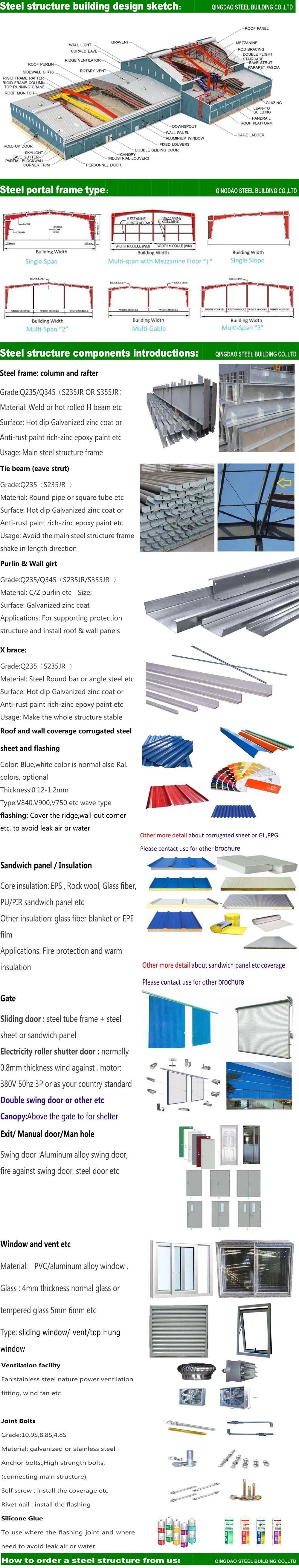

| Parameter | Standard Specification Details |
|---|---|
| Application | Steel warehouse, steel structure building, steel workshop, hangar, sports hall, shopping mall, cattle barn, agricultural shed, etc. |

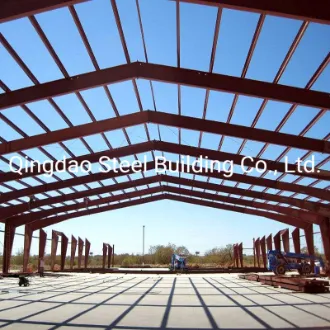

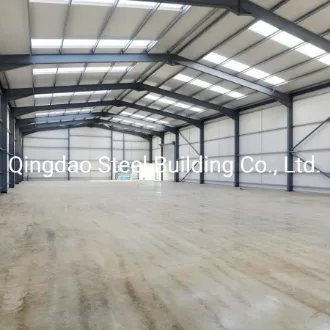

| Clear Span (Width) | 6m to 50m clear span without middle columns. |
| Height | 2m to 20m. |
| Length | Customized as per specific project requirements. |
| Material Grade | Q345 (S355JR) or Q235 (S235JR) structural steel. |

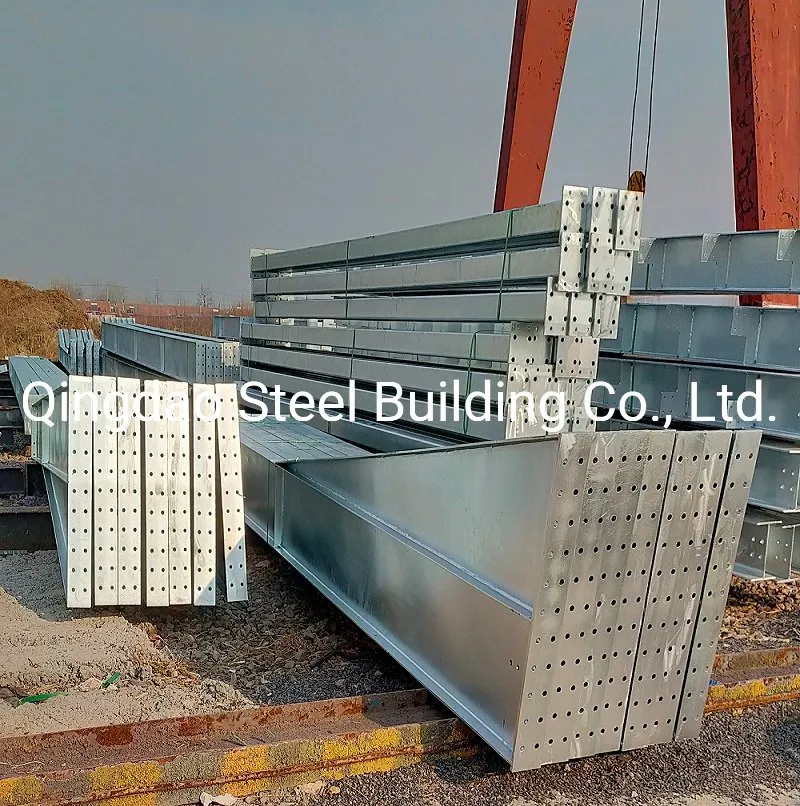

| Column & Rafter | Welded or Hot-Rolled structural H-beams. |

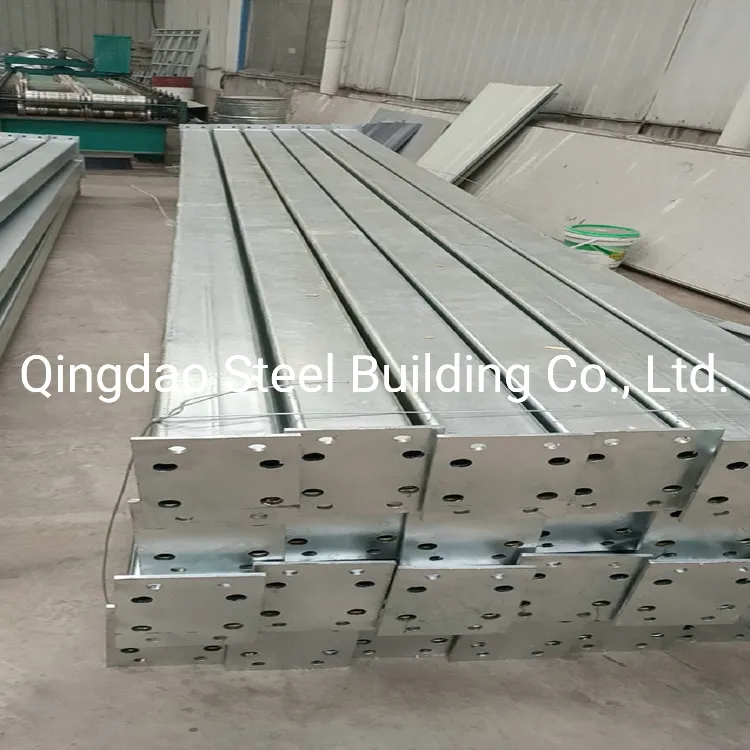

| Tie Beam | Round pipes or square structural tubing. |

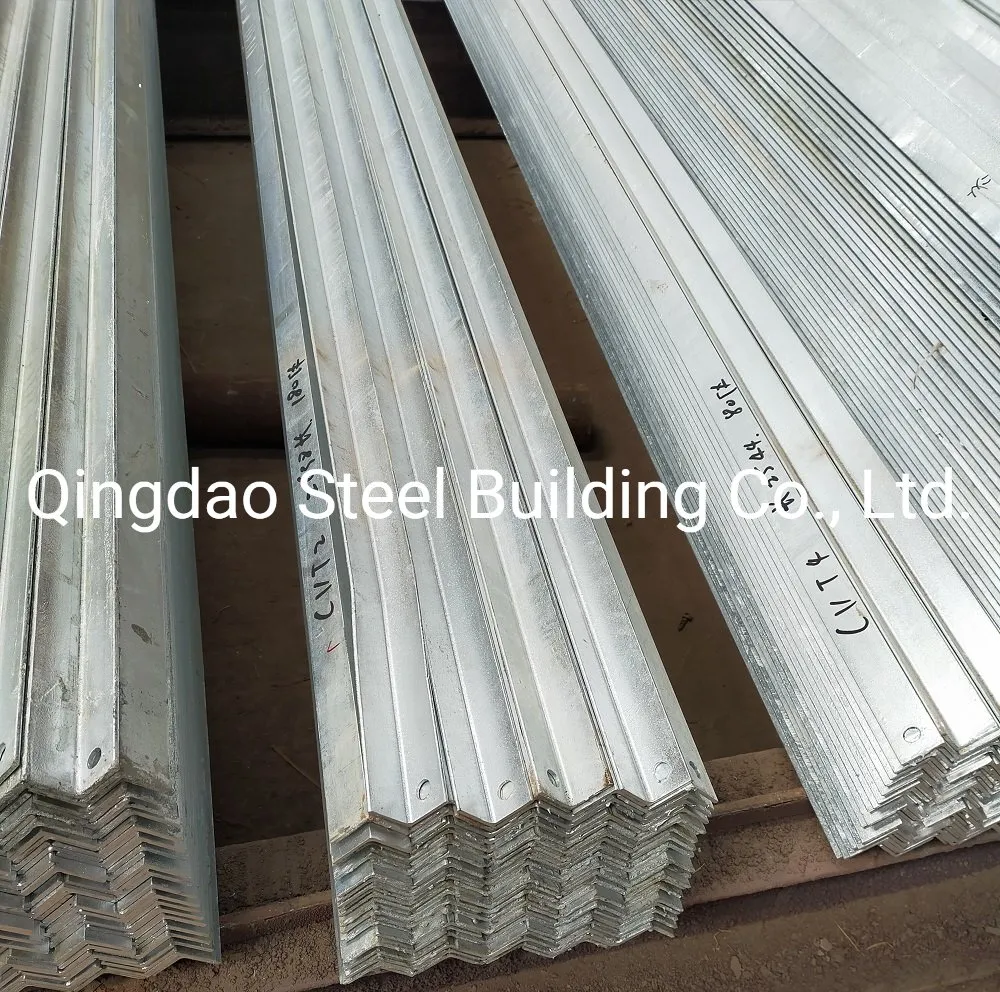

| X-Bracing | Round steel bars or angle steel as requested. |
| Purlins | C or Z purlins with thickness options of 2.0mm, 2.2mm, 2.5mm, 3.0mm. |
| Sag Rods | Round steel bar, angles, or C-purlin formats. |
| Wall & Roof Coverage | Single corrugated steel sheets (0.12 - 1.2mm); EPS, Rockwool, glass fiber, or PU core foam sandwich panels (50mm, 75mm, 100mm, 150mm, 200mm thickness). |
| Gates | Electric roller shutter doors or industrial sliding doors. |
| Exit Doors | PVC/Plastic steel, aluminum alloy frame, or heavy steel swing doors. |
| Windows | Plastic steel or aluminum alloy frame sliding windows / Top Hung windows. |
| Surface Finish | Shot blasting with anti-rust epoxy zinc-rich primer paint or hot dip galvanization. |
| Quality Certifications | ISO9001, CE EN1090 EXC2, International Welding Engineer (IWE), etc. |
| Quality Inspection | Third-party inspections accepted (SGS, QIMA, BV). |

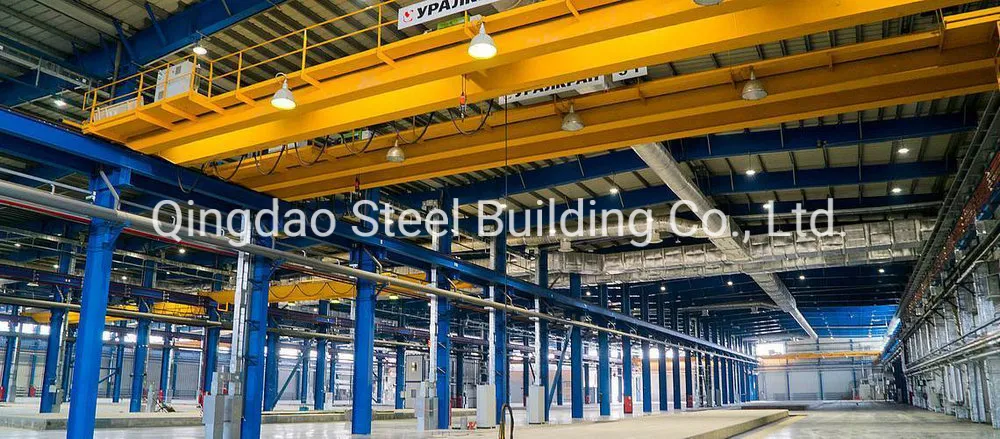

| Crane Capacity Options | 5MT, 10MT, 15MT, etc. |
| Accessories | Gutters, flashing/trimming covers, downspouts, ventilation units, skylights, structural bolts, anchor bolts, etc. |

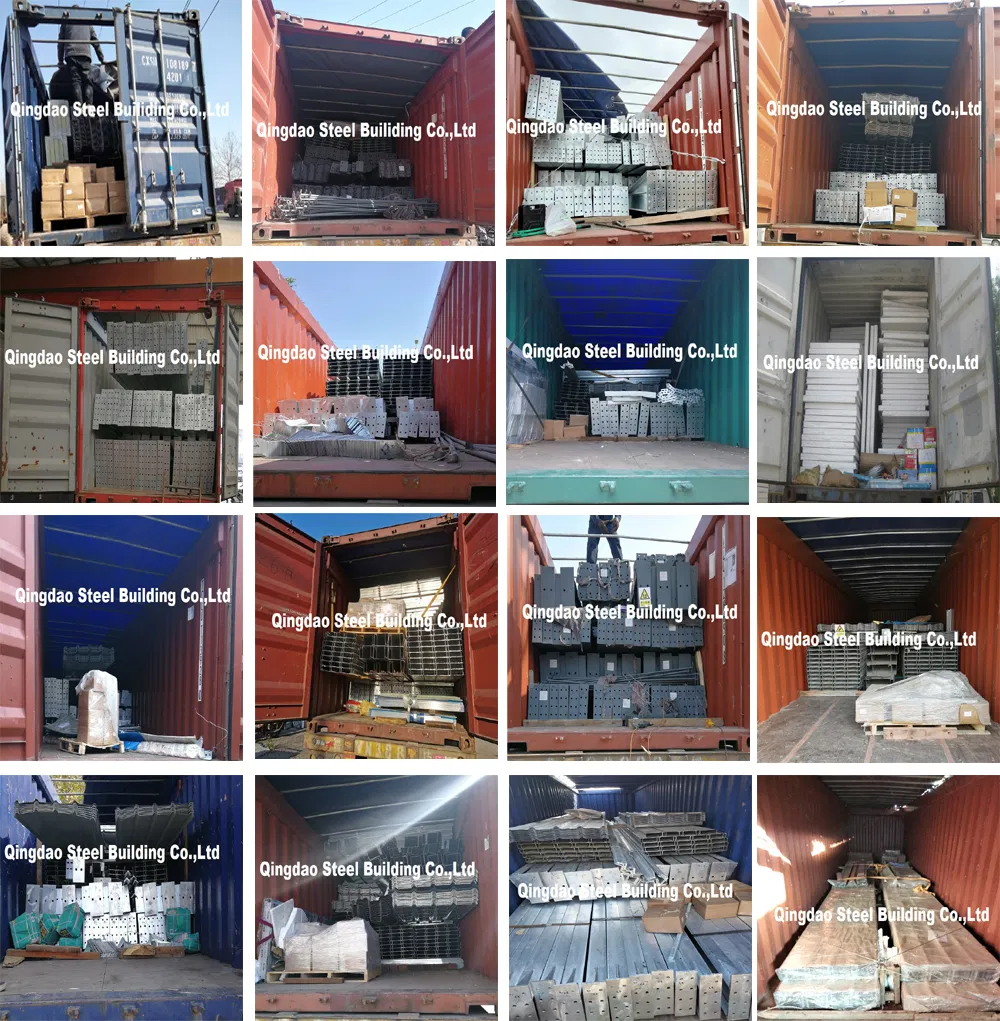

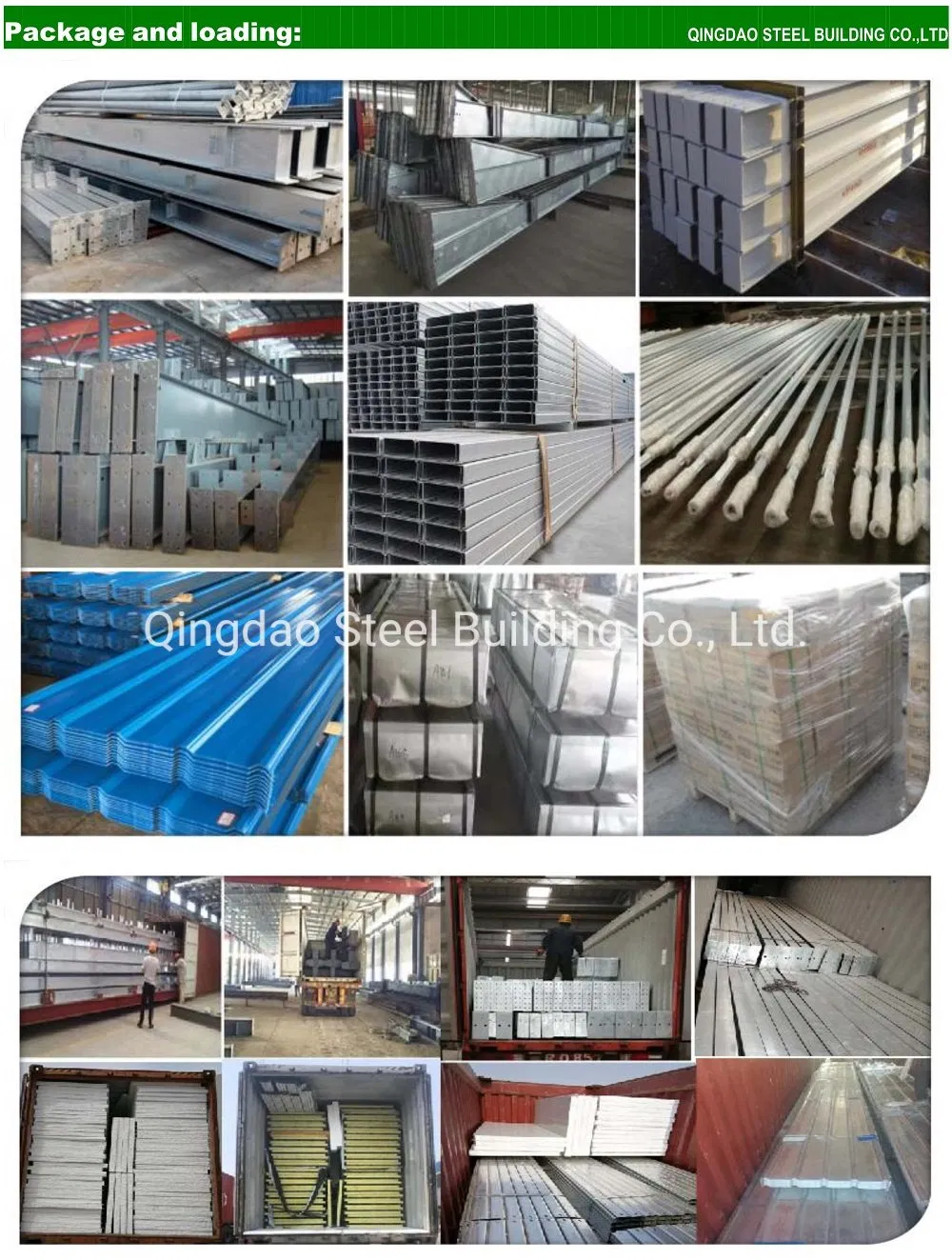

| Packing Details | Main frame sections loaded in 40' Open Top (OT) containers; wall/roof panels packaged and loaded in 40' HQ containers. |

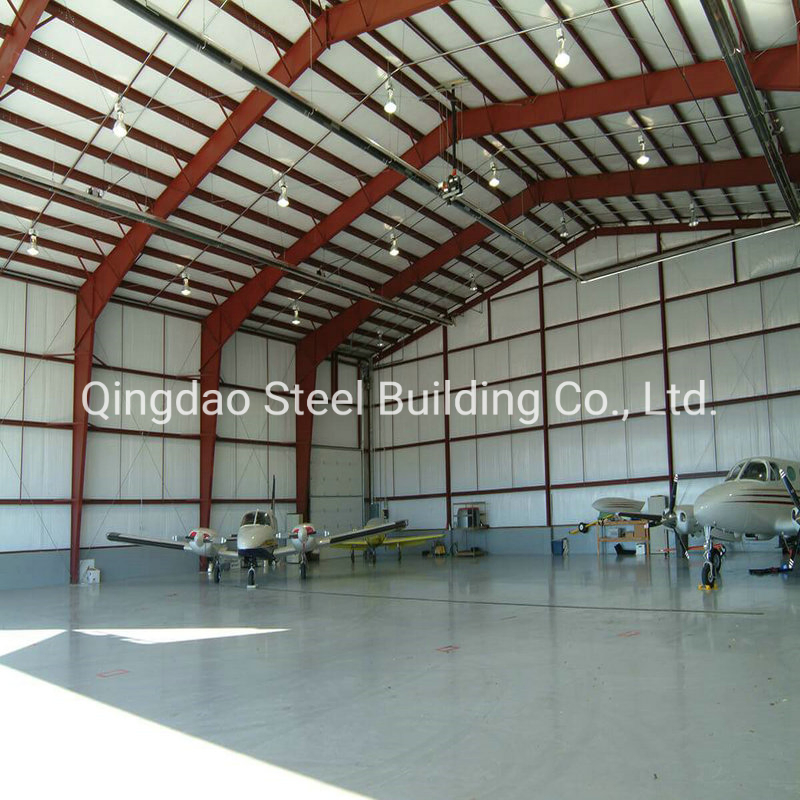

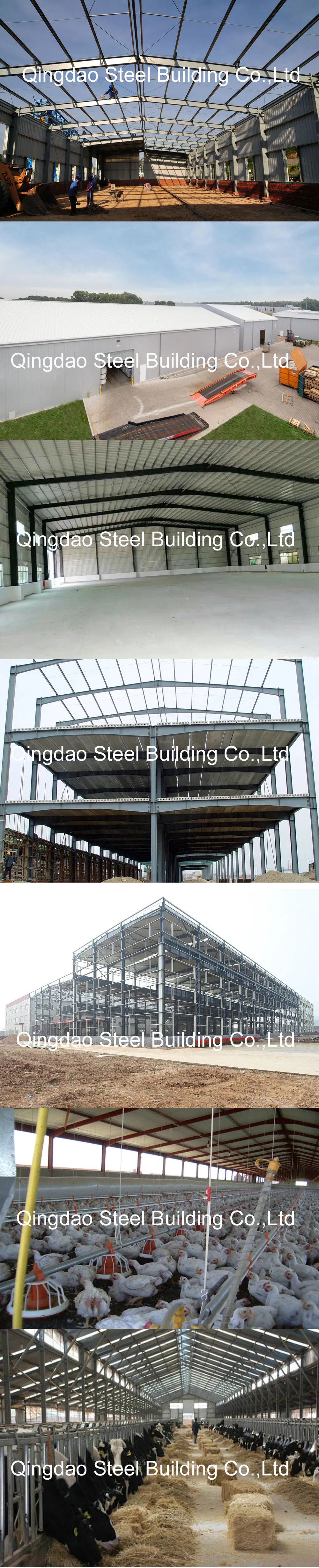

We are a dedicated manufacturer of structural steel buildings. Our project history includes large commercial centers, aircraft hangars, grandstands, platforms, churches, riding arenas, sports halls and courts, hangar kits, shopping malls, logistics centers, industrial factories, process plants, agricultural barns, poultry housing, and various custom steel components. Our global reach covers client projects in Paraguay, Chile, Colombia, Mexico, Australia, New Zealand, Myanmar, Sri Lanka, Maldives, Reunion, Mauritius, South Africa, Angola, Senegal, Côte d'Ivoire, Hungary, France, and beyond.

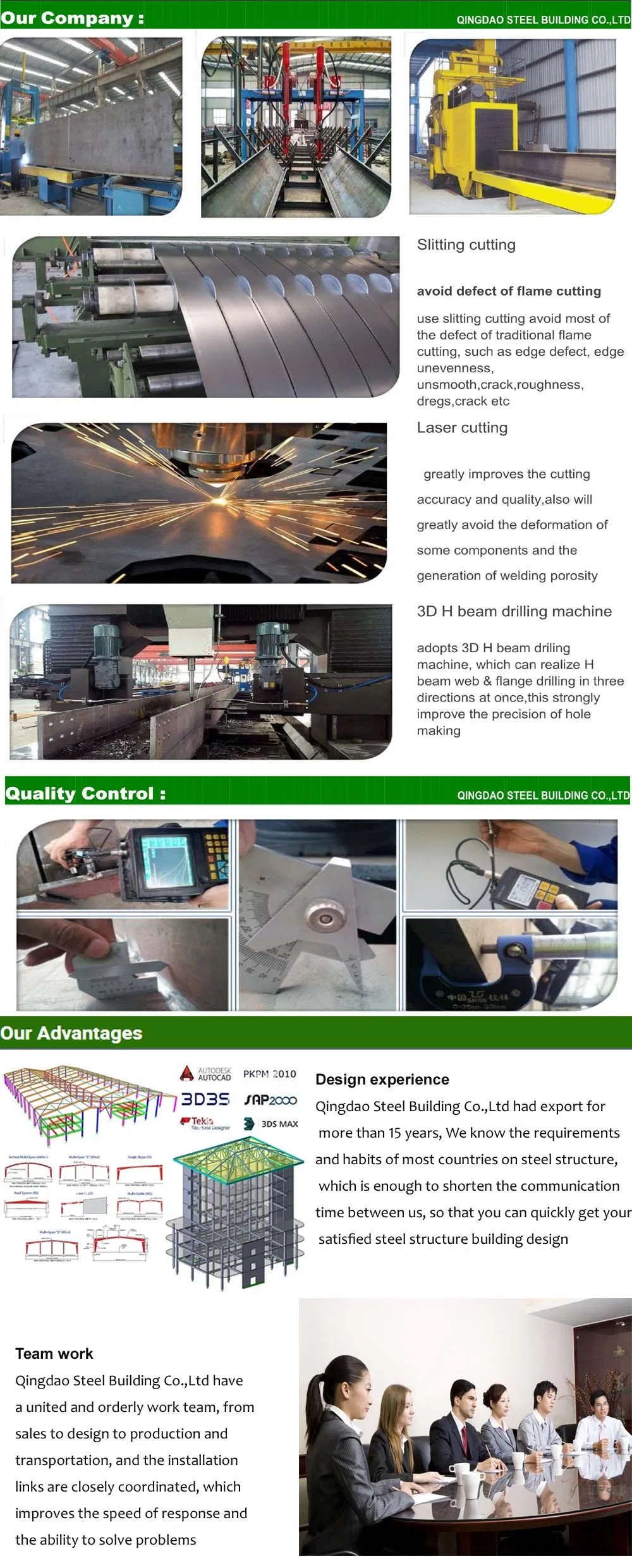

Our fabrication facility features two fully integrated steel structure production lines. Slitting technology is implemented to avoid edge defects associated with traditional flame cutting. Laser cutting units are utilized to ensure dimensional accuracy and aesthetic consistency. The structural H-beam 3D drilling machinery increases hole layout precision, while our high-precision C/Z steel purlin lines and profiled corrugated sheet/composite sandwich panel lines fulfill varied envelope requirements.
The facility holds an annual output capacity of: 30,000 tons of welded structural steel elements, 8,000 tons of cold-formed C/Z section purlins, 100,000 square meters of insulated sandwich panels, and 8,000 tons of corrugated sheets and steel coils.
An experienced engineering team provides thorough consultation services, budgeting support, full detail drawings, quality progress updates, factory testing reports, and global construction supervision.

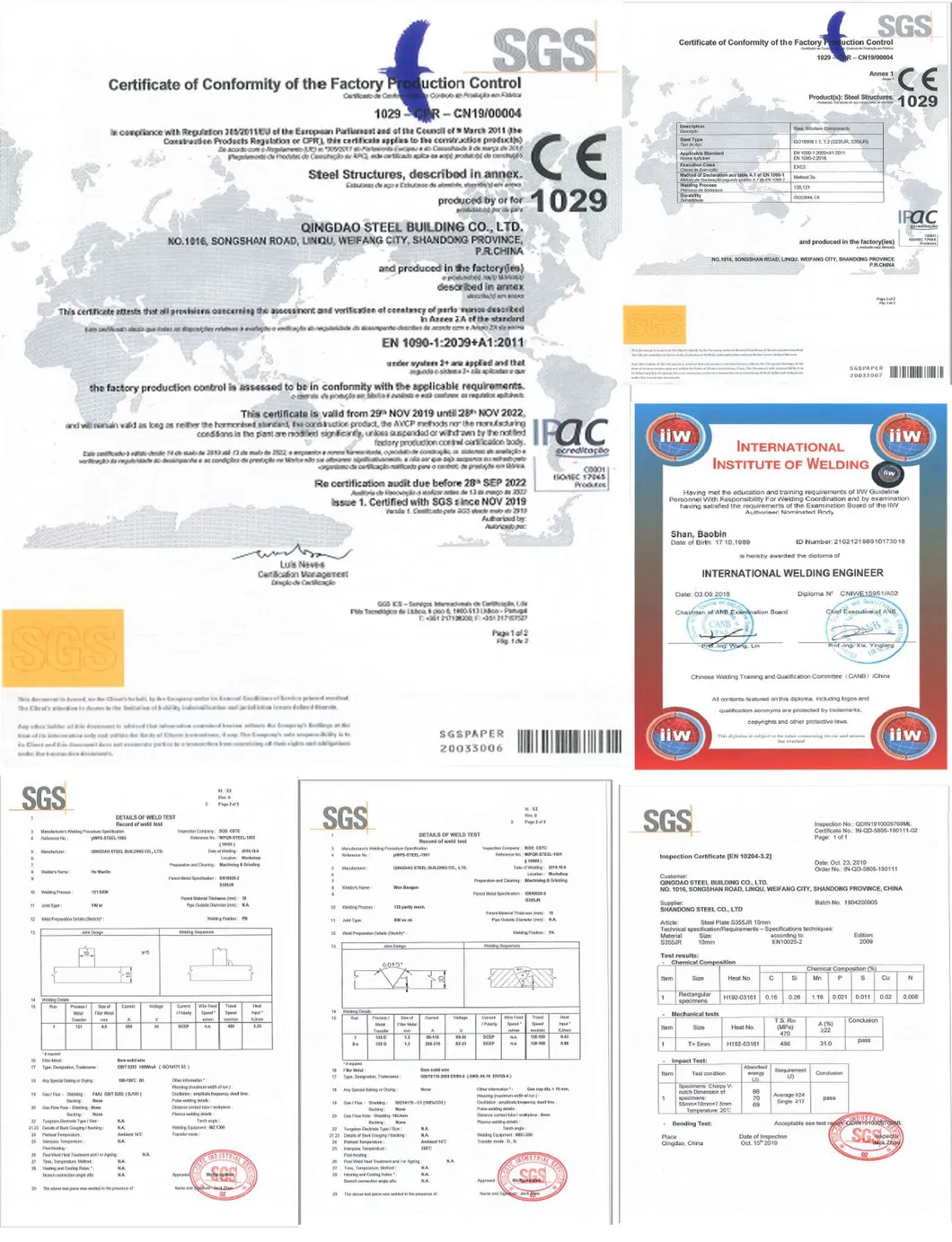

We hold international qualifications and certifications including SGS, Bureau Veritas (BV), EN1090 EXC2 compliance, CE, IWE, ISO9001 quality system adherence, EN10204 3.2 material certificates, and certified welder qualifications.
