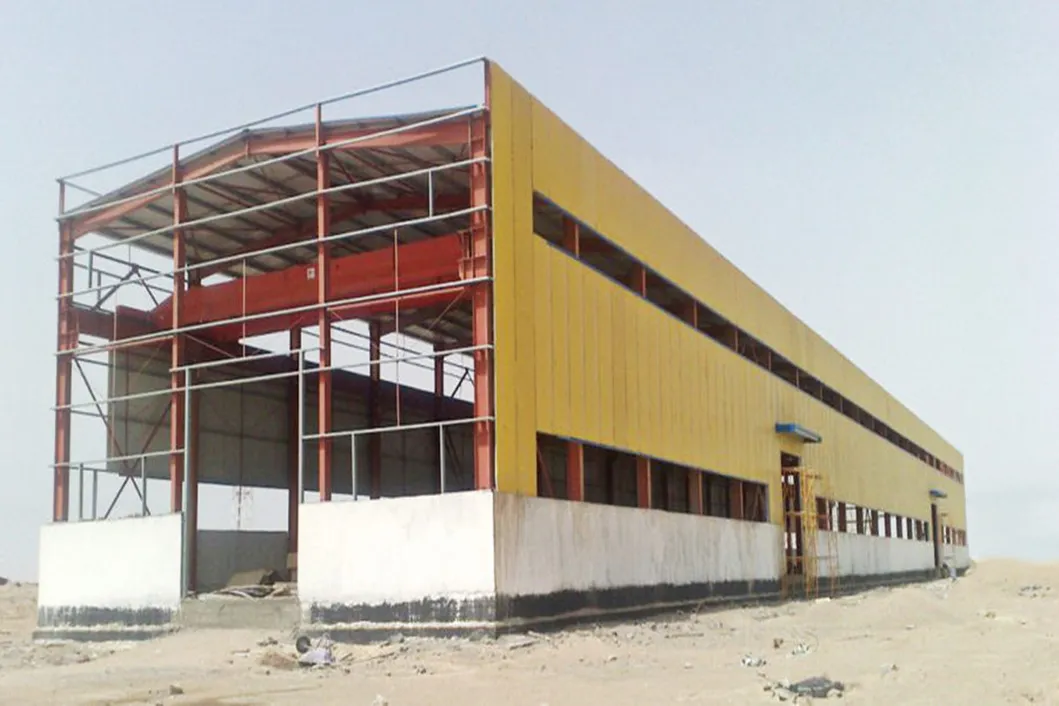

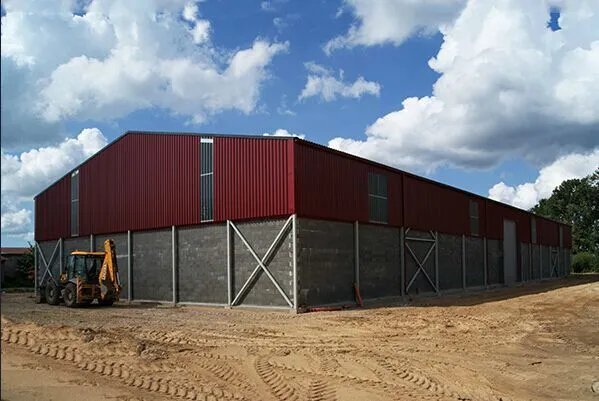

Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H section, Z section, C section or U section steel components, roof and walls using a variety of panels and other components such windows, doors, cranes, etc. Light steel structure building is widely used as warehouses, workshops, large factories...etc.
Because of the diversification of steel structure material and the flexible design, the light steel structure projects can better meet customers' demands for space structures, and reasonable economy.

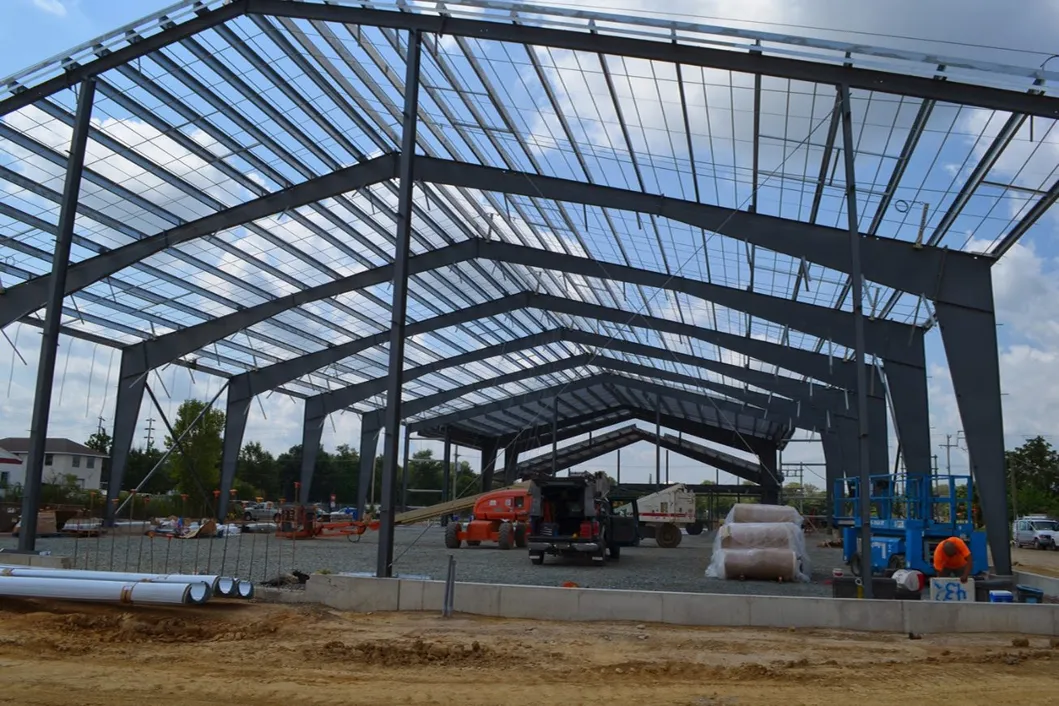

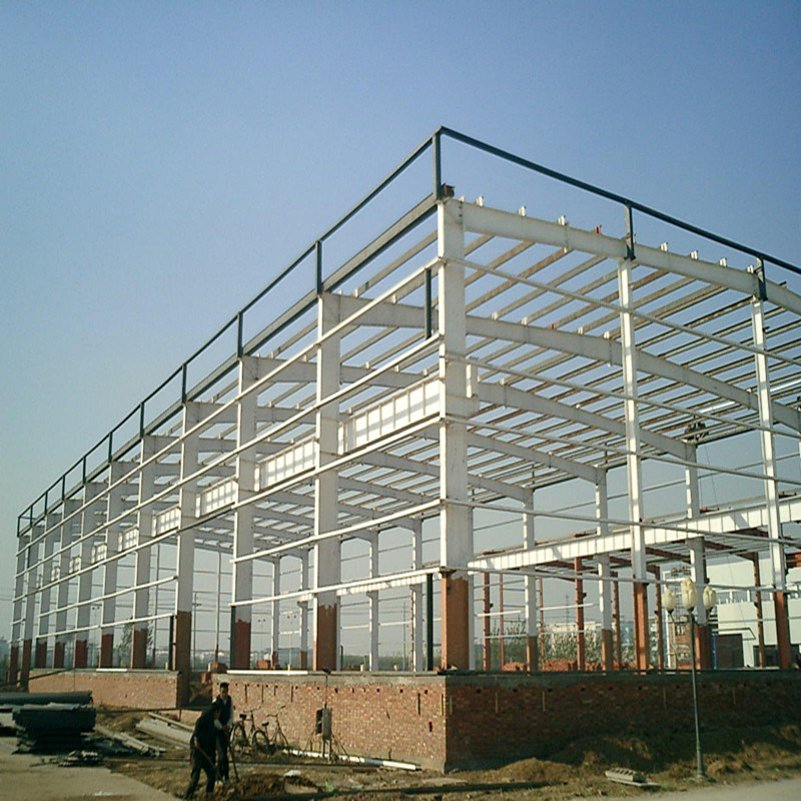

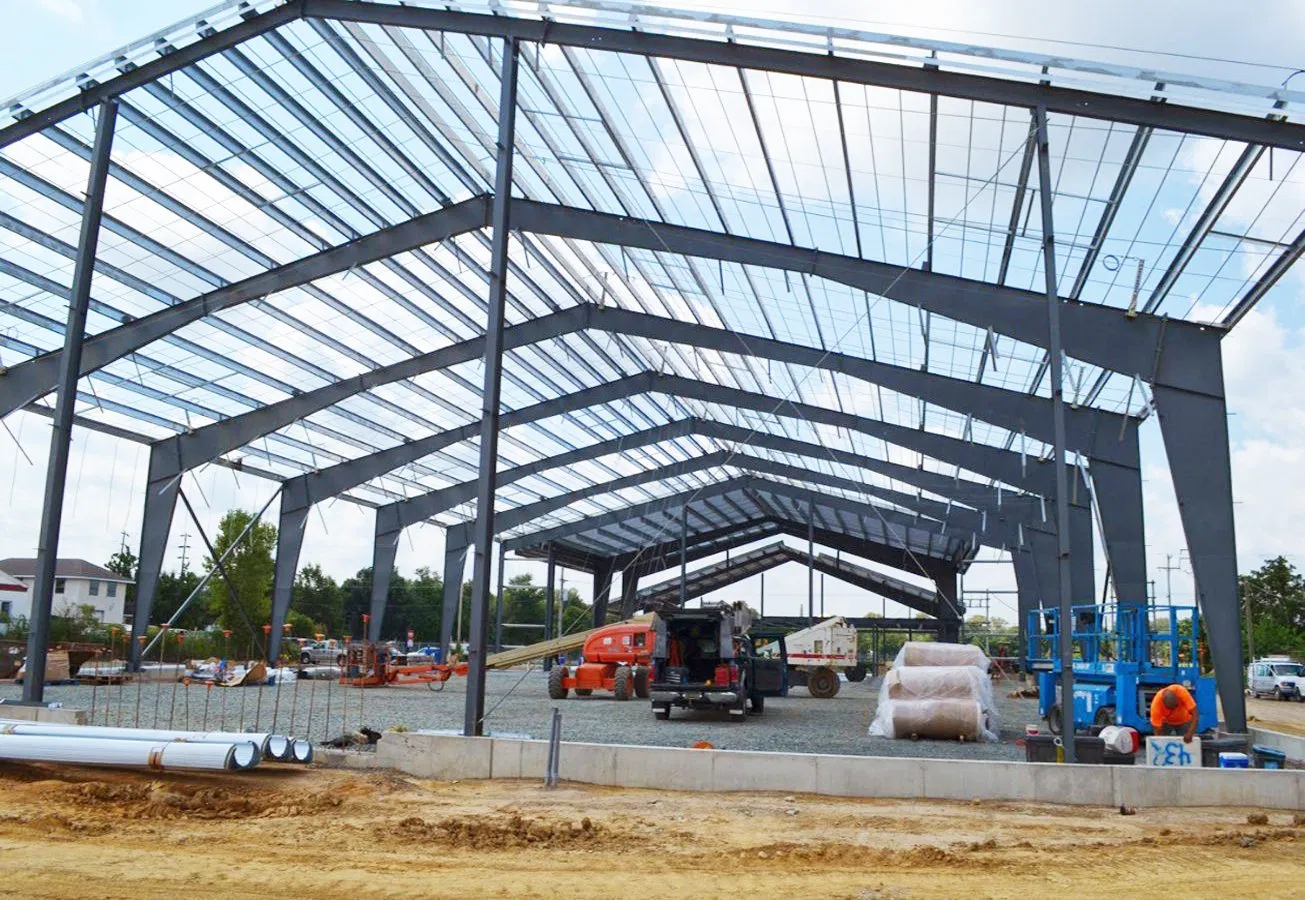

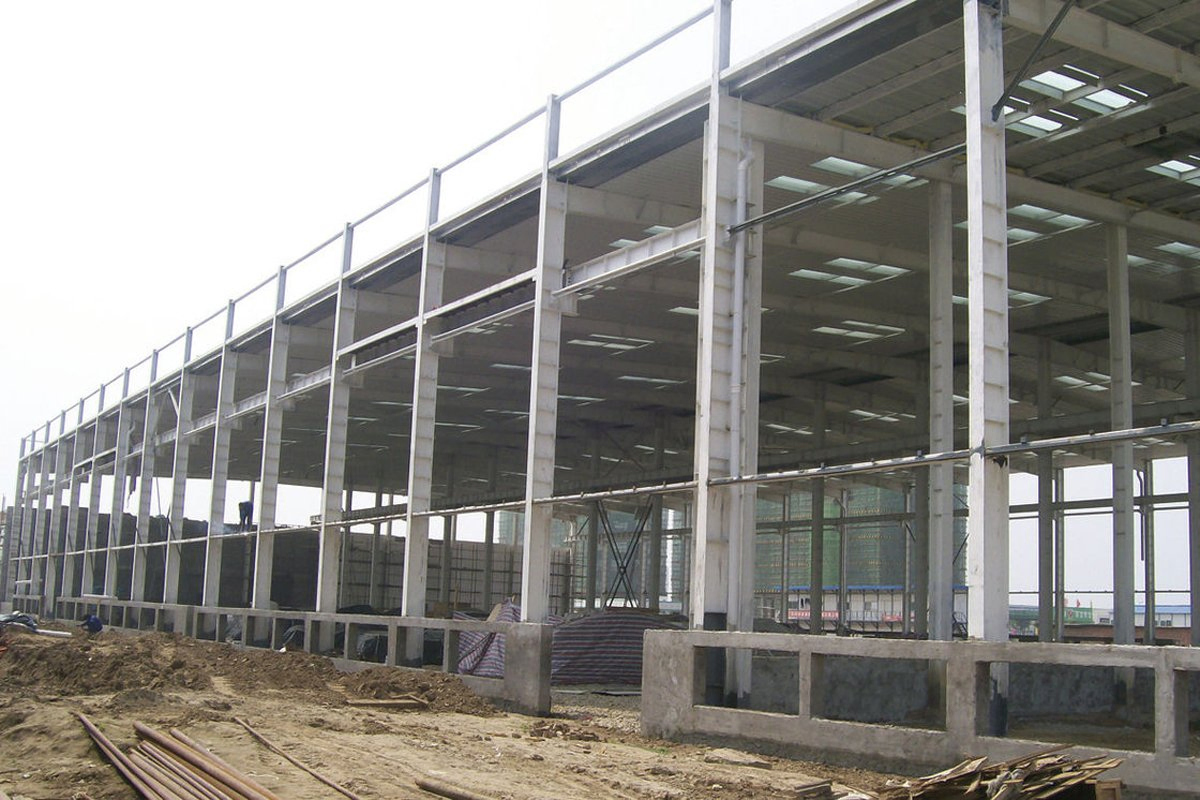

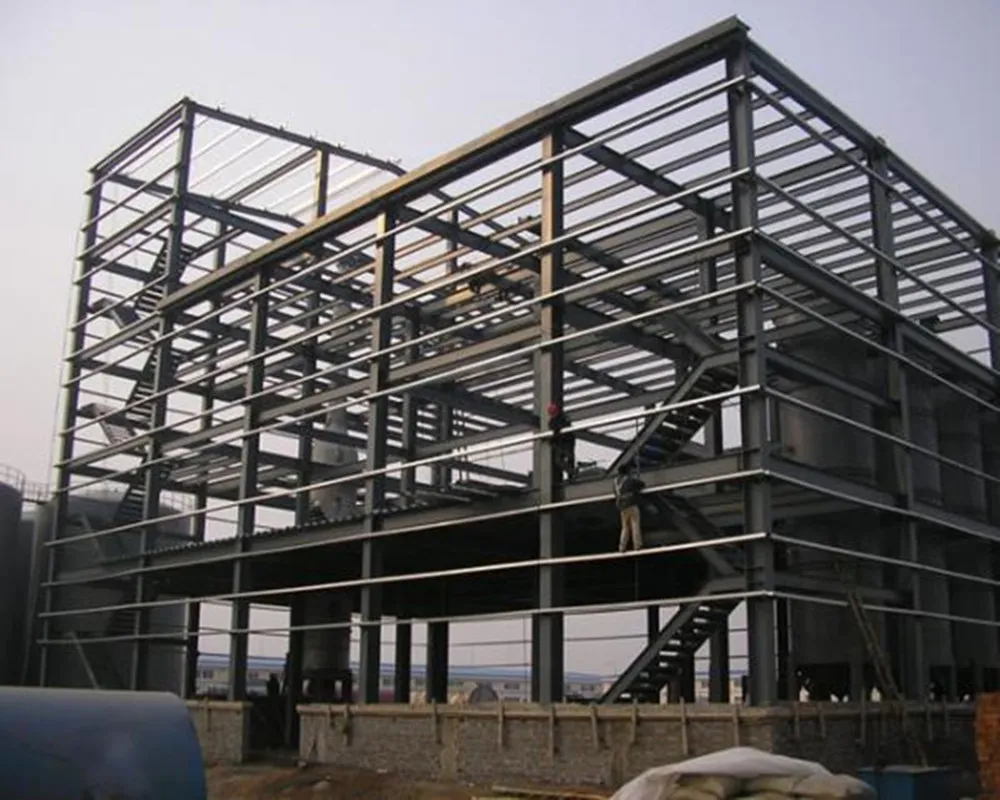

It is the structural system of weight-bearing framework connected by columns, beline, arc or mansard beam. In industrial and civil buildings, single-span, double span or multi-span, double slope or single slope style single level portal framework. Windows and ventilator or day-lighting panel can be installed according to actual situation.

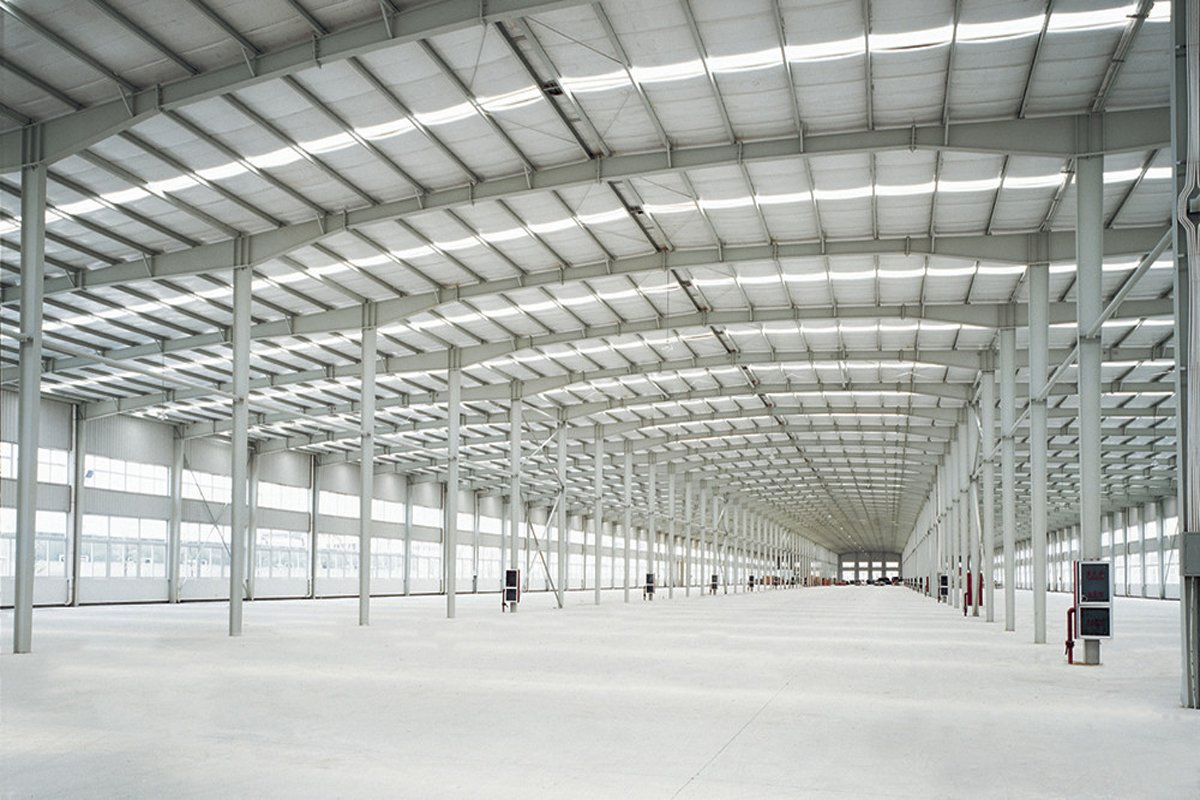

The light steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.
| 1. Opinions |
1) We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts. 2) We can also make and develop new parts according to customers' drawings and detailed dimensions. |
| 2. Specifications |
1) Size: MOQ is 100m2, width X length X eave height, roof slope 2) Type: Single slope, double slope, multi slope; Single span, double-span, Multi-span, single floor, double floors! 3) Base: Cement and steel foundation bolts 4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section! 5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc 6) C or Z purlin: Size from C120~C320, Z100~Z200 7) Roof and wall panel: Single colorful corrugated steel sheet 0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm 8) Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc 9) Surface: Two layers of Anti-rust Painting! 10) Packing: Main steel frame without packing load in 40' OT, roof and wall panel load in 40' HQ! |
| 3. Design Parameters |
If you need us to design for you, pls supply us the following parameters together with detailed size: 1) Live load on roof (KN/M2) 2) Wind speed (KM/H) 3) Snow load (KG/M2) 4) Earthquake load if applicable 5) Demands for doors and windows 6) Crane (if applicable), Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure! |
We are manufacturer.

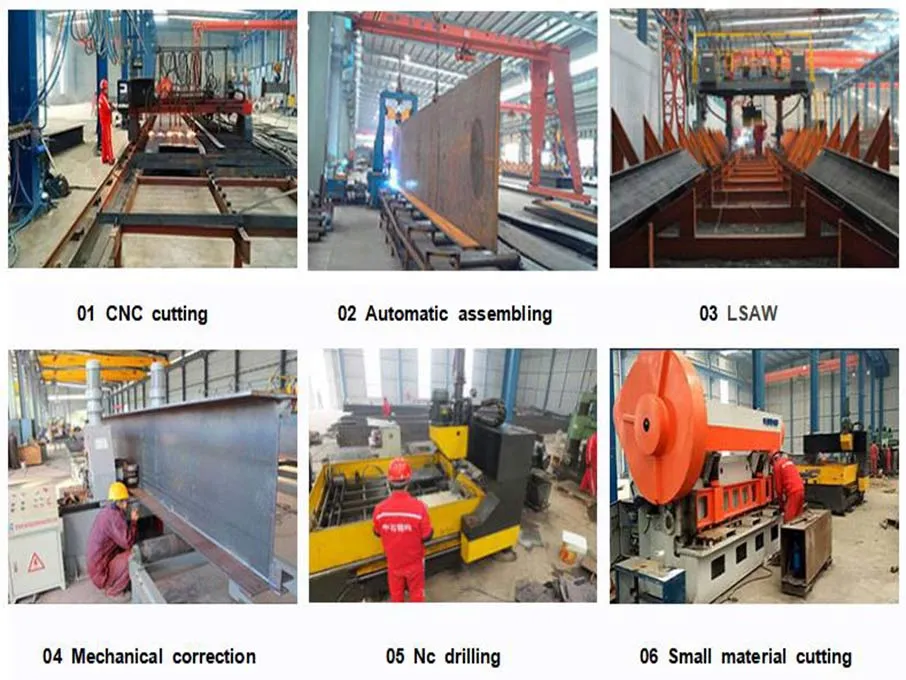

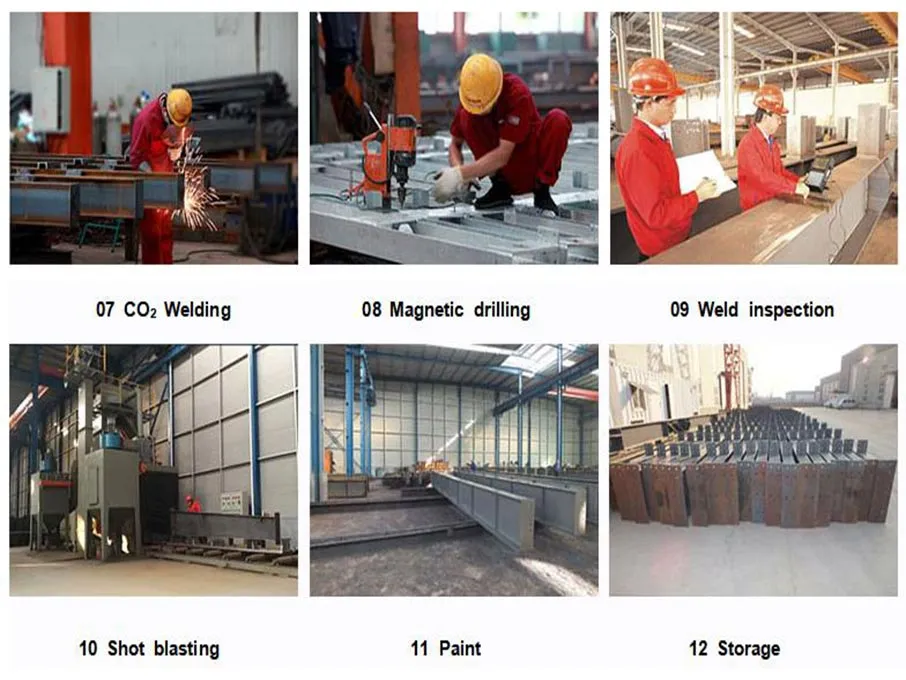

With more than 18 years of history, our factory has vast experience in design, production, transportation, and installation of steel building systems. We have been committed to providing customers with the most reasonable and economical solutions, helping them achieve their steel building needs. Backed by 18 years of development, we have a professional management team in steel structure design, production, and installation. Meanwhile, we continue to develop new technologies and new panels, securing a number of national patents. Our production management is certified with ISO9001.

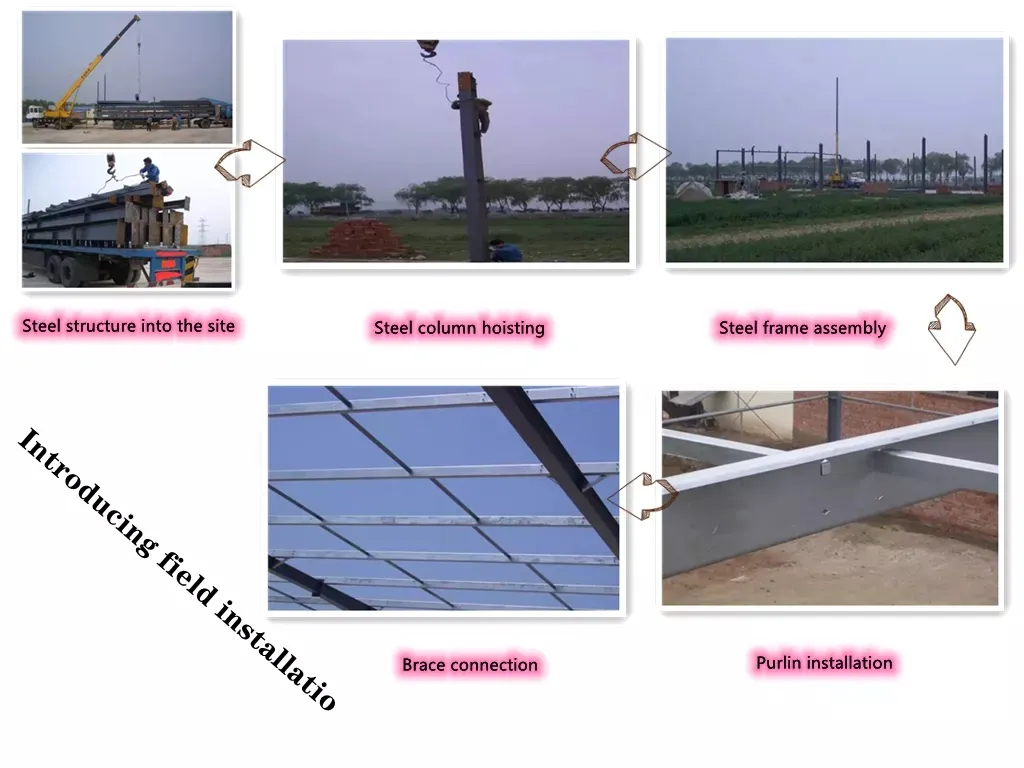

We will provide detailed construction drawings. We also can send technicians and workers to your country for installation assistance.
