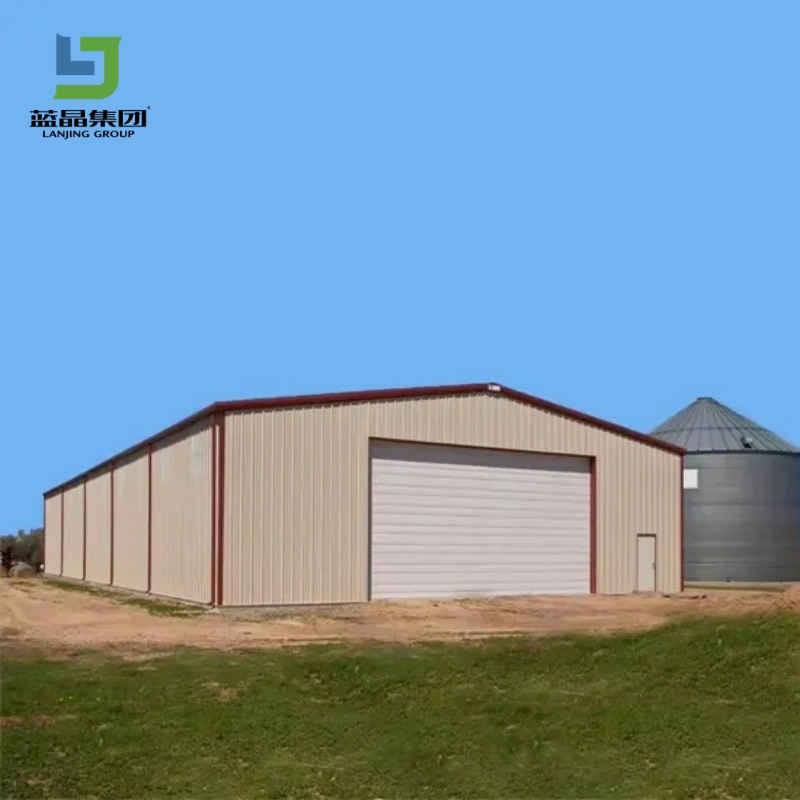

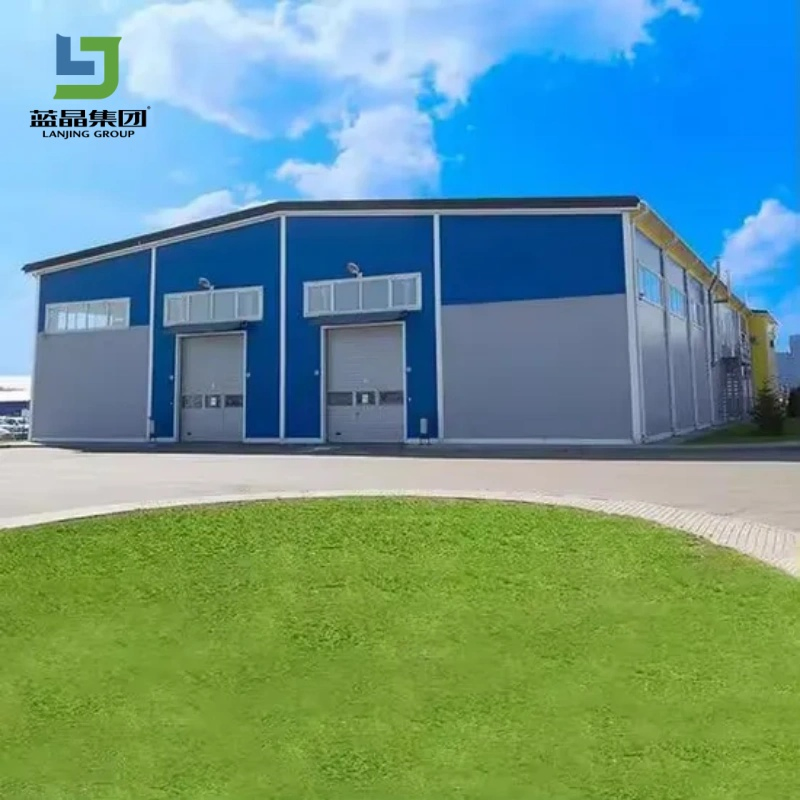

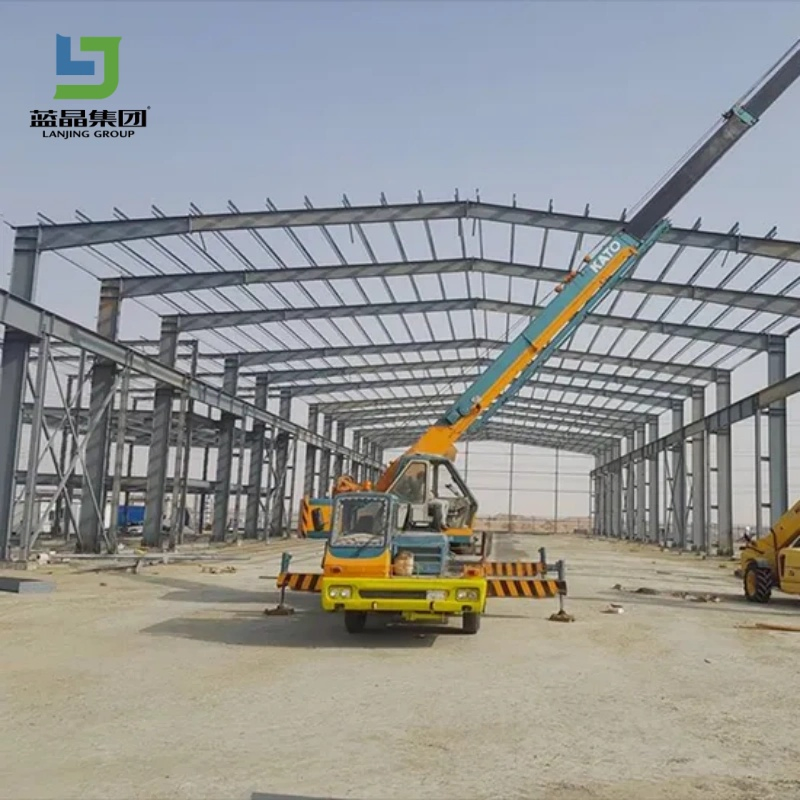

Pre-Engineered Prefab/Prefabricated Steel Structure Plant Industrial Factory Construction Metal Frame Building for Customized Warehouse Workshop

Customization: Available
After-sales Service: Online Technical Support
Connection Form: Bolt Connection

Product Description

Overview

Basic Info

Model NO. S1
Feature Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable
Install Online Guidance
Standard GB, ASTM, DIN, JIS, AISI, BS
Application Workshop, Warehouse, Platform, Fabricated House
Main Frame Welded H Steel Beam, Steel Truss
Performance Safety, Water-Proof, Sound Insulated Heat-Preservation
Surface Treatment Hot DIP Galvanized and Painted
Project Capability Graphic Design, 3D Model Design, Total Solution
Software CAD, Tekla, Sketchup, Pkpm, Bim
Drawing Design The Drawing as Your Demand
Window Sliding Window, PVC Window or Aluminium Window
Doors Electric Rolling Door/Sliding Door
Secondary Frame C&Z Purlin, Brace
Roof Cladding Steel Sheet + Sandwich Panel
Environment Environmental Friendly Material
Wall Color White, Blue, Optional Colors
Characteristics Finished Goods Warehouse
Transport Package According to Customers' Demands
Specification Q355b, Q235b
Origin China
HS Code 7308900000
Capacity 2,500t/M

Packaging & Delivery

Package Size 11.80cm * 2.30cm * 2.50cm
Gross Weight 18000.000kg

Product Description

Steel Structure Plant Industrial Factory Construction Metal Frame Building
Premier Steel Structure Factory Buildings for the Global Market

Our steel structure factory is a professional steel structure building manufacturer located in a convenient port city. Driven by innovative technology and creative thinking, we customize the right approach for customers' projects through smart construction design and meticulous cost analysis.

We provide you with full solutions, from design to construction, involved in your steel structure project. Free 3D sketch and design drawings are available, along with strong technical support online.

With a professional research and development team, and a careful quality control team, we guarantee that our customers will receive products with great welding and accurate dimensions. Customers from Asia, Africa, America, Australia, and Europe are satisfied with our turn-key service.

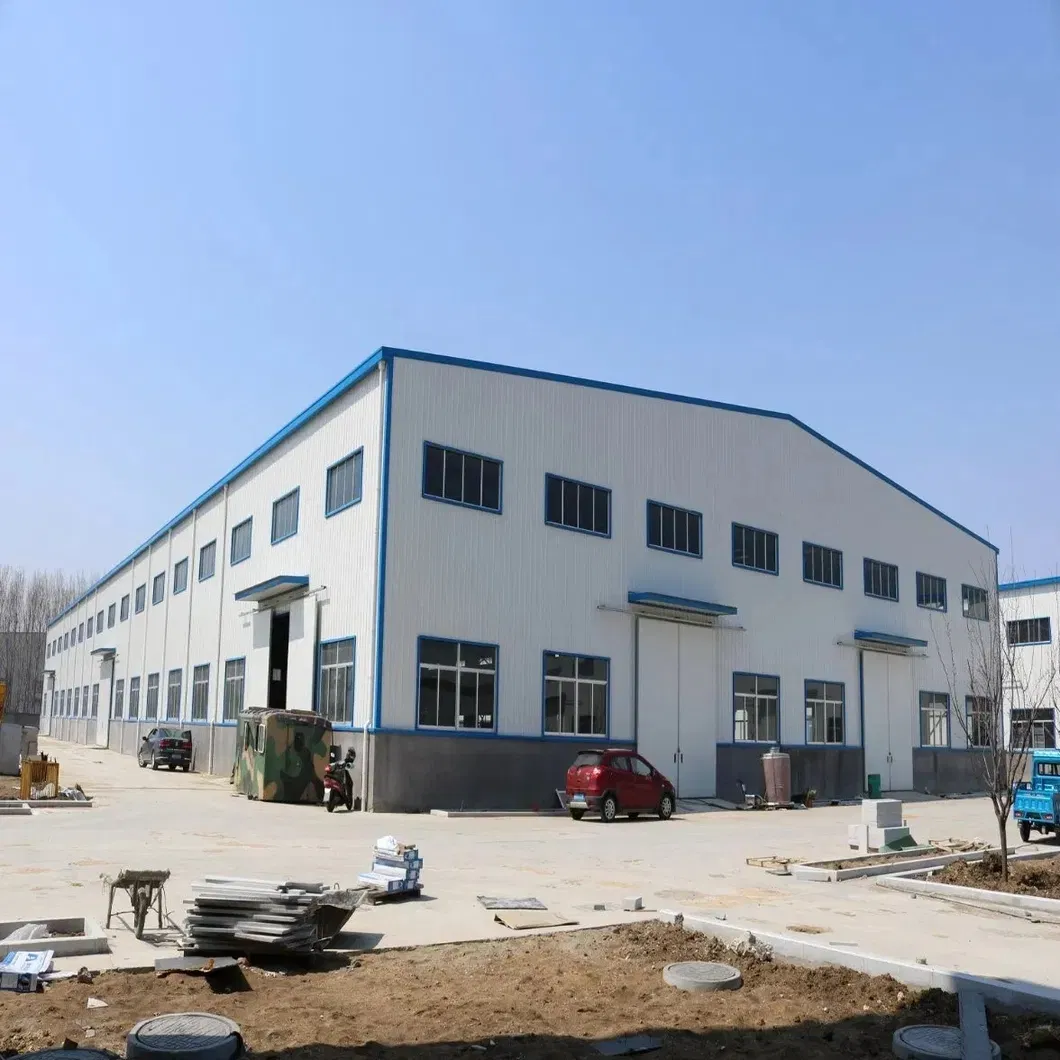

Steel Structure Detail 1

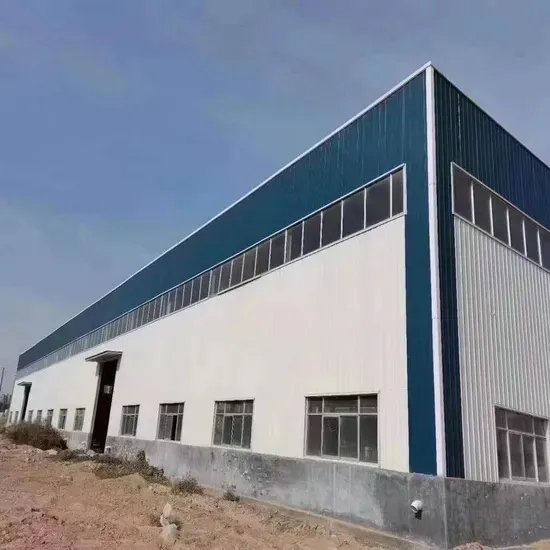

Steel Structure Detail 2

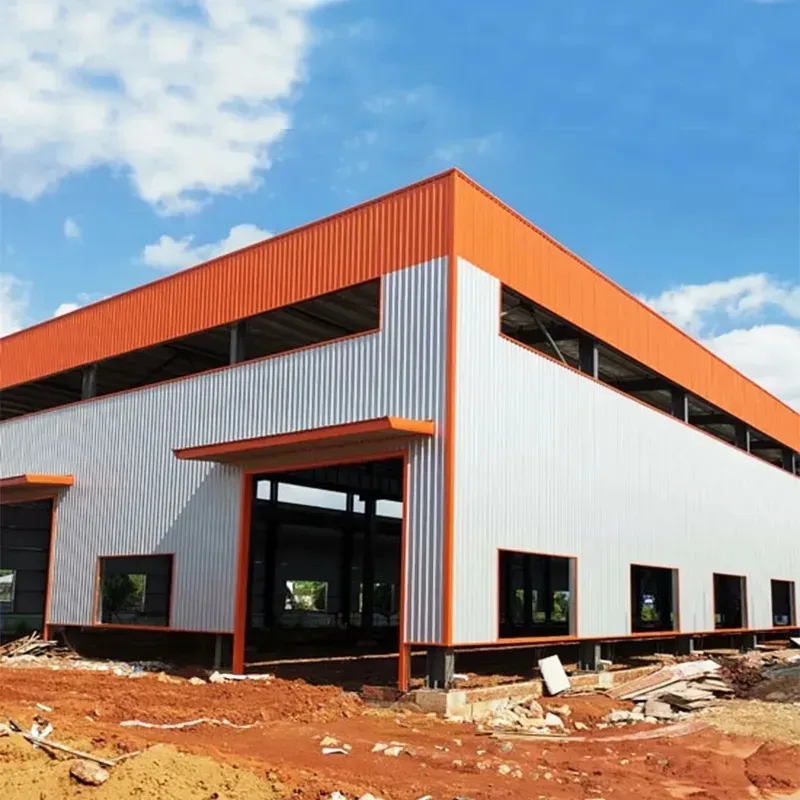

Steel Structure Detail 3

Product Parameters

Main Structure H-section steel Q345 steel H beam, box column available
Welding Automatic Submerged Arc Welding
Rust removing Shot blasting
Surface processing twice primer and twice finish Alkyd paint or hot dip galvanized
High strength bolt Grade 10.9
Substructure Angle brace L50*4, steel Q235, process and painting
Cross bracing Dia.20 round bar, steel Q235 process and pre-galvanized
Tie bar Dia 89*3 round pipe, steel Q235 process and painting or pre-galvanized
Batter brace Dia. 12 round bar, steel Q235 process and pre-galvanized
Ordinary bolt Galvanized bolt
Roof Purlin C channel or Z channel, steel Q235, galvanized
Roof panel (50mm, 75mm, 100mm, 150mm) Sandwich panel, corrugated galvanized iron sheet
Transparent skylight 1.2mm FRP
Accessories Sealant, self-tapping screw
Edge cover Made of color steel sheet
Gutter Made of steel sheet with thickness 0.8mm, or PVC
Rainspout PVC pipe
Wall Purlin C channel or Z channel, steel Q235, galvanized
Wall panel (50mm, 75mm, 100mm, 150mm) Sandwich panel, corrugated galvanized iron sheet
Accessories Sealant, self-tapping screw
Edge cover Made of color steel sheet
Ventilator Unpowered axial-flow ventilator or monitor roof
Door & Window Electric rolling door/sliding door, PVC/ Aluminum alloy window
Crane Ranging from 5 tons to 20 tons
Customized service and personalized designs are welcomed!

Product Application

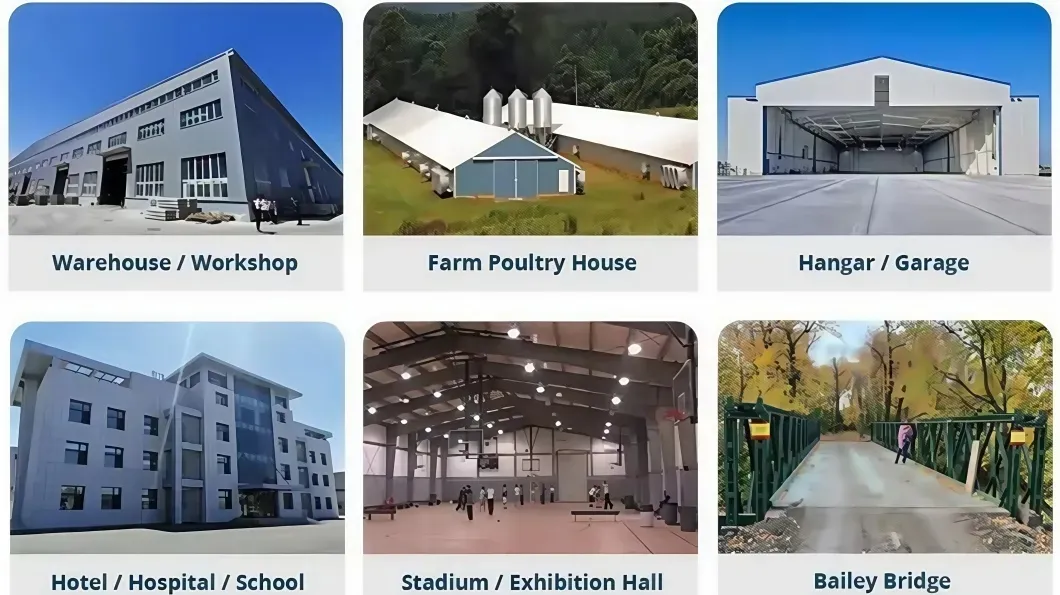

Steel Structure Application Scenario

Steel structures are commonly used in the construction of various industrial factories, workshops, warehouses, and farm buildings due to their excellent load-bearing capacity and flexible design. Additionally, steel structures have high strength and low weight, making them suitable for bearing heavy loads and spanning large spaces. This is why they are often used in the construction of high-rise buildings, sports stadiums, large commercial buildings, exhibition halls, and more.

Detailed Photos

The Steel Structure Warehouse is ingeniously designed with a robust main steel frame comprising H beams, C purlines, and Z purline components. Featuring a roof and walls constructed from an assortment of panels, wallboard, and steel tiles, this steel building offers unparalleled benefits: expansive spans, exceptional strength, lightweight design, cost-effectiveness, superior temperature control, energy efficiency, and an aesthetically pleasing appearance. Installation is swift and straightforward, ensuring excellent insulation, durability, spatial efficiency, remarkable seismic performance, flexible layouts, and recyclability.

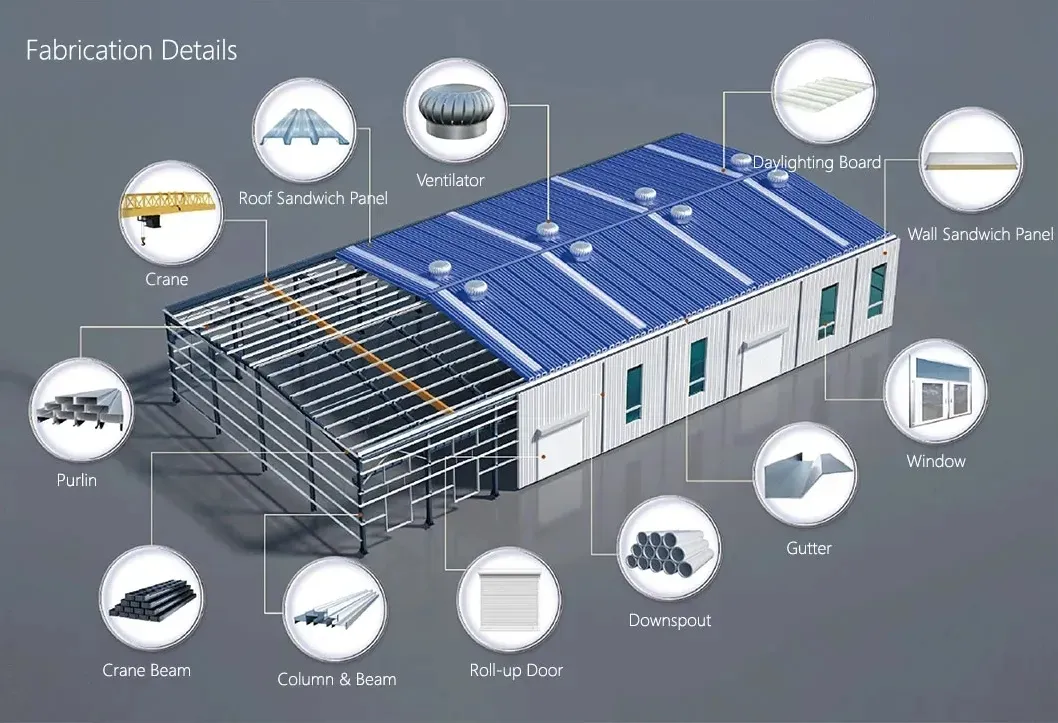

Detailed Steel Structure Diagram

Packaging & Shipping

We consider the fragility, weight, and potential risks during transportation of different components when loading the products into the shipping containers, and take appropriate measures to ensure a safe and efficient unloading process for our customers.

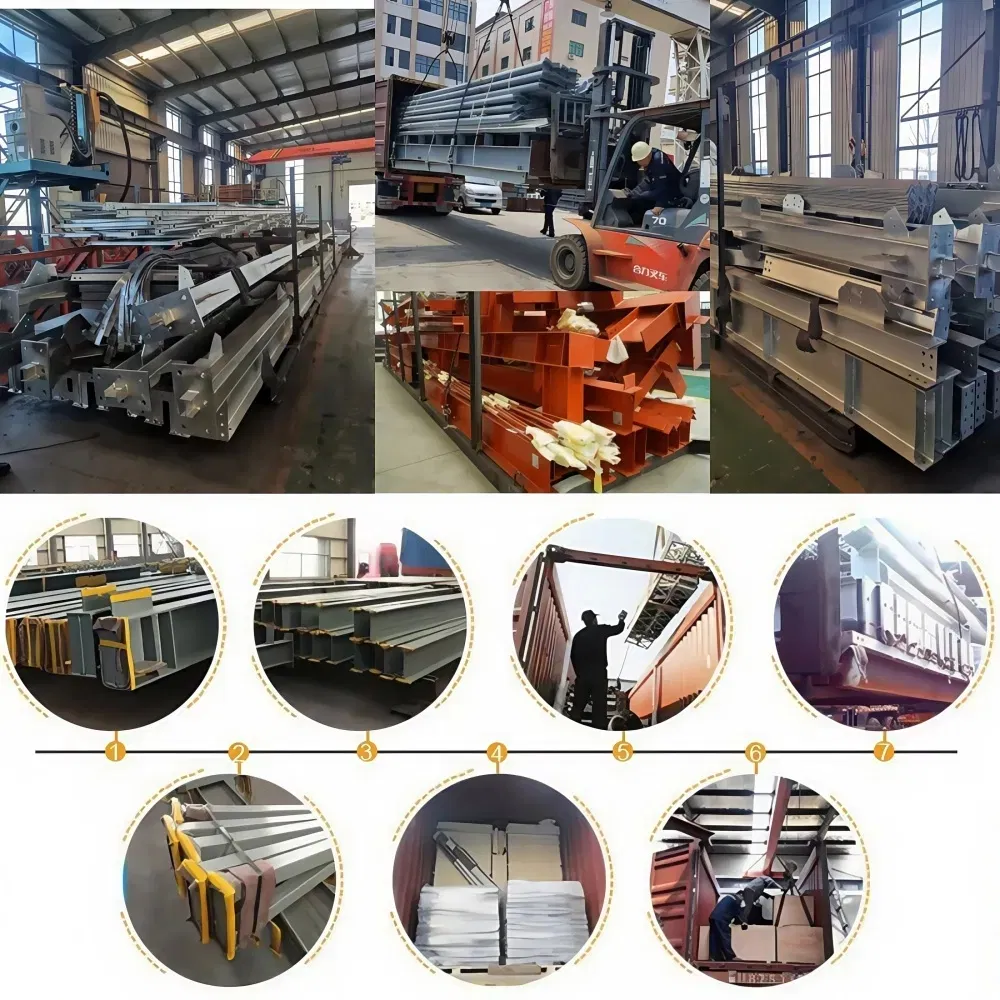

Container Loading and Packaging Process

Company Profile

Manufacturing Factory Facility
Steel Fabrication Line

We are a professional manufacturer for Steel structure buildings, Container Houses, and Prefab houses with over 10 years of experience. We have exported to 30+ countries and completed 100+ projects, offering ONE-STOP services and customized solutions. Our operations are ISO9001, BV, SGS, and TUV audited.

We offer comprehensive ONE-STOP services, delivering customized solutions that include Consultation, R&D, Design, Manufacturing, Installation, Overseas project supervision, and after-sales support.

We specialize in the creation of high-quality Steel structure Warehouses, Workshops, High-rise steel frame buildings, and Container houses for Labor camps, site offices, shower containers, and toilet facilities. Our steel structure buildings have built a strong reputation for reliability and service across the infrastructure, mining, energy, and oil & gas sectors.

Our factory spans an area of more than 12 hectares (120,000 SQM) with substantial registered capital. After more than 10 years of development, we possess strong technical strength and comprehensive product lines. Having completed 100+ projects in more than 30 countries, we have established long-term partnerships with various international companies, organizations, and governmental departments.

Steel Structure Projects

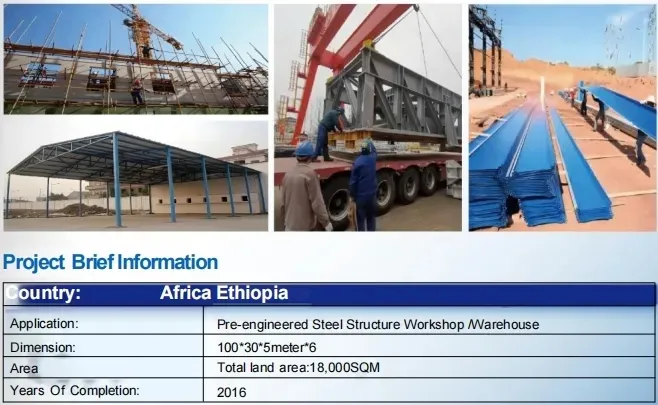

Completed Steel Project 1

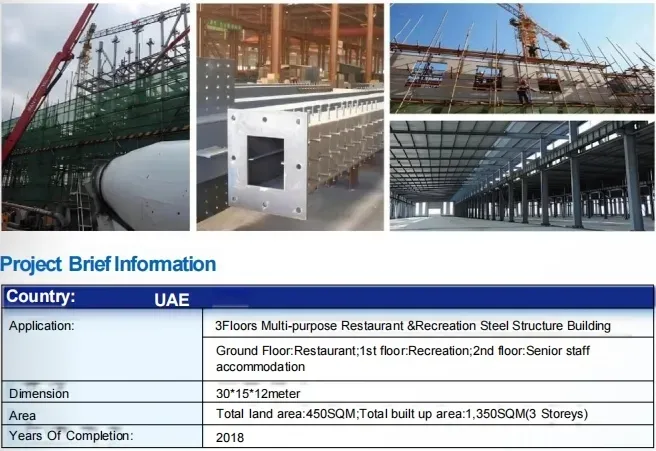

Completed Steel Project 2

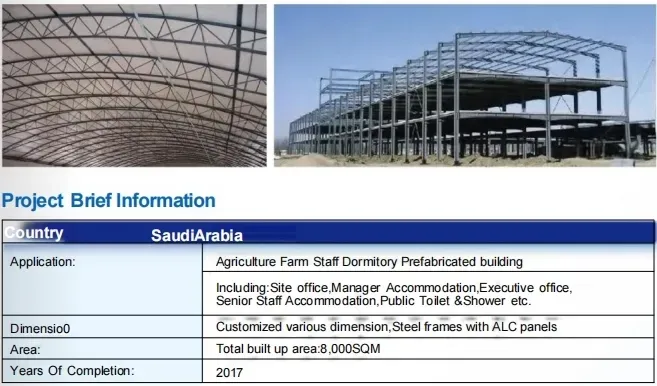

Completed Steel Project 3

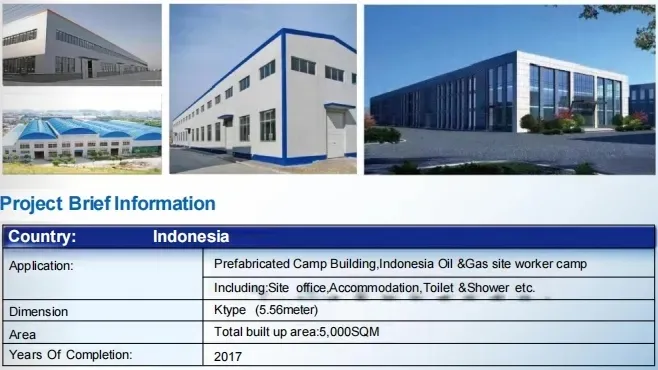

Completed Steel Project 4

FAQ

Q1 Is your company a factory or trading company?
We are a manufacturer with a foreign trade department, so you can get a competitive price as well as professional service. You are always welcome to visit our factory at any time.
Q2 What are your main products?
We provide steel structure warehouses, workshops, plants, chicken houses, prefabricated houses, container-type houses, garages, aircraft hangars, sandwich panels, and other construction materials. According to the requirements of different projects and clients, we will supply different designs and steel products. Customized designs are available.
Q3 What's the quality assurance you provide and how do you make quality control?
Quality first is our core value. Our quality assurance team and quality control team have developed a rigorous quality inspection system based on ISO9001. A testing laboratory guarantees qualified raw materials and high-standard products.
Q4 Do you provide installation instructions and on-site installation services?
Every project is provided with installation instructions, and if you need, we can also send our engineers to the local construction site to assist with the installation work.
Q5 What should I provide to get a complete quotation?
Please provide the following information:
1. Project location 5. Length (sidewall, m) 9. Window material, style, size
2. Snow load 6. Width (end wall, m) 10. Door material, style, size
3. Wind load 7. Wall Height (eave, m) 11. Raining condition
4. Seismic magnitude 8. Middle column allowed or not 12. Crane needed or not
13. Other information if necessary
Q6 Are customized designs and specifications supported?
Yes, customized services and personalized designs are welcomed. We build and engineer layouts according to your dimensional demands and special load conditions.
