| Model NO. | SDKM-25-2 |
| Feature | Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable |
| Install | Support Installation |
| Steel Grade | Q235, Q355 |
| Name | Prefabricated Steel Structure Warehouse |
| Type of Steel for Building Structure | H-Section Steel |
| Column and Beam | Hot Rolled or Welded H Section, I Section |
| Connection | Bolt/Welding/Rivet Connection |
| Surface Processing | Painted or Galvanized |
| Roof & Wall Panel | PU, EPS, Rock Wool/Fiber Glass Sandwich Panel |
| Skylight | Transparent Sheet |
| Window and Door | PVC or Aluminum Alloy/Sliding Door / Roll up Door |
| Standard | GB, ASTM, DIN, JIS, AISI, BS |
| Drawing | Custom as Your Demand |
| Application | Steel Workshop, Steel Structure Platform |
| Foundation | Cement Foundation |
| After-Sale Service | The Installation Guide |
| Additional | Overhead Crane, Mezzanine Floor, Ventilation |
| Transport Package | Seaworthy Package |
| Specification | Customized |
| Origin | China |
| HS Code | 7308900000 |
| Production Capacity | 5000 Tons/Month |
| Package Size | 11800.00cm * 2300.00cm * 2650.00cm |
| Package Gross Weight | 25000.000kg |

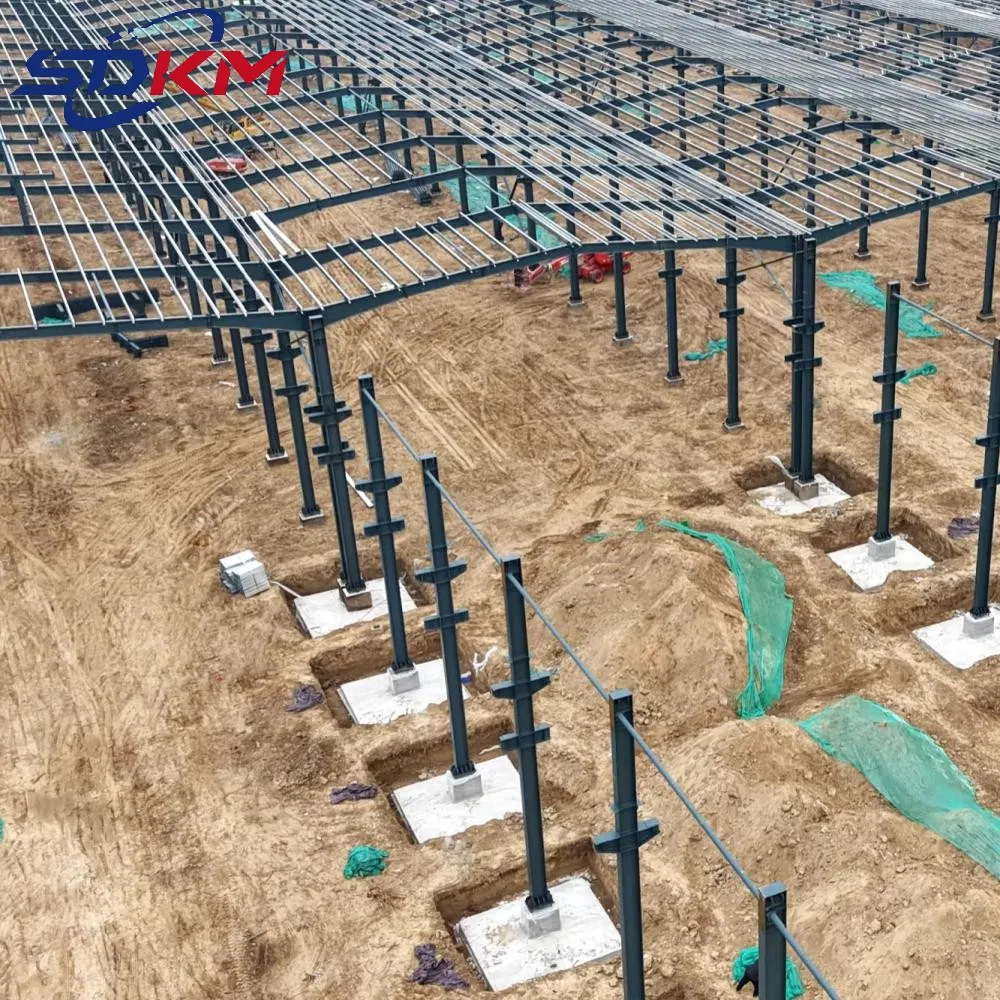

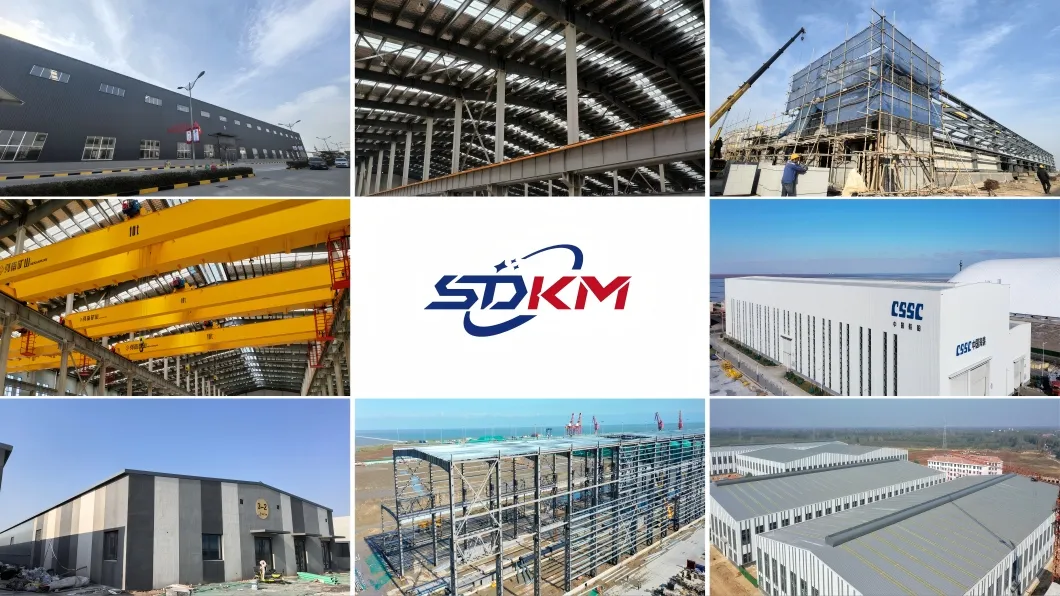

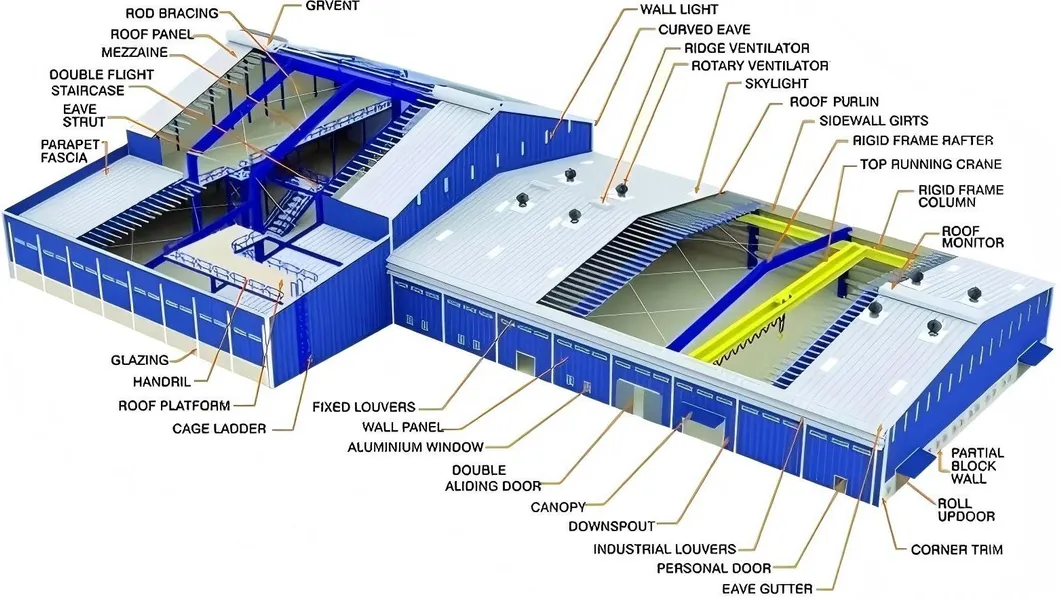

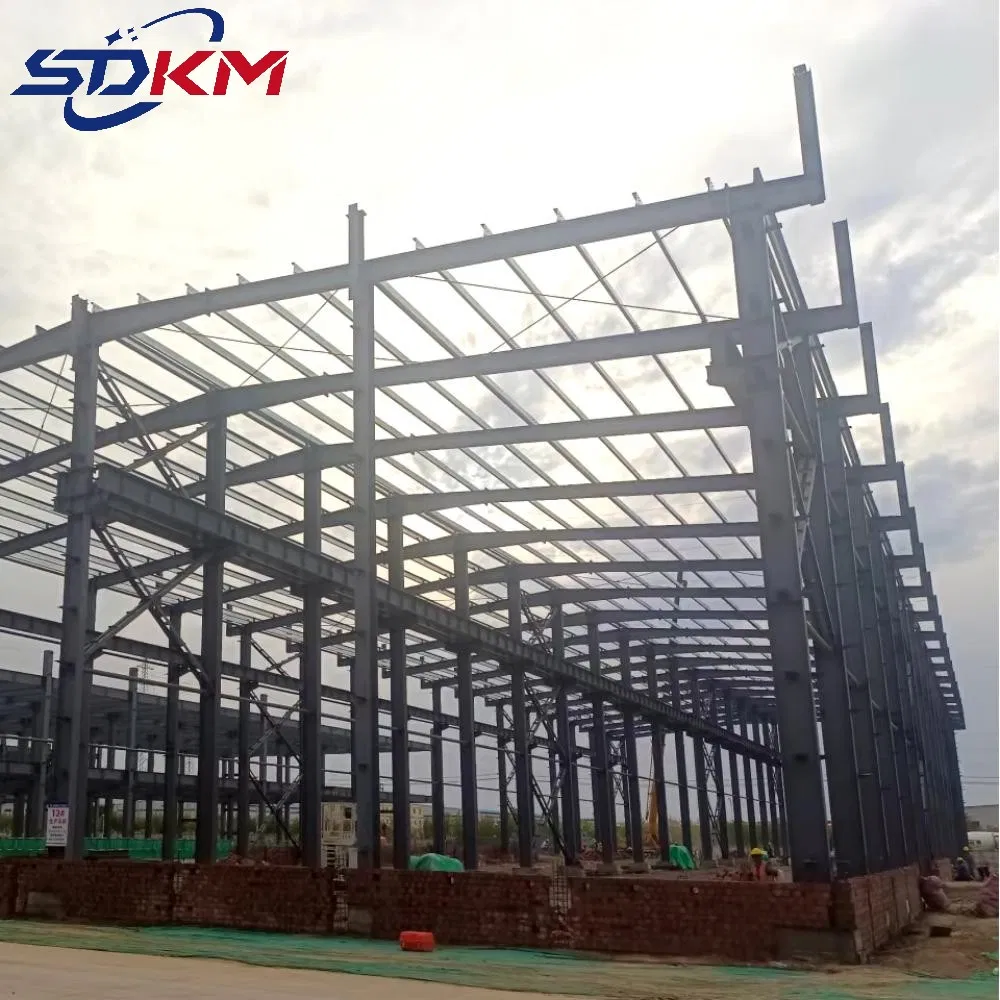

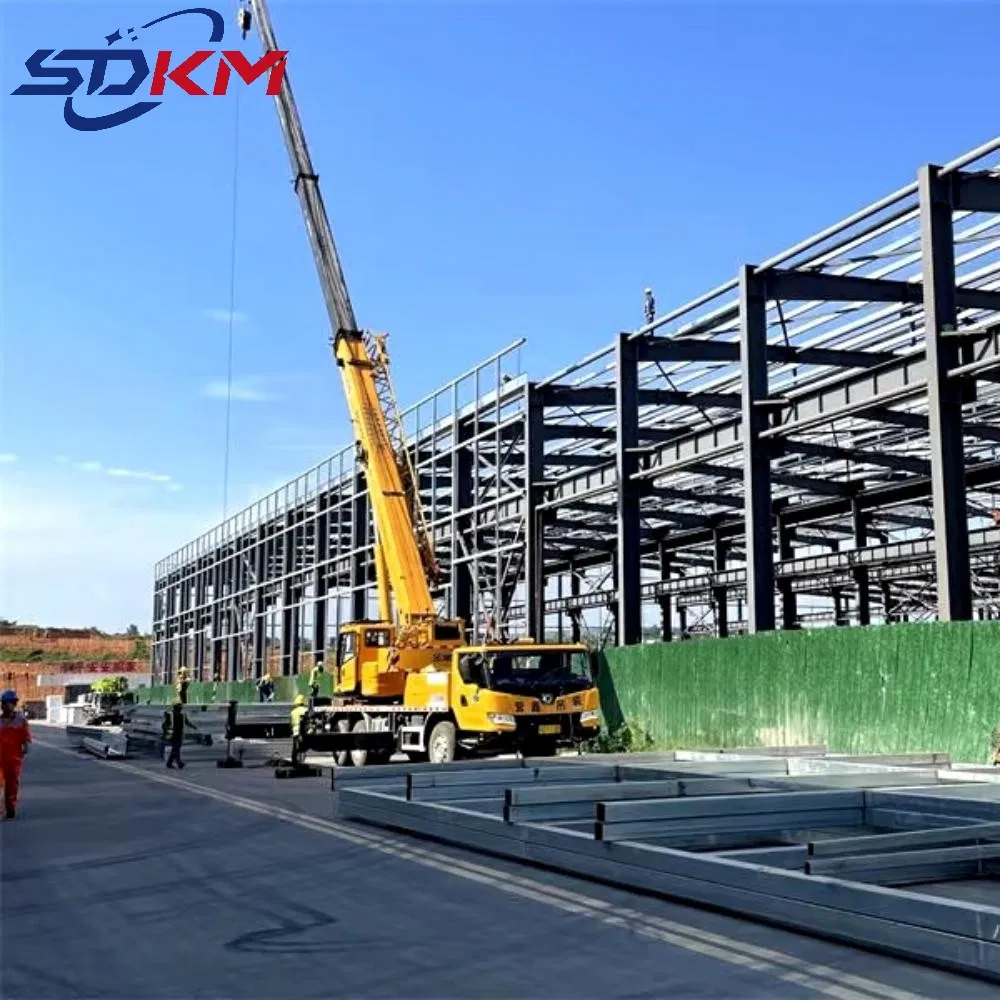

We can design and fabricate customized steel structure components for light and heavy steel structure buildings in portal frame and dome frame, such as warehouse, workshop, storage, hangar, chicken shed, steel shed for market and ground parking, supermarket, high rise steel office building, factory, plant, exhibition hall, gym, dormitory building, oil & gas, power station, infrastructure buildings, etc.
| Category | Material | Specification Details |
|---|---|---|
| Steel Frame | H section steel | Q235 steel plate thickness: 8-30mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20, Grade 10.9 | |
| Supporting System | Angle brace | L50x4, Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted | |
| Column brace | Φ20, Steel Q235, processed and painted | |
| Tie rod | Φ89*3, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5, Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
| Down pipe | Φ110 PVC | |
| Walls | Purlin | C160*60*2.5, Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Ventilation | Ventilation ball | |
| Doors & Windows | Rolling door/sliding door | PVC/alu/steel/window |
| Door | Roller door / Sliding door | Electric or manual |
| Window | Sliding/fixed/shutter/top Hung window | PVC frame or aluminum alloy frame |
| Surface | Shot blasting with anti rust paint, rich-zinc epoxy paint, hot-dip galvanizing | |
| Quality Control | SGS, QIMA, BV all third party accepted | |
| Certificate | ISO9001, CE, EN1090 EXC2, IWE etc. | |
| Other accessories | Gutter, flashing trimming cover, down spout, ventilation fitting, skylight belt, bolt, anchor bolt, self tapping screw, overhead crane, etc. | |

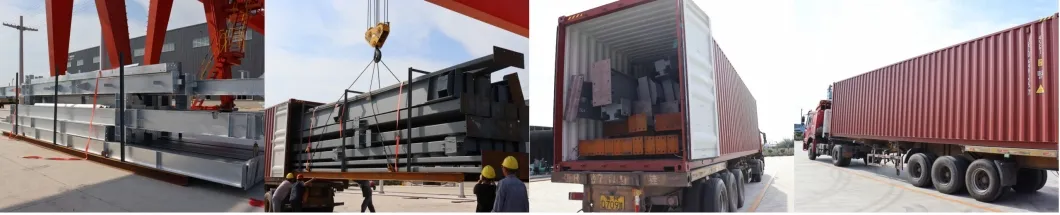

| Package | Loaded in 40'HQ or as per your request | |

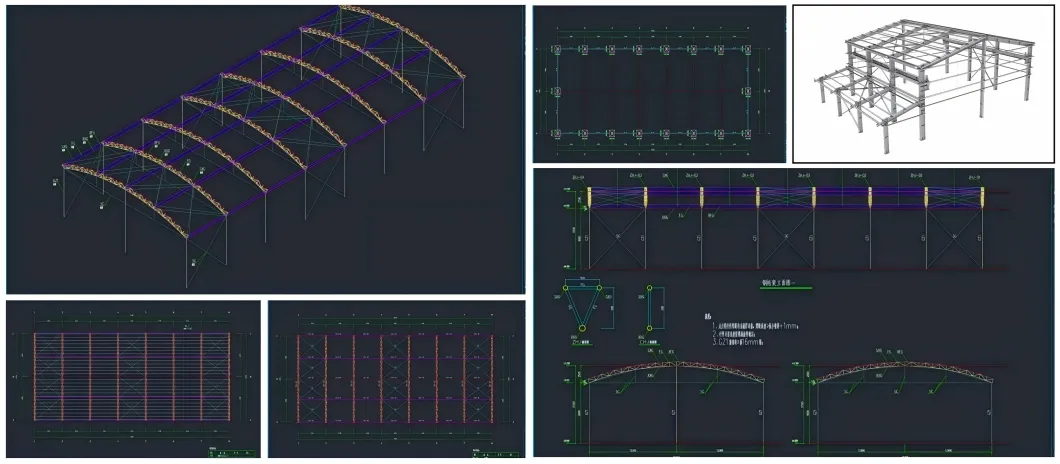

* We can provide a structural calculation table for you to fill out. Feel free to contact us to request it.

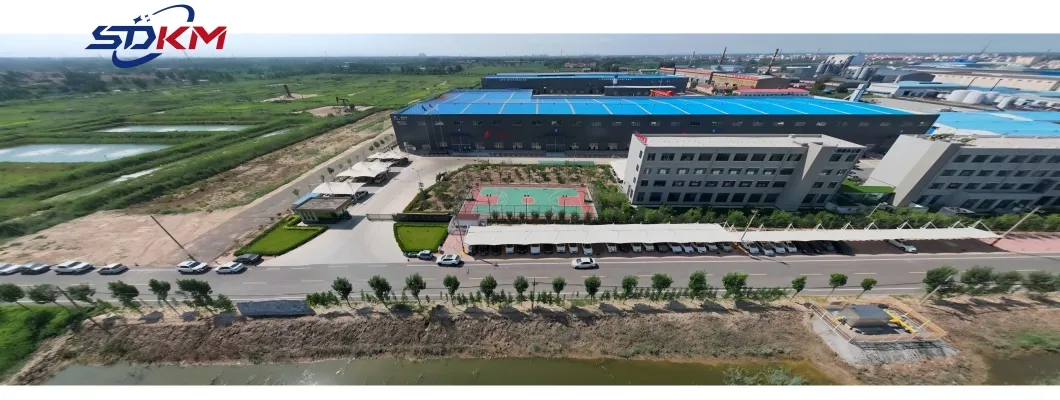

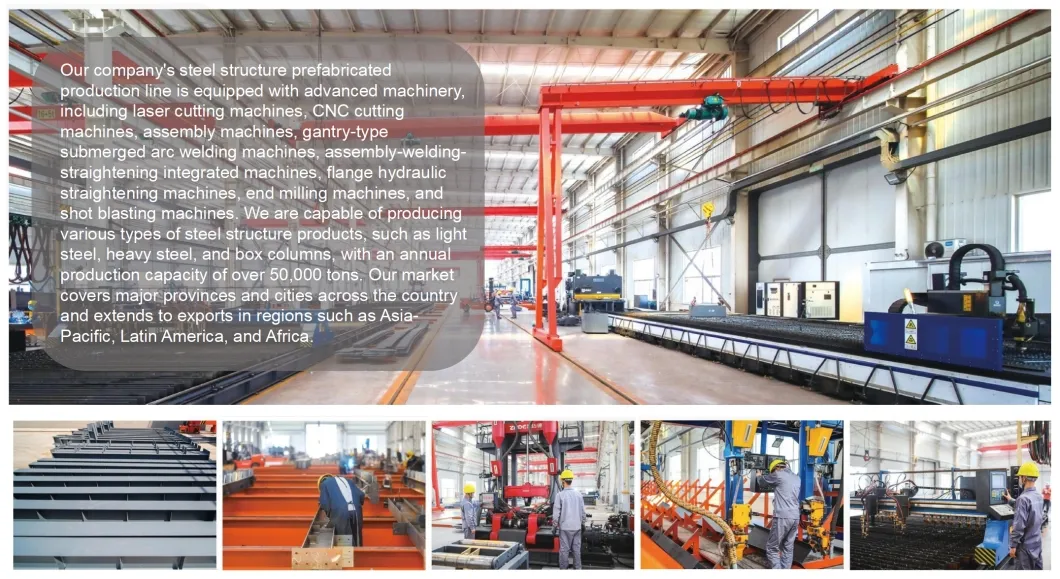

Our construction technology company specializes in engineering construction and the R&D, production, and installation of prefabricated building products. Our construction services include residential buildings, municipal engineering, steel structures, decoration, and curtain wall projects. Key prefabricated products include removable bottom mold floor panels, prefabricated steel components, and high and low voltage distribution cabinets. After 22 years of development, we have established a solid position in the field of steel structure manufacturing. We have accumulated rich experience and made remarkable achievements, and the factory has become an industry model. Our production processes, equipment and management methods are highly regarded. We adhere to high standards of production to ensure that product quality is leading. The technical team continues to innovate and pursue excellence to meet market competition. Our pursuit of quality and understanding of customer needs have won the trust of customers. In the future, we will continue to enhance our strength, provide quality products and services, and promote the development of the industry. We offer a full range of services, operate in more than 60 countries, and establish long-term cooperation with customers. Our markets are mainly in Africa, Southeast Asia, the Americas and the Middle East.
*Only display partial relevant qualifications. Unauthorized use of images will be prosecuted!
