| Model NO. | RULYC0011 |
| Construction Member | Steel Column & Steel Beam |
| Grade | Low-Alloy High-Tensile Structural Steel |
| Molding Method | Hot-Rolled Steel |
| Residential Wall Structure | Top Wall Beam |
| Standard | AISI, BS, ASTM, JIS, DIN, GB |
| Steel Type | Low-Alloy High-Tensile Structural Steel |
| Structure | Steel Structure |
| Main Frame | Steel Columns and Beams |
| Raw Steel Material | Q235B, Q355b |
| Surface Treatment | Painting or Hot-DIP Galvanize |
| Wall and Roof | Aluminum Composite Panel, Glass Wool Panel |
| Frame Type | Portal Frame |
| Door | Roller Shutter Door or Sliding Door |
| Wall Purlin | C Purlin |
| Roof Purlin | Z Purlin |
| Window | Sliding Window, Fixed Window, Top Hung Window |
| Color | Customized |
| Size | as Requested |
| Design Load | Wind, Snow, Seismic |
| Application | Steel Workshop |
| Warranty | According to Project Type |
| Member | Steel Column |
| Transport Package | Standard Export Package or Customer Requirement |

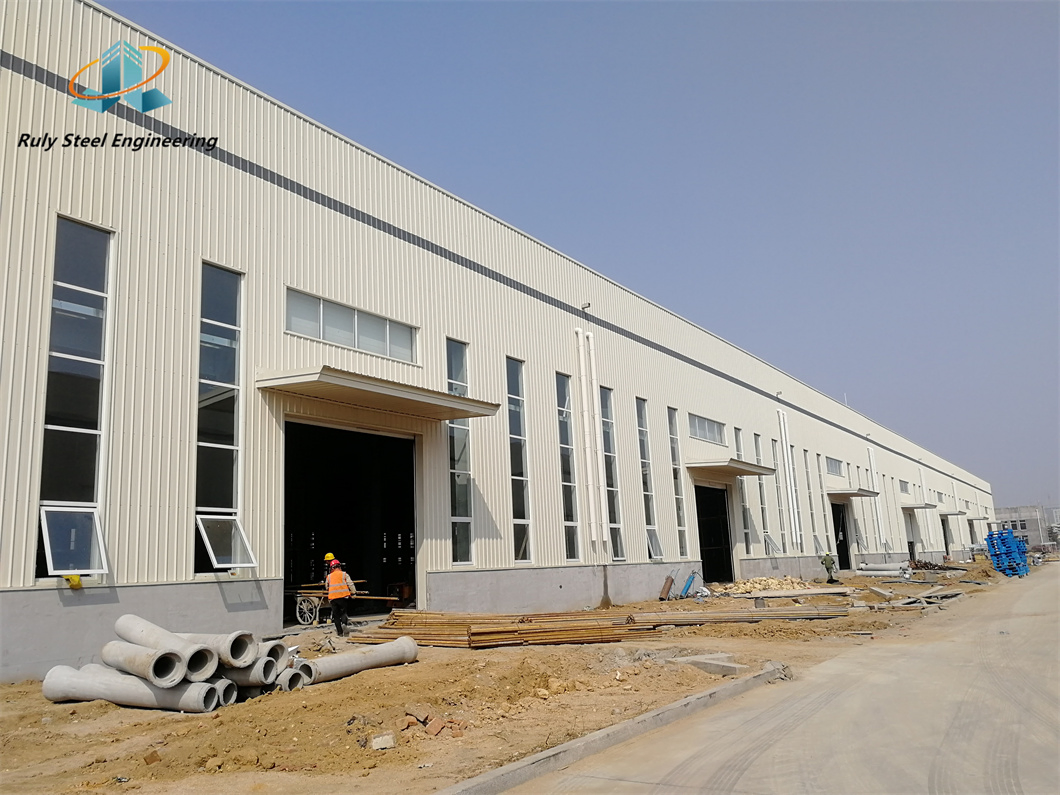

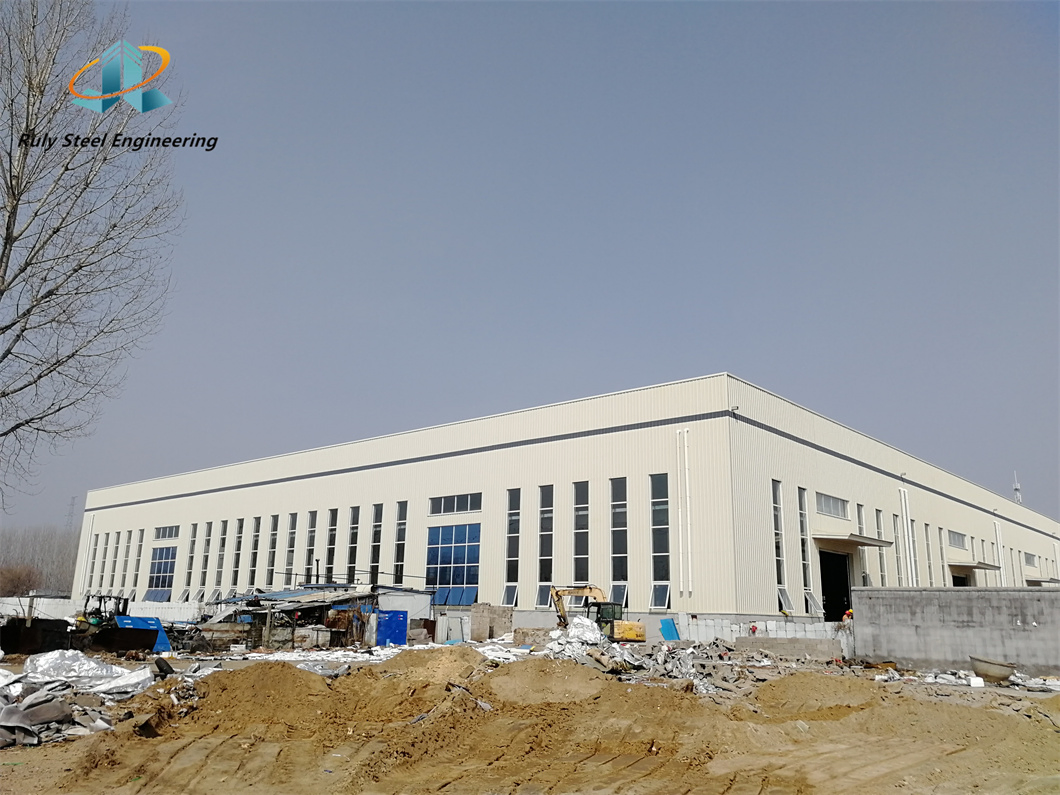

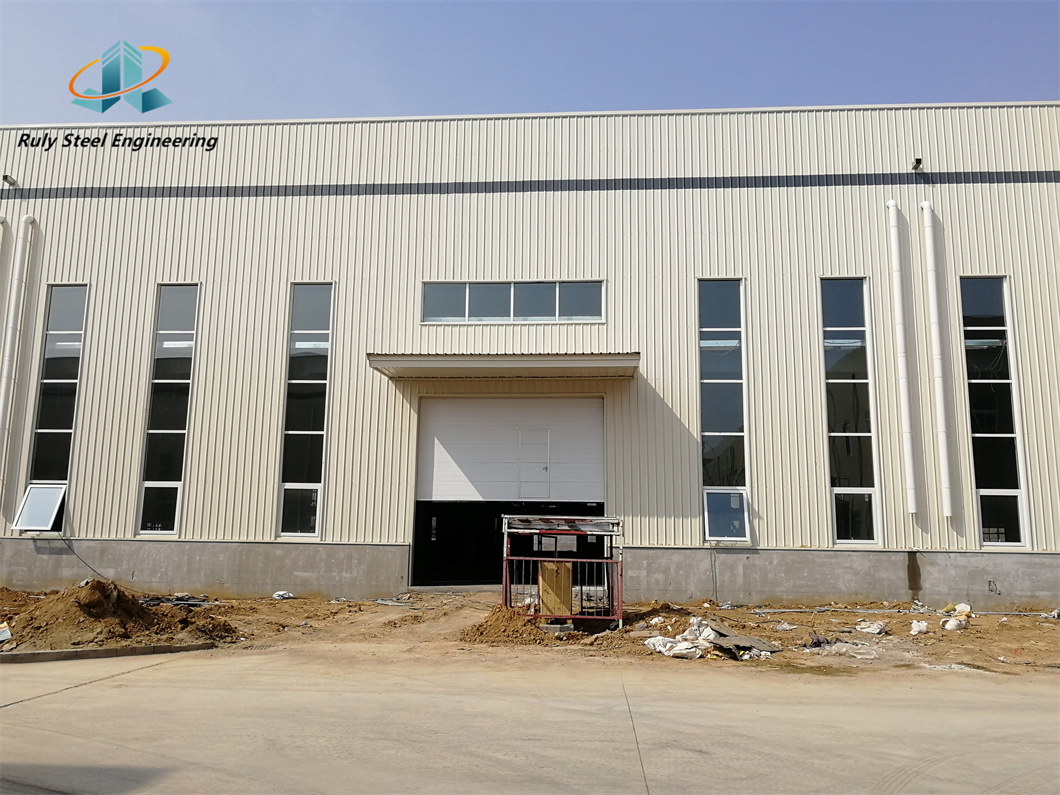

Modern Pre-Engineered Galvanized Steel Structure Prefabricated Metal Construction Prefab Building

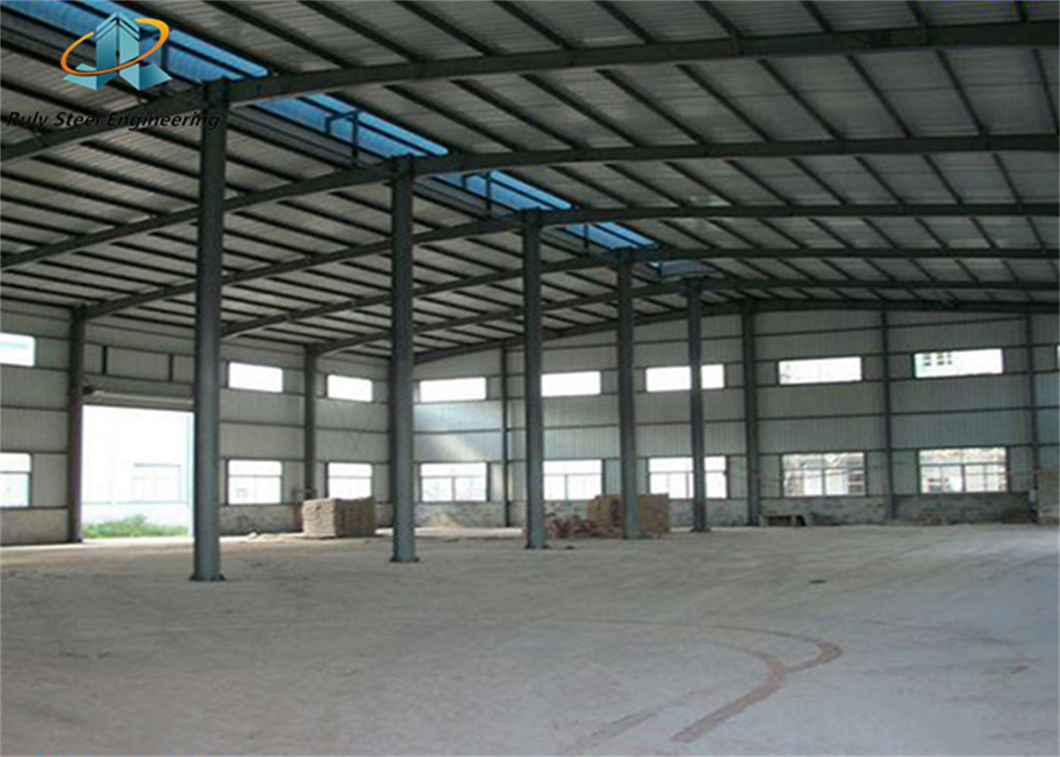

The steel structure construction building is a light building composed of steel columns, steel beams, supports, purlins, etc. All steel structure components are manufactured in the factory and delivered to the project site, allowing fast installation, green building benefits, and workforce savings.

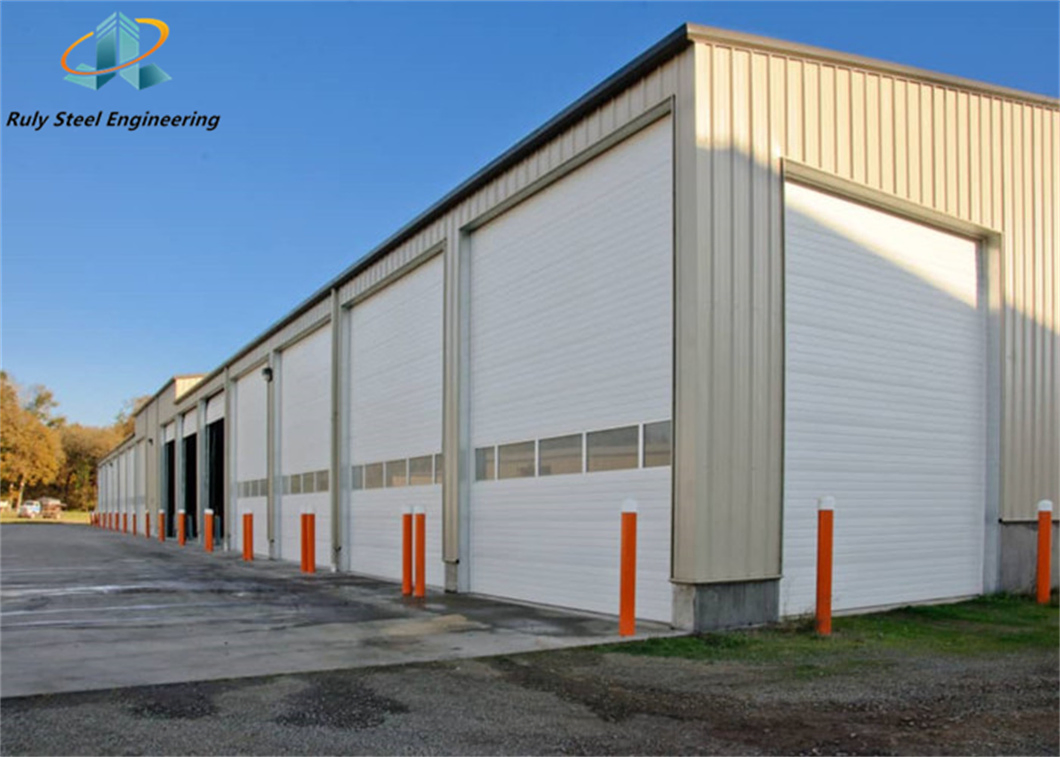

It can be widely used for warehouses, workshops, garages, garden storage sheds, airports, office buildings, apartments, and all kinds of steel buildings, metal buildings, modular houses, steel frames for other riveting and welding parts, etc. The sizes can be customized according to requirements.
If you have drawings, we can make the quotation according to your designs. If not, please provide the following details for layout design and quotation:

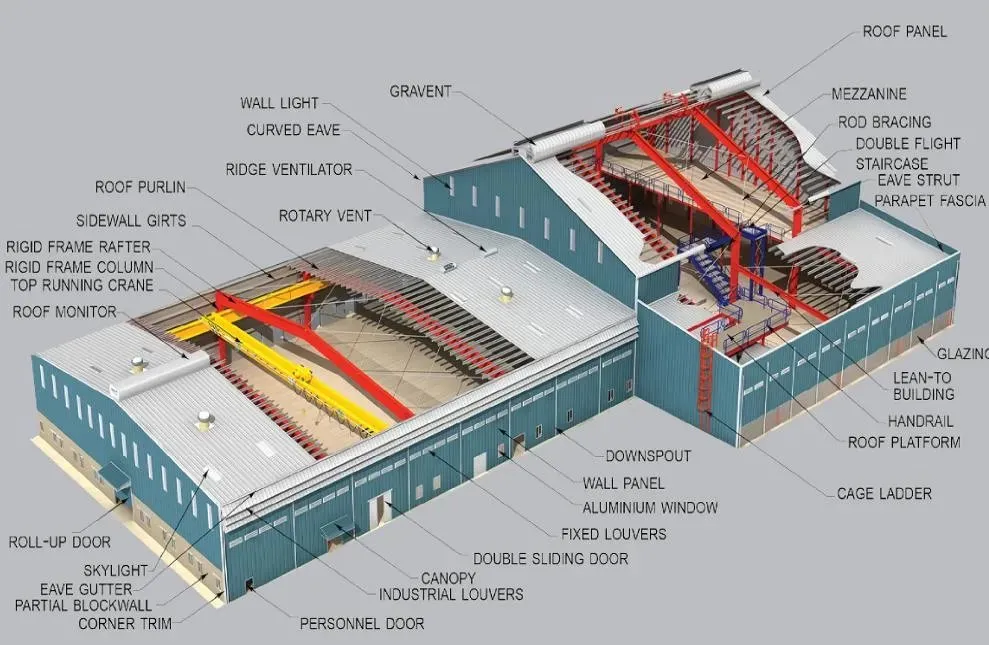

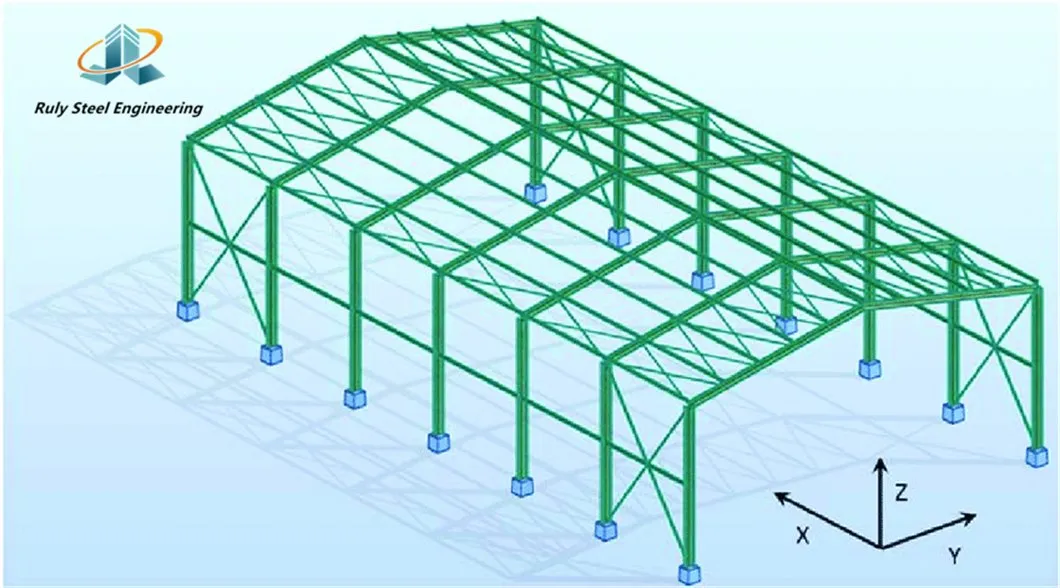

System Classifications: It is a Green economy building system formed by the main structure (H-section steel for beam/column, C channel steel or Z channel steel for purlin), substructure (Round steel bar or Angle steel for bracing, Round steel tube for tie bar, Angle steel for angle brace), roof and wall system (using sandwich panel or single steel sheet), and door and window systems.
Scope of Application: Widely used in large-span steel structure housing, factories, storage, office buildings, gymnasiums, and hangars. It is suitable for single-storey long-span buildings, as well as multi-storey structural options.
Main Features: 1) Light weight; 2) High structural reliability; 3) Strong vibration (earthquake) and impact resistance; 4) Industrialized manufacturing; 5) Quick and accurate assembly; 6) Spacious interior layout; 7) Sealed structure compatibility; 8) Proper corrosion resistance design; 9) Fire safety adaptation.
| Item Name | Specification | Material Parameter | Technical Treatment |
|---|---|---|---|
| Column | H shape, Box, steel pipe, Hot rolled sheet | Q235B, Q355B | Paint or Hot dip galvanized |
| Beam | H shape, steel Truss, Hot rolled sheet | Q235B, Q355B | Paint or Hot dip galvanized |
| Bracing | Steel rod, Steel pipe, Angle steel | Q235B, Q355B | - |
| Purlin | C or Z shape, Purlin Thickness: 1.8mm~3.0mm | Q235B, Q355B | Hot dip galvanized |
| Wall and Roof Panel | EPS, Rock wool, PU, Glass wool Sandwich panel or Single sheet | Steel T=0.426~0.8mm, Insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet, T=1.0~1.5mm | Paint or Hot dip galvanized |
| Window | Alloy-Glass, Aluminium alloy-shutter | T=1.0~2.0mm | Alloy |
| Lighting Panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion: 2.2x10-5/cm/cm/ºC | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel, stainless steel, PC | Paint or Hot dip galvanized, 304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot dip galvanized, 304 |
| Downpipe | PVC pipe, Color steel pipe T=0.5mm | Φ110, 160, 200 | Paint |
| Bolt | Ordinary, high strength | 10.9S, 4.8s | Hot dip galvanized |
| Anchor Bolt | Steel rod M24, M27 M30 | Q235B | - |
Our professional steel structure fabrication and engineering enterprise integrates steel structure design, research and development, manufacturing, and installation. Project scopes include prefabricated steel workshops, warehouses, logistics parks, civil building systems, high-rise residential buildings, exhibition centers, stadiums, airports, power plants, chemical plants, mining operations, and more.

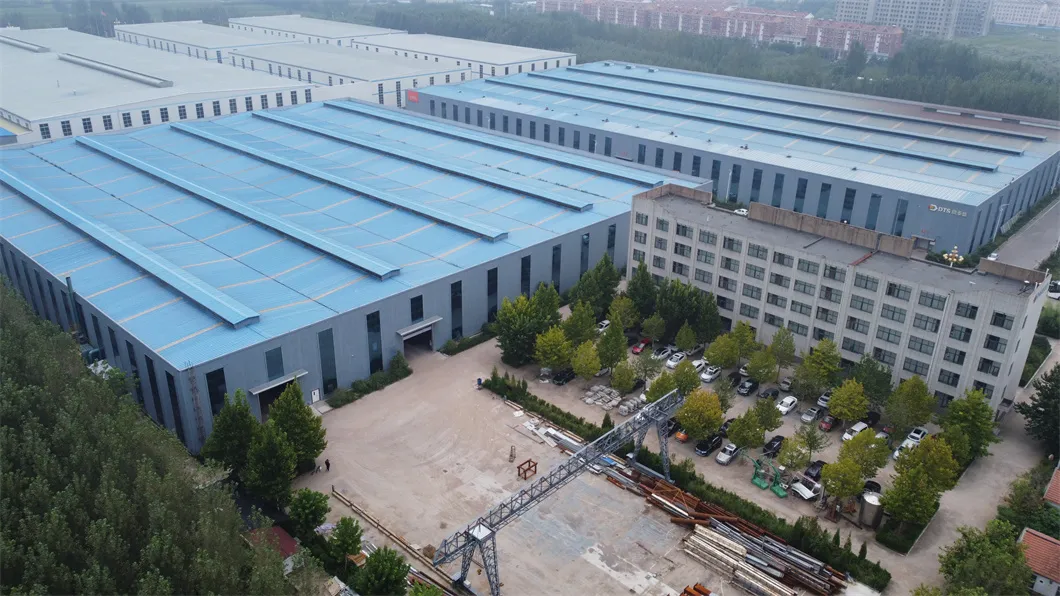

Our processing facilities cover an area of 35,000 square meters, featuring a 20,000-square-meter plant. Supported by more than 100 dedicated employees, the monthly production capacity for steel structures exceeds 1,500 tons. Componetns fabricated include light/heavy H steel, BOX steel, cross-shaped section steel, large-diameter submerged arc straight-weld pipe, steel model structures, and C/Z purlins. Our operations strictly implement ISO9001:2008 quality management, ISO14001:2004 environmental management, and GB/T28001:2001 occupational health systems, alongside international product certifications.
We provide comprehensive construction drawings before the installation of each project. We can also dispatch experienced engineers to guide installation on-site or manage the process using dedicated construction teams.
We are a professional direct manufacturing factory specializing in steel structures.
We produce steel columns, variable cross-section columns, cross columns, H beams, arc-shape H beams, two cross-section beams, variable cross-section beams, box beams, tie beams, sectioned beams, arc-shape beams, castellated beams, and more.
Our steel works are used for steel structure buildings, warehouses, workshops, factories, office buildings, shopping malls, hospitals, apartments, and various industrial setups.
Our facilities are equipped with CNC cutting machines, H-Beam Auto Assembly Machines, Auto submerged arc welding machines, Flange Straightening Machines, Hydraulic Brake Type Plates, Shearing Machines, Numerical Control Cutting Machines, Three Torches Straightline Cutting Machines, Magnetic drill machines, Intelligent & Manual Welders, Air Compressors, and Sandblasting Machines.
We strictly follow GB, JIS, and ASTM standard configurations depending on project requirements.
We pack utilizing a steel pallet on the bottom, with wood placed between each layer and cables for secure fastening, or custom packing based on specific client requirements.
